Ubiquiti UniFi Protect Camera

Ubiquiti G6 PTZ 4K Dual-Lens Camera

All-weather, 4K dual-lens camera with 10x hybrid zoom, 1/1.8" 8MP image sensor, Multi-TOPS AI Engine, and ultra-low latency pan-tilt-zoom control for motion tracking.

4K 8MP 3840 × 2160 Resolution

10x Hybrid Zoom

350° Pan Range

30m IR Night Vision

IP66 Weatherproofing

Camera Highlights

Wide-Area 4K Monitoring with PTZ Control

Dual-lens imaging, hybrid zoom, smart detections and flexible mounting options for UniFi Protect surveillance environments.

4K Dual-Lens Imaging

The camera supports a maximum resolution of 8MP at 3840 × 2160 in a 16:9 format. It uses a 1/1.8" 8MP sensor with separate wide and tele lenses.

10x Hybrid Zoom

The wide lens provides a horizontal field of view of 109.9°, while the tele lens provides a horizontal field of view of 26.6°. The camera supports 10x hybrid zoom.

Pan-Tilt-Zoom Coverage

The camera provides a pan range of 350° and a tilt range of 100°, with ultra-low latency pan-tilt-zoom control for motion tracking.

Smart Detection Features

Supported capabilities include face recognition, license plate recognition and smart detections for people, vehicles and animals.

Night and Outdoor Monitoring

Built-in IR LED illumination and an IR cut filter support night monitoring, with an IR night vision distance of 30 m or 98 ft. The enclosure is rated IP66.

Flexible Installation

Included mounting options support wall, surface, ceiling and pole mounting. Optional mounting accessories support corner, in-ceiling and pendant installation, as well as a conduit adapter.

Product Videos

See the G6 PTZ Camera in Action

View the supplied Ubiquiti product demonstrations and camera examples.

Product Overview

Ubiquiti G6 PTZ Camera Features

Explore the camera design, included mounting hardware, installation options, dimensions and hardware connections.

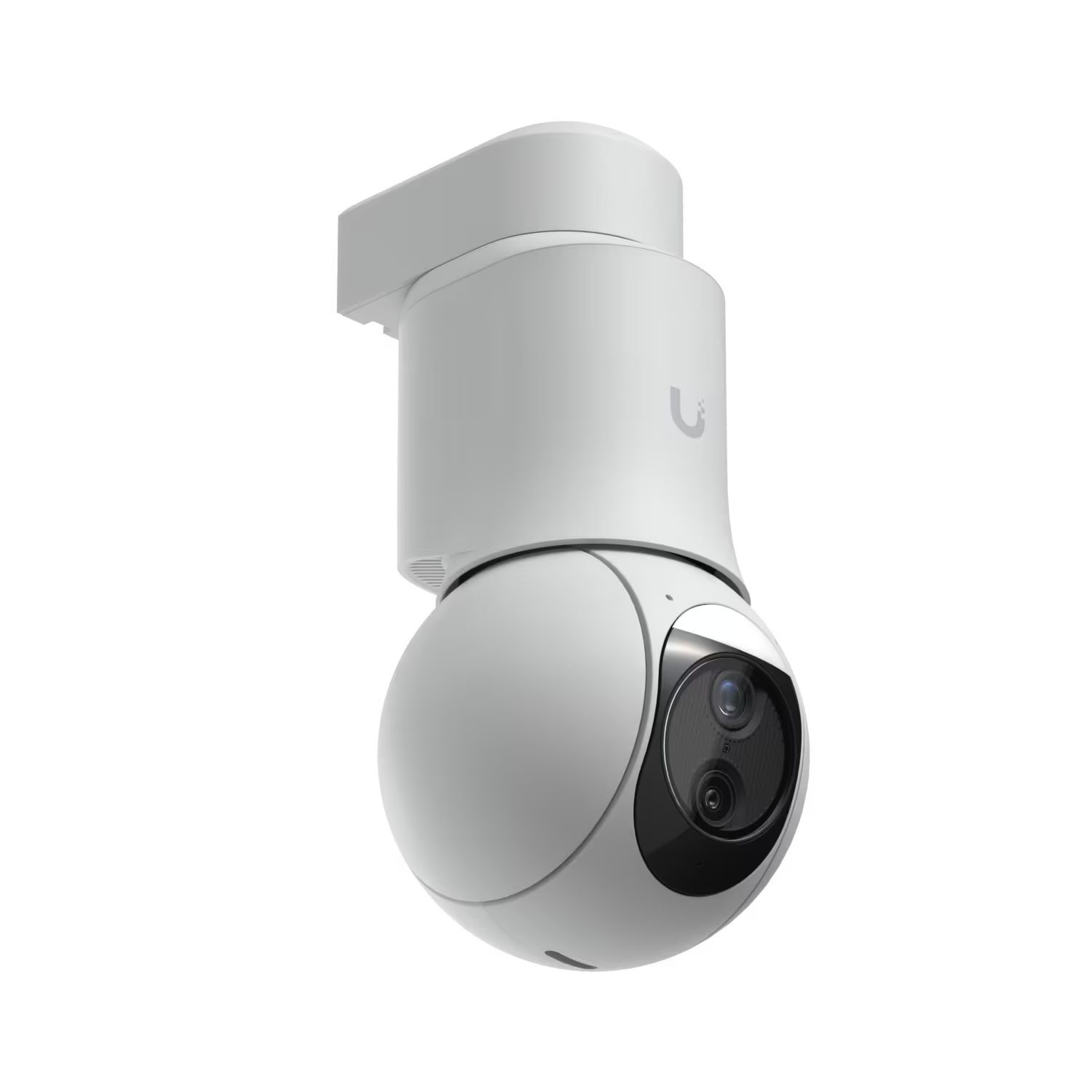

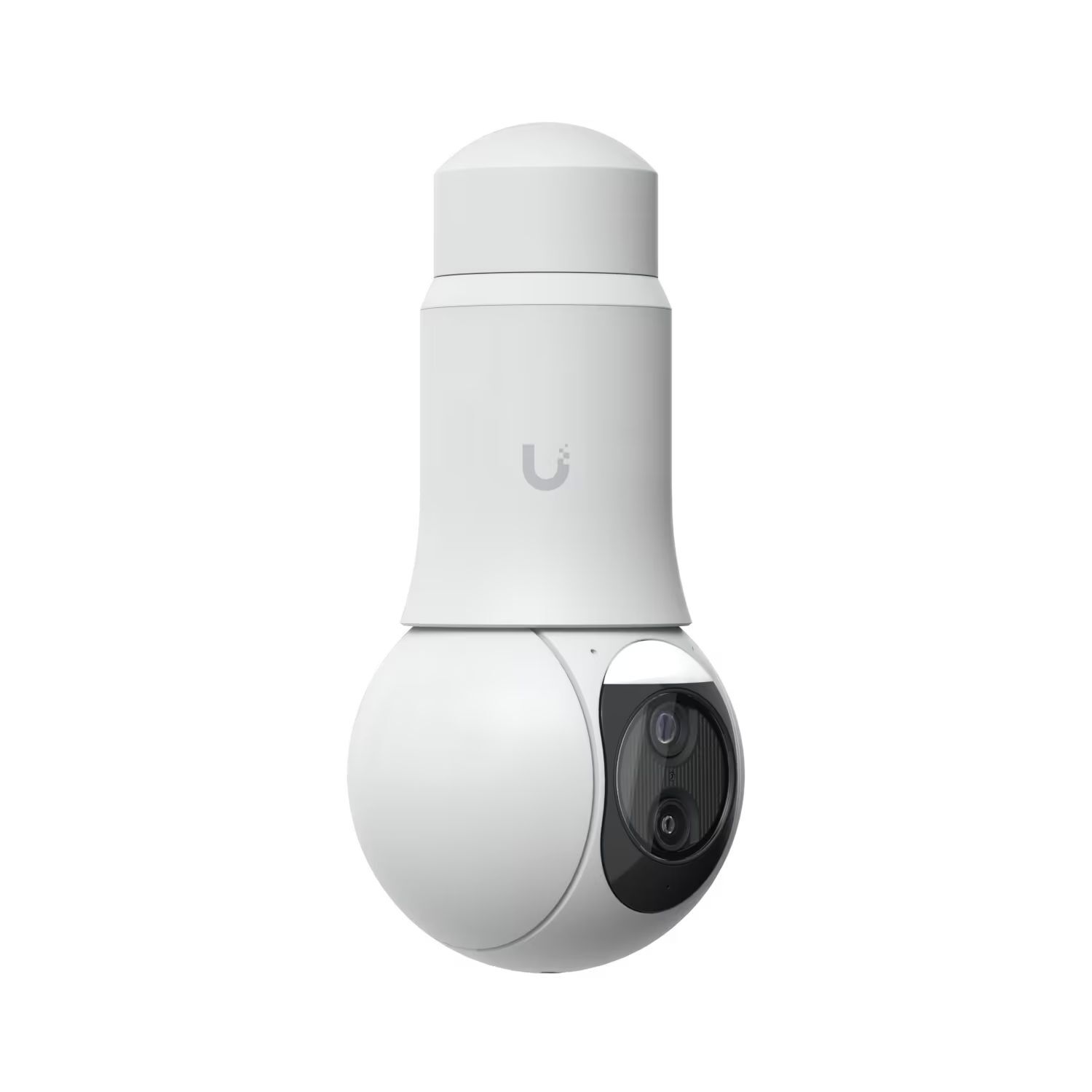

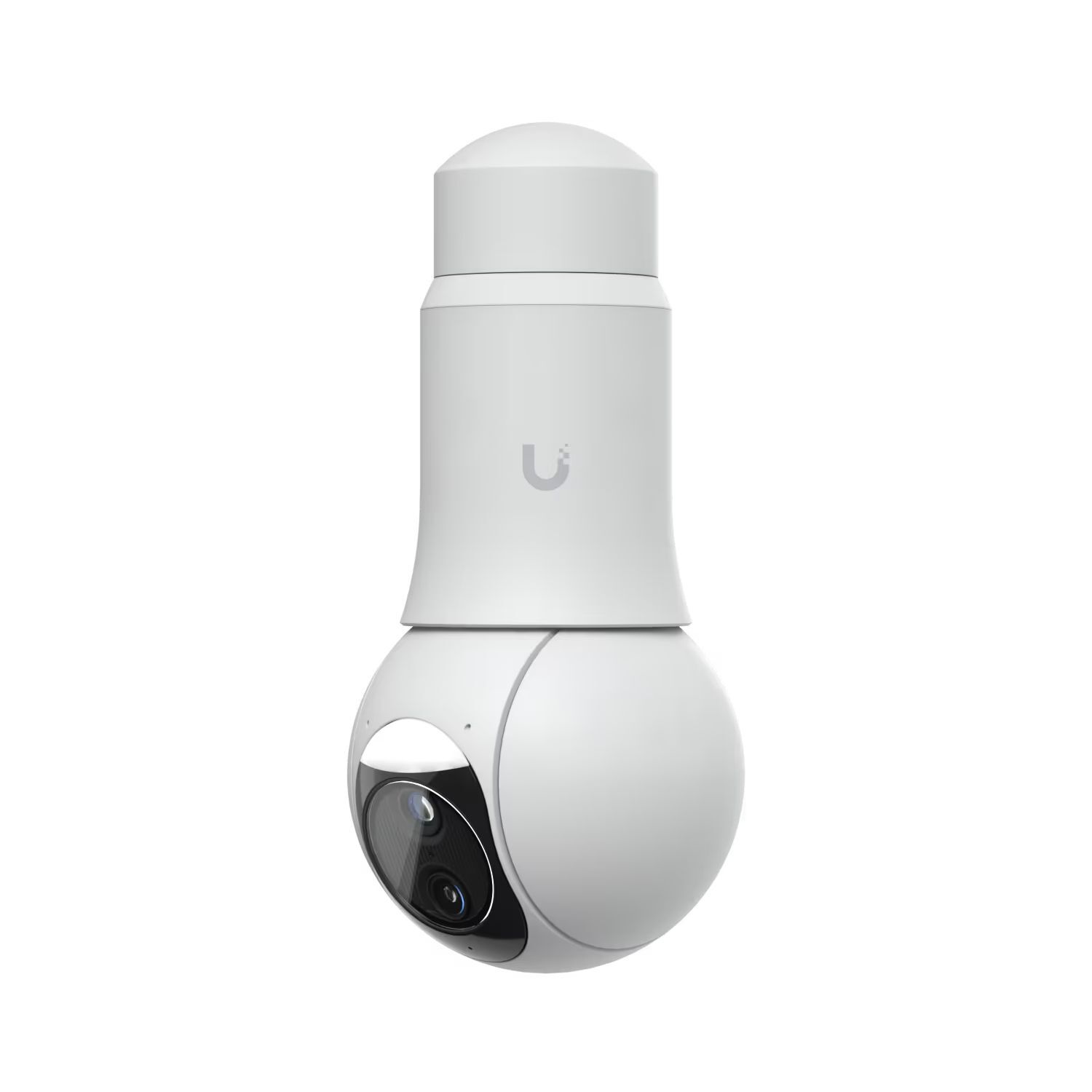

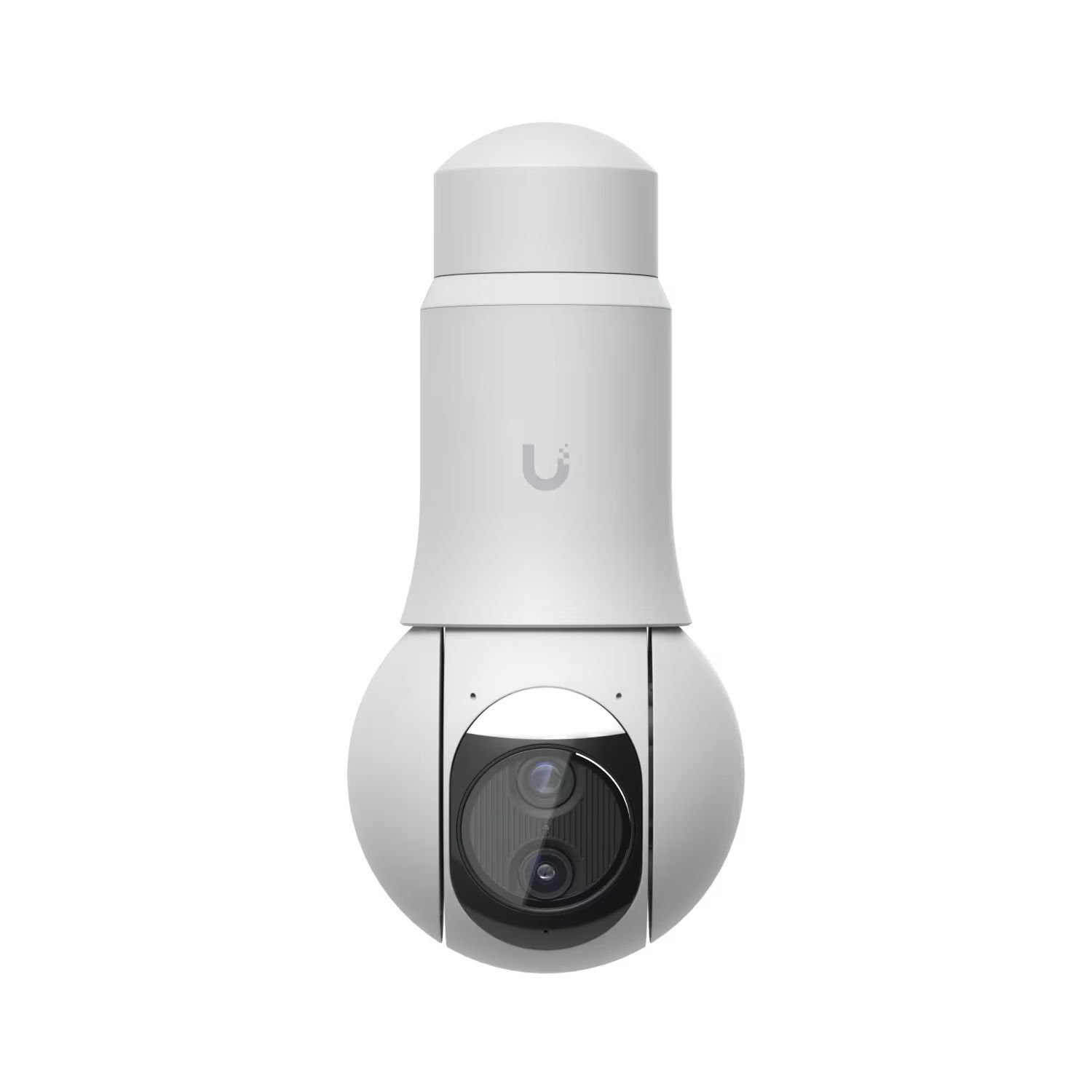

Ubiquiti G6 PTZ dual-lens camera overview

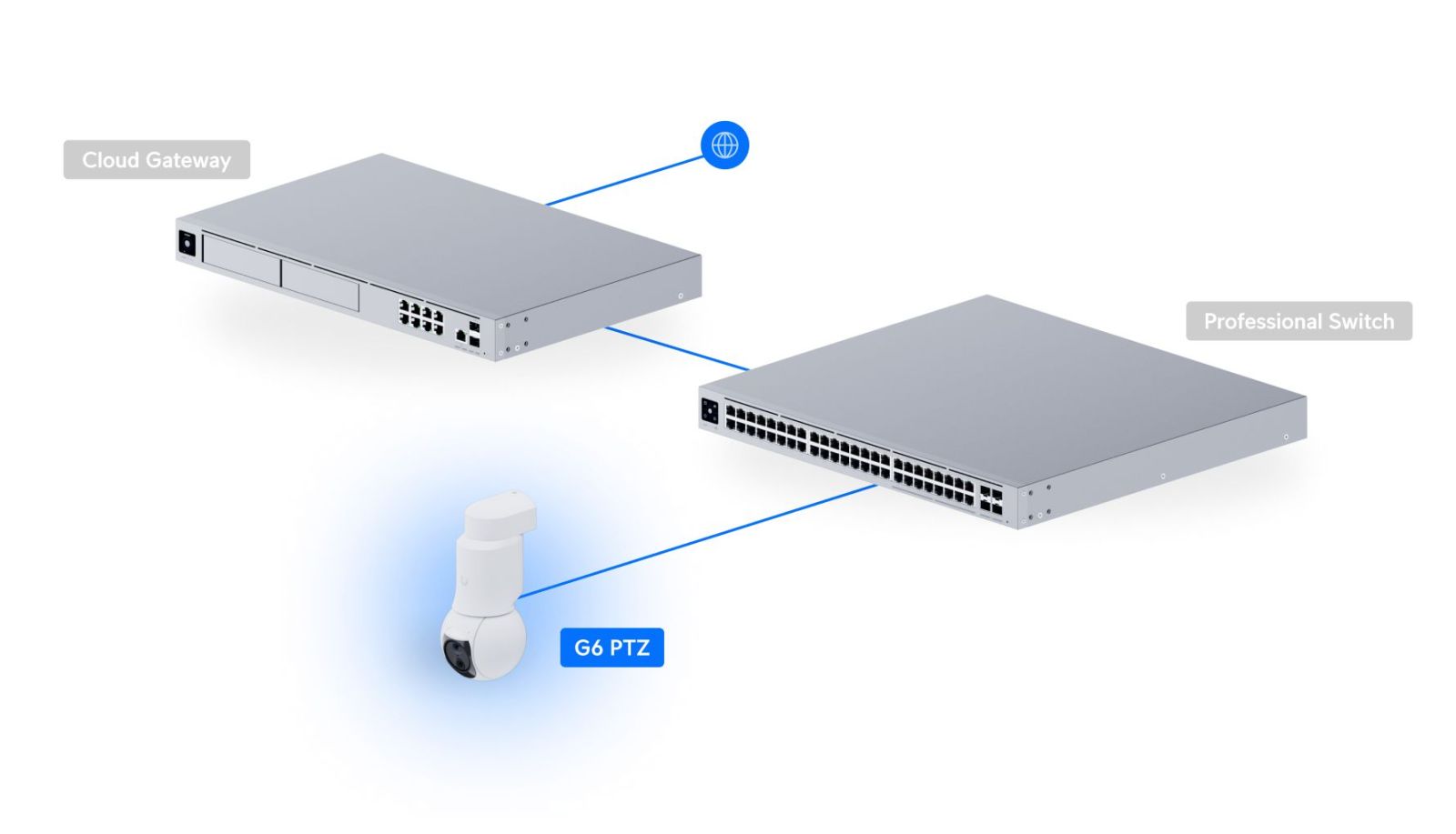

Ubiquiti G6 PTZ PoE network connection diagram

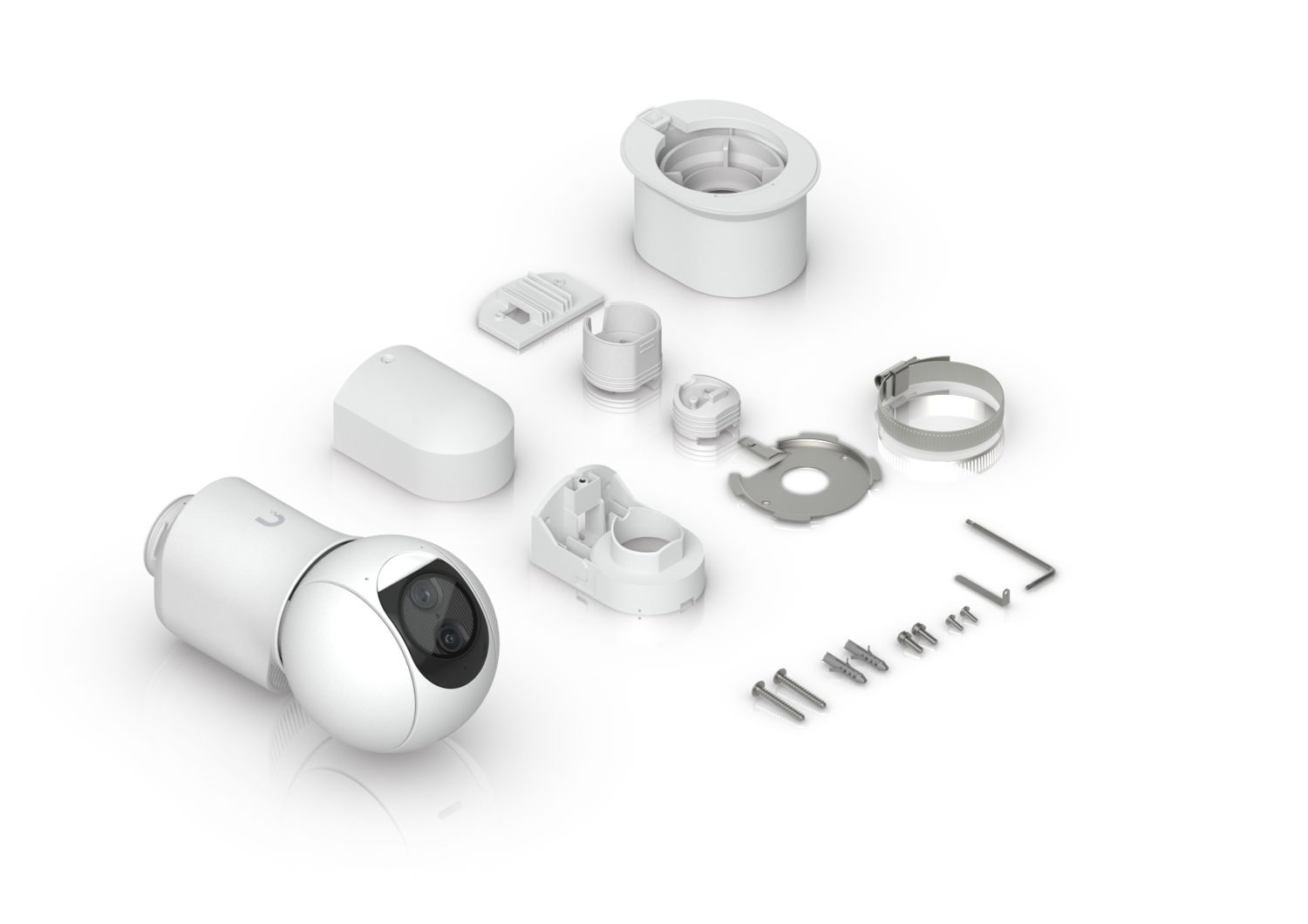

Ubiquiti G6 PTZ camera and included mounting accessories

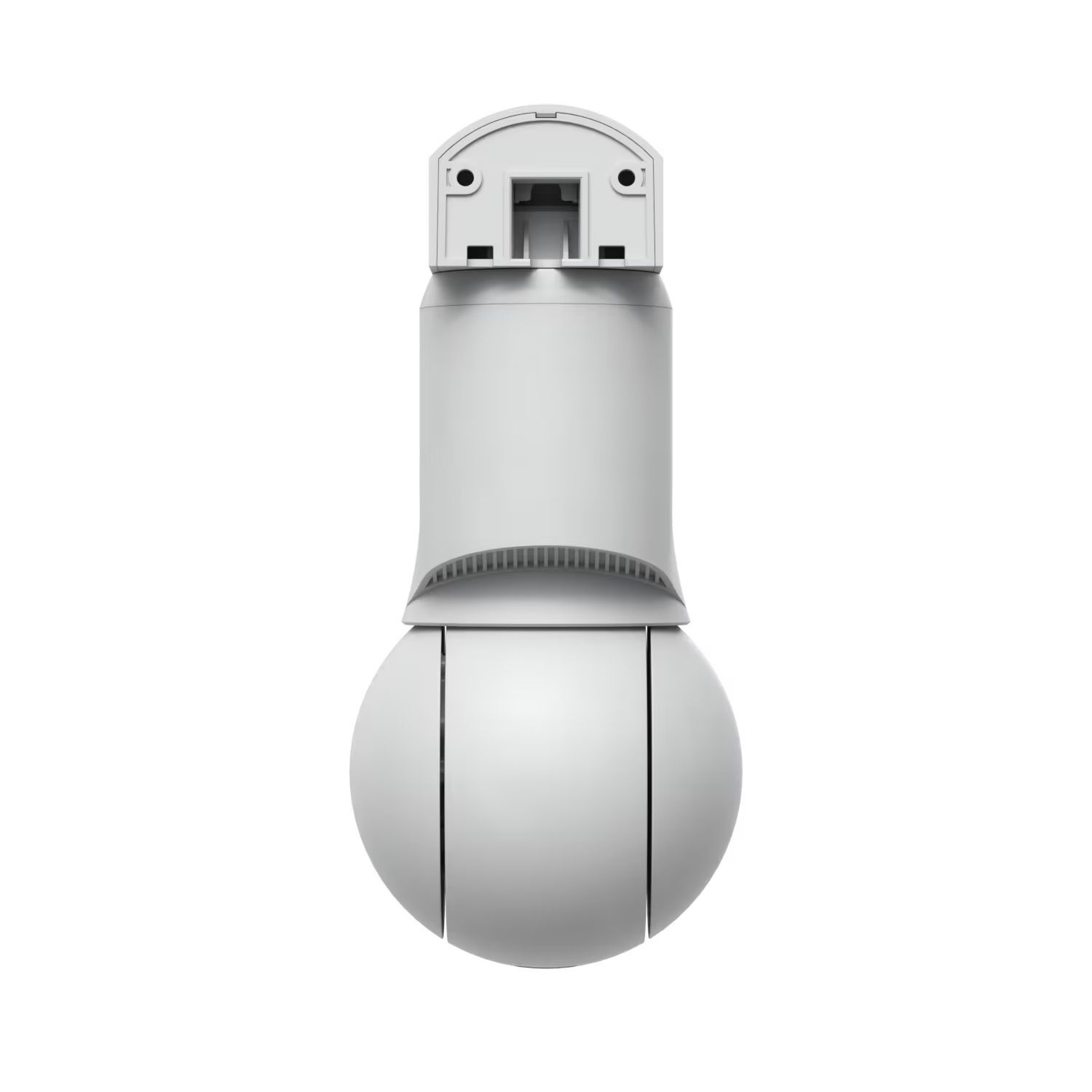

Ubiquiti G6 PTZ rear Ethernet and reset connections

Technical Specifications

Ubiquiti G6 PTZ Specifications

Camera, performance, optics, hardware, environmental and mounting specifications.

Category	Specification
Overview
Dimensions Without Mount	Ø107.2 x 104.5 x 203.2 mm (Ø4.2 x 4.1 x 8")
Dimensions With Mount	Ø107.2 x 111 x 230.2 mm (Ø4.2 x 4.8 x 9.1")
IR Night Vision	30 m (98 ft)
Zoom Mode	10x Hybrid
Face Recognition	Yes
License Plate Recognition	Yes
Smart Detections	People, Vehicles, Animals
Resolution	4K
Field of View — Wide	H: 109.9°, V: 56.7°, D: 134.1°
Field of View — Tele	H: 26.6°, V: 15.1°, D: 30.4°
Pan-Tilt Range	Pan: 350°, Tilt: 100°
Audio	Two-way audio
Weatherproofing	IP66
Tamper Resistance	IK04
Mounting — Included	Wall, Surface, Ceiling, Pole mount
Mounting — Optional	Corner, In-Ceiling, Pendant mount, Conduit adapter
UniFi Application Suite	Protect: Yes
Performance
Networking Interface	10/100 MbE RJ45 port
Image Settings	Color, brightness, sharpness, contrast, white balance, exposure, 2DNR, 3DNR, NR by motion, masking, text overlay, HDR
Maximum Frame Rate	Dual mode: 15 FPS, Single mode: 30 FPS
Maximum Resolution	8MP 3840 x 2160 (16:9)
Optics
Sensor	1/1.8" 8MP
Wide Lens	F 4.46 mm; ƒ/1.65
Tele Lens	F 16.3 mm; ƒ/2.4
Night Mode	Built-in IR LED illumination and IR cut filter
Hardware
Maximum Power Consumption	24.5W
Voltage Range	42.5–57V DC
Power Method	PoE+
Processor	Quad-core Arm® Cortex®-A53 based chip
Pole Mount Diameter	1.5–2" (38–50 mm)
Weight Without Arm Mount	1 kg (2.2 lb)
Weight With Arm Mount	1.1 kg (2.4 lb)
Enclosure Material	Aluminum alloy, polycarbonate
Mount Material	Arm mount: polycarbonate; Pole mount: aluminum alloy
Button	(1) Factory-reset
Operating Temperature	-30 to 50° C (-22 to 122° F)
Operating Humidity	20 to 90% noncondensing
Certifications	CE, FCC, IC
NDAA Compliant	Yes
Expansion Slot	MicroSD card

Frequently Asked Questions

Ubiquiti G6 PTZ FAQs

Answers to common questions about resolution, zoom, detection, night vision, mounting and UniFi Protect support.

What resolution does the Ubiquiti G6 PTZ support?

The camera supports 4K video with a maximum resolution of 8MP at 3840 × 2160 in a 16:9 format.

What type of zoom does the G6 PTZ provide?

The Ubiquiti G6 PTZ supports 10x hybrid zoom using its wide and tele lenses.

What is the pan and tilt range?

The camera has a pan range of 350° and a tilt range of 100°.

How far does the infrared night vision reach?

The built-in IR night vision has a stated range of 30 metres or 98 feet.

What smart detections are supported?

Smart detections include people, vehicles and animals. The supplied specifications also list face recognition and license plate recognition.

Is the Ubiquiti G6 PTZ weatherproof?

Yes. The camera has an IP66 weatherproofing rating and an IK04 tamper-resistance rating.

Which mounting options are included?

The included mounting options support wall, surface, ceiling and pole mounting.

Which optional mounting options are supported?

Optional mounting options include corner, in-ceiling and pendant mounts, as well as a conduit adapter.

Does the G6 PTZ support two-way audio?

Yes. Two-way audio is included in the supplied specifications.

How is the Ubiquiti G6 PTZ powered?

The camera is powered using PoE+ and has a maximum power consumption of 24.5W.

Does the camera work with UniFi Protect?

Yes. The supplied UniFi Application Suite specification lists Protect support.

Does the camera include a MicroSD card slot?

Yes. The listed expansion slot is MicroSD card.

(UVC-G6-PTZ-W)

Ubiquiti G6 PTZ Technical Specifications

Camera, optics, performance, power, environmental and mounting specifications.

Category	Specification
Overview
Dimensions Without Mount	Ø107.2 x 104.5 x 203.2 mm (Ø4.2 x 4.1 x 8")
Dimensions With Mount	Ø107.2 x 111 x 230.2 mm (Ø4.2 x 4.8 x 9.1")
IR Night Vision	30 m (98 ft)
Zoom Mode	10x Hybrid
Face Recognition	Yes
License Plate Recognition	Yes
Smart Detections	People, Vehicles, Animals
Resolution	4K
Field of View — Wide	H: 109.9°, V: 56.7°, D: 134.1°
Field of View — Tele	H: 26.6°, V: 15.1°, D: 30.4°
Pan-Tilt Range	Pan: 350°, Tilt: 100°
Audio	Two-way audio
Weatherproofing	IP66
Tamper Resistance	IK04
Mounting — Included	Wall, Surface, Ceiling, Pole mount
Mounting — Optional	Corner, In-Ceiling, Pendant mount, Conduit adapter
UniFi Application Suite	Protect: Yes
Performance
Networking Interface	10/100 MbE RJ45 port
Image Settings	Color, brightness, sharpness, contrast, white balance, exposure, 2DNR, 3DNR, NR by motion, masking, text overlay, HDR
Maximum Frame Rate	Dual mode: 15 FPS, Single mode: 30 FPS
Maximum Resolution	8MP 3840 x 2160 (16:9)
Optics
Sensor	1/1.8" 8MP
Wide Lens	F 4.46 mm; ƒ/1.65
Tele Lens	F 16.3 mm; ƒ/2.4
Night Mode	Built-in IR LED illumination and IR cut filter
Hardware
Maximum Power Consumption	24.5W
Voltage Range	42.5–57V DC
Power Method	PoE+
Processor	Quad-core Arm® Cortex®-A53 based chip
Pole Mount Diameter	1.5–2" (38–50 mm)
Weight Without Arm Mount	1 kg (2.2 lb)
Weight With Arm Mount	1.1 kg (2.4 lb)
Enclosure Material	Aluminum alloy, polycarbonate
Mount Material	Arm mount: polycarbonate; Pole mount: aluminum alloy
Button	(1) Factory-reset
Operating Temperature	-30 to 50° C (-22 to 122° F)
Operating Humidity	20 to 90% noncondensing
Certifications	CE, FCC, IC
NDAA Compliant	Yes
Expansion Slot	MicroSD card

SKU	UVC-G6-PTZ-W
Barcode #	810177161486
Brand	Ubiquiti
Shipping Weight	2.0600kg
Shipping Width	0.150m
Shipping Height	0.420m
Shipping Length	0.148m
