(Omada-8MP-Bullet)

LENS
Type	Fixed Focal Lens
Focal Length	4 mm
Aperture	F1.6
FOV	• Horizontal FOV: 88.0° • Vertical FOV: 46.0° • Diagonal FOV: 105.4°
Lens Mount	M12
DORI Distance	4 mm: • D: 351 ft (107 m) • O: 144 ft (44 m) • R: 69 ft (21 m) • I: 36 ft (11 m)

Angle Adjustment (Manual)
Range	Pan: 0° to 360°, Tilt: 0° to 90°, Rotation: 0° to 360°

ILLUMINATOR
IR LED	• Quantity: 2 • Range: 98 ft (30 m)** • IR Wavelength: 850 nm
White LED	• Quantity: 2 • Range: 98 ft (30 m)**
Illuminator On/Off Control	Auto/Always on/Always off

VIDEO
Max. Resolution	3840x2160
Main Stream	• Frame Rate: 50Hz: 25fps (3840x2160, 2560x1440, 2304x1296, 2048x1280,1920x1080) 60Hz: 24fps (3840x2160, 2560x1440, 2304x1296, 2048x1280,1920x1080) • Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps. If 120dB WDR is turned on, the frame rate can only support up to 20fps.
Sub-Stream	• Frame Rate： 50Hz: 25fps (840x480,704x576,640x480, 640x360, 352x288, 320x240) 60Hz: 24fps (840x480,704x576,640x480, 640x360, 352x288, 320x240) • Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps. If 120dB WDR is turned on, the frame rate can only support up to 20fps.
Bit Rate Control	CBR, VBR
Video Compression	• Main Stream: H.265+/H.265/H.264+/H.264 • Sub-Stream: H.265/H.264
H.264 Type	High Profile
H.264+	Main Stream Supported
H.265 Type	Main Profile
H.265+	Main Stream Supported
Video Bit Rate	• Main Stream: 256 Kbps to 8192 Kbps • Sub-Stream: 64 Kbps to 1024 Kbps

Image Settings	• Mirror • Rotation • Contrast • Brightness • Saturation • Sharpness • Exposure • White Balance
Image Enhancement	BLC/3D DNR/SmartIR
Wide Dynamic Range	120 dB
SNR	≥ 52 dB
Image Parameters Switch	Yes
Privacy Mask	Up to 4 Masks
OSD Setting	Yes

AUDIO
Audio Communication	Two-Way Audio
Audio Input	Yes (Built-in Microphone)
Audio Output	Yes (Built-in Speaker)
Audio Compression	Yes
Audio Sampling Rate	8KHz, 16KHz
Environment Noise Filtering	Yes
Audio Bit Rate	64 Kbps(G.711 alaw, G.711 ulaw)

NETWORK
Protocol	TCP/IP, UDP, ICMP, ARP, SMTP, RTMP, HTTP, HTTPS, DHCP, DNS, RTSP, RTP, NTP, IPv4, IPv6, UPnP, SSL/TLS, FTP/SFTP
ONVIF	Yes
API	Open Network Video Interface (Profile G/S/T)
Simultaneous Live View	3 Main Streams & 10 Sub-Streams
Client	Web UI, Omada Guard App, Omada Cloud-Based Controller (Guard)
Web Browser	• Google Chrome® 57 and above • Firefox® 52 and above • Safari® 11 and above • Microsoft® Edge 91 and above
Cloud	Yes
Security	Password Protection, HTTPS Encryption, IP/MAC Restricition, Digest Authentication, 802.1X Authentication

ALARM AND EVENT MANAGEMENT
Event	• Motion Detection (Human Detection, Vehicle Detection, Pet Detection) • Line Crossing Detection • Intrusion Detection • Camera Tampering
Alarm Linkage	• Memory Card Video Recording • Upload to FTP Server • Push Notifications • Active Defence-Sound Alarm • Active Defence-Light Alarm • Email Alarm

INTERFACES
Network Interface	1 RJ45 10/100M Self-Adaptive Ethernet Port, PoE
Reset Button	Yes
Power	DC Power Port
On-board Storage	Built-In Memory Card Slot, Support MicroSD Card, up to 512 GB*
Built-in Microphone	Yes; Records Anything Going on within a 16.4-ft (5 m) Radius of the Camera
Built-in Speaker	Yes

GENERAL
Operating Temperature	-30 °C to 60 °C (-22 °F to 140 °F)
Storage Temperature	-40 °C to 60 °C (-40 °F to 140 °F)
Operating Humidity	95% or Less (Non-Condensing)
Storage Humidity	95% or Less (Non-Condensing)

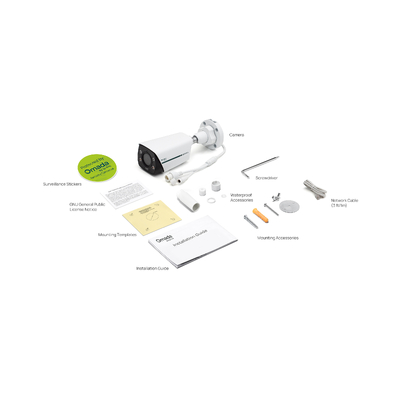

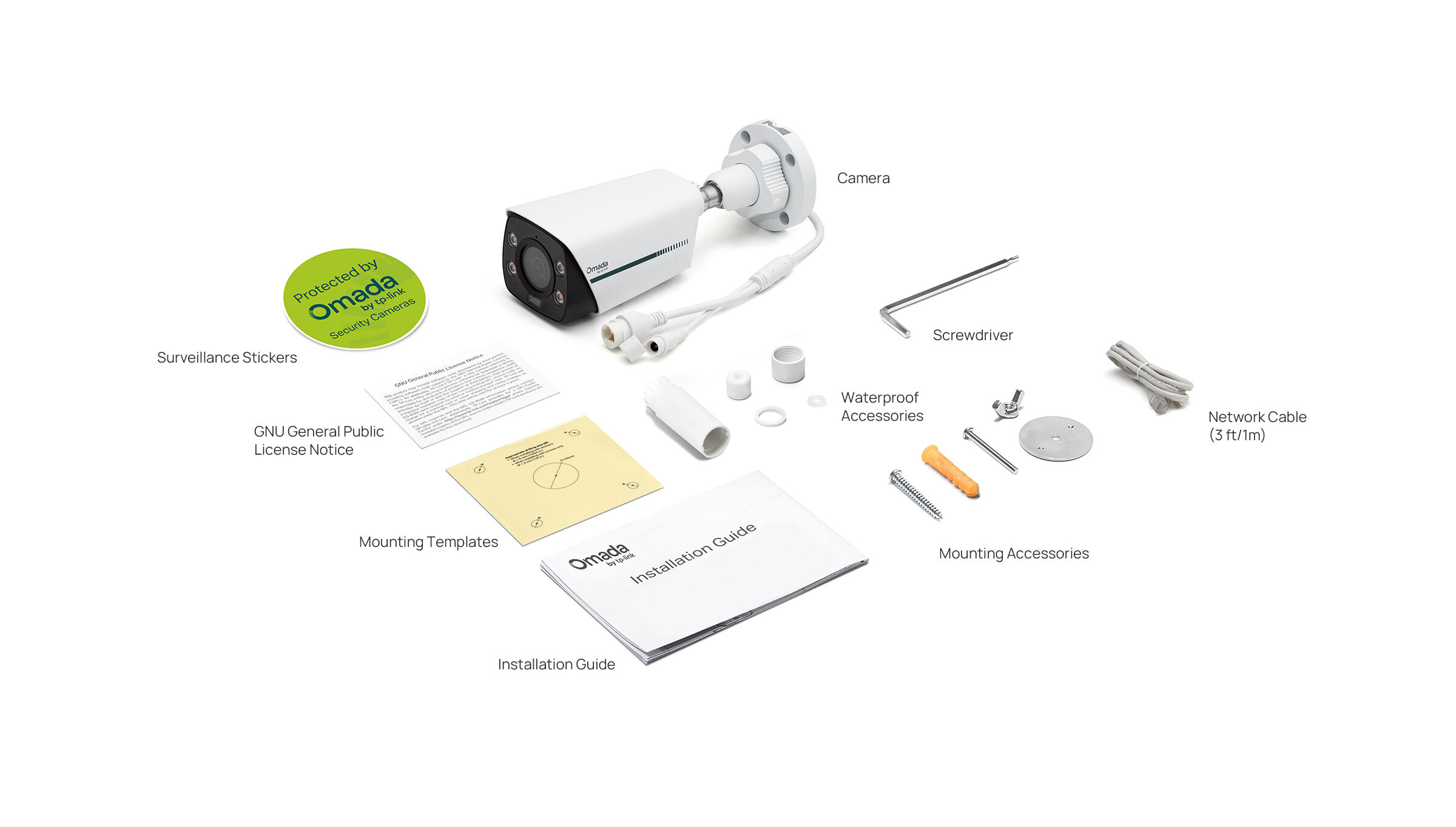

Package Content	• Omada Network Camera • Waterproof Cable Attachments • Network Cable (3 ft/1 m) • Mounting Template • Mounting Accessories • Screwdriver • GNU General Public License Notice • Installation Guide • Surveillance Sticker
Material	Metal
Net Weight	0.6 Kg
Power Supply	DC • 12V DC ± 5%, Max. 10.5 W, 5.5 mm Coaxial Power Plug • Recommended Power Supply: T120100-2C1 (for EU Regions) PoE • PoE: 802.3af/at, Max. 12 W ErP Information • Power consumption in networked standby when all wired network ports are connected and all wireless network ports are activated: 2.7 W
Protection	• IP67 Weatherproof • IK10 Vandal Proof

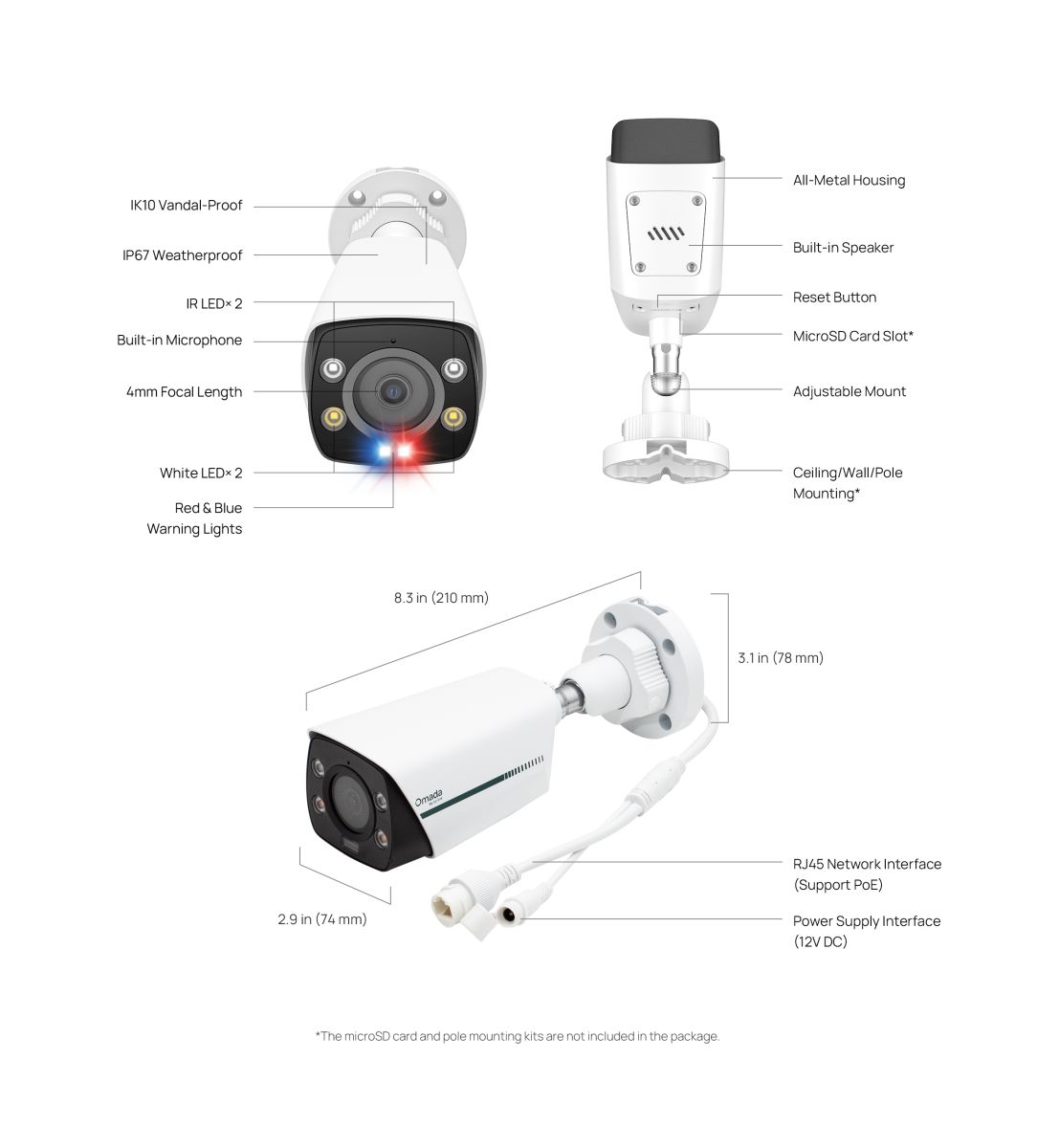

Product Dimensions (L x W x H)	8.3 × 2.9 × 3.1 in (210 × 74 × 78 mm)
Certifications	CE, NTRA, FCC, IP67, IK10, VCCI, BSMI, ONVIF
