(Omada-5MP-Bullet)

LENS
Type	Fixed Focal Lens
Focal Length	4 mm
Aperture	F1.6
FOV	4 mm: Horizontal FOV: 92.0°, Vertical FOV: 48.0°, Diagonal FOV: 110.0°
Lens Mount	M12
DORI Distance	4 mm Detect: 262 ft (80 m) Observe: 108 ft (33 m) Recognize: 52 ft (16 m) Identify: 26 ft (8 m)

Angle Adjustment (Manual)
Range	Pan: 0° to 360°, Tilt: 0° to 90°, Rotation: 0° to 360°

ILLUMINATOR
Illuminator On/Off Control	Auto/Always on/Always off
Integrated Infrared-White LED	• Quantity: 2 • IR Range: 98 ft (30 m) • White LED Range: 98 ft (30 m) • IR Wavelength: 850 nm

VIDEO
Max. Resolution	2880x1620
Main Stream	• Frame Rate: 50Hz: 25fps (2880x1620, 2688x1520, 2304x1296, 2048x1280, 1920x1080, 1280x720) 60Hz: 30fps (2880x1620, 2688x1520, 2304x1296, 2048x1280, 1920x1080, 1280x720
Sub-Stream	• Frame Rate: 50Hz: 25fps (848x480,704x576, 640x480, 640x360,352x288, 320x240) 60Hz: 30fps (848x480,704x576, 640x480, 640x360,352x288, 320x240)
Bit Rate Control	CBR, VBR
Video Compression	• Main Stream: H.265+/H.265/H.264+/H.264 • Sub-Stream: H.265/H.264
H.264 Type	High Profile
H.264+	Main Stream Supported
H.265 Type	Main Profile
H.265+	Main Stream Supported
Video Bit Rate	• Main Stream: 256 Kbps to 6144 Kbps • Sub-Stream: 64 Kbps to 512 Kbps

Image Settings	• Mirror • Brightness • Contrast • Saturation • Sharpness • Exposure • White Balance
Image Enhancement	BLC/3D DNR/Smart IR
Wide Dynamic Range	120dB
SNR	≥ 52 dB
Image Parameters Switch	Yes
Privacy Mask	Up to 4 Masks
OSD Setting	Yes

AUDIO
Audio Communication	N/A
Audio Input	Yes (Built-in Microphone)
Audio Output	N/A
Audio Compression	Yes
Audio Sampling Rate	8KHz, 16KHz
Environment Noise Filtering	Yes
Audio Bit Rate	64 Kbps(G.711 alaw, G.711 ulaw)

NETWORK
Protocol	TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, 802.1x, DNS, RTSP, NTP, UPnP UDP, SSL/TLS, FTP/SFTP, RTP, IPv4, IPv6, ARP, SMTP, SNMP, RTMP
ONVIF	Yes
Smart Integration	Amazon Alexa
API	Open Network Video Interface (Profile S/T)
Simultaneous Live View	3 Main Streams & 3 Sub-Streams
Client	Web UI, Omada Guard APP, Omada Cloud-Based Controller (Guard)
Web Browser	• Google Chrome® 57 and above • Firefox® 52 and above • Safari® 11 and above • Microsoft® Edge 91 and above
Cloud	Yes
Security	Password Protection, HTTPS Encryption, IP/MAC Restriction, Digest Authentication, 802.1X authentication

ALARM AND EVENT MANAGEMENT
Event	• Motion Detection (People Detection, Vehicle Detection, Pet Detection) • Intrusion Detection • Line-Crossing Detection • Video Tampering Detection
Alarm Linkage	• Sending Email • Upload to FTP • Message Push

INTERFACES
Network Interface	1 RJ45 10/100M Self-Adaptive Ethernet Port, PoE
Alarm	N/A
Reset Button	N/A
Power	DC Power Port
On-board Storage	N/A
Built-in Microphone	Yes; Records Anything Going on within a 16.4-ft (5 m) Radius of the Camera
Built-in Speaker	N/A
Audio	N/A

GENERAL
Operating Temperature	-30 °C to 60 °C (-22 °F to 140 °F)
Storage Temperature	-40 °C to 60 °C (-40 °F to 140 °F)
Operating Humidity	95% or Less (Non-Condensing)
Storage Humidity	95% or Less (Non-Condensing)

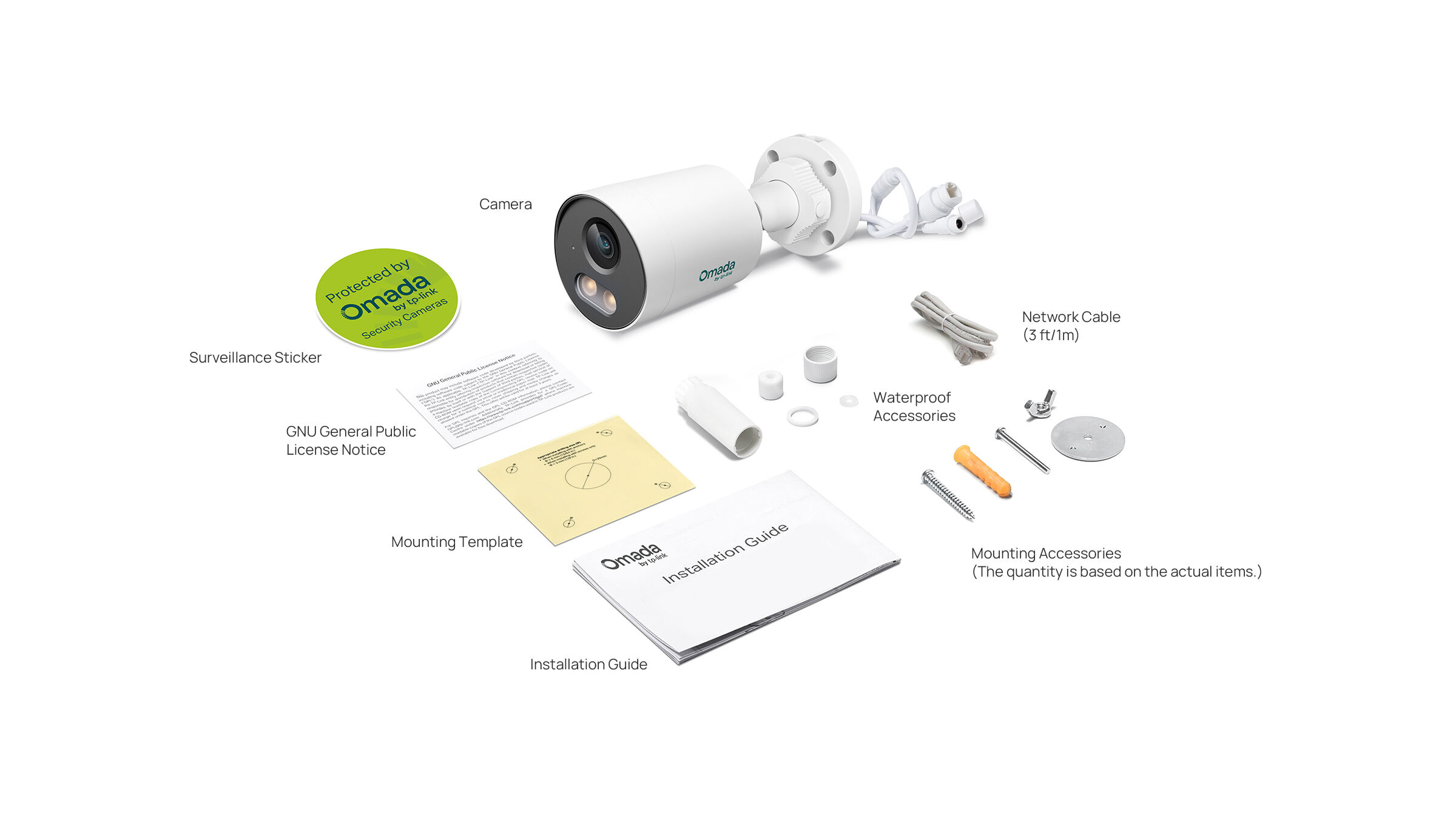

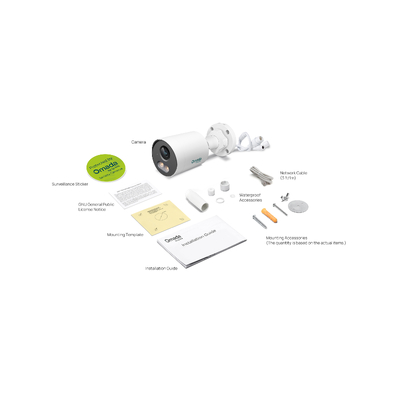

Package Content	• Omada Camera • Quick Start Guide • Waterproof Accessories • Mounting Accessories • Network Cable • Surveillance Sticker • Mounting Template • Installation Guide
Material	Metal
Net Weight	0.42 kg
Power Supply	DC • 12V DC ± 5%, Max. 7.4 W, 5.5 mm Coaxial Power Plug • Recommended Power Supply: T120100-2C4 (for EU Regions) PoE • PoE: 802.3af/at, Max. 8.7 W ErP Information • Power consumption in networked standby when all wired network ports are connected and all wireless network ports are activated: 2.3 W
Protection	• IP67 Weatherproof • IK10 Vandal Proof

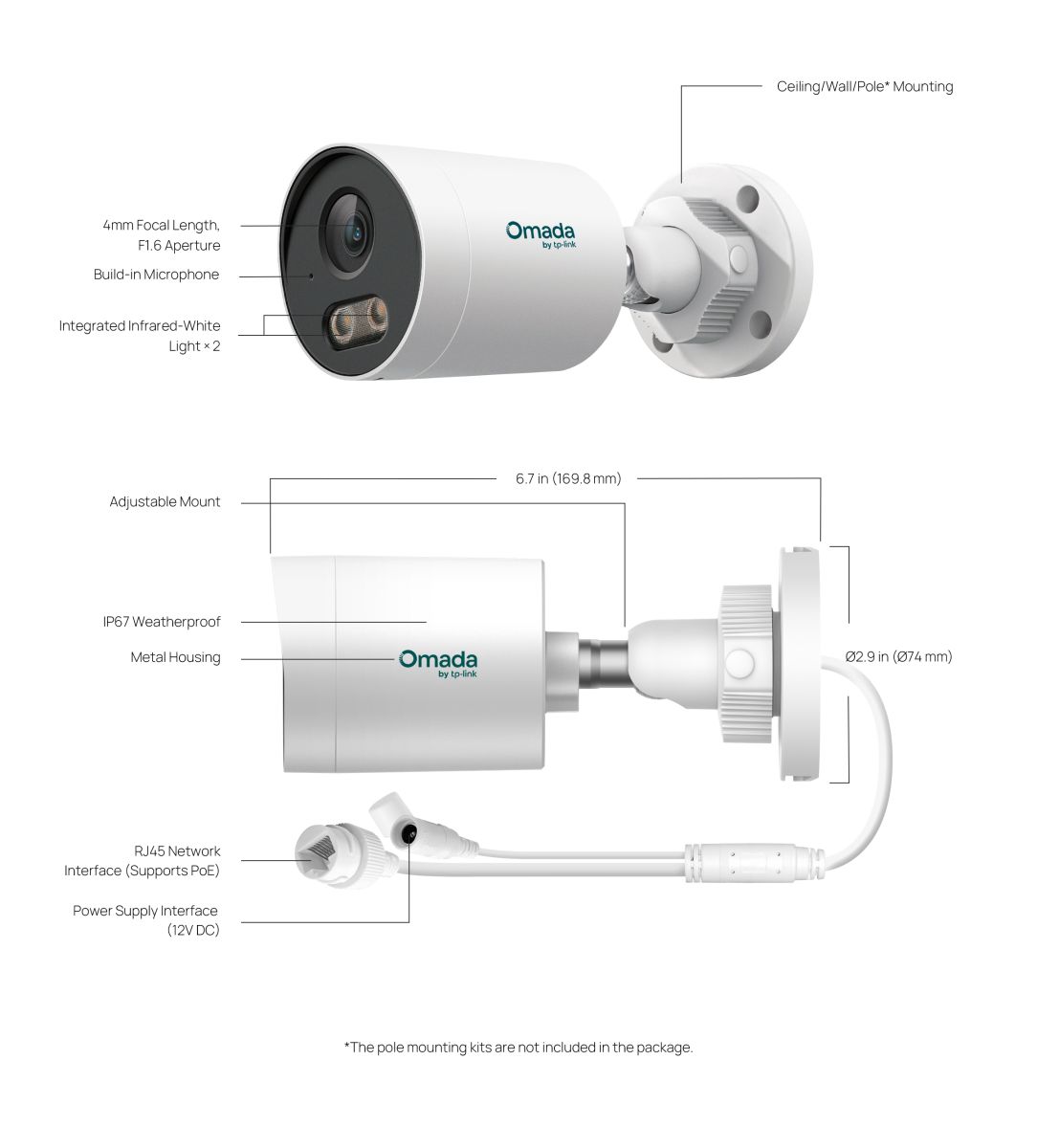

Product Dimensions (L x W x H)	6.7 × 2.9 × 2.9 in (169.8 × 74 × 74 mm)
Certifications	CE, FCC, BSMI, VCCI, IC, IP67, IK10
