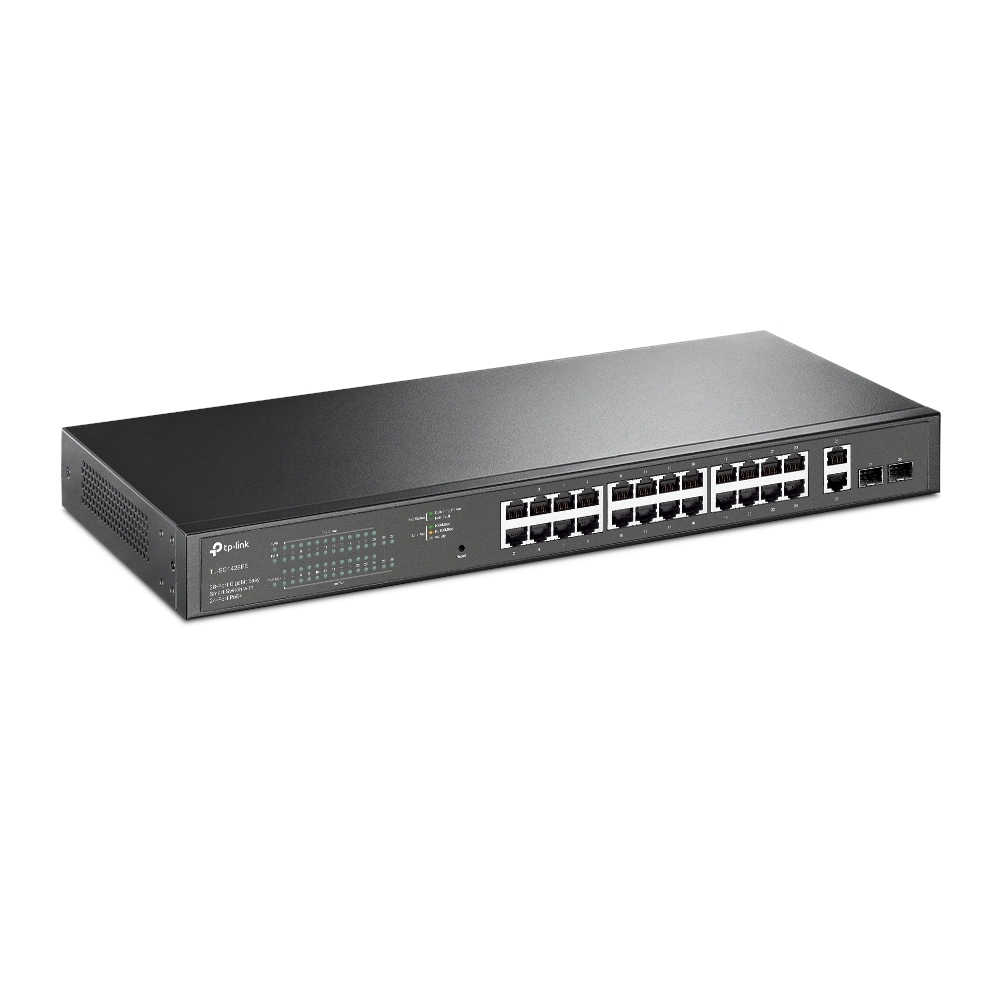

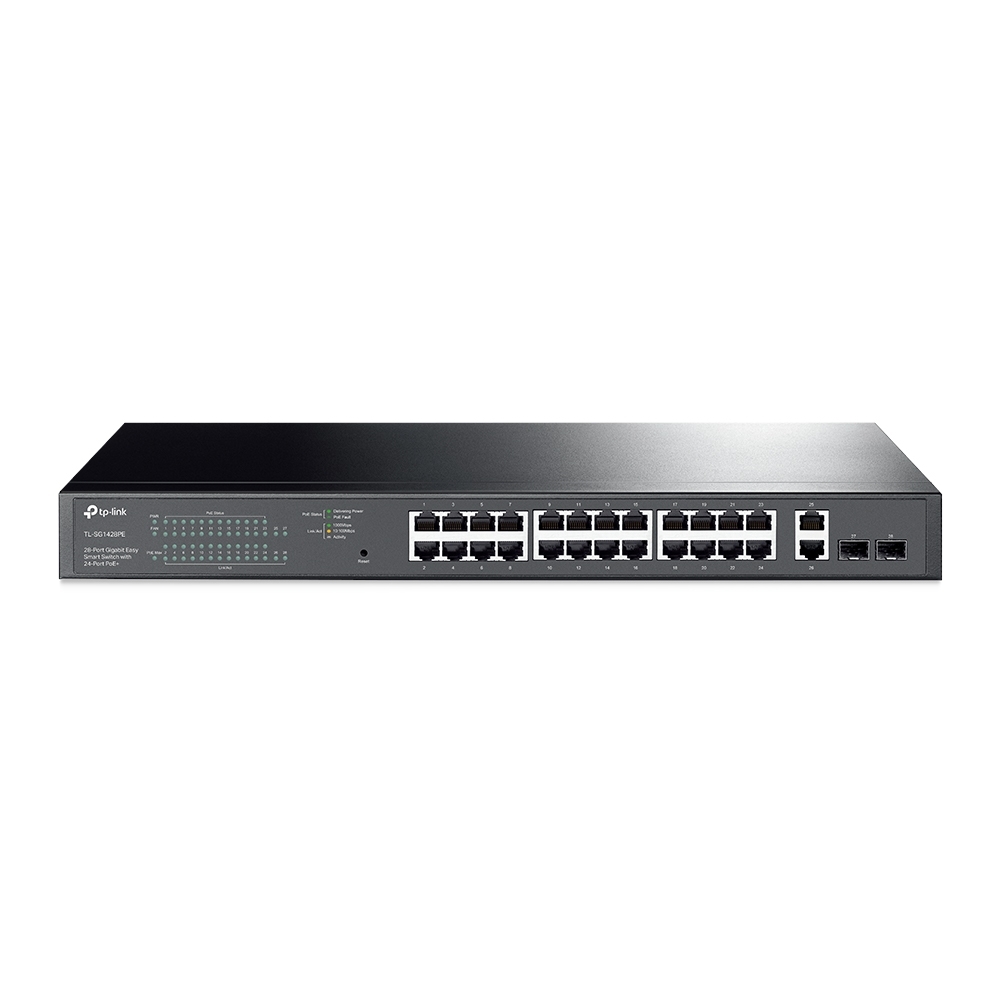

TP-Link TL-SG1428PE 28-Port Gigabit Easy Smart Switch with 24-Port PoE+ 32xVLAN 56Gbps Switching Capacity Rack Mountable

Multiple Application Scenarios

The TL-SG1428PE is fully compatible with PoE devices, such as IP cameras, access points, and IP phones. It also works with non-PoE wired devices to provide gigabit connections, such as PCs, printers, and IPTV.



Dedicated 24 PoE+ Ports (250 W Budget) for Numerous Applications

Compliance with the 802.3af/at PoE+ standard supports up to 30 W on each PoE port. The total 250 W PoE power budget for the 24× gigabit PoE+ ports makes it has a wide range of applications, such as surveillance, offices, dormitories, and small businesses. It is fully compatible with IP cameras, access points, IP phones, computers, printers, etc.



Making Management Easy

TL-SG1428PE offers network monitoring for users to observe traffic behavior. Through its web-based user interface and management utility, the TL-SG1428PE offers a variety of useful features, including network monitoring, traffic prioritization, and enhanced QoS.



System Self-Healing with PoE Auto Recovery

The switch automatically detects and reboots the PD devices, such as cameras and APs, when they fall offline or go unresponsive, guaranteeing the stable operation of PoE-connected devices, without need for manual monitoring and restart.



Intelligent Power Management to Prevent Power Overload

Automatically cuts lower priority ports’ power to ensure high-priority ports’ power supply when the total PoE power consumption exceeds 250 W. This protects the device from power overload operation.



Great Compatibility with PD Detection

Automatically detects the required PoE power for your device and protects your non-PoE equipment from being damaged.

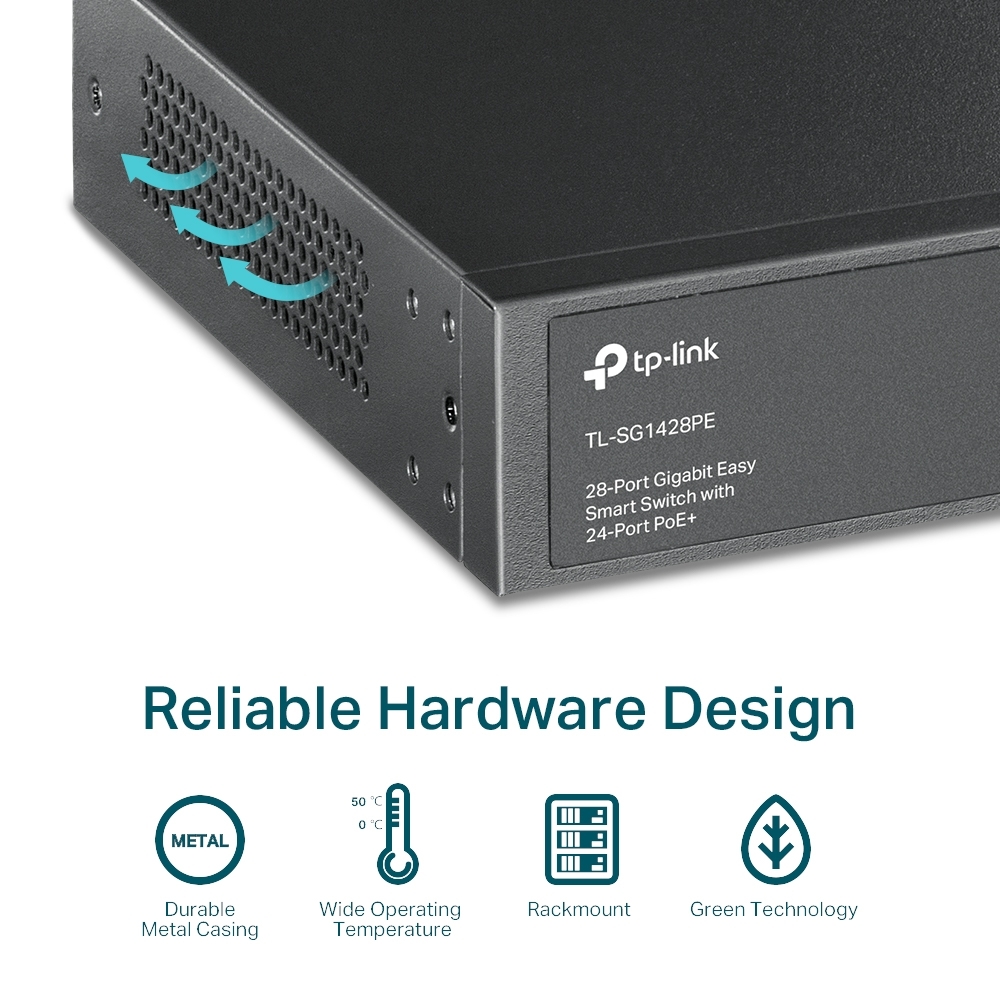

Wide Operating Temperature with Good Heat Dissipation

Durable metal casing and professional heat dissipation design ensure the wide operating temperature (0–50 C) with reliability.



Features

• 24 10/100/1000Mbps RJ45 PoE+ Ports Switch with 2 SFP Slots
• PoE power budget is up to 250 W, making it ideal for small to medium business surveillance systems
• Priority Mode helps to guarantee the quality of sensitive application like video monitoring
• PoE Auto Recovery enables system self-healing to guarantee the stable operation of PoE-connected devices
• QoS is for smooth internet-surfing experience and IGMP Snooping is capable of optimizing traffic for IPTV
• Intelligent power management can protect the switch from overload

(TL-SG1428PE)

HARDWARE FEATURES
Standards and Protocols IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x
IEEE 802.3af, IEEE 802.3at, IEEE 802.1q, IEEE 802.1p
Interface 26 10/100/1000 Mbps RJ45 Ports
2 Gigabit SFP Ports
Network Media 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m)
100BASE-TX: UTP category 5, 5e cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m)
1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m)
1000BASE-X MMF, SMF
Fan Quantity 2 Fans
Physical Security Lock Yes
Power Supply 100-240V AC, 50/60 Hz
PoE+ Ports(RJ45) Standard: 802.3at/802.3af compliant
PoE+ Ports: 24 Ports
Power Supply: 250 W
Dimensions ( W x D x H ) 17.3 × 8.7 × 1.73 in (440 × 220 × 44 mm)
Mounting Rack Mountable
Max Power Consumption 27 W (220/50Hz. no PD connected)
304.7 W (220/50Hz. with 250 W PD connected)
Max Heat Dissipation 92.07 BTU/h (no PD connected)
1039.03 BTU/h (with 250 W PD connected)
PERFORMANCE
Switching Capacity 56 Gbps
Packet Forwarding Rate 41.7 Mbps
MAC Address Table 8K
Packet Buffer Memory 4.1 Mbit
Jumbo Frame 9 KB
SOFTWARE FEATURES
Quality of Service Support Port-based 802.1p/DSCP priority
Support 4 priority queues
Rate Limit
Storm Control
L2 Features IGMP Snooping V1/V2/V3
Static Link Aggregation
Port Mirroring
Cable Diagnostics
Loop Prevention
PoE Auto Recovery
VLAN Support up to 32 VLANs simultaneously (out of 4K VLAN IDs)
MTU/Port/Tag VLAN
Management Web-Based GUI
Easy Smart Configuration Utility
Transmission Method Store-And-Forward
OTHERS
Certification CE, FCC, RoHS
Package Contents TL-SG1428PE
Power Cord
Installation Guide
Rackmount Kit
Rubber Feet
Environment Operating Temperature: 0°C~50°C (32°F~122°F)
Storage Temperature: -40°C~70°C (-40°F~158°F)
Operating Humidity: 10% ~ 90% non-condensing
Storage Humidity: 5%~90% non-condensing
SKU TL-SG1428PE
Barcode # 6935364072209
Brand TP-LINK
Shipping Weight 3.9000kg
Shipping Width 0.340m
Shipping Height 0.100m
Shipping Length 0.530m
