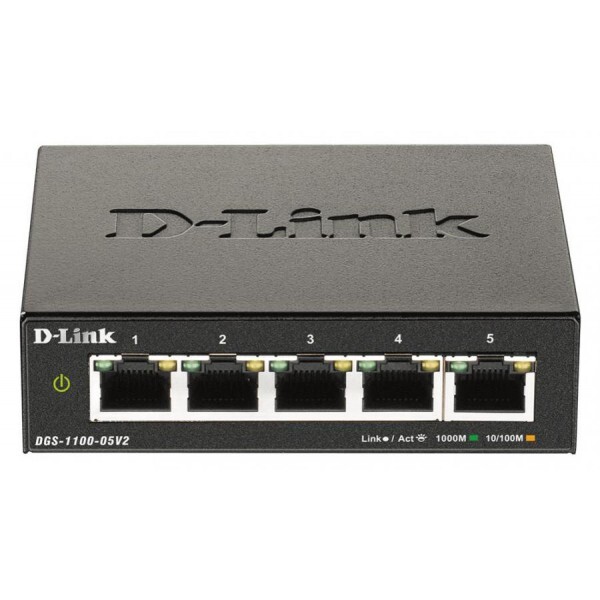

D-Link DGS-1100-05V2 5-Port Gigabit Smart Managed Switch

A five-port Gigabit smart managed Layer 2 desktop switch with a web interface, surveillance VLAN, per-port bandwidth control and 10Gbps switching capacity.

Surveillance VLAN

Separates IP-surveillance video traffic into a dedicated higher-priority VLAN.

Per-port bandwidth control

Reserves bandwidth for important or higher-priority network functions.

Smart web management

Provides a web-based interface for the stated management functions.

Surveillance traffic handling

The dedicated VLAN separates video traffic from the rest of the network and assigns it higher priority.

Bandwidth allocation

Per-port controls can reserve capacity for functions needing more bandwidth or priority.

Five-port Gigabit access

Five 10/100/1000Mbps RJ45 ports operate with a stated 10Gbps switching capacity.

Compact managed hardware

The desktop design uses passive cooling and requires no cloud management or licence.

Buy with confidence from DeviceDeal

DeviceDeal is an authorised D-Link reseller. This product is supplied with the stated D-Link limited lifetime manufacturer warranty.

Frequently asked questions

How many Ethernet ports are provided?

The switch has five Gigabit RJ45 ports.

What port speeds are supported?

The ports support 10/100/1000Mbps Ethernet.

What is the switching capacity?

A 10Gbps switching capacity is stated.

Is the switch managed?

Yes. It is a smart managed Layer 2 switch.

Does it have a web interface?

Yes. A web-based management interface is listed.

What does surveillance VLAN do?

It separates surveillance video traffic and gives it higher priority through the switch.

What does bandwidth control provide?

It can reserve bandwidth on a per-port basis for important functions.

Does the switch provide PoE?

No. It is specified as a non-PoE switch.

Does it require a licence or cloud management?

No licence or cloud management is required.

What warranty is supplied?

A D-Link limited lifetime manufacturer warranty is stated.

(DGS-1100-05V2)

D-Link DGS-1100-05V2 5-Port Gigabit Smart Managed Switch features

Dedicated surveillance VLAN

Prioritises and separates IP-video traffic.

Bandwidth reservation

Allocates port capacity to important functions.

Web-based controls

Provides smart managed configuration.

Compact fanless design

Uses a desktop form factor with passive cooling.

Confirm the required VLAN, bandwidth-control and routing functions before deployment; this model does not provide PoE.

D-Link DGS-1100-05V2 5-Port Gigabit Smart Managed Switch specifications

Product details

Model	DGS-1100-05V2
Product type	Smart managed Gigabit Layer 2 switch
RJ45 ports	5
Port speed	10/100/1000Mbps
Switching capacity	10Gbps
Management	Smart managed / web GUI
Surveillance feature	Surveillance VLAN
Bandwidth management	Per-port bandwidth control
PoE	No
PoE budget	0W
SFP ports	0
IPv4 routing	Listed
IPv6 routing	Listed
DHCP server screening	Listed
Cooling	Passive
Form factor	Desktop
Operating temperature	0°C to 40°C
Dimensions	100.5 x 82 x 28mm
Licence required	No

Warranty

Coverage	Limited lifetime warranty

SKU	DGS-1100-05V2
Barcode #	790069453281
Brand	D-LINK
Shipping Weight	0.4900kg
Shipping Width	0.100m
Shipping Height	0.220m
Shipping Length	0.150m
