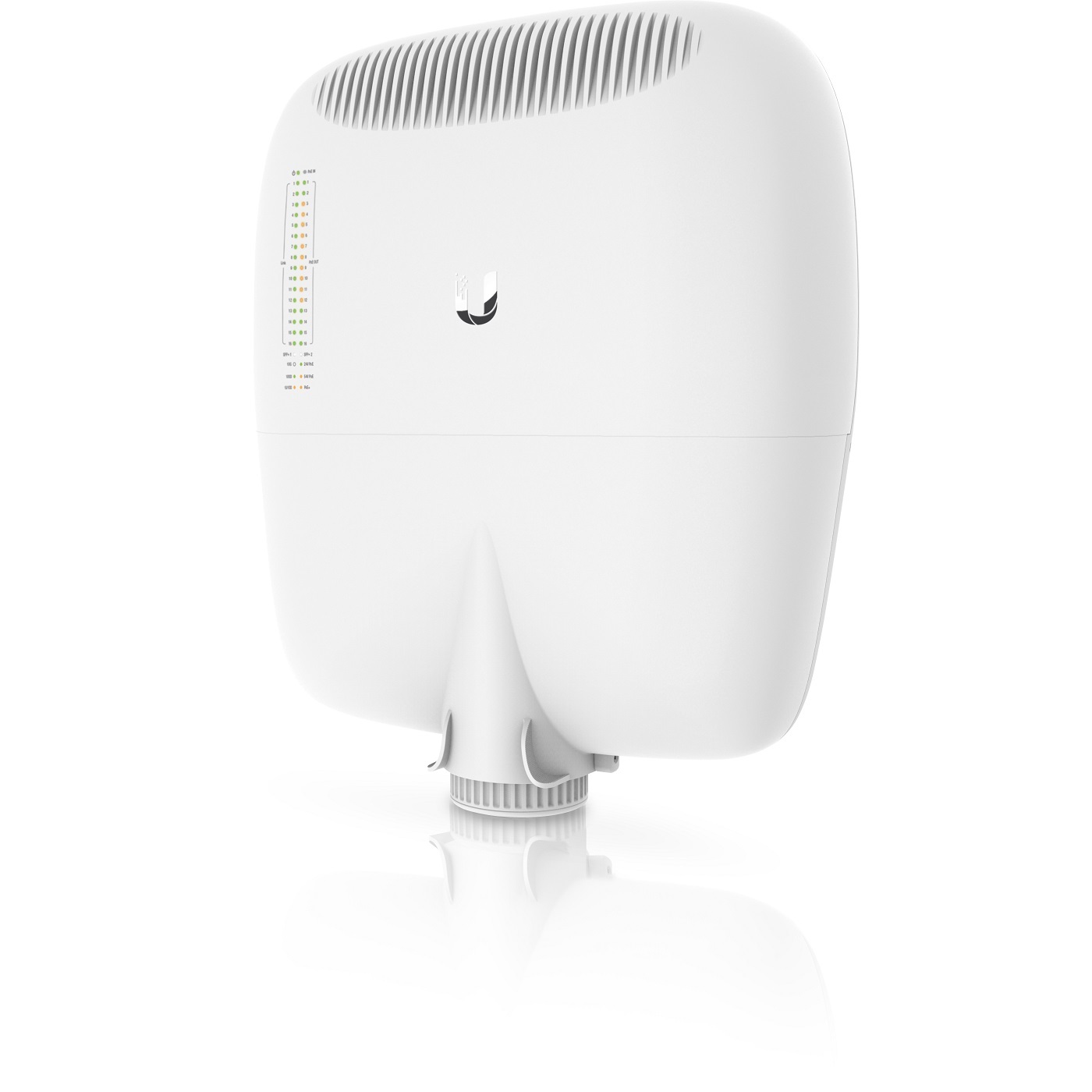

Ubiquiti Networks EP-S16 EdgePoint 16 Port Outdoor Switch

Intelligent WISP Control Point with FiberProtect™

The EdgePoint™ offers an innovative combination of robust routing performance, fiber backhaul capability, and the convenience of passive PoE support.

Breakthrough in Tower Deployment

The EdgePoint features FiberProtect to significantly reduce electrostatic discharge (ESD) failures and electromagnetic interference (EMI), greatly improve data signal integrity, and consolidate the wired data backhaul to a single fiber cable run for long-distance connectivity.

Purpose-Built for WISP Control

The first application-specific designed WISP control point, the EdgePoint combines the advanced routing capabilities of EdgeMAX® with fiber backhaul and versatile powering capabilities.

All-in-One Design

A single, compact controller eliminates clutter, expensive cabinets, extraneous installations, and excessive maintenance.

Advanced Routing Applications

Powerful routing features – such as link balancing – provide redundancy and increased performance for outdoor wireless links.

Ubiquiti Networks EP-S16 EdgePoint 16 Port Outdoor Switch - 1x RJ45 Serial Port - 16x 10/100/1000 RJ45 Ports - 2x 1/10 Gbps SFP+ Ports - 2x 54V/1.5A, 4-Pair (+1, 2, 4, 5; -3, 6, 7, 8) Passive PoE Input, Ports 1 and 2 - 4x 54V or 24V /1.4A, 4-Pair (+1, 2, 4, 5; -3, 6, 7, 8) Passive PoE Output, Ports 1 to 4 - 12x 802.3af/at or 24V/0.7A, 2-Pair (+4, 5; -7, 8) Passive PoE Output, Ports 5 to 16

(EP-S16)

The EP-S16 features 16 RJ45 Ethernet ports and two SFP+ ports.
Bottom Panel
•Power Options - 54VDC, 6A Terminal Block or Dual PoE Input
•(1) Console Port
•Data Ports - (16) RJ45 Ports and (2) SFP+ Ports
Sixteen RJ45 ports support PoE:
•PoE Input or Output. (2) Ports with Two Options: 54V, 1.5A Passive PoE Input or 54 or 24V, 1.4A Passive PoE Output
•PoE Output - (2) 54 or 24V, 1.4A Passive PoE Output Ports and (12) PoE+ or 24V, 0.7A Passive PoE Output Ports

Device Type	Outdoor Switch
Dimensions	326.6 x 382.7 x 88.8 mm (12.86 x 15.07 x 3.50")
Network Ports	1x RJ45 Serial Port 16x 10/100/1000 RJ45 Ports 2x 1/10 Gbps SFP+ Ports
Weight	3.4 kg (7.50 lb)
Data Tranfer Rates	Gigabit

Function: Switch

Gigabit RJ45 Ports: 16

SFP Ports: N/A

SFP+ Ports: 2

Power Input: (1) DC Terminal Block or (2) 54V, 4-Pair

PoE Output: (4) 54/24V, 4-Pair

(12) 802.3af/at or 24V, 2-Pair

SKU	EP-S16
Barcode #	810354024276
Brand	Ubiquiti
Shipping Weight	4.3900kg
Shipping Width	0.370m
Shipping Height	0.140m
Shipping Length	0.470m
Shipping Cubic	0.024346000m3

Manufacturer Warranty: 1 Years Limited Warranty
Manufacturer Contact Info: https://www.ubnt.com/
