Forty-eight 10G fibre ports
Provides high-density SFP and SFP+ connectivity.
D-Link 54-Port 10 Gigabit Layer 3 Managed Stackable Switch-DXS-3610-54S
Model # DXS-3610-54S
-
SKU: DXS-3610-54S
- Pick Up Available
- Australian Warranty
- Checkout Securely
D-Link product

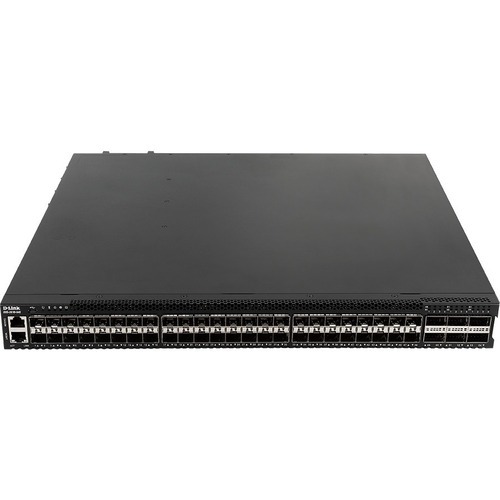

D-Link DXS-3610-54S 54-Port Layer 3 Stackable 10G and 100G Fibre Switch
A 1U Layer 3 fully managed fibre switch with 48 10G SFP/SFP+ ports, six 40/100G QSFP+/QSFP28 ports, physical and virtual stacking and 2.16Tbps capacity.
Six 40/100G QSFP ports
Supports compatible uplink or stacking configurations.
2.16Tbps switching capacity
Provides the stated maximum forwarding rate of 1607.04Mpps.
High-density Layer 3 aggregation
The DXS-3610-54S is designed for enterprise and campus aggregation networks requiring 10G switching, routing and ultra-low latency.
10G and 100G fibre connectivity
Forty-eight 10G SFP/SFP+ ports and six 40/100G QSFP+/QSFP28 ports are provided.
Flexible stacking and uplinks
The 100G-capable ports can be used for uplink or stacking according to the supplied description, with physical and virtual stacking listed.
Compact managed deployment
The 1U rack-mount switch provides front-to-back airflow, active cooling, IPv4 and IPv6 routing and cloud management.
Buy with confidence from DeviceDeal
DeviceDeal is an authorised D-Link reseller. This product is supplied with the stated D-Link limited lifetime manufacturer warranty.
Frequently asked questions
How many ports does the DXS-3610-54S provide?
A total of 54 fibre ports is stated.
How many 10G ports are included?
Forty-eight 10G SFP/SFP+ ports are listed.
How many high-speed QSFP ports are included?
Six 40/100G QSFP+/QSFP28 ports are stated.
What switching capacity is listed?
A switching capacity of 2.16Tbps is stated.
What maximum forwarding rate is listed?
The stated maximum forwarding rate is 1607.04Mpps.
Which network layer is supported?
Layer 3 capability is listed.
Does it support physical and virtual stacking?
Yes. Both stacking methods are stated.
Is it rack mountable?
Yes. A 1U 19-inch rack-mount form factor is stated.
Is cloud management listed?
Yes. Cloud managed is marked Yes in the supplied technical details.
What warranty applies?
A limited lifetime D-Link manufacturer warranty is stated in the supplied technical details.
(DXS-3610-54S)
D-Link DXS-3610-54S 54-Port Layer 3 Stackable 10G and 100G Fibre Switch features
48-port 10G density
Provides high-density compatible SFP/SFP+ connections.
Six 40/100G ports
Supports the stated uplink or stacking use.
Layer 3 routing
Provides the listed IPv4 and IPv6 functions.
Physical and virtual stacking
Supports both stated scaling methods.
Confirm SFP, SFP+, QSFP+ and QSFP28 transceivers, fibre media, rack depth, airflow, stacking and routing requirements before deployment.
D-Link DXS-3610-54S 54-Port Layer 3 Stackable 10G and 100G Fibre Switch specifications
Product details
| Model | DXS-3610-54S |
|---|---|
| Product type | Layer 3 stackable 10G managed switch |
| Main port type | Fibre |
| Port count | 54 |
| 10G SFP/SFP+ ports | 48 |
| 40/100G QSFP+/QSFP28 ports | 6 |
| Managed | Fully Managed |
| OSI layer capability | Layer 3 |
| Switching capacity | 2.16Tbps |
| Maximum forwarding rate | 1607.04Mpps |
| Web-based GUI | Yes |
| Stacking | Physical / virtual |
| IPv4 routing | Yes |
| IPv6 routing | Yes |
| DHCP server screening | Yes |
| PoE | No |
| Cooling | Active / front-to-back airflow |
| Redundant power supply | No |
| Cloud managed | Yes |
| Form factor | 1U rack-mount |
| Rack size | 19-inch |
| Operating temperature | 0°C to 45°C |
| Dimensions | 441 x 487.44 x 43.5mm |
| Licence required | No |
Warranty
| Coverage | Limited lifetime warranty |
|---|
| SKU | DXS-3610-54S |
| Barcode # | 790069452116 |
| Brand | D-LINK |
| Shipping Weight | 3.0000kg |
| Shipping Width | 0.210m |
| Shipping Height | 0.600m |
| Shipping Length | 0.720m |
