Name: Mikrotik CRS112-8P-4S-IN Switch with POE-out RouterOS L5
Brand: MIKROTIK
SKU: CRS112-8P-4S-IN
Price: 319 AUD
Availability: InStock

WARNING: This product ships with a 28V PSU, if you need to power anything via af/at POE, you will need to also purchase either 48POW (70W) or 48V2A96W (96W) and power via the 48-57V slot.

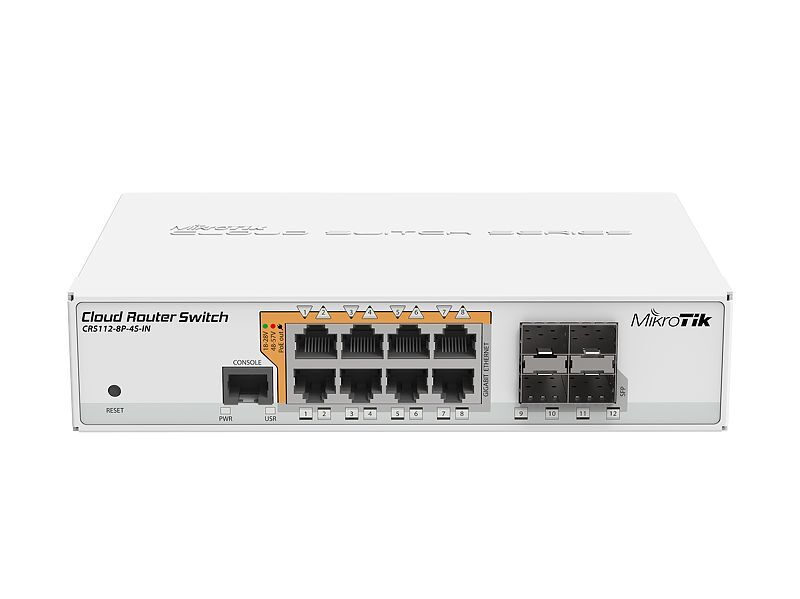

CRS112-8P-4S-IN is an eight Gigabit RJ45 port PoE switch, that offers different power output options: autosensing 802.3af/at PoE/PoE+ and Passive PoE, and four SFP ports provide optical fiber connectivity options to support uplinks of up to 1 Gbps.

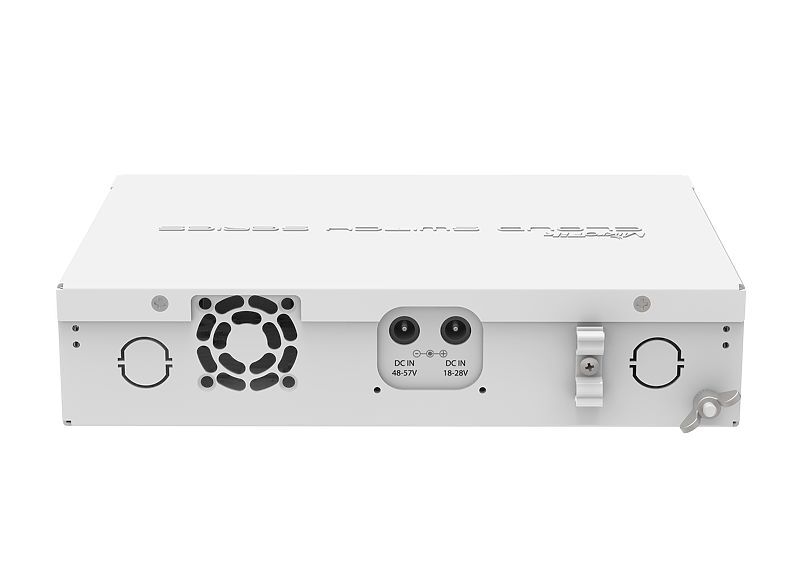

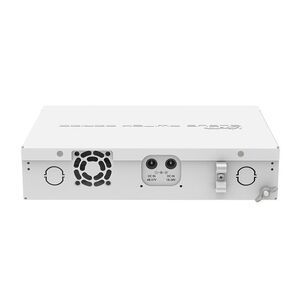

CRS112-8P-4S-IN is equipped with 12 independent switching ports. 28 V 3.4 A power supply is already included in the box. There is secondary DC jack on the back of the enclosure that supports 48-57 V power supply (not included, can be purchased separately - product codes 48POW (1.46A 70W) and 48V2A96W (2A 96W)). CRS112-8P-4S-IN can power 802.3af/at devices if 48-57 V DC input is used (unit will automatically detect and provide correct power to devices). Max current is 1 A per port if input voltage is 18-28 V, 450 mA if 48-57 V. Total limit is 2.8A@24V and 1.4A@48-57V. PoE-Out is passed over mode B 4,5 (+) and 7,8 (-) pins

Specifications:

Product code: CRS112-8P-4S-IN

Architecture: MIPSBE

CPU: QCA8511

CPU core count: 1

CPU nominal frequency: 400 MHz

Dimensions: 200 x 142 x 44 mm

RouterOS licence: 5

Operating System: RouterOS

Size of RAM: 128 MB

Storage size: 16 MB

Storage type: FLASH

MTBF: Approximately 200'000 hours at 25C

Tested ambient temperature: -20°C to 60°C

Powering:

Number of DC inputs: 2 (DC jack)

DC jack input Voltage: 18-28 V / 48-57 V

Max power consumption: 160 W

Max power consumption without attachments: 10 W

Cooling type: Passive

PoE-out:

PoE-out ports: Ether1-Ether8

PoE out: 802.3af/at

Max out per port output (input 18-30 V): 1 A

Max out per port output (input 30-57 V): 450 mA

Max total out (A): 2.8A (18V-28V) & 1.4A (48V-57V) A

Ethernet:

10/100/1000 Ethernet ports: 8

Number of 1G Ethernet ports with PoE-out: 8

Fibre:

SFP ports: 4

Peripherals:

Serial console port: RJ45

Other:

PCB temperature monitor: Yes

Certification & Approvals:

Certification: CE, EAC, ROHS

IP: IP20

(CRS112-8P-4S-IN)

Specifications

Details
Product code	CRS112-8P-4S-IN
Architecture	MIPSBE
CPU	QCA8511
CPU core count	1
CPU nominal frequency	400 MHz
Switch chip model	QCA8511
Dimensions	200 x 142 x 44 mm
RouterOS license	5
Operating System	RouterOS
Size of RAM	128 MB
Storage size	16 MB
Storage type	FLASH
MTBF	Approximately 200'000 hours at 25C
Tested ambient temperature	-20°C to 60°C

Powering

Details
Number of DC inputs	2 (DC jack)
DC jack input Voltage	18-28 V / 48-57 V
Max power consumption	160 W
Max power consumption without attachments	10 W
Cooling type	Passive

PoE-out

Details
PoE-out ports	Ether1-Ether8
PoE out	802.3af/at
Max out per port output (input 18-30 V)	1 A
Max out per port output (input 30-57 V)	450 mA
Max total out (A)	2.8A (18V-28V) & 1.4A (48V-57V) A
