SKU: CSS610-8P-2S-OUT

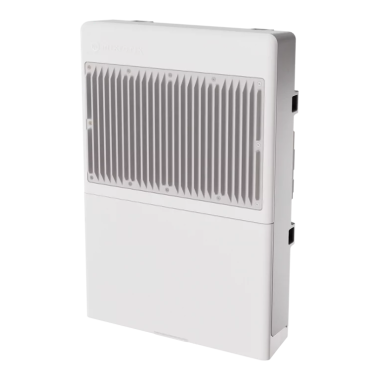

The MikroTik netPower Lite 8P combines eight Gigabit Ethernet ports with 802.3af/at PoE output, two 10G SFP+ uplinks and an integrated UPS controller with a smart battery charger. It runs SwOS Lite and is designed for CCTV, wireless backhaul and other installations that need battery-backed PoE.
A power supply is not included. UPS operation requires an external 24 V nominal battery.
The switch offers a 120W PoE output budget. Connect an external 24 V nominal battery for backup power; the charger supports flooded, AGM and gel lead-acid batteries, plus LiFePO4 packs with a suitable BMS. When incoming power is limited, charging slows first to prioritise connected PoE devices.
The charger supports 0.21.6 A charging current and a 2031.7 V charging range. An included temperature sensor adjusts lead-acid charging voltage and prevents charging outside the permitted temperature range. A two-wire alarm contact can report tampering through SwOS Lite and SNMP.
The IP54 enclosure is specified for tested ambient temperatures from -40°C to 70°C. The main DC input accepts 2457 V through a two-pin terminal; the battery input range is 2230 V.
(CSS610-8P-2S-OUT)
| Product code | CSS610-8P-2S+OUT |
|---|---|
| Switch chip model | 88E6193 |
| Operating System | SwOS Lite |
| Storage size | 64 KB |
| Storage type | FLASH |
| MTBF | Approximately 200'000 hours at 25C |
| Tested ambient temperature | -40°C to 70°C |
| Number of DC inputs | 3 (2-pin terminal) |
|---|---|
| 2-pin terminal input Voltage | 24-57 V (Battery 22-30 V) |
| Max power consumption without attachments | 9 W |
| Cooling type | Passive |
| 10/100/1000 Ethernet ports | 8 |
|---|---|
| Number of 1G Ethernet ports with PoE-out | 8 |
| SFP+ ports | 2 |
|---|
| Certification | CE, EAC, ROHS |
|---|---|
| IP | 54 |
| PoE-out ports | Ether1-Ether8 |
|---|---|
| PoE out | 802.3af/at |
| Low voltage PoE-Out current limit | 1.0 A |
| High voltage PoE-Out current limit | 0.64 A |
| CPU temperature monitor | Yes |
|---|---|
| Current Monitor | Yes |
| Voltage Monitor | Yes |
| PoE output budget | 120W |
|---|---|
| External battery | 24 V nominal; battery input 22-30 V |
| Supported battery types | Flooded, AGM and gel lead-acid; LiFePO4 with proper BMS |
| Charger current range | 0.2-1.6 A |
| Charger voltage range | 20 to 31.7 V |
| Power supply included | No |
| Temperature sensor | Included |
| Alarm input | 2-wire contact; reporting in SwOS Lite and over SNMP |
| SKU | CSS610-8P-2S-OUT |
| Brand | MIKROTIK |
| Shipping Weight | 3.0000kg |
