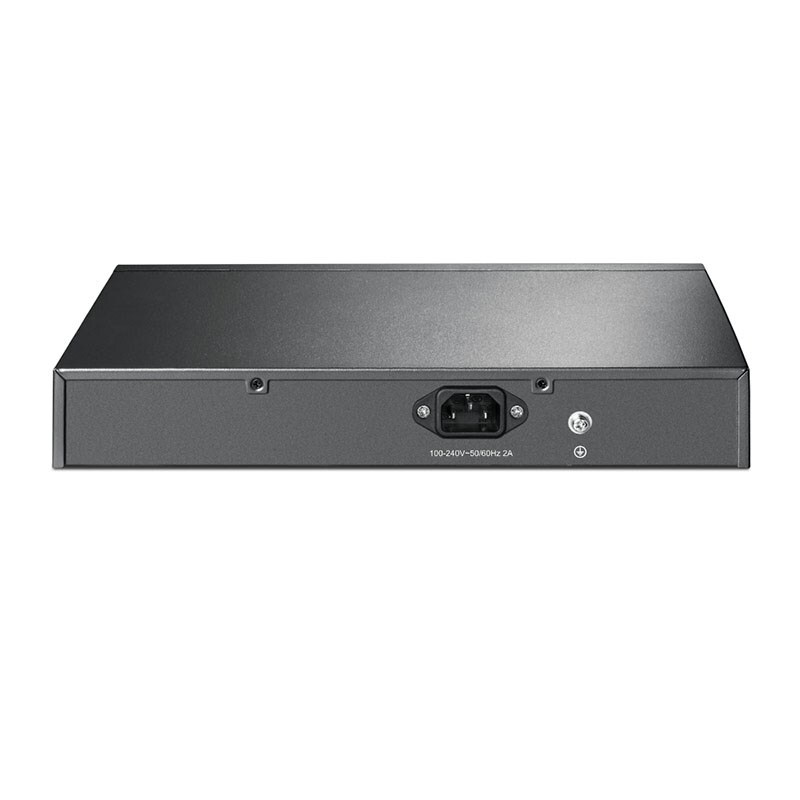

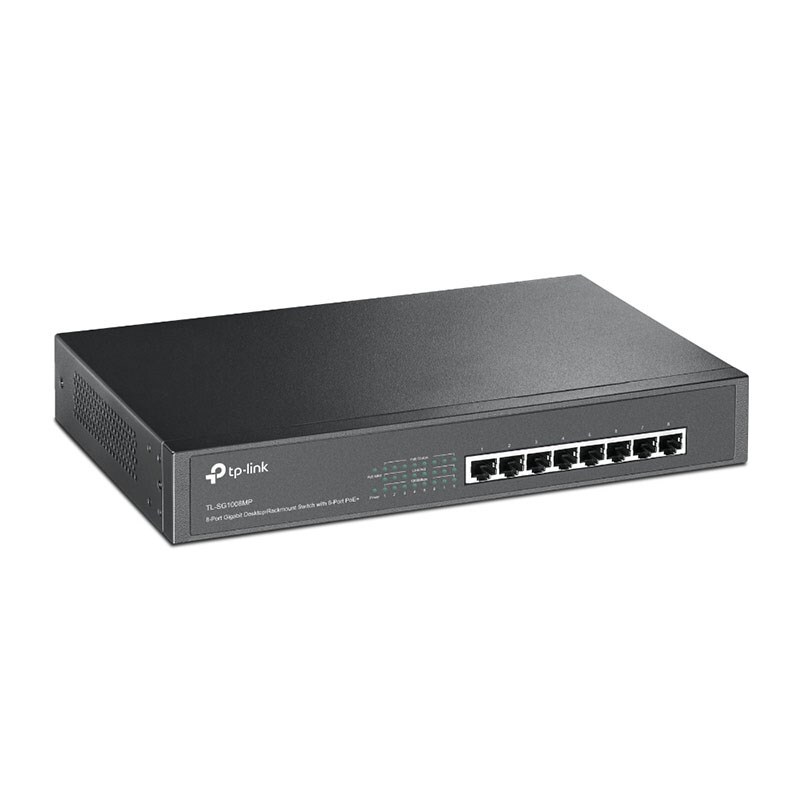

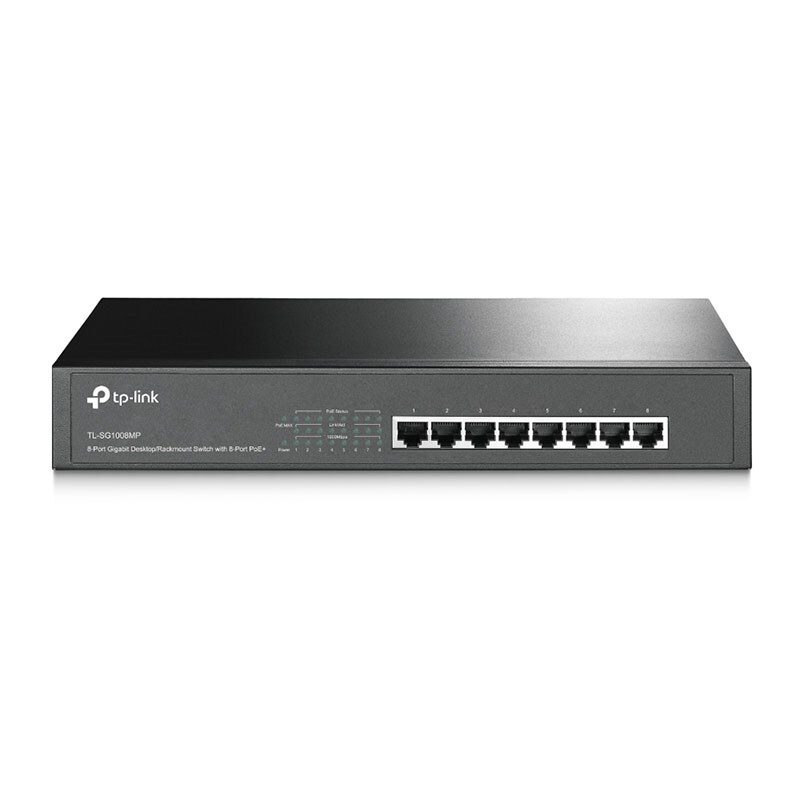

TP-Link TL-SG1008MP 8-Port Gigabit Desktop/Rackmount Switch with PoE+ - 8x 10/100/1000Mbps RJ45 ports - 8x PoE+ Ports - Backbound Bandwidth: 16Gbps - MAC Address table: 4K - Buffer Size: 1.5Mbits - Rack Mountable - Plug & Play - TL-SG1008MP - 5 Years Limited Warranty



What This Product Does

The TL-SG1008MP is an 8-Port Gigabit Desktop/Rack mountable Switch with all 8 ports supporting the IEEE 802.3af/at, PoE+ standard. It provides a simple way to expand a wired network by transferring power and data over a single Ethernet Cable. With a total power budget of 126W, up to 30W per port, TL-SG1008MP can power more high-powered devices such as wireless Access Points (APs), IP Cameras or IP Phones. Moreover, with innovative energy-efficient technology, the TL-SG1008MP reduces power consumption, making it an eco-friendly solution for your business network.

How This Product Works

All 8 ports of TL-SG1008MP support Power over Ethernet (IEEE 802.3af/at, PoE+) standard which can automatically detect and supply power to any IEEE 802.3af/at compliant device(s). The electrical power is transmitted along with data in a single cable, allowing you to expand your network where there is no electrical outlet, and feed the devices such as wireless APs, cameras, and phones.

Prioritized Power Supply

Priority (port 1 > port 2 > port 3 > port 4 > port 5 > port 6 > port 7 > port 8): This function helps protect the system if the power becomes overloaded. For example, if port 1, 2, 4 and 7 are using 30W (maximum power per port is 30W, the system power is 120W in total), and there is an additional device inserted into Port 3 at 25W, the system will cut off the power on Port 7 to protect the switch being overload. This means Port 1, 2 and 4 will use 30W, and Port 3 will use 25W, with no power will be supplied on Port 7 as it has the lowest priority among the ports in use.

Easy To Use

TL-SG1008MP is easy to install and use. It requires no configuration or installation. With its Desktop/Rack mountable design, outstanding performance and quality, the TP-Link TL-SG1008MP 8-Port Gigabit Desktop/Rack mountable Switch with 8-Port PoE is a great choice for expanding your home or office network.

(TL-SG1008MP)

HARDWARE FEATURES
Interface 8 10/100/1000Mbps RJ45 Ports
AUTO Negotiation/AUTO MDI/MDIX
Network Media 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m)
100BASE-TX: UTP category 5, 5e cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m)
1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m)
Fan Quantity 1
Physical Security Lock No
Power Supply 100-240VAC, 50/60Hz
PoE+ Ports(RJ45) Standard: 802.3at/af (30W)
PoE+ Ports: 8 Ports
Total PoE Budget: 126W
Backbound Bandwidth 16Gbps
Mac Address Table 4K
Buffer Size 1.5Mbits
Dimensions ( W x D x H ) 11.6 × 7.1 × 1.7 in.
(294 × 180 × 44 mm)
Mounting 13" and 19" 1U rack mountable
Max Power Consumption 9.9W(no PD load)
144.4W(with 124W PD load)
Max Heat Dissipation 33.7BTU/h(no PD load)
492.6BTU/h(with 124W PD load)
SOFTWARE FEATURES
Advanced Features Compatible With IEEE 802.3af/at Compliant power devices (PD)
Port Priority Function
MAC Address Auto-Learning And Auto-Aging
IEEE802.3x Flow Control
Transfer Method Store-And-Forward
OTHERS
Certification FCC, RoHS
Package Contents TL-SG1008MP
Power Cord
Installation Guide
Rackmount Kit
Rubber Feet
Consumption 9.5 watts (max. no PD connected)
140.1 watts (max. with 126w PD connected)
Environment Operating Temperature: 0℃~40℃ (32℉~104℉)
Storage Temperature: -40℃~70℃ (-40℉~158℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
SKU TL-SG1008MP
Barcode # 6935364086770
Brand TP-LINK
Shipping Weight 2.2300kg
Shipping Width 0.250m
Shipping Height 0.180m
Shipping Length 0.405m
Shipping Cubic 0.018225000m3

Manufacturer Warranty: 5 Year Manufacturer Warranty
