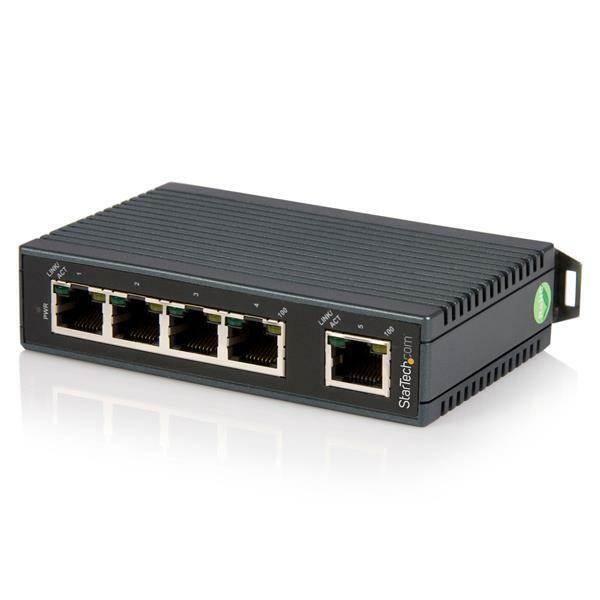

This compact 5-port industrial Ethernet switch is engineered to deliver fast, reliable network connectivity and durability in the most demanding industrial environments. It provides top performance in a wider range of operating temperatures than conventional network switches, making it ideal for factories and warehouses.

Conquer the tough demands of industrial environments

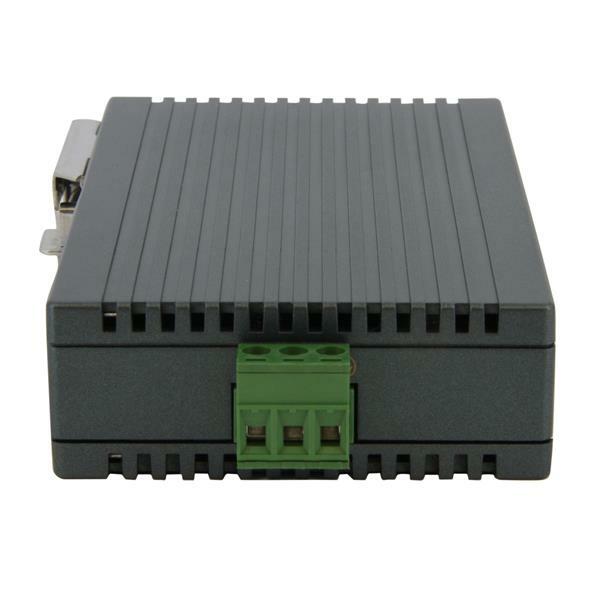

Designed with a rugged IP30-rated housing, the network switch delivers maximum performance even in harsh industrial conditions. Its wide-range terminal block input gives you the flexibility to power the switch as required, based on your own power input source, while its wide operating temperature range keeps your network running smoothly.

Get up and running in no time

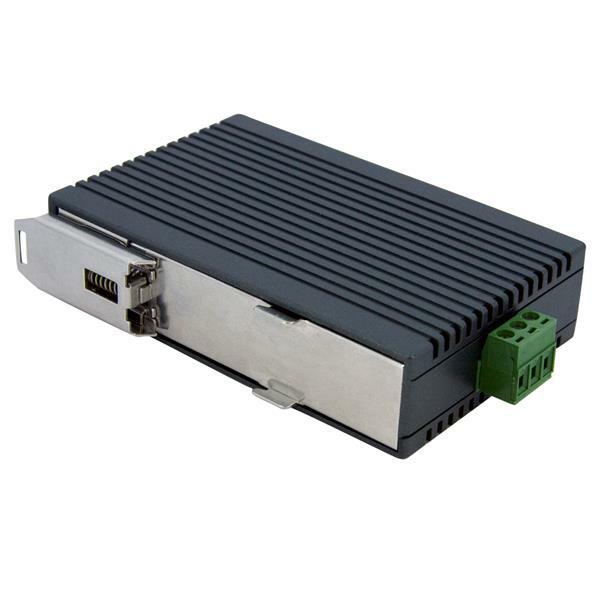

This industrial Ethernet switch is easy to install, with an attached metal bracket for DIN rail mounting on equipment racks and cabinets.

Now you can eliminate the hassle of troubleshooting mismatched speed and duplex settings. This switch gives you full/half-duplex auto-negotiation and auto MDI/MDIX operation, enabling you to connect your network devices quickly and easily with little to no configuration required.

Reduce your energy costs with Energy-Efficient Ethernet

With lower overall power consumption, the Ethernet switch enhances your energy efficiency, in turn helping you reduce monthly costs.

The IES5102 is backed by a StarTech.com 2-year warranty and free lifetime technical support.


Applications

  • Well suited for networks in demanding industrial applications such as warehouses and factories
  • A great way to enhance network connectivity, adding small workgroups to an existing network
  • Install in a server rack or cabinet in a network room or test lab environment

(IES5102)

Warranty Information
Warranty 2 Years
Hardware
Industry Standards IEEE 802.3 (10BASE-T), IEEE 802.3u (100BASE-TX)
IEEE 802.3az (Energy-Efficient Ethernet)
IEEE 802.1P Quality of Service (QoS)
Interface RJ45 (10/100 Ethernet)
Ports 5
Regulatory Approvals EN61000-6-2
EN61000-6-4
EN61000-4-3 (Radiated RFI Standards)
EN61000-4-4 (Burst Standards)
EN61000-4-6 (Induced RFI Standards)
EN61000-4-8 (Magnetic Field Standards)
IEC60068-2-6 Fc (Vibration)
IEC60068-2-27 Ea (Shock)
Performance
Auto MDIX Yes
Buffer Size 56 KB
Compatible Networks 10/100 Mbps
Flow Control IEEE 802.3x Full-Duplex
Full Duplex Support Yes
Jumbo Frame Support No
Maximum Cable Length 328 ft [100 m]
Maximum Data Transfer Rate 200 Mbps (Full-Duplex)
MTBF 1,179,133 Hours
Surge Protection ESD: EN61000-4-2
Surge: EN61000-4-5
Switching Architecture Store-and-Forward
Connector(s)
External Ports 5 - RJ-45 Female
1 - Terminal Block (3 Wire)
Software
OS Compatibility OS Independent; No additional drivers or software required
Indicators
LED Indicators 1 - Power
5 - Link/Activity
5 - Activity (100 Mbps)
Power
Input Voltage 12 ~ 48 DC
Power Consumption (In Watts) 2.12W Max
Power Source Terminal Block
Environmental
Humidity 5~95% RH (Non-Condensing)
Operating Temperature -10°C to 60°C (14°F to 140°F)
Storage Temperature -25°C to 85°C (-13°F to 185°F)
Physical Characteristics
Color Black
Enclosure Type Plastic
Product Height 4.3 in [11 cm]
Product Length 2.8 in [70 mm]
Product Width 1 in [25 mm]
Weight of Product 5.3 oz [150 g]
Packaging Information
Package Height 3.1 in [79 mm]
Package Length 7.8 in [19.8 cm]
Package Width 7 in [17.8 cm]
Shipping (Package) Weight 11 oz [312 g]
What's in the Box
Included in Package 1 - 5 Port Ethernet Switch (w/ Attached DIN Rail Bracket)
1 - Terminal Block
1 - Instruction Manual CD
Auto-Negotiation Yes
SKU IES5102
Barcode # 65030859745
Brand Startech
Shipping Weight 0.5000kg
Manufacturer Warranty: 2 Years Limited Warranty
