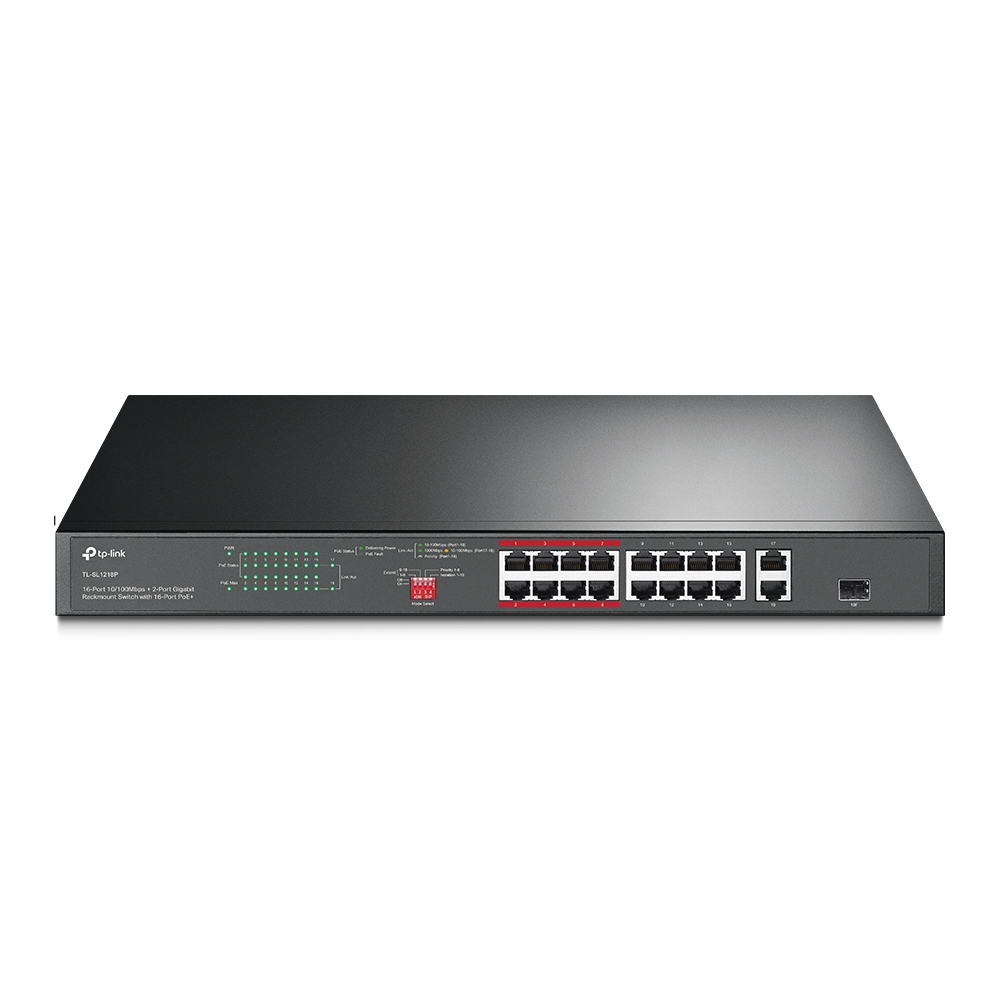

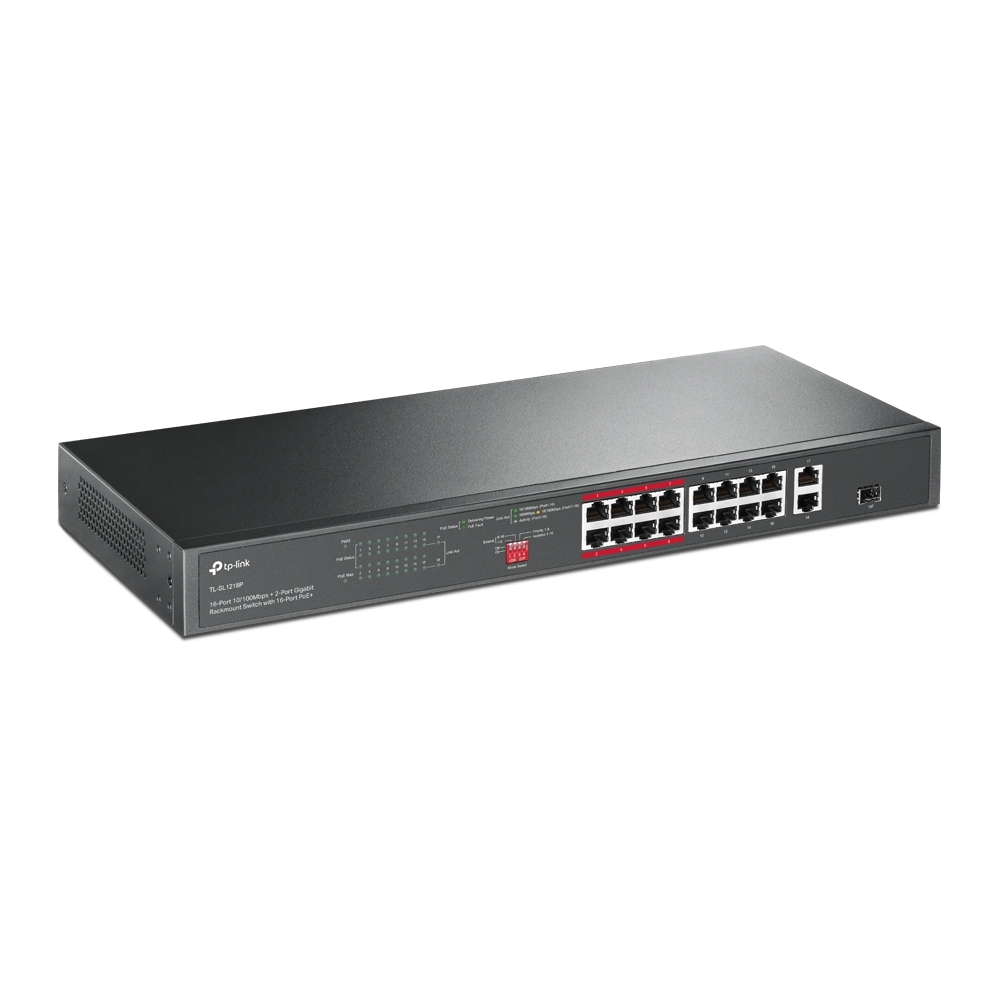

TP-Link TL-SL1218P 16-Port 10/100 Mbps + 2-Port Gigabit Rackmount Switch with 16-Port PoE+
(TL-SL1218P)
| HARDWARE FEATURES |
| Interface |
• 16× PoE+ 10/100 Mbps RJ45 Ports
• 2× 10/100/1000 Mbps RJ45 Ports
• 1× Combo Gigabit SFP Slot |
| Network Media |
• 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
• EIA/TIA-568 100Ω STP (maximum 100m)
• 100BASE-TX: UTP category 5, 5e cable (maximum 100m)
• EIA/TIA-568 100Ω STP (maximum 100m)
• 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)
• EIA/TIA-568 100Ω STP (maximum 100m)
• 1000BASE-X MMF, SMF |
| Fan Quantity |
2 Fans |
| Physical Security Lock |
Yes |
| Power Supply |
100–240V AC, 50/60 Hz |

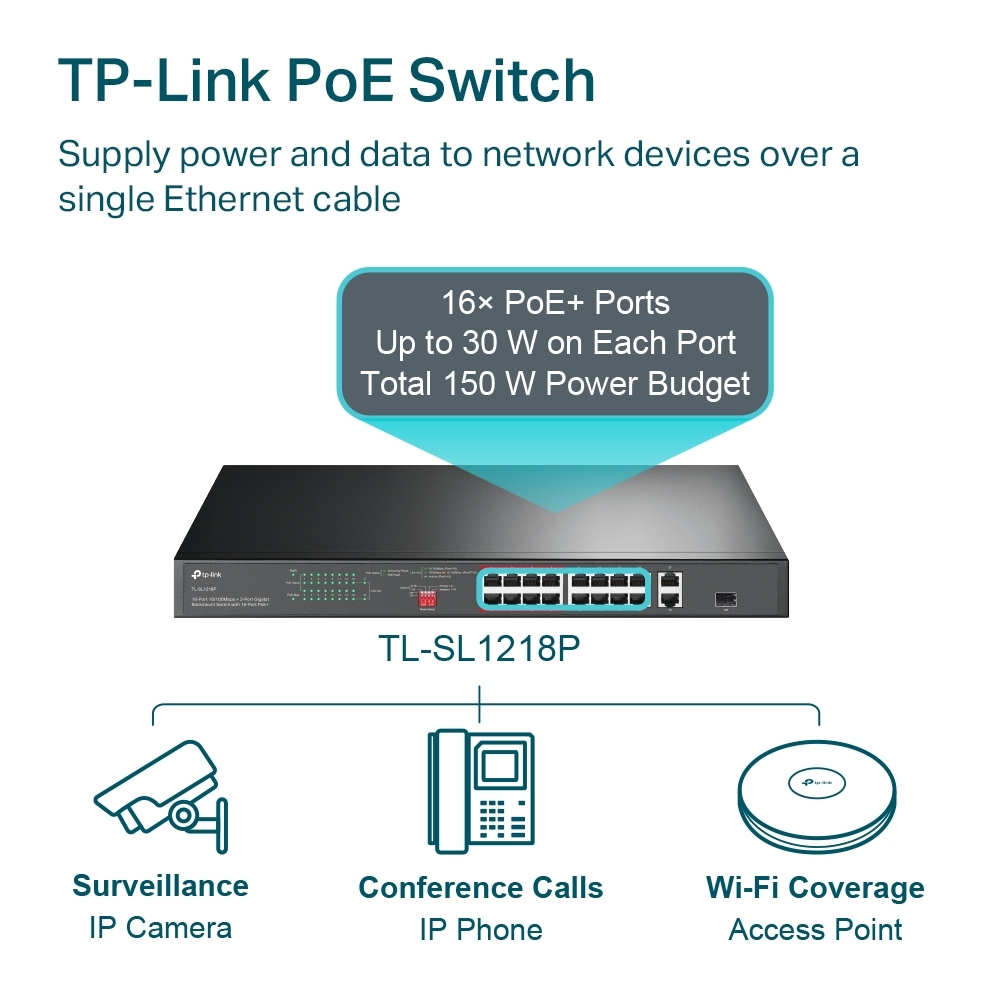

| PoE+ Ports(RJ45) |
• Standard: 802.3at/802.3af compliant
• PoE Ports: Ports 1–16
• PoE Power Budget: 150 W |
| Dimensions ( W x D x H ) |
17.3 × 7.1 × 1.7 in
(440 × 180 × 44 mm) |
| Max Power Consumption |
• 12.7 W (no power device connected)
• 172.8 W (with 150W power devices connected) |
| Max Heat Dissipation |
• 43.3 BTU/h (no power device connected)
• 589.3 BTU/h (with 150W power devices connected) |
| PERFORMANCE |
| Switching Capacity |
7.2 Gbps |
| Packet Forwarding Rate |
5.36 Mpps |
| MAC Address Table |
8K |
| Jumbo Frame |
10 KB |
| SOFTWARE FEATURES |
| Advanced Features |
• Compatible With IEEE 802.3at/af Compliant PDs
• Extend Mode (Up to 250m PoE power supply and data transmission)
• Priority Mode
• Isolation Mode
• Mac Address Auto-Learning And Auto-Aging
• IEEE802.3x Flow Control |
| Transmission Method |
Store-And-Forward |
| OTHERS |
| Certification |
CE, FCC, RoHS |
| Package Contents |
• TL-SL1218P
• Power Cable
• Installation Guide
• Two mounting brackets |
| Environment |
• Operating Temperature: 0–50 °C (32–122 °F)
• Storage Temperature: -40–70 °C (-40–158 °F)
• Operating Humidity: 10–90% RH non-condensing
• Storage Humidity: 5–90% RH non-condensing |
| SKU |
TL-SL1218P |
| Barcode # |
6935364052829 |
| Brand |
TP-LINK |
| Shipping Weight |
2.8000kg |
