View PDF BrochureEight PoE ports
Connects and powers compatible access points and IP cameras over Ethernet.

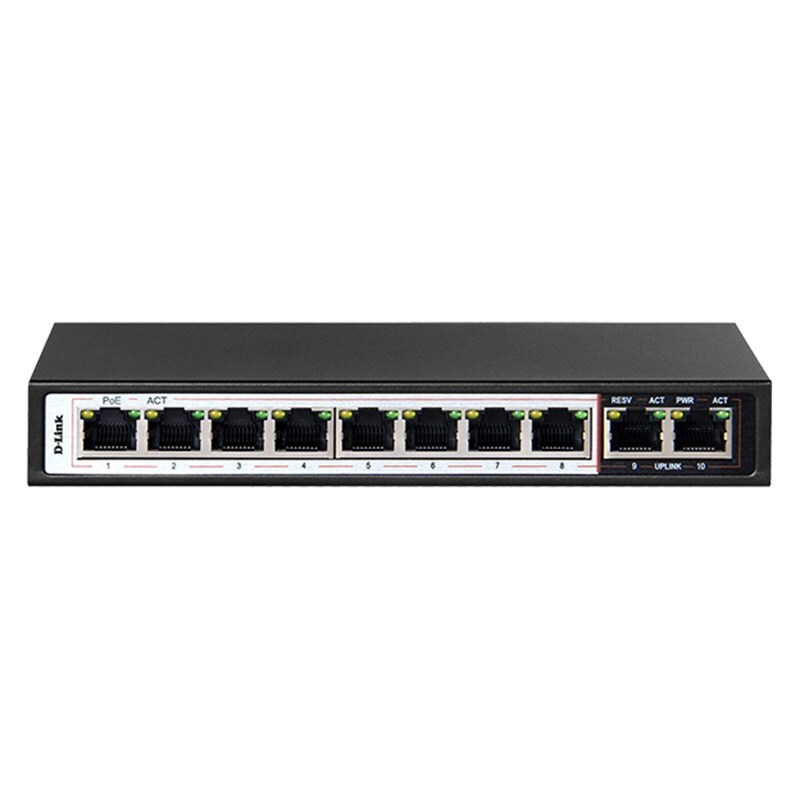

D-Link DES-F1010P-E 10-Port PoE Switch with 8 PoE Ports/2 Uplink Ports
Model # DES-F1010P-E
-
SKU: DES-F1010P-E
- Pick Up Available
- Australian Warranty
- Checkout Securely
D-Link product
D-Link DES-F1010P-E 10-Port Unmanaged PoE Switch
A 10-port unmanaged Layer 2 switch with eight 10/100Mbps PoE ports, two uplink ports, IEEE 802.3af/at support and a total PoE budget of 96W.
96W total PoE budget
Supports multiple powered devices within the stated combined power allowance.
IEEE 802.3af/at
Supports the two listed Power over Ethernet protocols.
Ten-port PoE connectivity
The DES-F1010P-E provides eight powered network ports plus two uplinks.
Power and data together
Compatible devices receive power through Ethernet cabling, reducing the need for nearby power outlets.
Unmanaged Layer 2 operation
The switch requires no web interface, cloud management or licence according to the supplied specifications.
Desktop or rack placement
A desktop form factor and stated 19-inch rack-mount support provide installation flexibility.
Buy with confidence from DeviceDeal
DeviceDeal is an authorised D-Link reseller. This product is supplied with the stated three-year D-Link limited manufacturer warranty.
Frequently asked questions
How many total ports are provided?
The switch provides ten ports.
How many ports supply PoE?
Eight 10/100Mbps PoE ports are listed.
How many uplink ports are included?
Two uplink ports are provided.
Which PoE standards are supported?
IEEE 802.3af and IEEE 802.3at are listed.
What is the total PoE budget?
The stated PoE budget is 96W.
Which devices are mentioned as examples?
Wireless access points and IP cameras are listed.
Is the switch managed?
No. It is an unmanaged Layer 2 switch.
Is a management licence required?
No licence is required.
Is the switch rack mountable?
Yes. 19-inch rack mounting is stated.
What warranty is supplied?
A three-year limited D-Link manufacturer warranty is stated.
(DES-F1010P-E)
D-Link DES-F1010P-E 10-Port Unmanaged PoE Switch features
Eight powered connections
Supports compatible PoE network devices across the listed ports.
96W shared power
Allocates a combined PoE budget across connected equipment.
Standards-based PoE
Supports the stated 802.3af and 802.3at protocols.
No management overhead
Operates without web configuration, cloud management or licensing.
Confirm each device's PoE standard and power requirement against the total 96W budget before installation.
D-Link DES-F1010P-E 10-Port Unmanaged PoE Switch specifications
Product details
| Model | DES-F1010P-E |
|---|---|
| Product type | Unmanaged Layer 2 PoE switch |
| Total ports | 10 |
| PoE ports | 8 x 10/100Mbps |
| Uplink ports | 2 |
| PoE standards | IEEE 802.3af / IEEE 802.3at |
| PoE budget | 96W |
| Switching capacity | 2Gbps |
| Management | Unmanaged |
| OSI capability | Layer 2 |
| Cooling | Passive |
| Form factor | Desktop |
| Rack mountable | Yes, 19-inch |
| Operating temperature | 0°C to 40°C |
| Dimensions | 184 x 94 x 27mm |
| Licence required | No |
Warranty
| Coverage | 3-year limited warranty |
|---|
| SKU | DES-F1010P-E |
| Barcode # | 790069295553 |
| Brand | D-LINK |
| Shipping Weight | 1.1300kg |
| Shipping Width | 0.260m |
| Shipping Height | 0.300m |
| Shipping Length | 0.060m |
| Shipping Cubic | 0.002758000m3 |
