Power Supply: The product only supports PoE power supply, not AC or DC power supply.



  • Ports: 5× 10 Mbps/100 Mbps/1 Gbps RJ45 ports
  • 1-Port Gigabit PoE++ In and 4-Port PoE+ Out: Supports up to 66 W / 47 W / 21 W/ 9 W PoE budget output when powered by 802.3bt Type 4, 802.3bt Type 3, 802.3at, and 802.3af PoE standard, respectively.*
  • Long-Range PoE+: With Extend Mode**, PoE transmission distance reaches up to 250 m, perfect for surveillance camera deployment in large areas.
  • PoE Auto Recovery: It guarantees stable operation of PoE devices by automatically rebooting the dropped or unresponsive PD devices.
  • Metal Casing: Durable metal casing and desktop/wall-mounting design are well-suited for different environments.
  • Silent Operation: Industry-leading fanless design ensures silent operation, ideal for any home or business.
  • Plug and Play: No configuration and installation required.

(TL-SG1005P-PD)

HARDWARE FEATURES
Standards and Protocols IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3x, IEEE 802.1p
Interface • 5× 10/100/1000Mbps RJ45 Ports
• 1× 10/100/1000 Mbps RJ45 PoE In Ports (compliance with 802.3af/at/bt Type3/bt Type4)
• 4× 10/100/1000 Mbps RJ45 PoE Out Ports (compliance with 802.3af/at)
• AUTO Negotiation
• AUTO MDI/MDIX
Network Media • 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
• EIA/TIA-568 100Ω STP (maximum 100m)
• 100BASE-TX: UTP category 5, 5e cable (maximum 100m)
• EIA/TIA-568 100Ω STP (maximum 100m)
• 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)
• EIA/TIA-568 100Ω STP (maximum 100m)
Fan Quantity Fanless
Power Supply Only Powered by PoE Device
PoE Ports (RJ45) • PoE In Port: Port 5, Compliance with 802.3af/at/bt Type3/bt Type4
• PoE Out Ports: Ports 1-4, compliance with 802.3af/at
• PoE Power Budget:
-66 W when powered by 802.3bt Type 4 (90 W)
-47 W when powered by 802.3bt Type 3 (60 W)
-21 W when powered by 802.3at (30 W)
-9 W when powered by 802.3af (15.4 W)
Dimensions ( W x D x H ) 6.2 × 4.0 × 1.0 in (158 × 101 × 25 mm)
Max Power Consumption • 2.68 W (90W PoE In, with no PD connected)
• 68.59 W (90W PoE In, with 66 W PD connected)
Max Heat Dissipation • 9.112 BTU/h (90W PoE In, with no PD connected)
• 233.206 BTU/h (90W PoE In, with 66 W PD connected)
PERFORMANCE
Switching Capacity 10 Gbps
Packet Forwarding Rate 7.44 Mpps
MAC Address Table 2k
SOFTWARE FEATURES
Advanced Features • Extend Mode Button (Ports 1–2, Up to 250 m PoE power supply and data transmission)
• PoE Auto Recovery (Ports 1-4)
• Mac Address Auto-Learning and Auto-Aging
• IEEE 802.3x Flow Control
• 802.1p/DSCP QoS
• IGMP Snooping
Transfer Method Store-And-Forward
OTHERS
Certification CE, FCC, RoHS
Package Contents • TL-SG1005P-PD
• Installation Guide
Environment • Operating Temperature: -30–70 ℃ (-22–158 ℉);
• Storage Temperature: -40–70 ℃ (-40–158 ℉)
• Operating Humidity: 10–90% RH non-condensing
• Storage Humidity: 5–90% RH non-condensing
SKU TL-SG1005P-PD
Barcode # 4895252501117
Brand TP-LINK
Shipping Weight 0.7300kg

Manufacturer Warranty

Be The First To Review This Product!

Help other Device Deal users shop smarter by writing reviews for products you have purchased.

Write a product review

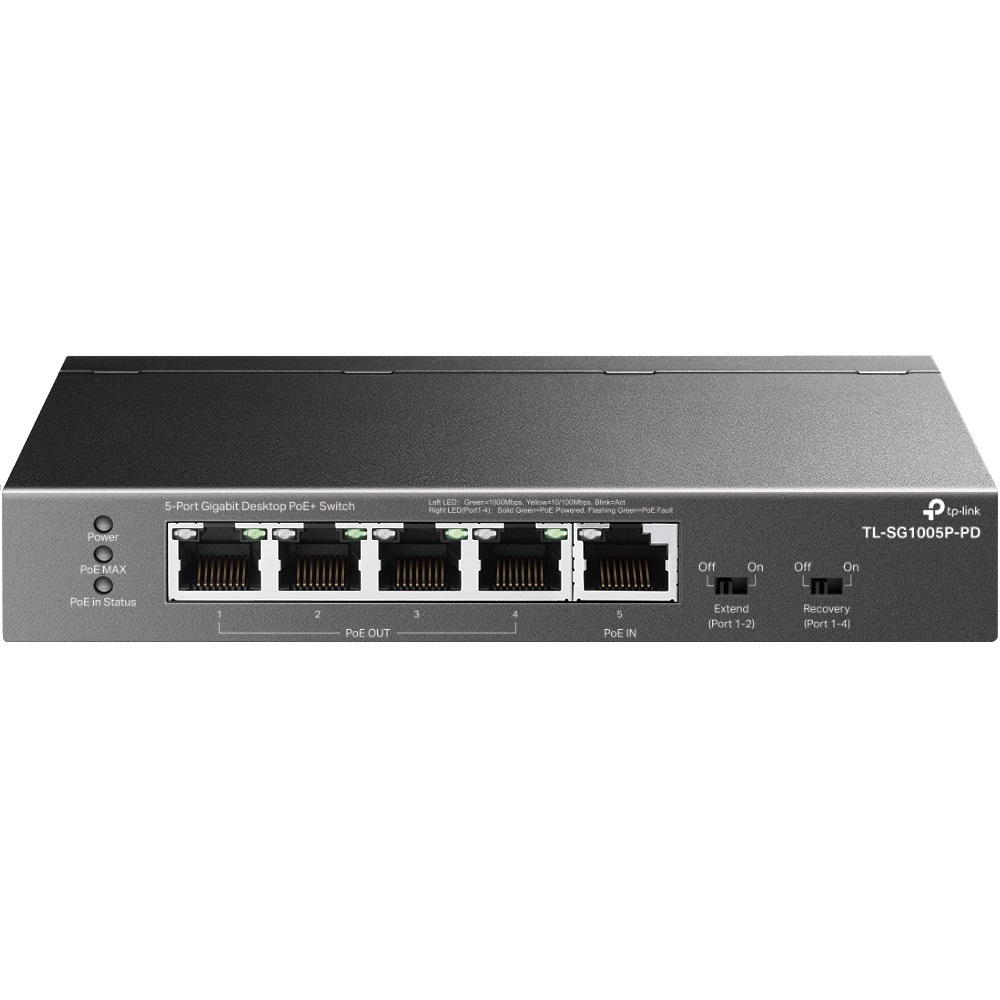

TP-Link TL-SG1005P-PD 5-Port Gigabit Desktop PoE+ Switch with 1-Port PoE++ In and 4-Port PoE+Out
