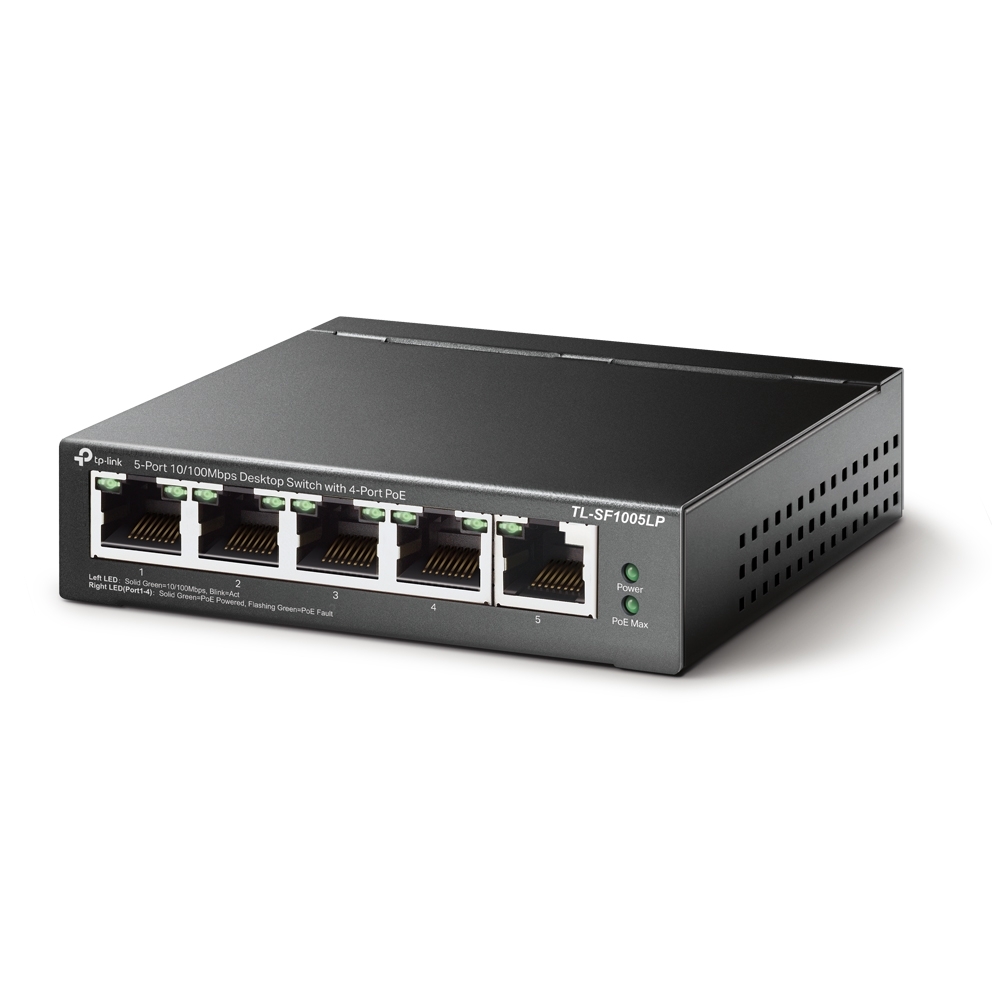

TP-Link TL-SF1005LP 5-Port 10/100Mbps Desktop Switch with 4-Port PoE

TP-Link TL-SF1005LP

5-Port 10/100 Mbps Desktop Switch with 4-Port PoE

• 5x 10/100 Mbps RJ45 ports
• 4x PoE ports transfer data and power on individual cables
• Works with IEEE 802.3af compliant PDs
• Supports PoE Power up to 15,4 W for each PoE port
• Supports PoE Power up to 41 W for 4 PoE ports*
• Up to 250 m data and power transmitting range under Extend Mode**
• Priority Mode ensures high priority of ports 1–2 to guarantee the quality of sensitive application
• Plug and play with no configuration required

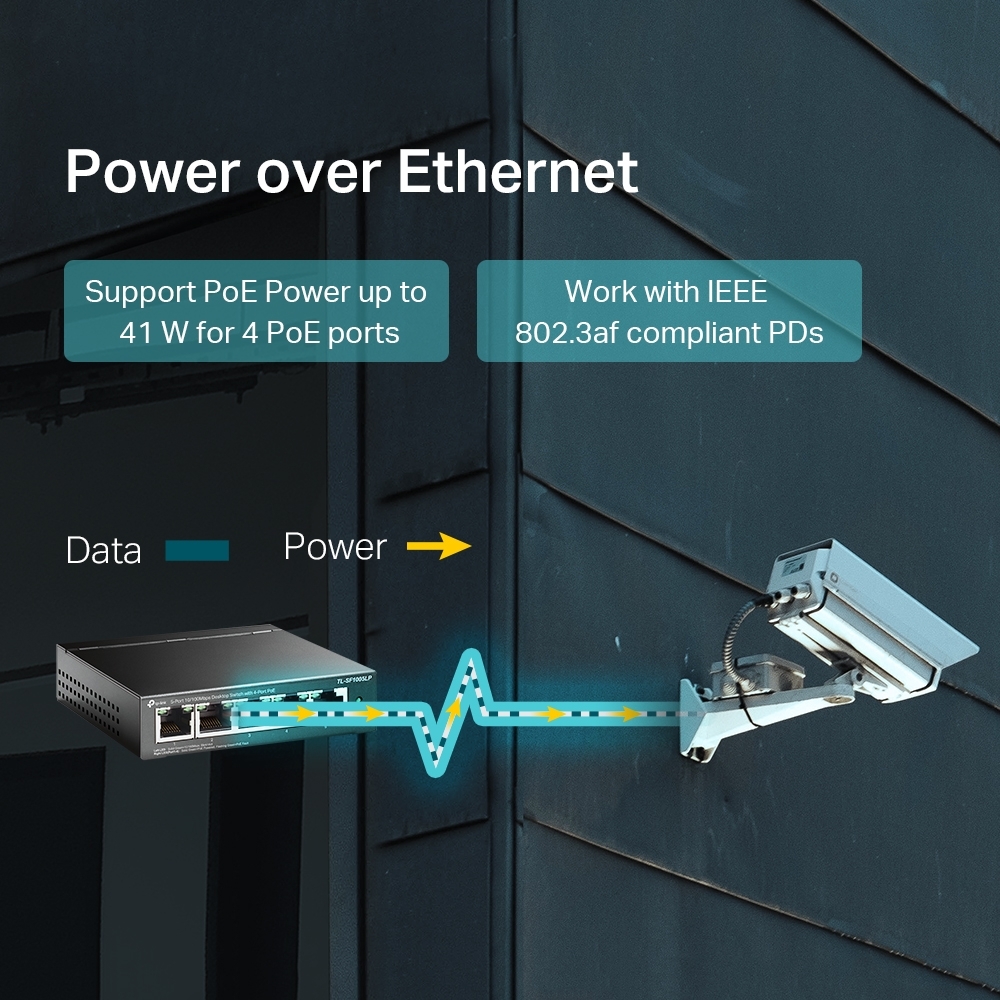

Dedicated 4-Port PoE Switch (41 W Budget) for Numerous Applications
Compliance with the 802.3af PoE standard supports up to 15.4 W on each PoE port. The total 41 W PoE power budget* for the 4x PoE ports opens up a wide range of applications, such as surveillance for offices, dormitories, and small businesses. It is fully compatible with IP cameras, access points, IP phones, computers, printers, and more.

Ideal for IP Surveillance - Up to 250 m Transmissions
With extend mode, the PoE transmission distance reaches up to 250 m** - perfect for IP Camera deployment in large areas.

Priority Video Quality Guaranteed
Quality of sensitive applications like video monitoring in critical business areas is guaranteed by offering higher priority options for ports 1–2 when one-touch Priority Mode is on.

Durable Metal Casing
The interior components of TL-SF1005LP are protected by high-quality metal casing to ensure a long product life. Having passed an array of stringent reliability tests, TL-SF1005LP delivers switching performance you can depend on.

Intelligent Power Management
When total power consumption exceeds 41 W, the intelligent power management will cut the lower priority port power. This ensures the high priority port’s power supply and protects the device from power overload. It also automatically detects and provides the required power for your PoE devices while protecting your PoE and non-PoE equipment from being damaged.

*PoE budget calculations are based on laboratory testing. Actual PoE power budget is not guaranteed and will vary as a result of client limitations and environmental factors.
**The speed of the ports in extend mode will downgrade to 10 Mbps. The actual transmission distance may vary due to power consumption of PoE-powered devices or the cable quality and type.

SPECIFICATIONS:

Interface: 5x 10/100 Mbps RJ45 Ports (4x 802.3af PoE), Auto Negotiation, Auto MDI/MDIX
Transmission Method: Store and Forward
Switching Capacity: 1 Gbps
Forwarding rate: 0.744 Mpps
Power Supply: External Power Adapter (Output: 53.5 VDC / 0.81 A)
Certification: FCC, CE, RoHs
Operating Temperature: 0 to 40 °C (32 to 104 °F)
