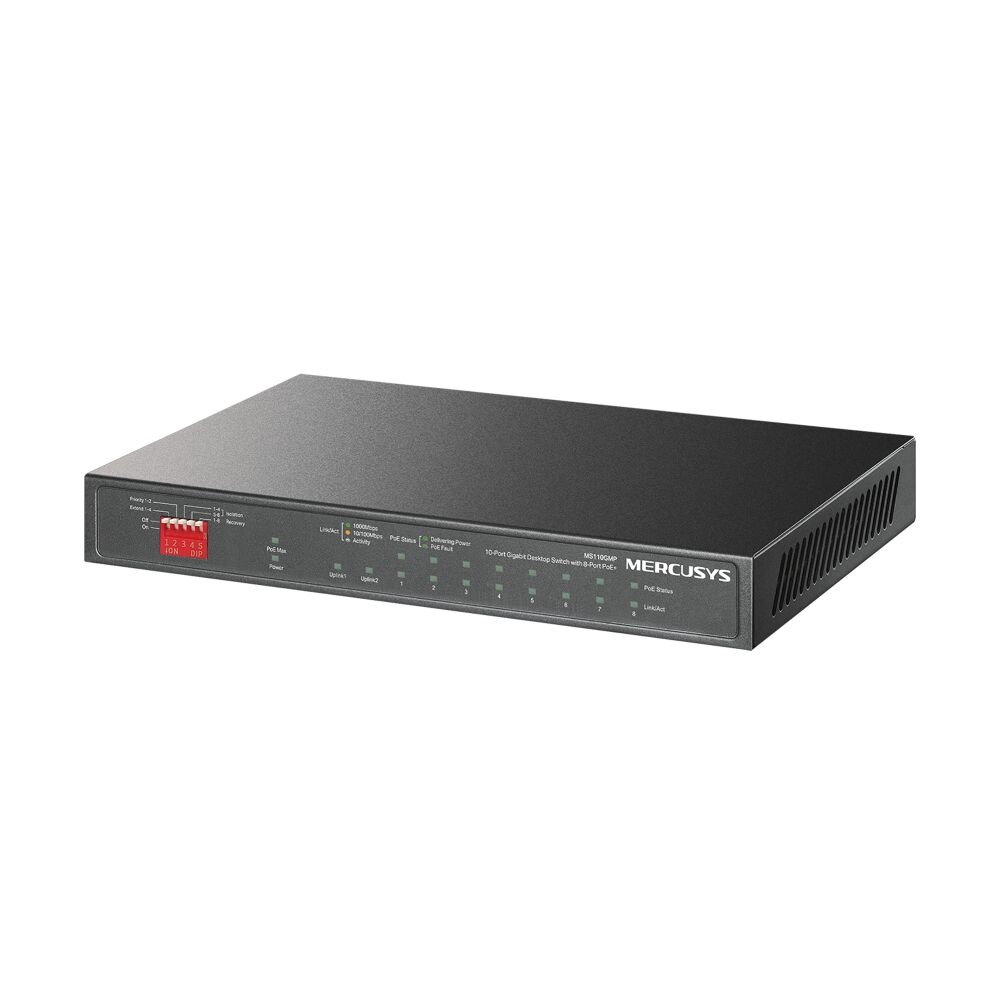

Mercusys MS110CMP 8-Port 10/100 Mbps + 2-Port Gigabit Desktop Switch with 8-Port PoE+
Model # MS110GMP
-
SKU: MS110GMP
$128.00
Stock Availability
🟢Live
In Stock · 10+ available
Pickup from Vermont, VIC
Allow 1–2 business days for stock transfer
Allow 1–2 business days for stock transfer
- Pick Up Available
- Australian Warranty
- Checkout Securely
10-Port Gigabit Desktop Switch with 8-Port PoE+
- 8× gigabit PoE+ ports, and 2× Gigabit Uplink Ports
- 8× PoE+ ports transfer data and power via a single cable with a total power budget of 111 W*
- Compliance with IEEE 802.3af/at PoE+, the switch supports PoE Power up to 30 W for each PoE port
- Up to 250 m data and power transmission range under Extend Mode**
- Priority Mode ensures high priority of ports 1–2 to guarantee the quality of the sensitive applications
- Isolation Mode allows one-click client traffic separation for higher security and performance
- Automatically reboots your dropped or unresponsive PoE-powered devices with PoE Auto Recovery
- Plug and play with no configuration required
- Fanless design reduces power consumption and works silently in its location
(MS110GMP)
Software & Features
| Category | Specification |
|---|---|
| Transfer Method | Store-And-Forward |
| Advanced Features | • IEEE 802.3af/at Compliant PD Support• Extend Mode Button (Ports 1–4, Up to 250 m)• Priority Mode Button (Ports 1–2)• Isolation Mode Button (Ports 1–4 / 5–8)• PoE Auto Recovery (Ports 1–8)• MAC Address Auto-Learning and Auto-Aging• IEEE 802.3x Flow Control (Full Duplex)• Backpressure (Half Duplex) |
Hardware
| Category | Specification |
|---|---|
| Hardware Dimensions | 8.2 × 4.9 × 1.0 in (209 × 126 × 26 mm) |
| PoE Ports | Type: RJ45Standard: IEEE 802.3 af/at compliantPorts: 1–8PoE Power Supply: 111 W |
| Interfaces | • 8× 10/100/1000 Mbps PoE+ Ports• 2× 1000 Mbps RJ45 Ports• Auto Negotiation• Auto MDI/MDIX |
| Network Media Support | • 10BASE-T: UTP Cat 3, 4, 5 (max 100 m)• 100BASE-TX: UTP Cat 5, 5e (max 100 m)• 1000BASE-T: UTP Cat 5, 5e, 6+ (max 100 m)All: EIA/TIA-568 100Ω STP supported |
| External Power Supply | External Power Adapter (Output: 53.5VDC / 2.43A) |
| Fan Quantity | Fanless |
| Physical Security Lock | Yes |
Performance
| Category | Specification |
|---|---|
| Jumbo Frame | 16 KB |
| Switching Capacity | 20 Gbps |
| MAC Address Table | 4K |
| Packet Forwarding Rate | 14.88 Mpps |
Power & Thermal
| Category | Specification |
|---|---|
| Max Power Consumption | • 7.93 W (no PD connected)• 141.40 W (with 123 W PD connected) |
| Max Heat Dissipation | • 27.04 BTU/h (no PD connected)• 482.17 BTU/h (with 123 W PD connected) |
Others
| Category | Specification |
|---|---|
| Certifications | FCC, CE, RoHS |
| Package Contents | • MS110GMP• Power Adapter• Installation Guide |
| Environment | • Operating Temp: 0–40 ℃ (32–104 ℉)• Storage Temp: -40–70 ℃ (-40–158 ℉)• Operating Humidity: 10–90% RH non-condensing• Storage Humidity: 5–90% RH non-condensing |
| SKU | MS110GMP |
| Barcode # | 6957939003715 |
| Brand | TP-LINK |
| Shipping Weight | 4.0000kg |
| Shipping Width | 0.120m |
| Shipping Height | 0.250m |
| Shipping Length | 0.200m |
Manufacturer Warranty: 5 Year Manufacturer Warranty
