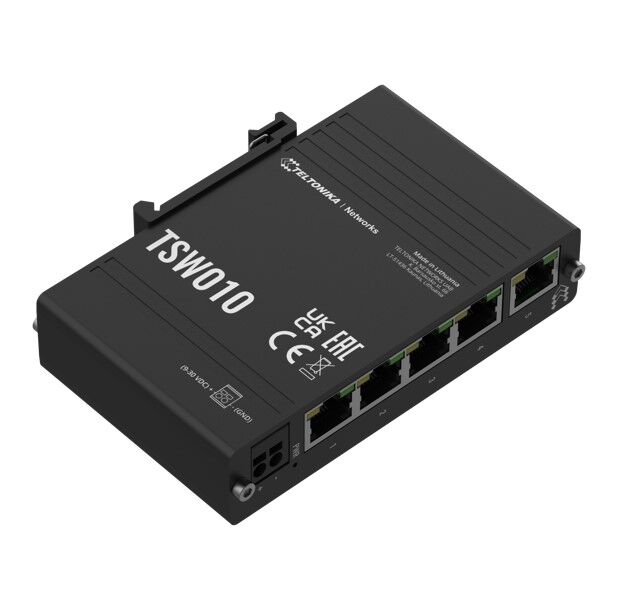

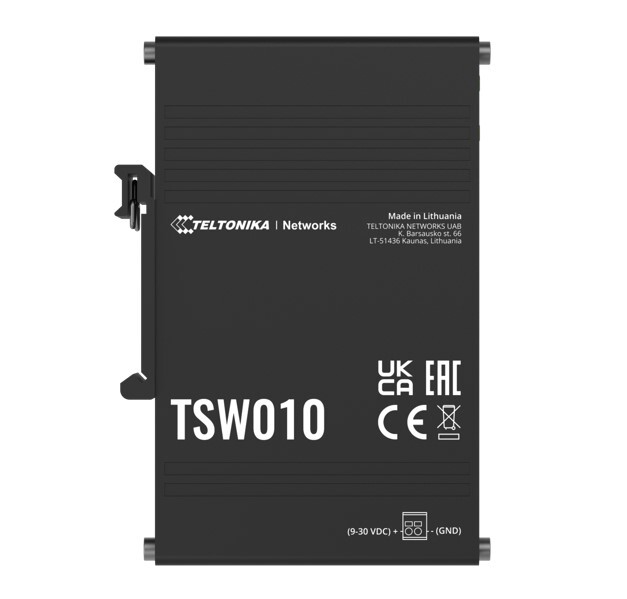

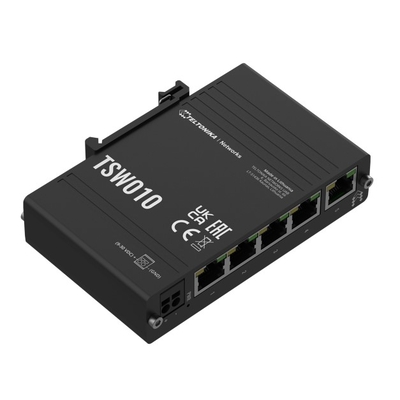

TSW010


DIN RAIL ETHERNET SWITCH


TSW010 Ethernet switch offers the most affordable way to extend network connectivity to multiple Ethernet devices. Five 10/100 Mbps Ethernet ports ensure stable and reliable connectivity, sufficient for most industrial applications where high throughput is not required.


PLUG AND PLAY
No additional configuration needed

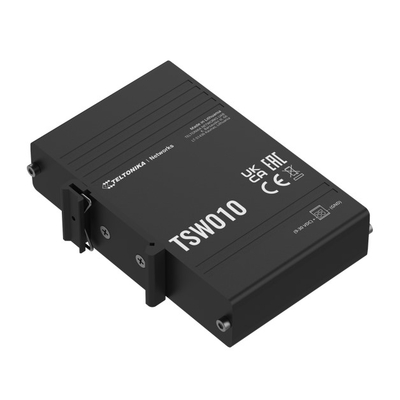

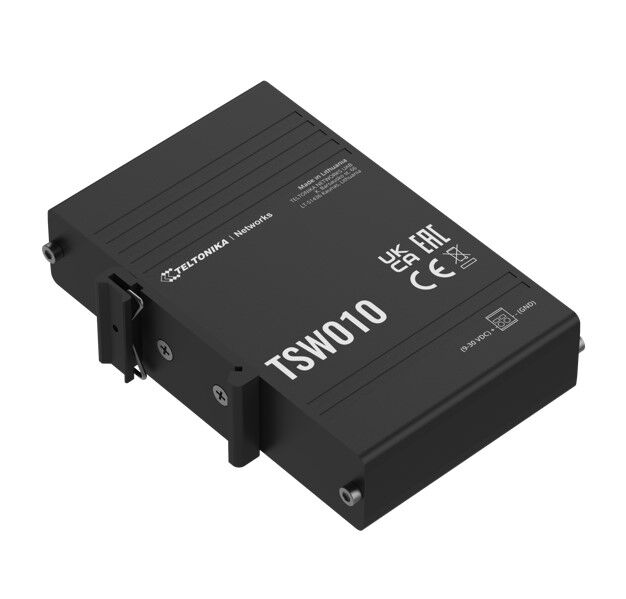

MOUNTING
Integrated DIN rail bracket and surface mounting options
INDUSTRIAL DESIGN
Anodized aluminum housing and panels
ETHERNET
5 x Ethernet ports with speeds of up to 100 Mbps

For More Case Studies Click Here ...

(TSW010000000)

CategoryFeatureDescription
EthernetETH5 x ETH port, 10/100 Mbps, supports auto MDI/MDIX crossover
IEEE 802.3 series standards802.3i, 802.3u, 802.3x, 802.3az
INDUSTRIAL PROTOCOLSProfinetProfinet Class A conformance (available with optional order code)
Performance SpecificationsBandwidth (Non-blocking)1 Gbps
MAC address table size2K entries
Jumbo frame support2048 bytes
PowerConnector2-pin industrial DC power socket
Input voltage range9 – 30 VDC
PoE (passive)Possibility to power up through ETH1 ports, not compatible with IEEE802.3af, 802.3at and 802.3bt standards, Mode B, 9 - 30 VDC
Power consumptionIdle: 0.3 W / Max: 0.9 W

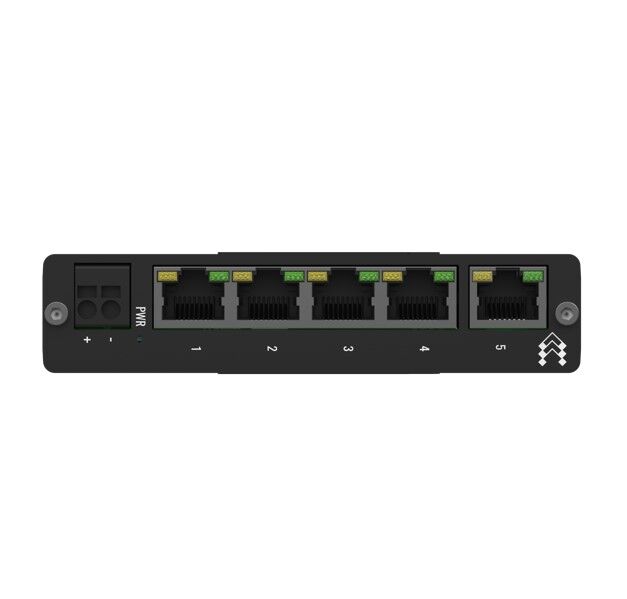

Physical InterfacesEthernet5 x RJ45 ports, 10/100 Mbps
Status LEDs1 x Power LED, 10 x ETH status LEDs
Power1 x 2-pin industrial DC power socket
Physical SpecificationCasing materialAluminium housing
Dimensions (W x H x D)113.1 x 27.4 x 80.5 mm
Weight146.5 g
Mounting optionsIntegrated DIN rail bracket; wall mount and flat surface (additional kit needed)
Operating EnvironmentOperating temperature-40 °C to 75 °C
Operating humidity5% to 95% non-condensing
Ingress Protection RatingIP30
Regulatory & Type ApprovalsRegulatoryCE, UKCA, EAC, FCC, IC, CB, RCM, CITC, ANRT, SDPPI (POSTEL), Kenya, REACH, RoHS, WEEE, UL Safety
EMC Emissions & ImmunityStandardsEN 55032:2015 + A11:2020 + A1:2020EN 55035:2017 + A11:2020
ESDEN 61000-4-2:2009
Radiated ImmunityEN IEC 61000-4-3:2020
EFTEN 61000-4-4:2012
Surge Immunity (AC Mains Power Port)EN 61000-4-5:2014 + A1:2017
CSEN 61000-4-6:2014
SafetyStandardsCE:EN IEC 62368-1:2020 + A11:2020RCM:AS/NZS 62368.1:2022CB:IEC 62368-1:2018
Safety (Ordinary Locations)StandardsUL/CSA Safety: UL 62368-1 (3rd Ed., Rev. December 13, 2019), C22.2 No. 62368-1:19 (3rd Ed., Rev. December 13, 2019)
SKU TSW010000000
Barcode # 4779051840274
Brand TELTONIKA
Shipping Weight 0.1800kg
Manufacturer Warranty: 2 Years Manufacturer Warranty

Be The First To Review This Product!

Help other Device Deal users shop smarter by writing reviews for products you have purchased.

Write a product review

Teltonika DIN Rail Ethernet Switch, 5x Ethernet ports with speeds of up to 100 Mbps, Integrated DIN rail bracket, Plug and Play, PSU excluded

Model # TSW010000000

  • SKU: TSW010000000
