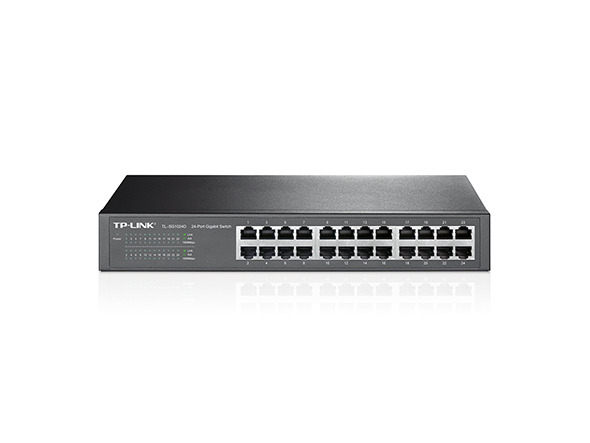

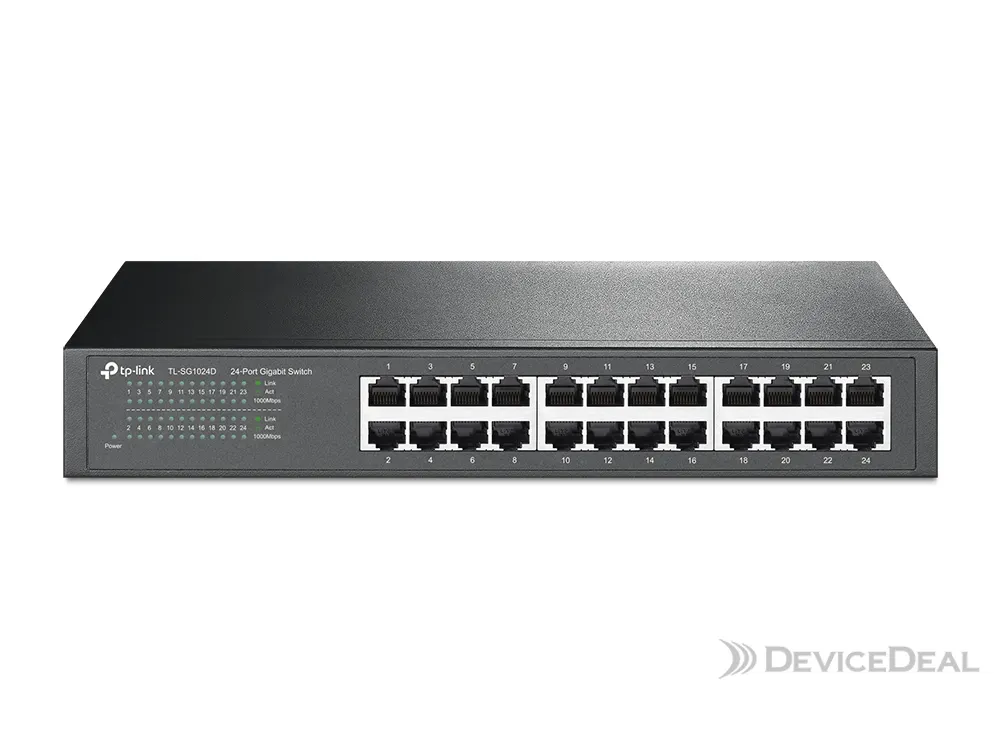

24-Port Gigabit Desktop/Rackmount SwitchTL-SG1024D

  • 24 10/100/1000Mbps ports
  • Innovative energy-efficient technology saves power consumption
  • Supports MAC address self-learning, Auto MDI/MDIX and Auto negotiation
  • Plug & play design





(TL-SG1024D)

 Model # TL-SG1024D

Advanced Functions 802.3X Flow Control, Back Pressure
Auto-Uplink Every Port
Certification FCC, CE, RoHS
Dimensions ( W x D x H ) 11.6*7.1*1.7 in. (294*180*44 mm)
Environment Operating Temperature: 0?~40? (32?~104?);
Storage Temperature: -40?~70? (-40?~158?);
Operating Humidity: 10%~90% non-condensing;
Storage Humidity: 5%~90% non-condensing
External Power Supply 100-240VAC, 50/60Hz
HARDWARE FEATURES
Interface 24 10/100/1000Mbps Auto-Negotiation RJ45 ports
(Auto MDI/MDIX)
Network Media 10Base-T: UTP category 3, 4, 5 cable (maximum 100m)
EIA/TIA-568 100Ù STP (maximum 100m)
100Base-Tx: UTP category 5, 5e cable (maximum 100m)
EIA/TIA-568 100Ù STP (maximum 100m)
1000Base-T: UTP category 5, 5e cable (maximum 100m)
OTHERS
Package Contents 24-Port Gigabit Desktop/Rackmount Switch
Power Cord
User Guide
SOFTWARE FEATURES
Switching Capacity 48Gbps
Transfer Method Store and Forward
SKU TL-SG1024D
Barcode # 845973020620
Brand TP-Link
Shipping Weight 2.3000kg
Shipping Width 0.260m
Shipping Height 0.090m
Shipping Length 0.410m
Shipping Cubic 0.009594000m3
Manufacturer Warranty
3 Years Limited Warranty
Manufacturer Contact Info
http://www.tp-link.com.au
1300 875 465

TP-LINK TL-SG1024D 24 Port Gigabit Desktop / Rackm

By: on 12 November 2015
Ordered it it arrives in a speedy fassion unboxed it a nd installed it in my 19" Rack conected it up and it just worked no tweaking no problems what so ever EXCELLENT Product will definatly recomend to freinds and coleagues
(5)

TP-LINK TL-SG1024D 24 Port Gigabit Desktop / Rackm

By: on 13 October 2015
SWITCH IS A GREAT DEVICE, I HAVE HAD A 16 PORT OF THE SAME BRAND FOR 18 MONTHS AND IT WORKED FINE, THIS IS JUST AN UPGRADE. I EXPECT IT WILL WORK JUST AS WELL. NO SETUP IT JUST WORKS.
(5)
