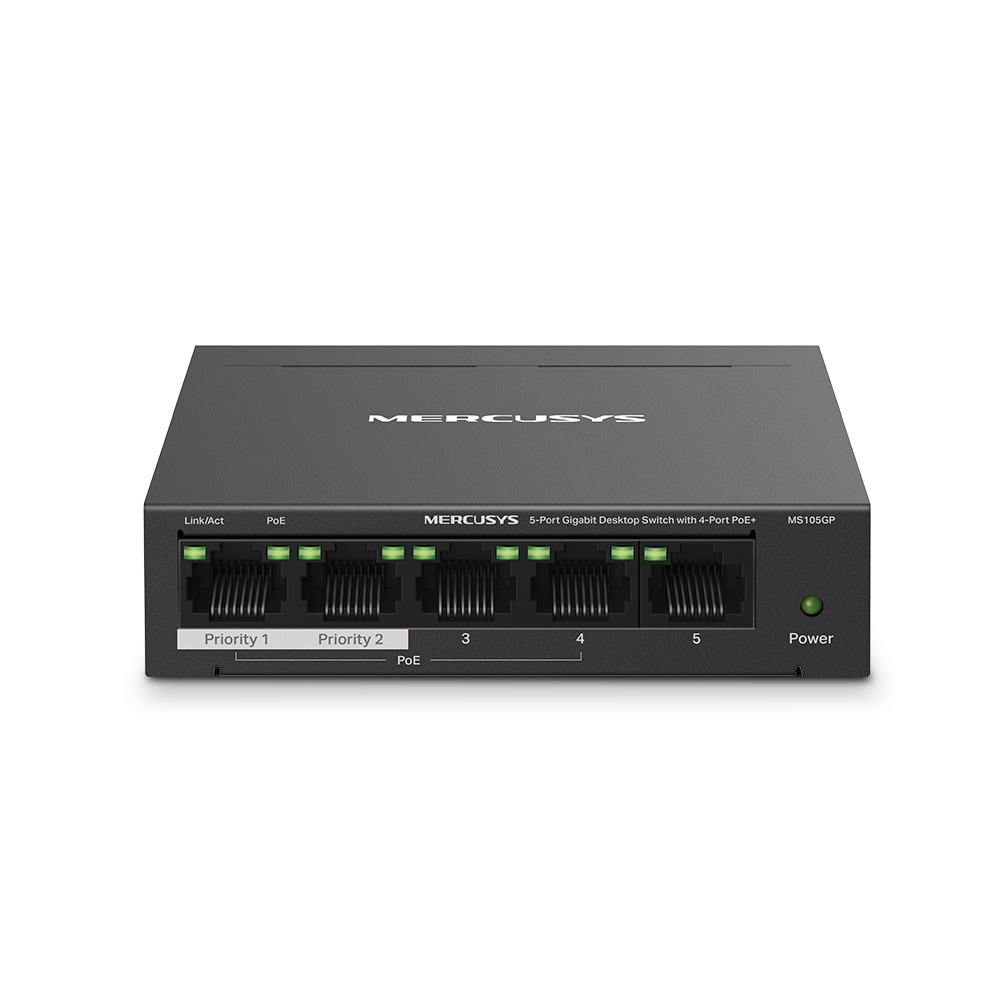

Mercusys MS105GP 5-Port Gigabit Desktop Switch with 4-Port PoE+ Full Gigabit Ports: 5× 10/100/1000 Mbps RJ45 ports Two Cables in One: With four PoE+ ports, transfers data and power on one single cable High Power PoE+: Support PoE Power up to 30 W for each PoE port and 65 W for all PoE ports* Long-Range up to 250 m: Increases PoE transmission distance to 250 m by Extend Mode* Isolation Mode: One click to divide traffic for specific ports for stability and security Compliant with Powered Devices: Works with IEEE 802.3af/at compliant PDs Durable Metal Casing: Allows for efficient heat dissipation and long network life Plug and Play: Simple to use and saves time and effort
(MS105GP)
- Dimensions (W X D X H)
-
99.8*98*25mm
- PoE Ports
-
RJ45
Standard: Compliant with 802.3 af/at Powered Devices
PoE Ports: Port 1- Port 4
PoE Power Budget: 65 W - Interfaces
-
5× 10/100/1000Mbps Ports, Auto-Negotiation, Auto MDI/MDIX
- External Power Supply
-

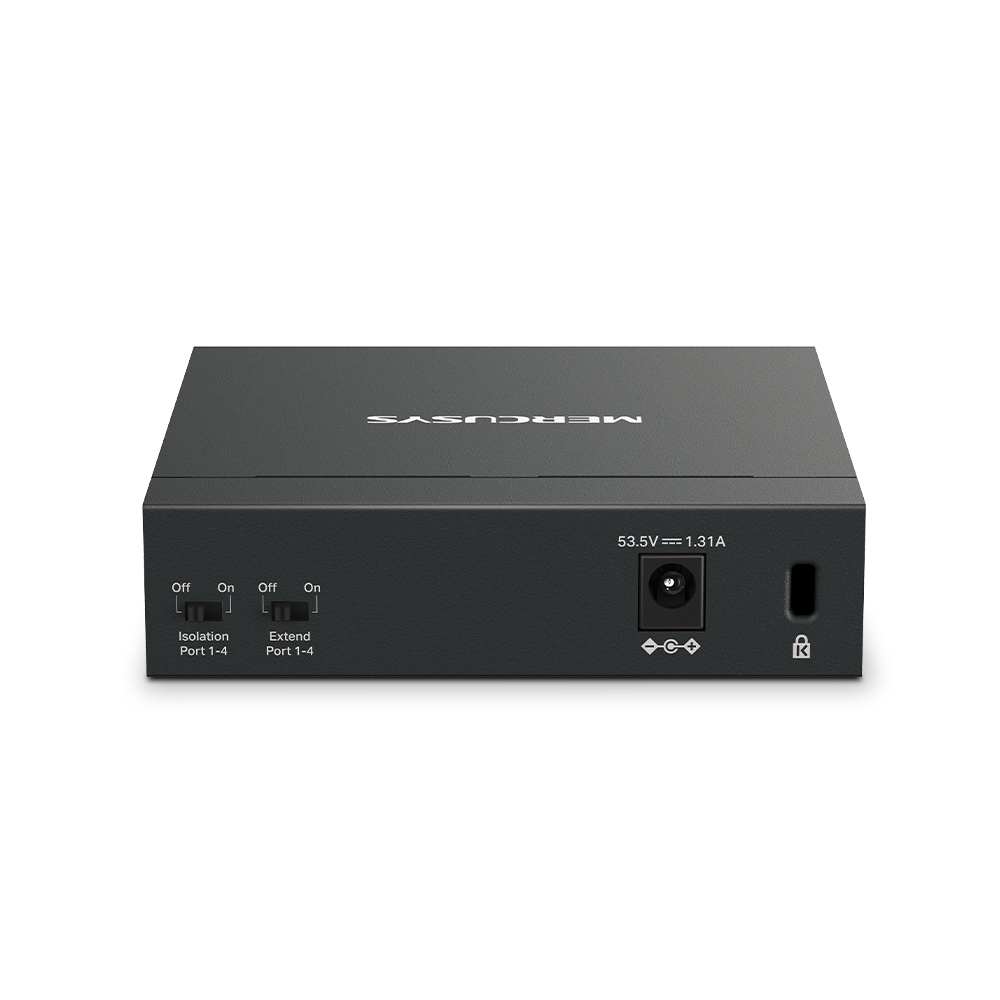

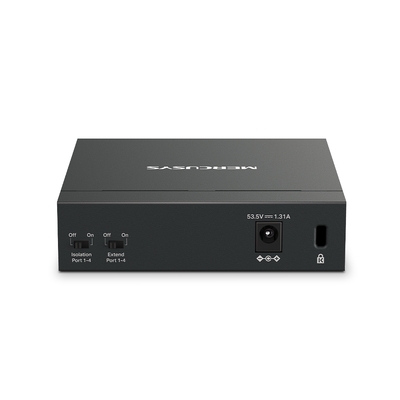

External Power Adapter (Output: 53.5V/1.31A)
- Standards and Protocols
-
IEEE 802.3x Flow Control
- Data Rates
-
10/100/1000 Mbps at Half Duplex
20/200/2000 Mbps at Full Duplex - Jumbo Frame
-
9 KB
- Mac Address Table
-
2K
- Max Power Consumption
-
3.13W?220 V / 50 Hz, no PD connected?
75.15W?220 V / 50 Hz, with 65W PD connected?
- Max Heat Dissipation
-
10.64 BTH/h ?no PD connected)
255.51 BTH/h?with 65W PD connected?
- Hardware
| SKU | MS105GP |
| Barcode # | 6957939001186 |
| Brand | TP-LINK |
| Shipping Weight | 0.2200kg |
| Shipping Width | 0.090m |
| Shipping Height | 0.124m |
| Shipping Length | 0.140m |
