TSW040
8-port PoE+ Switch

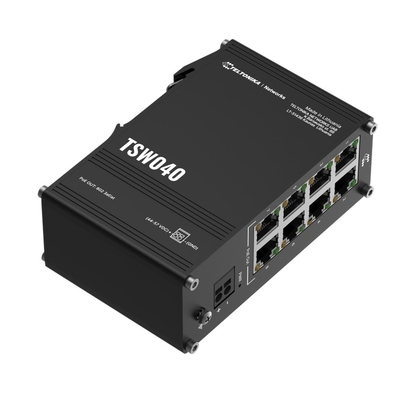

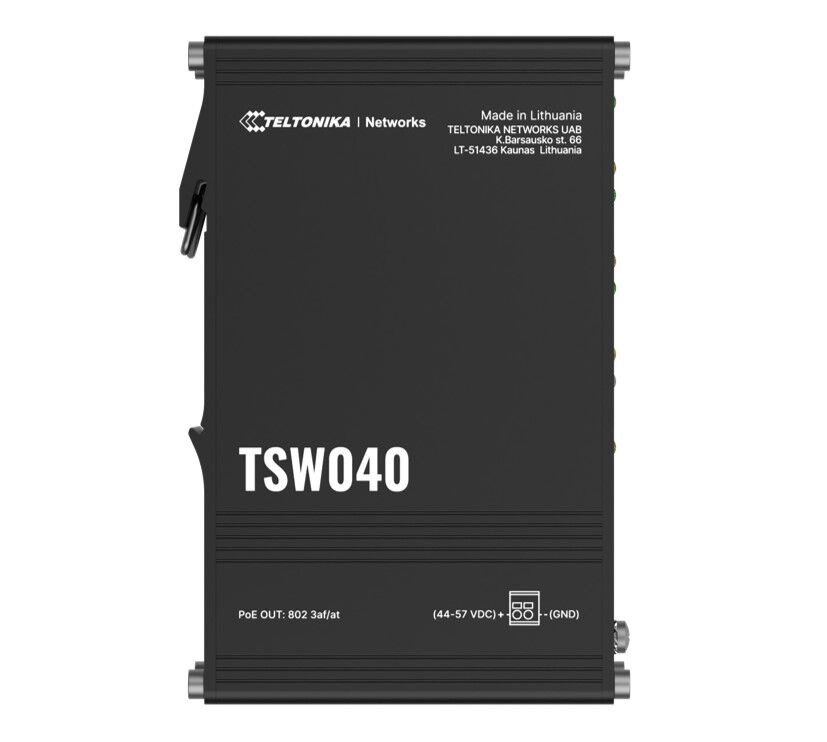

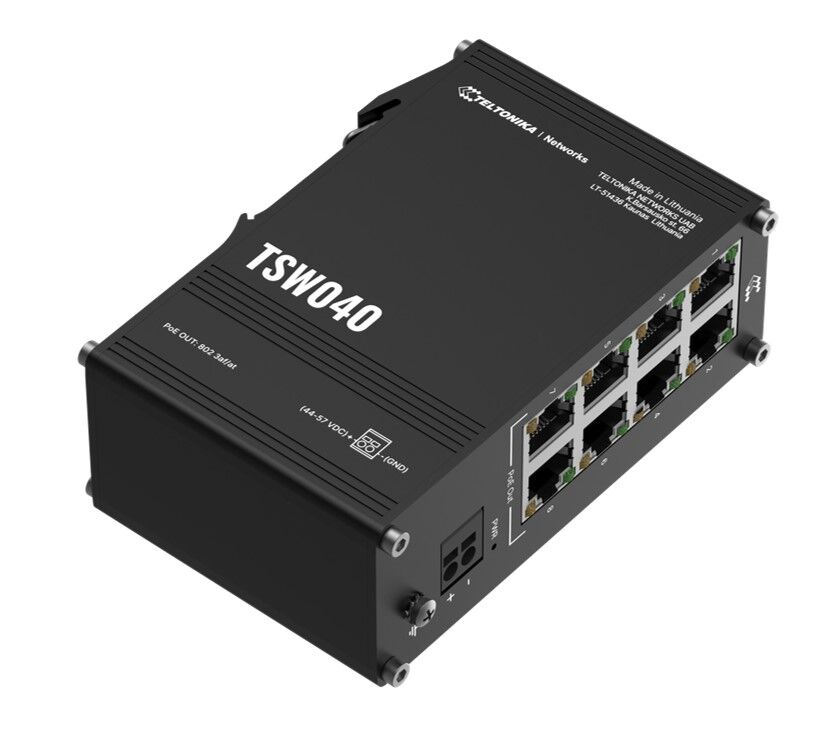

The TSW040 is an unmanaged 8-port PoE+ switch by Teltonika, featuring eight RJ45 ports with a total power budget of 240 W, or up to 30 W per port. This compact and rugged 8-port switch also features a 2-pin power input and an integrated DIN rail for easy mounting, making it ideal for industrial applications. The TSW040 has a wide voltage range of 7-57 VDC and a PoE-out voltage range of 44-57 VDC.
| 8 X PoE-out RJ45 Eight PoE-out Ethernet ports with a total power budget of 240 W | 2-pin Power Input Simple and suitable for industrial applications | Integrated DIN Rail Easy mounting for plug-and-play deployment | Wide Voltage Range 7-57 VDC, or 44-57 VDC for PoE-out |
For More Case Studies Click Here ...
(TSW040000000)
| Category | Feature | Description |
|---|---|---|
| Ethernet | Ethernet | 8 x ETH ports, 10/100 Mbps, supports auto MDI/MDIX crossover |
| IEEE 802.3 series standards | 802.3i, 802.3u, 802.3ab, 802.3x, 802.3az | |
| INDUSTRIAL PROTOCOLS | Profinet | Profinet Class A conformance (available with optional order code) |
| POE OUT | PoE ports | Port 1 - 8 |
| PoE standards | 802.3af and 802.3at compliant PSE ports, over spare pairs - Mode B | |
| PoE Max Power per Port (at PSE) | 30 W | |
| Total PoE Power Budget (at PSE) | 240 W | |
| Performance Specifications | Bandwidth (Non-blocking) | 20 Gbps |
| Packer buffer | 128 KB | |
| MAC address table size | 2K entries | |
| Jumbo frame support | 9216 bytes | |
| Power | Connector | 2-pin industrial DC power socket |
| Input voltage range | 7 – 57 VDC, overvoltage protection: 60Vmax, reverse polarity protection: 80Vmax, surge protection: min 64.4V/max 71.2V breakdown voltage, 93.6V maximum reverse voltage @4.3A maximum reverse surge current, 1- Vin, 2-PGND | |
| PoE-Out input voltage range | 44 – 57 VDC | |
| Power consumption | Idle: 1 W / Max: 2 W / PoE Max: 246 W | |

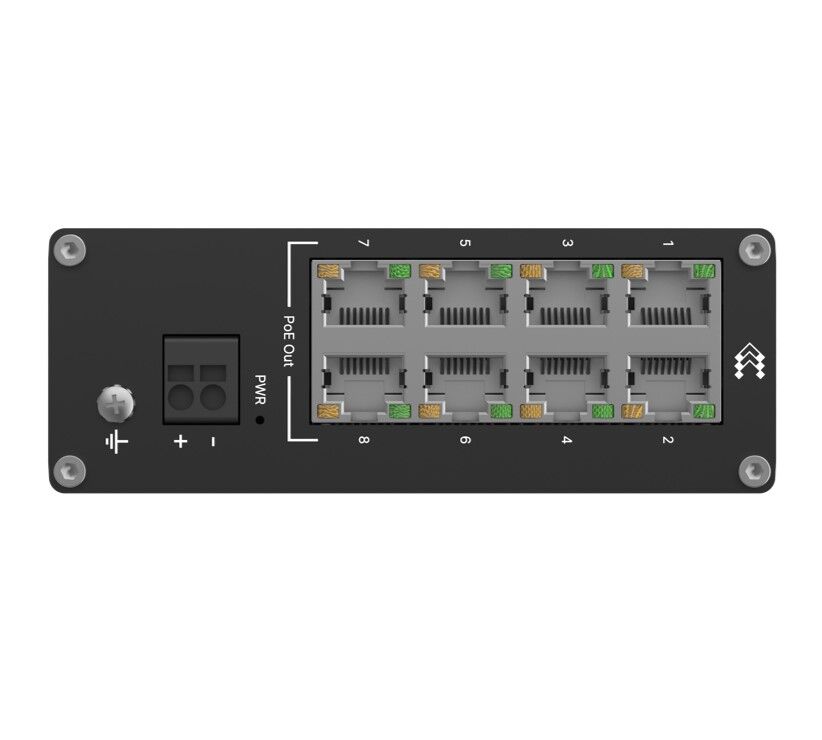

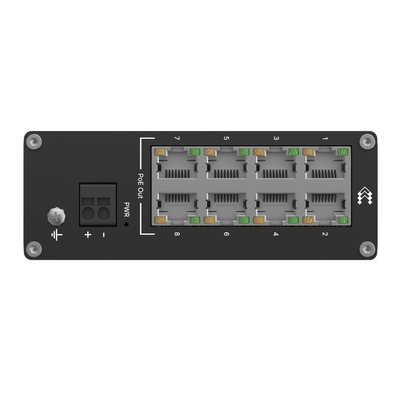

| Physical Interfaces | Ethernet | 8 x RJ45 ports, 10/100 Mbps |
| Status LEDs | 1 x Power LED, 16 x ETH status LEDs | |
| Power | 1 x 2-pin industrial DC power socket | |
| Other | 1 x Grounding screw | |
| Physical Specification | Casing material | Anodized aluminum housing and panels |
| Dimensions (W x H x D) | 113.1 x 41.2 x 74.6 mm | |

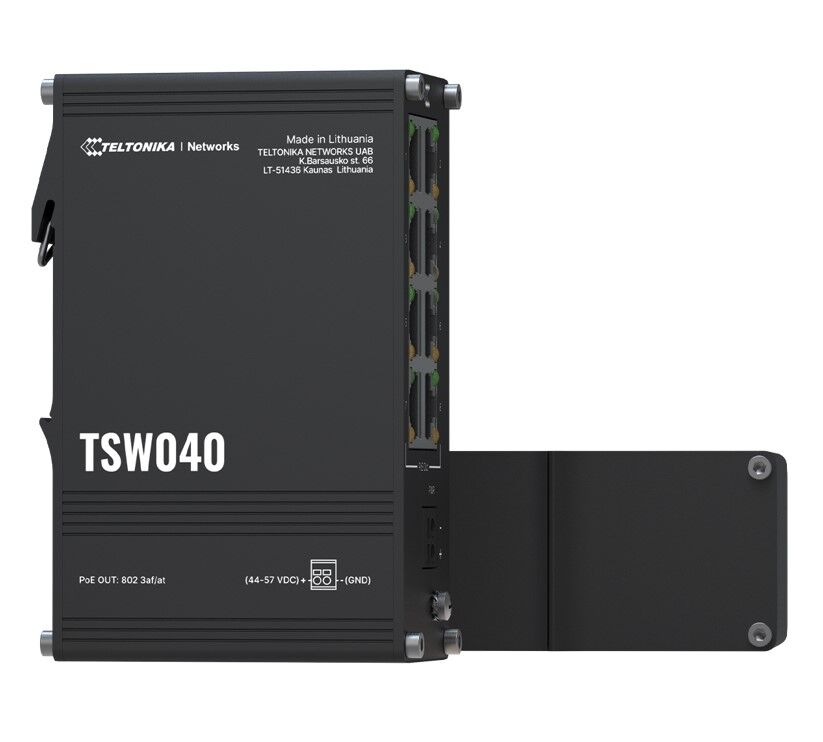

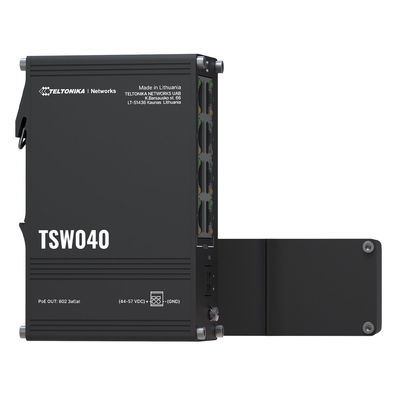

| Mounting options | Integrated DIN rail bracket; wall mount and flat surface (additional kit needed) | |
| Weight | 280 g | |
| Operating Environment | Operating temperature | -40 °C to 75 °C |
| Operating humidity | 5% to 95% non-condensing | |
| Ingress Protection Rating | IP30 |
| SKU | TSW040000000 |
| Barcode # | 4779051841448 |
| Brand | TELTONIKA |
| Shipping Weight | 0.2800kg |
