View PDF BrochureTwelve PoE ports
Powers compatible network equipment within the stated 100W budget.

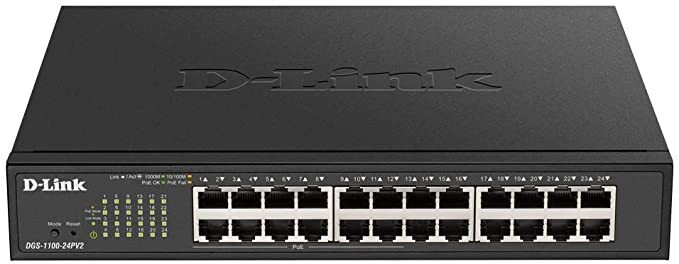

D-Link DGS-1100-24P V2 24-Port Gigabit Smart Managed Switch
Model # DGS-1100-24PV2
-
SKU: DGS-1100-24PV2
- Pick Up Available
- Australian Warranty
- Checkout Securely
D-Link product
D-Link DGS-1100-24PV2 24-Port Smart Managed PoE Switch
A 24-port Gigabit smart managed Layer 2 switch with twelve PoE ports, a 100W PoE budget, surveillance VLAN, bandwidth control and rack-mount support.
Twenty-four Gigabit ports
Provides high-port-count 10/100/1000Mbps access.
Surveillance VLAN
Separates and prioritises IP-surveillance video traffic.
Mixed powered access
The switch combines twelve PoE connections with additional non-powered Gigabit ports.
Smart management
A web interface supports management without cloud control or a separate licence.
Traffic prioritisation
Surveillance VLAN and per-port bandwidth control support important network functions.
Rack-ready hardware
Desktop or 19-inch rack placement is stated, with mounting brackets included and passive cooling.
Buy with confidence from DeviceDeal
DeviceDeal is an authorised D-Link reseller. This product is supplied with the stated D-Link limited lifetime manufacturer warranty.
Frequently asked questions
How many Ethernet ports are provided?
The switch has twenty-four Gigabit ports.
How many ports supply PoE?
Twelve PoE ports are listed.
What is the total PoE budget?
The stated PoE budget is 100W.
What is the switching capacity?
A 48Gbps switching capacity is stated.
What packet capacity is listed?
The source states 35.71 million packets per second.
Is the switch smart managed?
Yes. Smart management and a web interface are listed.
What does surveillance VLAN provide?
It separates surveillance video and gives it higher priority.
What does bandwidth control provide?
It reserves bandwidth on a per-port basis.
Can it be rack mounted?
Yes. Desktop or 19-inch rack placement is supported with brackets included.
What warranty is supplied?
A D-Link limited lifetime manufacturer warranty is stated.
(DGS-1100-24PV2)
D-Link DGS-1100-24PV2 24-Port Smart Managed PoE Switch features
Twelve powered connections
Supports compatible PoE equipment.
100W shared budget
Allocates power across the powered ports.
Smart traffic control
Adds surveillance VLAN and bandwidth reservation.
Flexible placement
Supports desktop or rack installation.
Confirm connected-device demand against the total 100W PoE budget and plan VLAN and bandwidth policies before deployment.
D-Link DGS-1100-24PV2 24-Port Smart Managed PoE Switch specifications
Product details
| Model | DGS-1100-24PV2 |
|---|---|
| Product type | Smart managed Gigabit Layer 2 PoE switch |
| Gigabit ports | 24 |
| Port speed | 10/100/1000Mbps |
| PoE ports | 12 |
| PoE budget | 100W |
| Switching capacity | 48Gbps |
| Packet capacity | 35.71mpps |
| Management | Smart managed / web GUI |
| Surveillance feature | Surveillance VLAN |
| Bandwidth management | Per-port bandwidth control |
| SFP ports | 0 |
| IPv4 routing | Listed |
| IPv6 routing | Listed |
| DHCP server screening | Listed |
| Cooling | Passive |
| Placement | Desktop or 19-inch rack mount |
| Mounting brackets | Included |
| Operating temperature | -5°C to 50°C |
| Dimensions | 280 x 230 x 44mm |
| Licence required | No |
Warranty
| Coverage | Limited lifetime warranty |
|---|
| SKU | DGS-1100-24PV2 |
| Barcode # | 790069451782 |
| Brand | D-LINK |
| Shipping Weight | 2.7000kg |
| Shipping Width | 0.110m |
| Shipping Height | 0.370m |
| Shipping Length | 0.370m |
