Forty-eight PoE+ ports
Supports high-density compatible powered-device access.
D-Link DGS-1530-52P 52-Port Gigabit Smart Managed Stackable PoE+ Switch
Model # DGS-1530-52P
-
SKU: DGS-1530-52P
Don't pay: $3,218.00
$2,805.00
SAVE $413.00 (13%)
- Pick Up Available
- Australian Warranty
- Checkout Securely
D-Link product

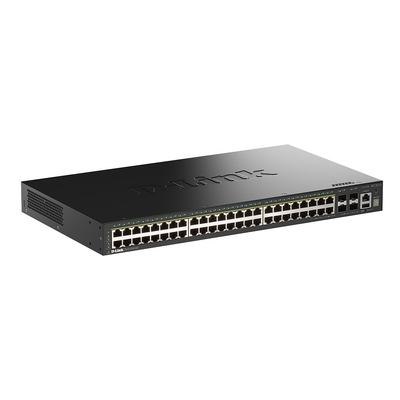

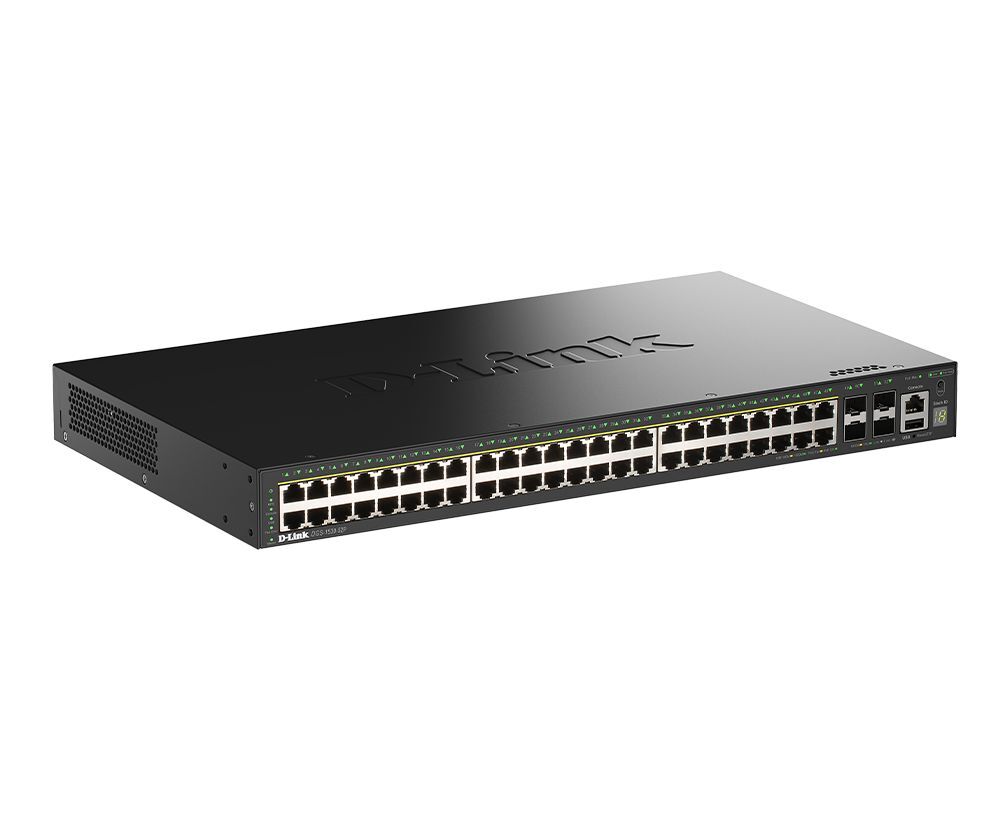

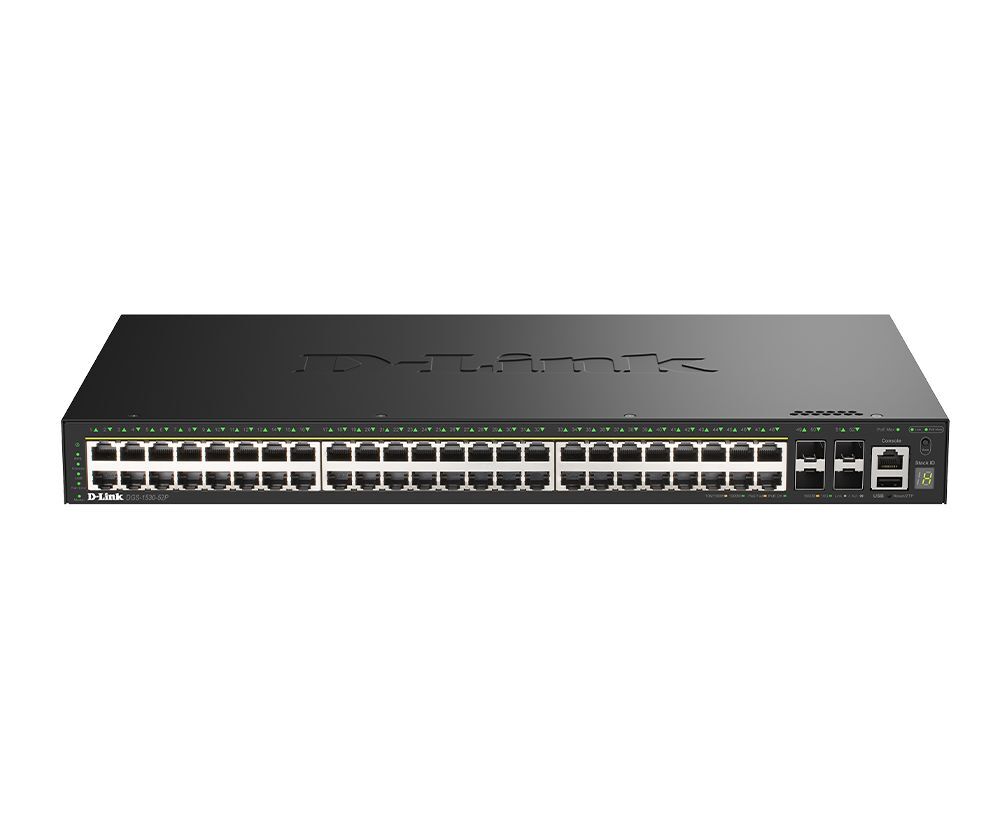

D-Link DGS-1530-52P 52-Port Stackable PoE+ Switch
A Layer 2+ smart managed stackable switch with forty-eight Gigabit PoE+ ports, four 10G SFP+ uplinks, a 370W budget expandable to 740W with RPS and 176Gbps capacity.
370W expandable budget
The stated PoE budget can reach 740W with the redundant power supply arrangement.
Four 10G SFP+ uplinks
Provides compatible high-speed fibre connectivity.
High-density powered access
Forty-eight Gigabit PoE+ ports support a broad edge-device deployment.
Expandable power capacity
The supplied 370W budget is stated as expandable to 740W with the redundant power supply.
Stackable Layer 2+ control
Physical stacking, static routing, QoS, VLAN, link aggregation, IGMP snooping and access control are listed.
Rack-mount deployment
The switch includes a built-in PSU and supports redundant power in a 19-inch rack design.
Buy with confidence from DeviceDeal
DeviceDeal is an authorised D-Link reseller. This product is supplied under the applicable D-Link manufacturer warranty.
Frequently asked questions
How many ports supply PoE+?
Forty-eight Gigabit PoE+ ports are listed.
Which PoE standards are supported?
IEEE 802.3af and IEEE 802.3at are stated.
What is the standard PoE budget?
The stated standard PoE budget is 370W.
Can the PoE budget be expanded?
Yes. The source states up to 740W with the redundant power supply arrangement.
How many 10G uplinks are included?
Four 10G SFP+ ports are provided.
What is the switching capacity?
A 176Gbps switching capacity is stated.
Does it support physical stacking?
Yes. Physical stacking of up to nine switches is stated.
Is surge protection included?
Yes. 6kV surge protection is stated for all Gigabit Ethernet ports.
Which management interfaces are provided?
A web-based GUI and command-line interface are listed.
What warranty applies?
The product is supplied under the applicable D-Link manufacturer warranty.
(DGS-1530-52P)
D-Link DGS-1530-52P 52-Port Stackable PoE+ Switch features
Forty-eight powered ports
Supports high-density compatible PoE+ equipment.
Expandable PoE capacity
Provides 370W with the stated path to 740W using RPS.
Four 10G uplinks
Adds compatible SFP+ fibre connections.
Physical stacking
Supports a stated stack of up to nine units.
Confirm connected-device demand, RPS components, SFP+ modules and physical stacking requirements before deployment.
D-Link DGS-1530-52P 52-Port Stackable PoE+ Switch specifications
Product details
| Model | DGS-1530-52P |
|---|---|
| Product type | Layer 2+ smart managed stackable PoE+ switch |
| Gigabit PoE+ ports | 48 |
| 10G SFP+ ports | 4 |
| PoE standards | IEEE 802.3af / IEEE 802.3at |
| PoE budget | 370W; up to 740W with RPS |
| Switching capacity | 176Gbps |
| Physical stacking | Up to 9 switches |
| Surge protection | 6kV on Gigabit Ethernet ports |
| Static routing | Yes |
| QoS | Yes |
| Spanning tree | Yes |
| Link aggregation | Yes |
| VLAN capacity | 4K groups |
| Jumbo frame | 10000 bytes |
| Voice VLAN | Yes |
| Surveillance VLAN | Yes |
| IGMP snooping | Yes |
| 802.1X access control | Yes |
| DHCP server screening | Yes |
| SNMP | Yes |
| Cable diagnostics | Yes |
| Web-based GUI | Yes |
| Command-line interface | Yes |
| Redundant power supply support | Yes |
| Built-in PSU | Yes |
| Cooling | 3 fans |
| Rack mountable | Yes |
| Dimensions | 440 x 308 x 44mm |
Warranty
| Coverage | Applicable D-Link manufacturer warranty |
|---|
| SKU | DGS-1530-52P |
| Barcode # | 790069474507 |
| Brand | D-LINK |
| Shipping Weight | 3.4000kg |
