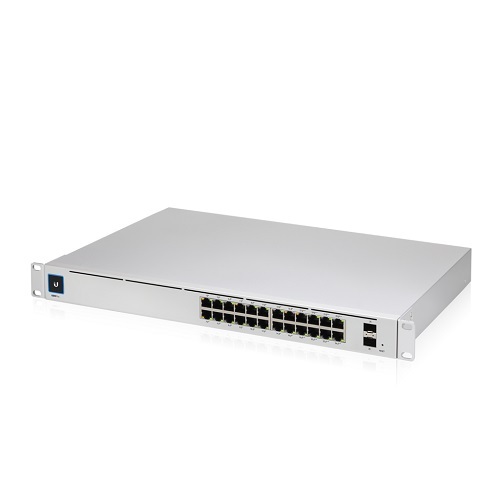

A 24-port, Layer 3 switch capable of high-power PoE++ output.

(16) GbE PoE+, (8) GbE PoE++ ports

(2) 10G SFP+ ports

400W total PoE availability

DC power backup-ready

Layer 3 switching

Near-silent cooling

The USW-PRO-24-POE is a configurable Gigabit Layer2 and Layer3 switch with auto-sensing 802.3at PoE+ and 802.3bt PoE++. Sixteen PoE+ and eight PoE++ RJ45 ethernet ports have total 400W PoE budget, and two SFP+ ports offer 10Gbps uplink options. Near-silent cooling and a 1.3' touch LCM.

The Dual-WAN Gateway Pro offers an enterprise-grade firewall and a deep set of threat management features.

Operation mode (switching, mirroring, or aggregate) per port

Network/VLAN configuration

Jumbo frame and flow control services

Network settings

Storm control setting per port

Spanning tree configuration

802.1X control and RADIUS VLAN

Debug terminal option for command-line interface

Ideal Access Layer Switch

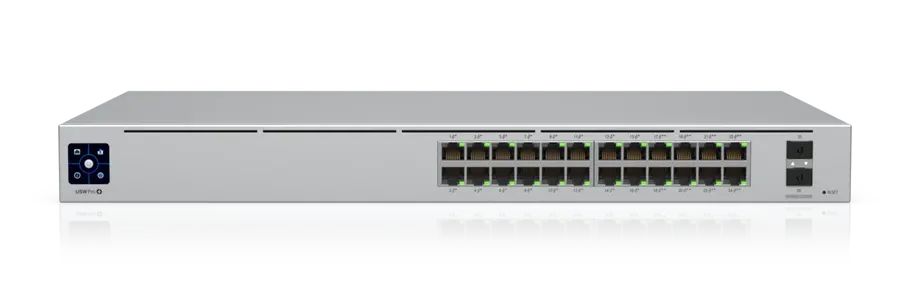

The Switch Pro 24 PoE is a fully managed switch with (16) GbE, 802.3at PoE+ RJ45 ports, (8) GbE, 802.3bt PoE++ RJ45 ports, and (2) 10G SFP+ ports. The USW Pro 24 PoE combines a rich set of Layer 2 features with advanced Layer 3 tools including inter-VLAN routing, static routing, and a DHCP server. The USW Pro 24 PoE is the ideal access layer switch for any UniFi system. It combines up to 400W of PoE power with SmartPower RPS (USP RPS) power redundancy. The switch can also be monitored and configured from anywhere with the powerful, intuitive UniFi Network web application and mobile app.

Features:

(1) 1.3" LCM colour touchscreen with AR switch management

(16) GbE, 802.3at PoE+ RJ45 ports

(8) GbE, 802.3bt PoE++ RJ45 ports

(2) 10G SFP+ ports

(1) USP RPS DC input

400W total PoE supply

Near-silent cooling

Layer 3 switching features

Ubiquiti UniFi Managed 48 Port Gigabit Switch with 802.3at PoE+ and 802.3bt PoE

16 PoE+ ports - 8 Poe++ RJ45 ethernet Ports - 2 SFP+ ports up to 10GBps
