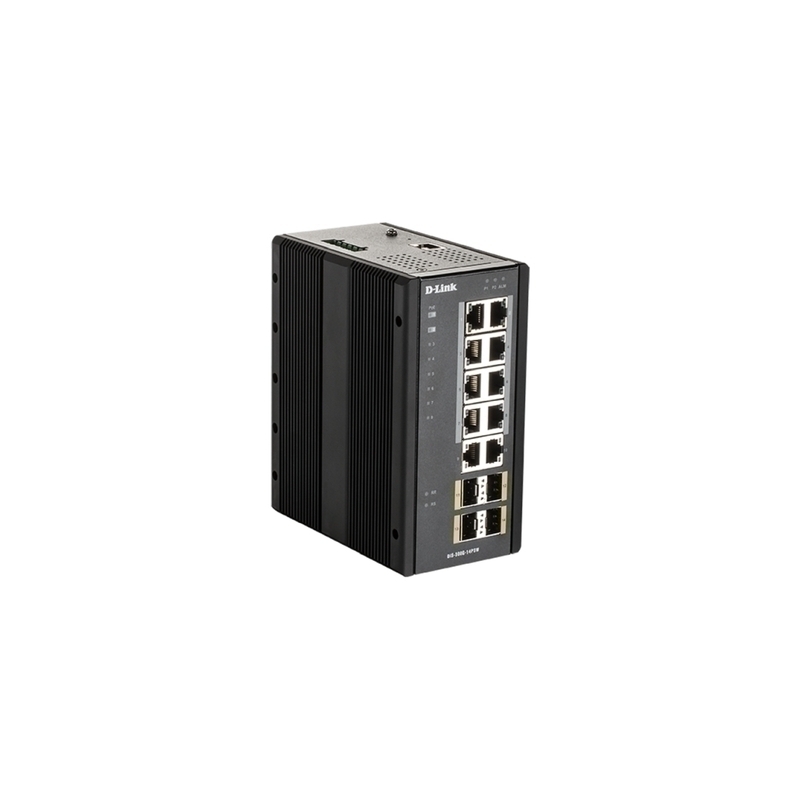

D-Link DIS-300G-14PSW 14-Port Industrial Managed PoE Switch

A rugged fully managed Layer 2 industrial switch with eight Gigabit PoE ports, two additional Gigabit BASE-T ports, four 1G SFP ports, a 240W PoE budget and redundant power support.

Eight Gigabit PoE ports

Supports compatible powered industrial network devices within the 240W budget.

Four 1G SFP ports

Adds compatible fibre connectivity to the fourteen-port layout.

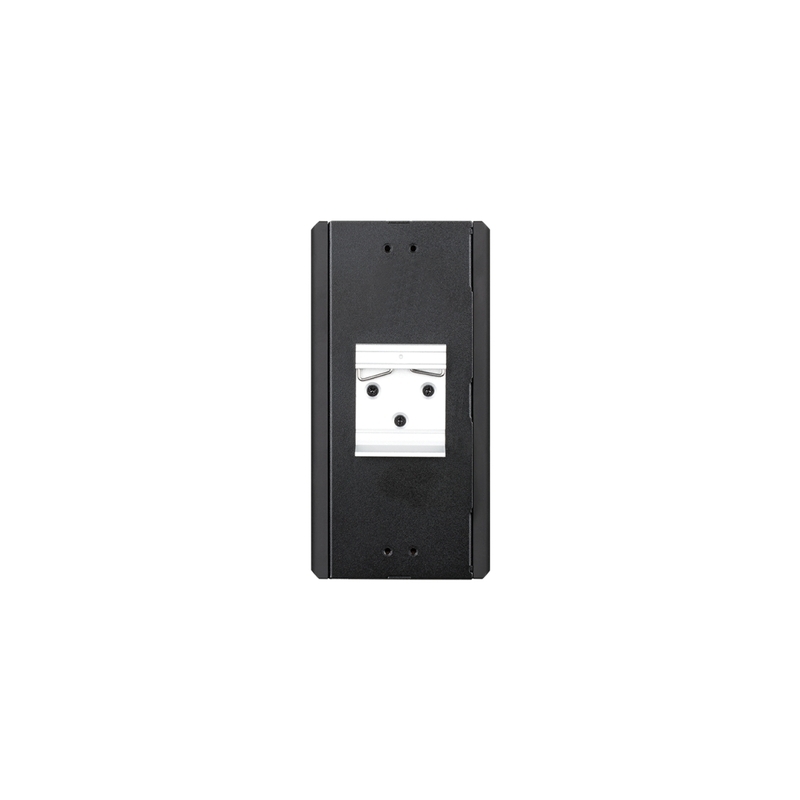

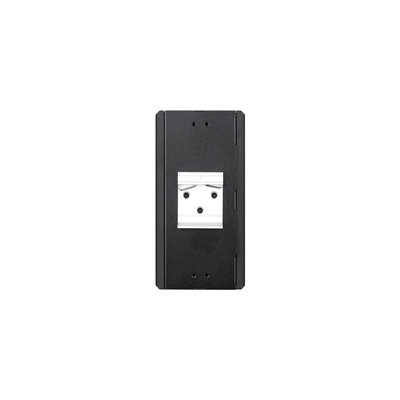

Hardened DIN-rail design

Operates across the stated -40°C to 75°C range with passive cooling.

Managed industrial switching

The fully managed Layer 2 design combines ten Gigabit BASE-T connections with four 1G SFP interfaces.

Powered network access

Eight BASE-T ports provide PoE with a stated total budget of 240W.

Resilient deployment

Redundant power support, rugged construction and DIN-rail mounting are listed for industrial environments.

Routing and screening functions

IPv4 routing, IPv6 routing and DHCP server screening are included in the supplied feature set.

Buy with confidence from DeviceDeal

DeviceDeal is an authorised D-Link reseller. This product is supplied with the stated lifetime D-Link manufacturer warranty.

Frequently asked questions

How many total ports are provided?

The switch provides fourteen ports.

How many RJ45 ports are included?

Ten Gigabit RJ45 ports are stated.

How many ports provide PoE?

Eight BASE-T PoE ports are listed.

What is the total PoE budget?

The stated PoE budget is 240W.

How many SFP ports are included?

Four 1G SFP ports are provided.

Is the switch managed?

Yes. It is a fully managed Layer 2 switch.

Does it support redundant power?

Yes. Redundant power supply support is stated.

What is the operating-temperature range?

The listed range is -40°C to 75°C.

How is the switch mounted?

DIN-rail mounting is supported.

What warranty is supplied?

A lifetime D-Link manufacturer warranty is stated.

(DIS-300G-14PSW)

D-Link DIS-300G-14PSW 14-Port Industrial Managed PoE Switch features

Eight powered ports

Supports compatible PoE devices in industrial networks.

Four fibre interfaces

Provides compatible 1G SFP connectivity.

Managed Layer 2 controls

Includes the listed routing and DHCP screening capabilities.

Rugged installation

Combines DIN-rail mounting, passive cooling and wide-temperature operation.

Confirm connected-device demand against the 240W PoE budget and verify compatible SFP modules, fibre requirements and redundant power inputs.

D-Link DIS-300G-14PSW 14-Port Industrial Managed PoE Switch specifications

Product details

Model	DIS-300G-14PSW
Product type	Industrial fully managed Layer 2 PoE switch
Total ports	14
Gigabit RJ45 ports	10
PoE RJ45 ports	8
Additional BASE-T ports	2
SFP ports	4
SFP speed	1Gbps
RJ45 port speed	10/100/1000Mbps
PoE	Yes
PoE budget	240W
Switching capacity	28Gbps
Maximum forwarding rate	20.83mpps
Management	Fully managed
OSI layer	Layer 2
IPv4 routing	Yes
IPv6 routing	Yes
DHCP server screening	Yes
Redundant power support	Yes
Mounting	DIN rail
Cooling	Passive
Stackable	No
Operating temperature	-40°C to 75°C
Dimensions	77 x 154 x 128mm
Cloud managed	No
Licence required	No

Warranty

Coverage	Lifetime manufacturer warranty

SKU	DIS-300G-14PSW
Barcode #	790069437922
Brand	D-LINK
Shipping Weight	1.8400kg
Shipping Width	0.014m
Shipping Height	0.024m
Shipping Length	0.020m

Lifetime manufacturer warrantyD-Link

Buy with confidence from DeviceDeal

DeviceDeal is an authorised D-Link reseller. This product is supplied with the stated lifetime D-Link manufacturer warranty.

Be The First To Review This Product!

Help other Device Deal users shop smarter by writing reviews for products you have purchased.

Write a product review

D-Link 14-Port Gigabit Industrial Managed PoE Switch with 4 SFP ports - DIS-300G-14PSW

Name: D-Link 14-Port Gigabit Industrial Managed PoE Switch with 4 SFP ports - DIS-300G-14PSW
Brand: D-LINK
SKU: DIS-300G-14PSW
Price: 3002 AUD
Availability: InStock
