16-Port 100G Fully Managed Switch

NETGEAR M4350-16C (CSM4316)

The NETGEAR M4350-16C is a full-width 1U fully managed switch equipped with 16 QSFP28 ports supporting 40G and 100G operation. It combines a 3.2Tbps switching fabric with Layer 3 routing, virtual chassis stacking, NETGEAR AV management features and support for SMPTE ST 2110 environments.

Model: M4350-16C SKU: CSM4316 Series: M4350 PoE: N/A

What is the NETGEAR M4350-16C?

The M4350-16C is a 16-port, 100 Gigabit QSFP28 fully managed switch designed for high-capacity AV and IT networks. It supports Layer 2 and Layer 3 operation, non-stop forwarding virtual chassis stacking, AV-focused configuration profiles and Grandmaster or Boundary Clock operation for supported SMPTE ST 2110, AES67 and ST 2059-2 applications.

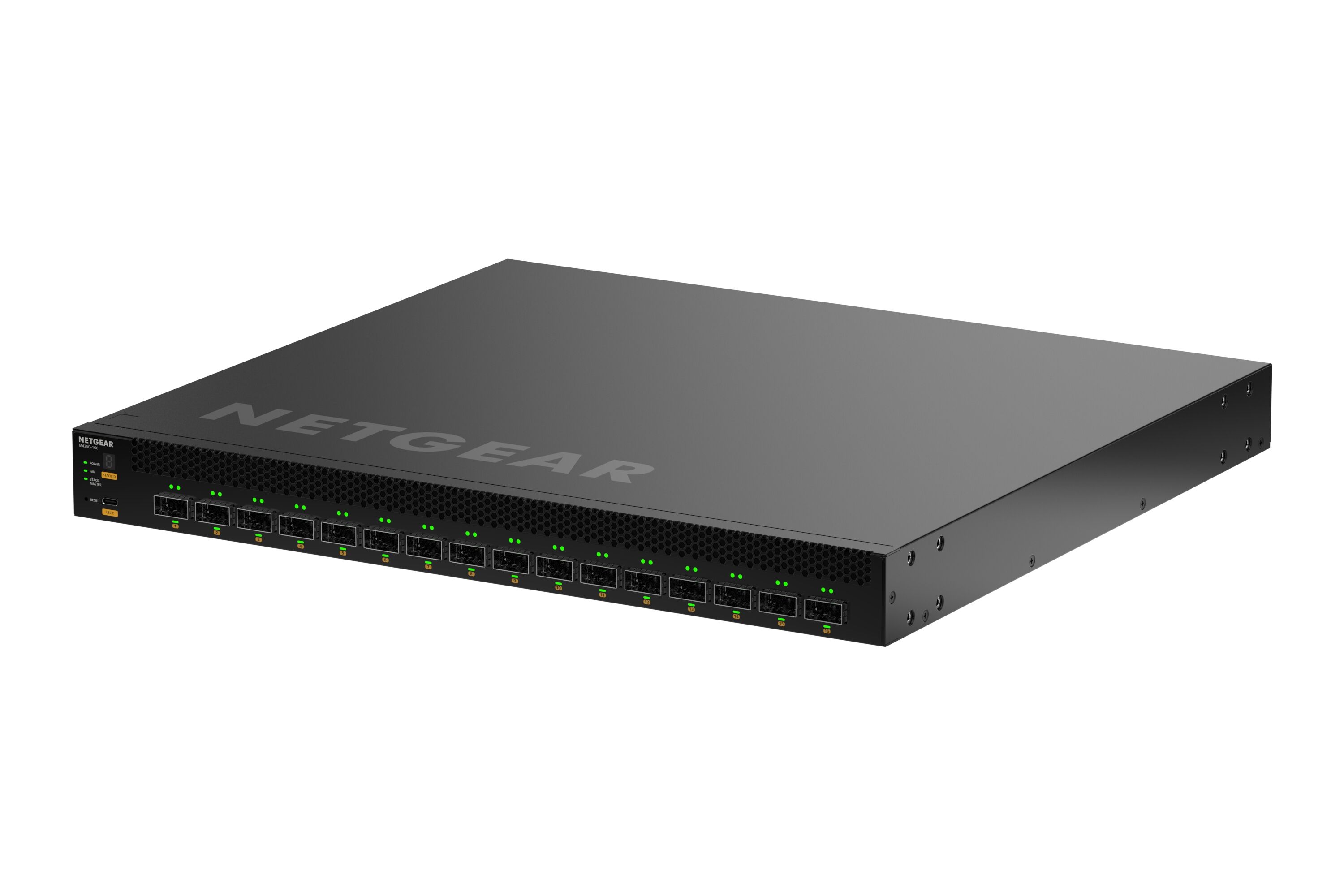

16 × QSFP28 Physical ports supporting 40G and 100G operation

3.2Tbps Line-rate routing and switching capacity

2380.8Mpps Listed throughput using 64-byte packets

1U Rackmount Full-width 440 × 43.2 × 400mm chassis

High-Capacity 100G Switching

Sixteen QSFP28 interfaces and a 3.2Tbps switching fabric for high-bandwidth network aggregation and core connectivity.

The M4350-16C provides 16 QSFP28 ports supporting 40 Gigabit and 100 Gigabit connections. The supplied datasheet lists line-rate performance of 2380.8Mpps, a 256Mb packet buffer, 4GB DDR4 memory and latency below 1.22 microseconds at 100G.

Jumbo frames of up to 12KB are supported, together with a 16K MAC address table, 4K ARP entries, 512 IPv6 NDP entries and up to 4K VLANs.

Management and AV Configuration

Dedicated AV tools are provided alongside standard IT management interfaces.

Dedicated AV User Interface

A simplified AV-focused interface allows configuration profiles to be assigned to individual ports using colour-based profile identification.

NETGEAR Engage Controller

The Engage Controller provides centralised configuration for supported M4250, M4300, M4350 and M4500 switches across an AV network.

NETGEAR IGMP Plus

NETGEAR IGMP Plus provides automated multicast functionality intended to simplify most AV-over-IP multicast installations.

Auto-Trunk and Auto-LAG

Auto-Trunk and Auto-LAG can automatically configure links between compatible M4350 and M4250 switches.

Industry-Standard Management

Management options include an IT web GUI, command-line interface, HTTPS, SSH, Telnet, SNMP, MIBs, RSPAN, RADIUS users and TACACS.

Out-of-Band Access

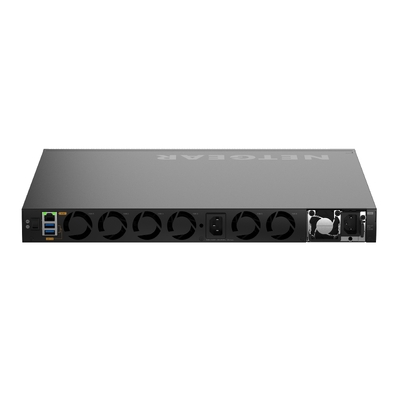

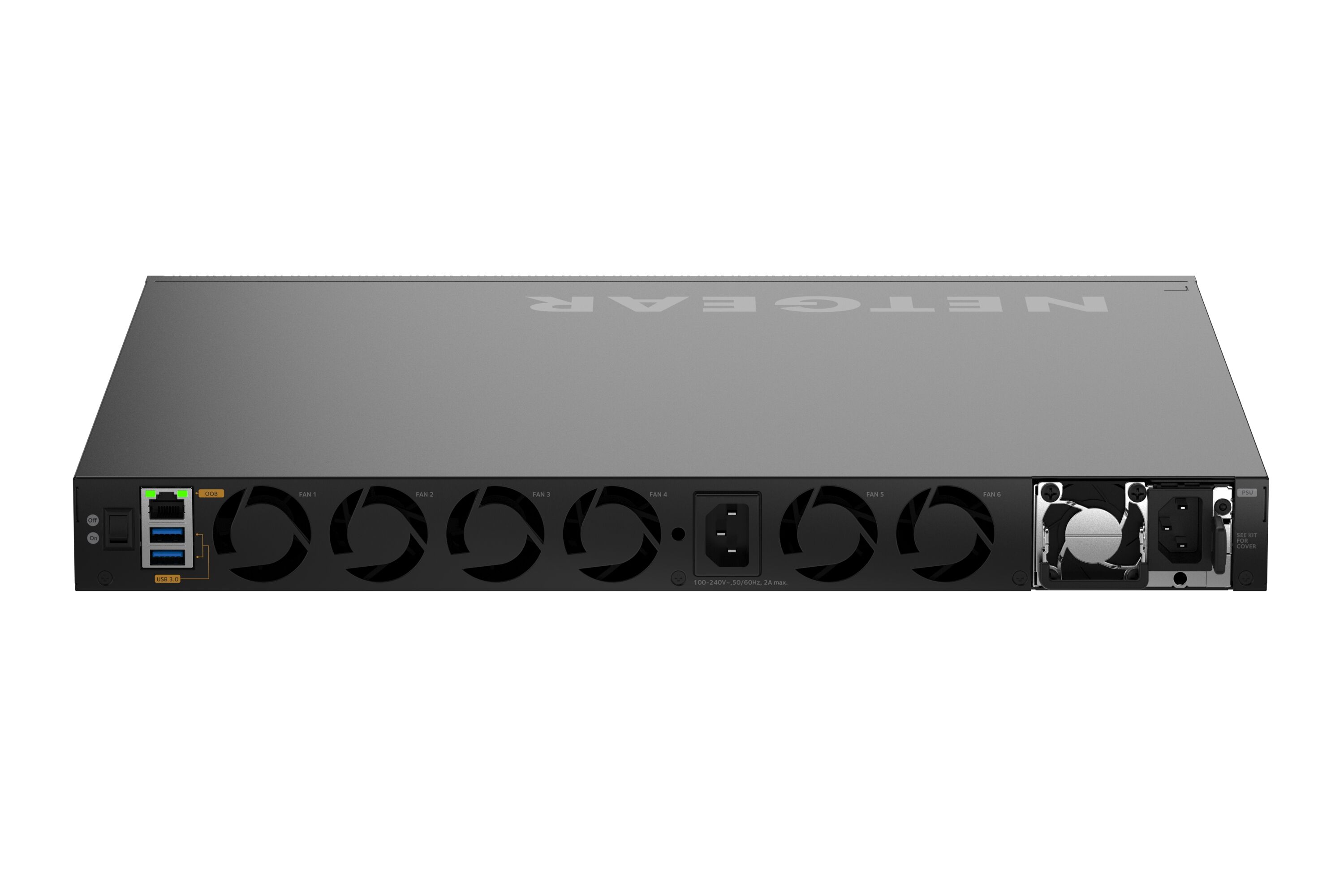

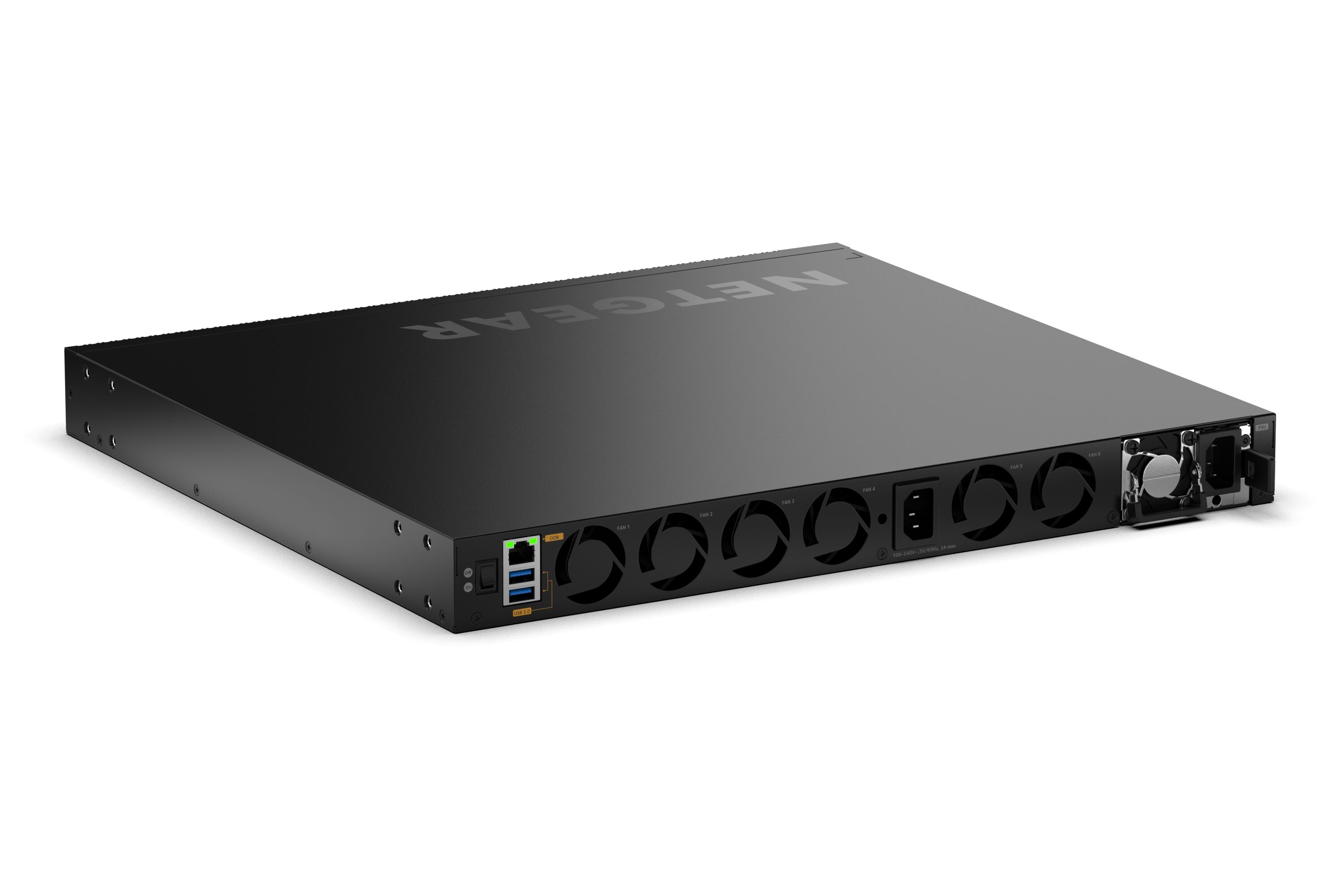

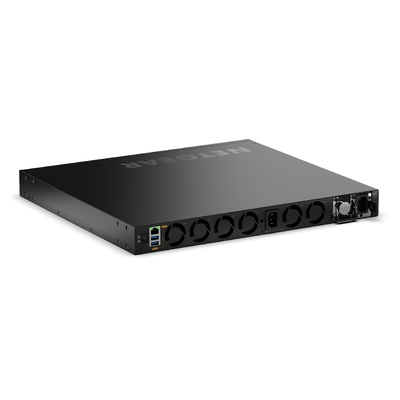

The switch includes a rear 1GbE out-of-band management port, front USB Type-C console connection and two rear USB Type-A storage ports.

Virtual Chassis Stacking and High Availability

Non-stop forwarding supports resilient stacked network configurations.

Stacking Features

Virtual chassis stacking with non-stop forwarding and hitless management failover.
Any suitable 100G port can be configured for stack operation.
A port configured in Stack mode operates at its highest supported stacking speed.
Up to two M4350 switches are supported in a core stack configuration.
Up to eight M4350 switches may be stacked at the IT access layer.

Important Stacking Limitation

Stacking, AVB and PTP Transparent Clock operation are mutually exclusive. A stack cannot simultaneously run AVB or PTP Transparent Clock, Boundary Clock or Grandmaster Clock modes.

For AV applications, the supplied datasheet specifies two-switch stacks because multicast traffic is replicated between the two switches.

Layer 3 Routing and Network Control

The complete Layer 2 and Layer 3 feature set is supplied without a separate software licence.

Routing

IPv4 and IPv6 static routing
Policy-based routing
RIP and VRRP
OSPF
PIM-SM, PIM-DM and SSM
Multicast static routes
DHCP server and DHCP relay

Switching and Security

Static and dynamic VLANs
Voice, MAC and private VLANs
Static LAG and dynamic LACP
STP, MSTP, RSTP and per-VLAN spanning tree
DHCP snooping and Dynamic ARP Inspection
IP Source Guard
802.1X, MAB and Captive Portal authentication

SMPTE ST 2110 and Precision Timing

Timing modes and profiles are supplied for supported professional AV environments.

The M4350-16C supports SMPTE ST 2110 profiles, Grandmaster Clock and Boundary Clock modes. Supplied PTP profiles include SMPTE ST 2059-2 for video and audio, AES67 for audio and AES-R16-2016 interoperability.

The switch supports single-step and two-step PTP operation between the Grandmaster and connected AV endpoints.

Power, Cooling and Acoustics

An internal power supply is included, with a modular PSU bay available for redundant power.

420W Internal Power Supply

The switch includes one fixed 420W internal power supply with a C14 inlet and power switch.

Modular PSU Bay

One modular PSU slot supports a compatible additional power supply for 1+1 power redundancy.

Quiet or Cool Operation

Intelligent fans can be configured in Quiet Mode to reduce noise or Cool Mode to reduce operating heat.

What Is Included?

The supplied product information lists the following components in the package.

1 M4350-16C (CSM4316)

1 Power cord

1 Console USB Type-C cable

1 Standard rack-mounting bracket set

1 Longer bracket set for recessed mounting

4 Rubber footpads for tabletop installation

1 Installation guide

Frequently Asked Questions

Quick answers about the NETGEAR M4350-16C CSM4316.

How many network ports does the M4350-16C have?

It has 16 QSFP28 ports. The supplied datasheet lists support for 40G and 100G operation on these ports.

Does the CSM4316 provide PoE?

No. The supplied product information lists the PoE budget as not applicable.

Can the switch be stacked?

Yes. It supports virtual chassis stacking with non-stop forwarding and hitless management failover. The supplied datasheet specifies up to two switches in a core stack and up to eight switches at the IT access layer.

Does it support SMPTE ST 2110?

Yes. The M4350-16C is listed with SMPTE ST 2110 profiles, Grandmaster Clock mode, Boundary Clock mode and profiles for ST 2059-2 and AES67.

Which management interfaces are available?

Management options include the NETGEAR Engage Controller, AV web GUI, IT web GUI, command-line interface, SNMP, SSH, HTTPS, a 1GbE out-of-band management port and USB Type-C console connection.

Can a redundant power supply be installed?

Yes. The switch includes one modular power supply bay that can accept a compatible additional PSU for 1+1 redundant power operation.

What are the switch dimensions and weight?

The listed dimensions are 440mm wide, 400mm deep and 43.2mm high. The listed weight is 8.03kg.

What warranty is listed for this product?

The supplied product information states that the switch is backed by a NETGEAR limited lifetime hardware warranty.

Product capabilities and limitations shown above are based only on the supplied product information and M4350 series datasheet. Compatible transceivers, cables and optional modular power supplies are not listed as included unless specifically shown in the package contents.

(CSM4316)

NETGEAR M4350-16C (CSM4316) Specifications

Review the interfaces, performance, management, AV, routing, power, acoustic and physical specifications.

Specification	Details
Product Details
Brand	NETGEAR
Product Series	M4350
Model Name	M4350-16C
Model Number / SKU	CSM4316
Product Type	Fully managed network switch
Form Factor	Full-width 1U rackmount
Network Interfaces
Number of Physical Ports	16
Port Type	16 × QSFP28
Supported Port Speeds	40G and 100G
Primary Port Speed	100 Gigabit
Stack Port Speed	100G A 100G port configured in Stack mode operates only at 100G.
Out-of-Band Management	1 × rear 1GbE out-of-band Ethernet port
Console Port	1 × front USB Type-C console port
Storage Ports	2 × rear USB Type-A ports
PoE Support	Not applicable
Performance
Routing / Switching Capacity	3.2Tbps, line-rate
Throughput	2380.8Mpps using 64-byte packets
Packet Buffer	256Mb
DDR4 Memory	4GB
Processor	Quad-core Cortex-A57 ARMv8, 1.8GHz, 64-bit
Latency	Less than 1.32 microseconds at 25G fiber Less than 1.22 microseconds at 100G
MAC Address Table	16K MAC addresses
ARP / NDP	4K ARP / 512 NDP
Jumbo Frames	Up to 12KB
VLANs	Up to 4K VLANs
Multicast Group Membership	2K IPv4 / 2K IPv6
IP Multicast Routing Entries	512 IPv4 / 256 IPv6
Routing and Switching
Static Route Scaling	256 IPv4 / 64 IPv6
RIP Route Scaling	512
OSPF Route Scaling	1,024
Layer 3 Routing	Static routing, policy-based routing, RIP, VRRP, OSPF, Proxy ARP, PIM-SM, PIM-DM and SSM
Multicast Routing	Static multicast routes, PIM-SM, PIM-DM and SSM
DHCP	DHCPv4 server, DHCP relay and stateful DHCPv6 server
DHCP Server Capacity	2K leases, 256 IPv4 pools and 16 IPv6 pools
Spanning Tree	STP, MSTP, RSTP, PVSTP and PVRSTP
Link Aggregation	Static LAG, dynamic LACP, Auto-LAG and Auto-Trunk
VLAN Features	Static, dynamic, voice, MAC and private VLANs; GVRP/GMRP and double VLAN mode
Stacking and Availability
Stacking Type	Virtual chassis stacking
Non-Stop Forwarding	Supported
Management Failover	Hitless failover
Core Stack Size	Up to 2 M4350 switches
IT Access-Layer Stack Size	Up to 8 M4350 switches
AV Stack Size	2 switches
Stacking Limitation	Stacking, AVB and PTP Transparent Clock are mutually exclusive. A stack cannot run AVB, PTP Transparent Clock, Boundary Clock or Grandmaster Clock modes.
AV and Multicast Features
Dedicated AV Interface	AV web-based GUI with profile-based per-port configuration
Centralised Management	NETGEAR Engage Controller
IGMP Support	Enhanced NETGEAR IGMP Plus
Multicast Filtering	IGMPv3 and MLDv2 snooping, Proxy ASM and SSM, IGMPv1/v2 querier and control packet flooding
AVB Support	Yes, included
SMPTE ST 2110	Supported
PTP Clock Modes	Grandmaster Clock and Boundary Clock
PTP Profiles	SMPTE ST 2059-2, AES67 and AES-R16-2016
PTP Operation	Single-step and two-step
Port LEDs	Multi-colour LED on each physical port reflecting the assigned AV profile colour
Management and Security
Management Interfaces	NETGEAR Engage Controller, AV web GUI, IT web GUI, CLI, HTTPS, Telnet and SSH
Monitoring	SNMP, MIBs, sFlow and RSPAN
Authentication	RADIUS users, TACACS, 802.1X, MAB and Captive Portal
Network Security	DHCP snooping, Dynamic ARP Inspection and IP Source Guard
ACL and QoS	IPv4 and IPv6 ACLs, DiffServ, ingress and egress shaping, time-based policing and single-rate policing
Software Licensing	The supplied datasheet states that all software features are available without a licence.
Power and Cooling
Internal Power Supply	1 × fixed 420W power supply with C14 inlet and on/off switch
Modular PSU Bays	1
Redundant Power	1+1 redundancy with a compatible additional modular power supply
Compatible Modular PSU Models	APS600Wv3 APS1200Wv2 APS2000Wv2
Maximum Power Consumption	161.9W / 552.40BTU/hr
Standby Power Consumption	69.1W / 235.43BTU/hr with no port connection
Cooling Direction	Fixed front-to-back cooling
Fan Modes	Quiet Mode and Cool Mode
Acoustics
Quiet Mode at 25°C	30.4dBA, 22% fan duty and 32.5°C top case temperature
Quiet Mode at 45°C	60.2dBA, 70% fan duty and 51.2°C top case temperature
Cool Mode at 25°C	68.7dBA, 100% fan duty and 27.9°C top case temperature
Physical Specifications
Width	440mm
Depth	400mm
Height	43.2mm
Weight	8.03kg / 17.70lb
Rack Size	1U
Mounting	Standard rack mounting, recessed rack mounting or tabletop installation using the supplied footpads
Package Contents
Switch	1 × M4350-16C (CSM4316)
Power Cord	1
Console Cable	1 × USB Type-C console cable
Standard Rack Brackets	1 set
Recessed Mounting Brackets	1 set of longer brackets
Rubber Footpads	4
Installation Guide	1
Warranty and Support
Hardware Warranty	NETGEAR limited lifetime hardware warranty
Support Options Listed	Sprint and Overdrive support options with one, three or five-year contract coverage

SKU	CSM4316
Brand	NETGEAR
Shipping Weight	9.0000kg
Shipping Width	0.440m
Shipping Height	0.100m
Shipping Length	0.400m
Shipping Cubic	0.017600000m3
