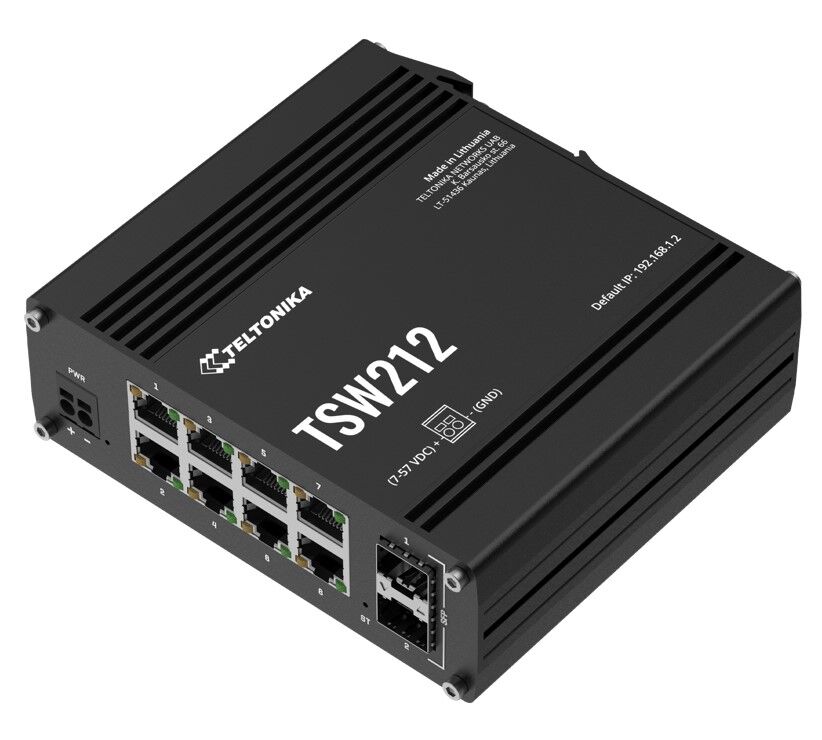

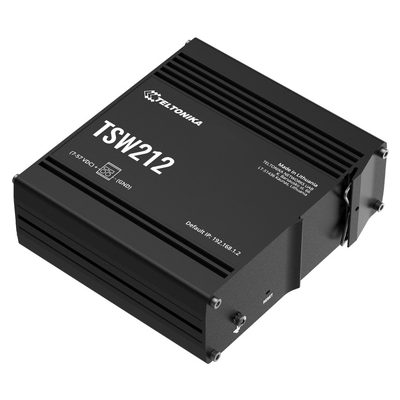

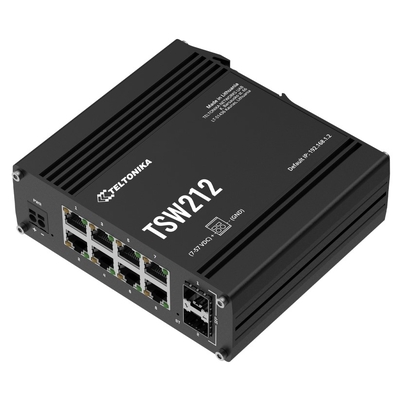

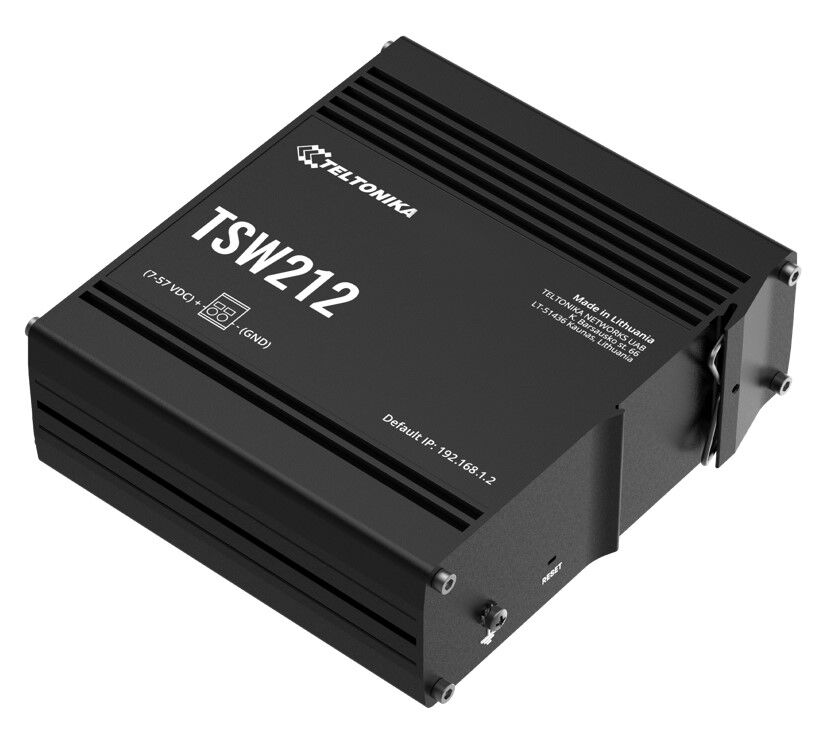

Teltonika TSW212 Managed Ethernet Switch, L2 With additional L3 Features, Supports Profinet, 8 x Gigabit Ethernet ports, 2 x SFP ports, PSU excluded
Model # TSW212
-
SKU: TSW212000000
- Pick Up Available
- Australian Warranty
- Checkout Securely
TSW212
MANAGED ETHERNET SWITCH
TSW212 is an L2 managed Ethernet switch with additional L3 features, like DHCPv6 client support and static IPv6 routing. This switch supports protocols, including EtherNet/IP, PROFINET, and MRP, and has 8 Gigabit Ethernet ports and 2 SFP ports to ensure robust long-range fibre optic communication.
|
MANAGED SWITCH
L2 with additional L3 features for advanced management capabilities
|
PROFINET & MORE
Supports PROFINET for automated data processing alongside other protocols, like EtherNet/IP and MRP
|
ETHERNET & SFP
8 x Gigabit Ethernet ports and 2 x SFP ports for fibre optic communication
|
TSWOS
Teltonika Networks OS for switches, intuitively designed for infinite configurations
|
For More Case Studies Click Here ...
(TSW212000000)
| Category | Feature | Description |
|---|---|---|
| Ethernet | ETH | Multi-layer managed 8 x ETH ports, 10/100/1000 Mbps supports auto MDI/MDIX crossover |
| Fibre | 2 x SFP ports | |
| IEEE 802.3 series standards | 802.3i, 802.3u, 802.3ab, 802.3x, 802.3z | |
| INDUSTRIAL PROTOCOLS | Profinet | Profinet Class B conformance (available with optional order code) |
| Services | EtherNet/IP | Yes |
| SNMP V2, V3 | Yes | |
| LLDP | Yes | |
| Network Management | 802.1p class of service, 802.1x port-based network access control, 802.1Q VLAN | |
| Network | MRP | MRP client role, MRP manager role |
| L2 features | Loop protection, Forwarding table, VLAN, STP/RSTP | |
| DHCP | DHCP server, DHCP client, DHCP static leases capable of using MAC with wildcards | |
| Port Settings | Enable/disable, link speed control, port isolation, EEE (802.3az) management, Port Mirroring | |
| L3 Features | Static IPv4 routing, static IPv6 routing, DHCPv6 client, static IPv6 address | |
| Security | Authentication | PAM — preshared key, Radius & TACACS+, IP & login attempts block |
| QoS | QOS | Port priority, DSCP priority, 802.1p priority, TOS |
| Scheduling method | SP/WFQ/WRR | |
| Bandwidth control | Rate limiting, storm control | |
| Traffic Shaper | Port-based shaping | |
| Diagnostics | Tools | Cable diagnostic, ping, traceroute, nslookup |
| API | Teltonika Networks Web API (beta) support | Expand your device's possibilities by using a set of configurable API endpoints to retrieve or change data. For more information, please refer to this documentation:https://developers.teltonika-networks.com |
| System Characteristics | RAM | 128MB, DDR3 |
| FLASH storage | 16 MB serial flash | |
| Firmware / Configuration | WEB UI | Update FW from file, check FW on server, configuration profiles, configuration backup |
| FOTA | Update FW | |
| RMS | Update FW/configuration for multiple devices at once | |
| Keep settings | Update FW without losing current configuration | |
| FIRMWARE CUSTOMISATION | Operating system | TSWOS (OpenWrt based Linux OS) |
| Supported languages | Busybox shell, Lua, C, C++ | |
| Development tools | SDK package with build environment provided | |
| Performance Specifications | Bandwidth (Non-blocking) | 20 Gbps |
| Forwarding rate | 14.88 Mpps | |
| Packet buffer | 512 KB | |
| MAC address table size | 8K entries | |
| Jumbo frame support | 10000 bytes | |
| Power | Connector | 2-pin industrial DC power socket |
| Input voltage range | 7 – 57 VDC | |
| Power consumption | Idle: < 2.5 W / Max: 6 W | |

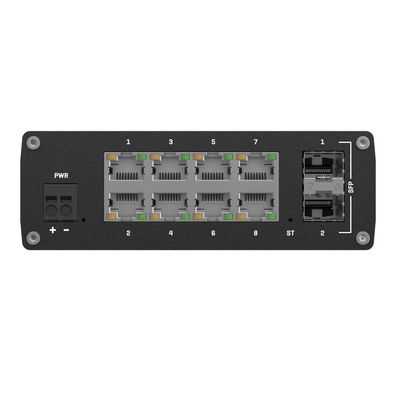

| Physical Interfaces | Ethernet | 8 x RJ45 ports, 10/100/1000 Mbps |
| Fibre | 2 x SFP ports | |
| Status LEDs | 1 x Power LED, 1 x Aux LED, 16 x ETH status LEDs, 2 x SFP status LEDs | |
| Power | 1 x 2-pin industrial DC power socket | |
| Reset | Software reset button | |
| Other | 1 x Grounding screw | |
| Physical Specification | Casing material | Anodized aluminum housing and panels |
| Dimensions (W x H x D) | 132 x 44.2 x 122.2 mm | |
| Weight | 615 g | |
| Mounting options | Integrated DIN rail bracket; wall mount and flat surface (additional kit needed) | |
| Operating Environment | Operating temperature | -40 °C to 75 °C |
| Operating humidity | 5% to 95% non-condensing | |
| Ingress Protection Rating | IP30 | |
| Regulatory & Type Approvals | Regulatory | CE, UKCA, RCM, ANRT, FCC, IC, CB, WEEE, RoHS, REACH, SDPPI (POSTEL), JATE, Kenya, ICASA, Giteki, NBCT, ICASA, PROFINET, UL Safety |
| EMC Emissions & Immunity | Standards | EN 55032:2015 + A11:2020 + A1:2020EN 55035:2017 + A11:2020EN IEC 61000-3-2: 2019 + A1:2021EN 61000-3-3: 2013 + A1:2019 + A2:2021 |
| ESD | EN 61000-4-2:2009 | |
| Radiated Immunity | EN IEC 61000-4-3:2020 | |
| EFT | EN 61000-4-4:2012 | |
| Surge Immunity (AC Mains Power Port) | EN 61000-4-5:2014 + A1:2017 | |
| CS | EN 61000-4-6:2014 | |
| DIP | EN 61000-4-11:2020 | |
| Safety | Standards | CE: EN IEC 62368-1:2020 + A11:2020RCM: AS/NZS 62368.1:2022CB: IEC 62368-1:2018 |
| Safety (Ordinary Locations) | Standards | UL/CSA Safety: UL 62368-1 (3rd Ed., Rev. December 13, 2019), C22.2 No. 62368-1:19 (3rd Ed., Rev. December 13, 2019) |
| SKU | TSW212000000 |
| Barcode # | 4779051841370 |
| Brand | TELTONIKA |
| Shipping Weight | 0.6400kg |
