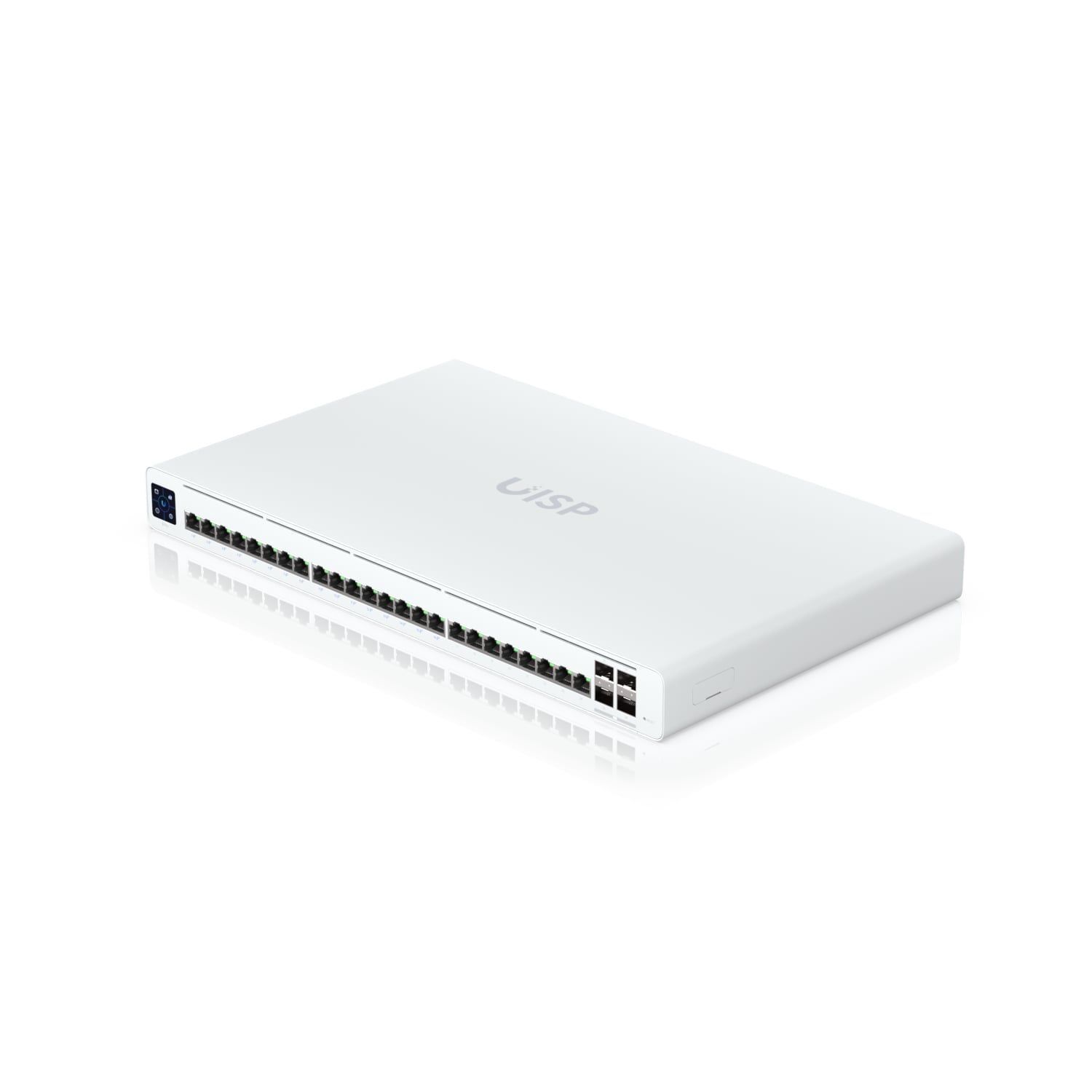

Ubiquiti UISP Switch, 8-Port GbE Switch w/ 27V Passive PoE, For MicroPoP Applications, 110W PoE Budget, Fanless, Layer 2 Switching,

220W (27V) PoE switch with (24) GbE RJ45 ports, including (16) with 27V passive PoE, and (4) 10G SFP+ ports.

(24) GbE RJ45 ports, including (16) with 27V passive PoE output

(4) SFP+ ports

220W (27V) total PoE availability, 15W/port (2-pair) / 30W/port (4-pair)

Port isolation, speed limiting, and DHCP snooping functionality

1.3" LCM color touchscreen

Additional Power TransPort input for DC redundancy

Standalone management through local web interface* and UISP Application integration

*Available for switches updated to version 1.6.0 and later.

(UISP-S-PRO)

Technical Specifications

Mechanical
Dimensions 442.4 x 267.5 x 43.7 mm (17.4 x 10.5 x 1.7")
Weight 4 kg (8.8 lb)
Enclosure materials SGCC steel, polycarbonate/acrylonitrile butadiene styrene
Hardware
Networking interface (24) GbE RJ45 LAN ports
(4) 1/10G SFP+ ports
Management interface Ethernet In-band
Bluetooth
Total non-blocking throughput 64 Gbps
Switching capacity 128 Gbps
Forwarding rate 95.23 Mpps
Power method (1) Universal AC input, 100-240V AC, 4.4A Max., 50/60 Hz
(1) Power TransPort DC input 27V DC, 9.3A
Power supply AC/DC, Internal, 250W
Supported voltage range 100—240V AC
Max. power consumption 30W (Excluding PoE output)
ESD/EMP protection Air: ± 15 kV, contact: ± 8 kV
LCM display (1) 1.3" touchscreen
Operating temperature -10 to 50° C (14 to 122° F)
Operating humidity 5 to 95% noncondensing
Certifications CE, FCC, IC
PoE
PoE interface (16) 27V passive PoE: 2-pair (Pins 4, 5+/7, 8-) or 4-pair (Pins 1, 2, 4, 5+/3, 6, 7, 8-); Ports 1 to 16
Total available PoE 220W
Max. passive PoE wattage per port 30W/27V DC
Passive PoE voltage range 27V DC
LEDs
RJ45 data ports PoE
Speed/link/activity
SFP+ data ports Speed/link/activity
Software
Management application UISP: Version 1.5.7 and later
SKU UISP-S-PRO
Barcode # 810010076564
Brand UBIQUITI
Shipping Weight 5.0000kg

Manufacturer Warranty: 1 Year Manufacturer Warranty
