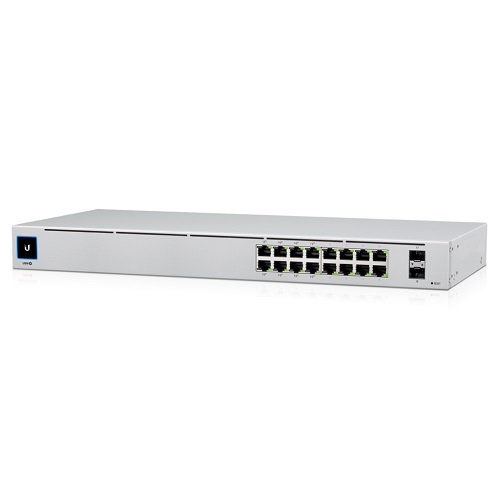

Name: Ubiquiti USW-16-POE UniFi 16-port Managed Switch - 8 PoE+ 8 Gigabit Ethernet with 2x SFP - 60W
Brand: UBIQUITI
SKU: USW-16-POE
Price: 526 AUD
Availability: InStock

Ubiquiti USW-16-POE UniFi 16-port Managed Switch - 8x PoE+ Ports, 8x Gigabit Ethernet with 2x SFP - 60W - Touch Display - GEN2

A 16-port, Layer 2 PoE switch with a silent, fanless cooling system.

(8) GbE PoE+, (8) GbE ports

(2) 1G SFP ports

42W total PoE availability

Fanless, silent cooling

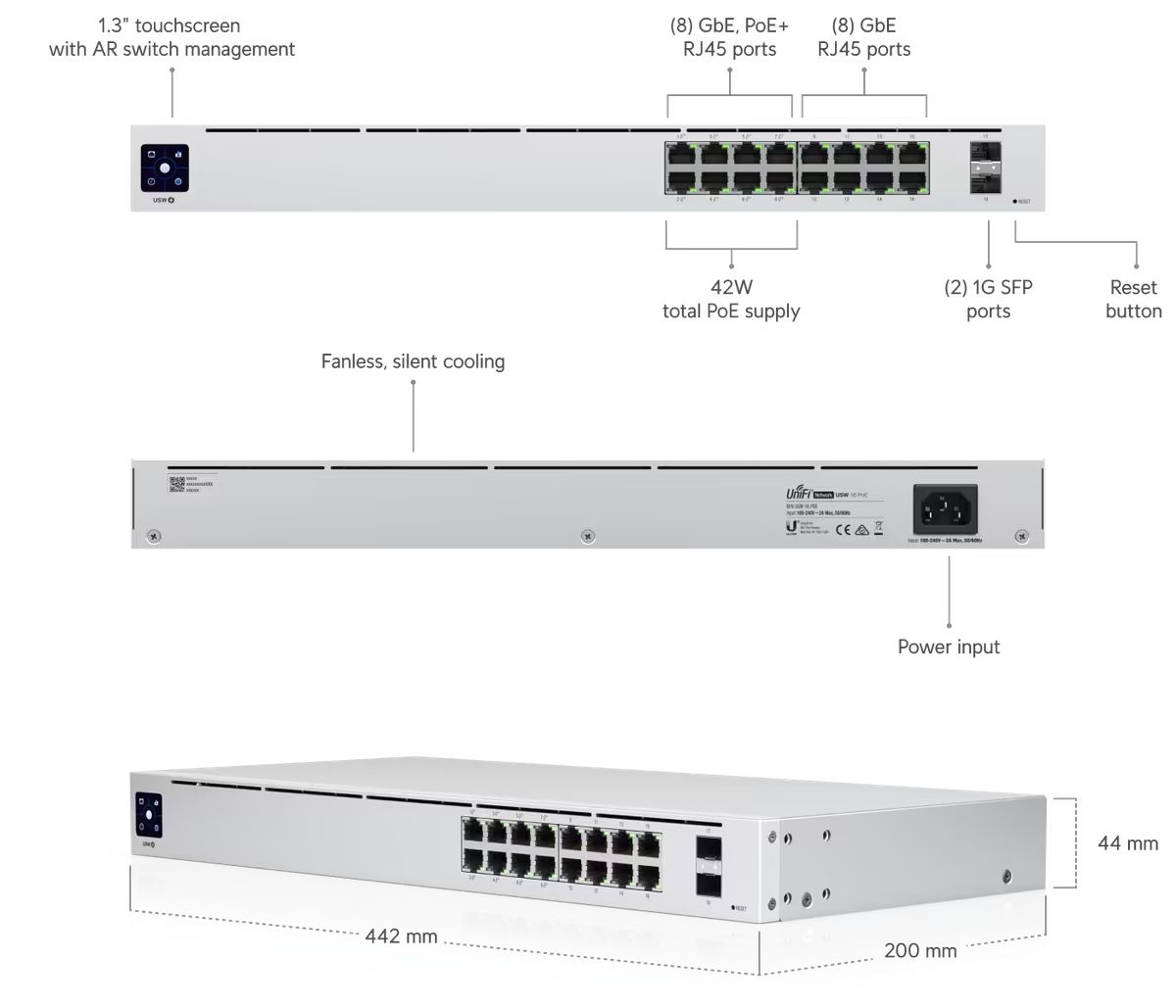

The USW-16-POE is a configurable Gigabit Layer 2 switch with sixteen Gigabit Ethernet ports including eight auto-sensing 802.3at PoE+ ports, and two SFP ports. It provides Gigabit PoE links to your RJ45 Ethernet devices and Gigabit fiber uplink options to your enterprise network. The USW-16-POE features a 1.3' touch LCM to provide status information. With a depth of 7.9', the compact fanless design can be easily installed in a SOHO rack cabinet. Managed and configured by the UniFi Network Controller with UniFi mobile app support, the USW-16-POE offers an extensive suite of advanced Layer 2 switching protocols and features, including operation mode (switching, mirroring, or aggregate) per port. The UniFi Network Controller and mobile app allow admins to configure and monitor virtually all of the switch features in a graphical user interface from anywhere.

(USW-16-POE)

Technical Specifications

Mechanical
Dimensions	442.4 x 200 x 43.7 mm (17.4 x 7.9 x 1.7")
Weight	Without mounting brackets: 2.8 kg (6.2 lb) With mounting brackets: 2.9 kg (6.4 lb)
Enclosure material	SGCC steel
Hardware
Management interface	Ethernet In-Band
Networking interface	(16) GbE RJ45 ports (2) 1G SFP ports
PoE interface	(8) PoE/PoE+ (Pins 1, 2+; 3, 6-)
Total non-blocking throughput	18 Gbps
Switching capacity	36 Gbps
Forwarding rate	26.78 Mpps
Power method	Universal input, 100—240V AC, 50/60 Hz
Power supply	AC/DC, internal, 60W
Supported voltage range	100—240V AC
Max. power consumption	18W (Excluding PoE output)
Total available PoE	42W
Max. PoE wattage per port by PSE	PoE+: 32W
Voltage range PoE mode	PoE: 44—57V PoE+: 50—57V
ESD/EMP protection	Air: ± 16kV, contact: ± 12kV
LCM display	(1) 1.3" touchscreen
Button	Factory reset
Shock and vibration	ETSI300-019-1.4 Standard
Operating temperature	-5 to 40° C (23 to 104° F)
Operating humidity	10 to 90% noncondensing
Certifications	CE, FCC, IC
LEDs
System	Status
Ethernet	PoE Speed/link/activity
SFP	Link/activity
Application Requirements
UniFi Network	Version 7.2.94 and later

SKU	USW-16-POE
Barcode #	817882028639
Brand	UBIQUITI
Shipping Weight	3.1177kg
Shipping Width	0.266m
Shipping Height	0.075m
Shipping Length	0.547m
Shipping Cubic	0.010913000m3
