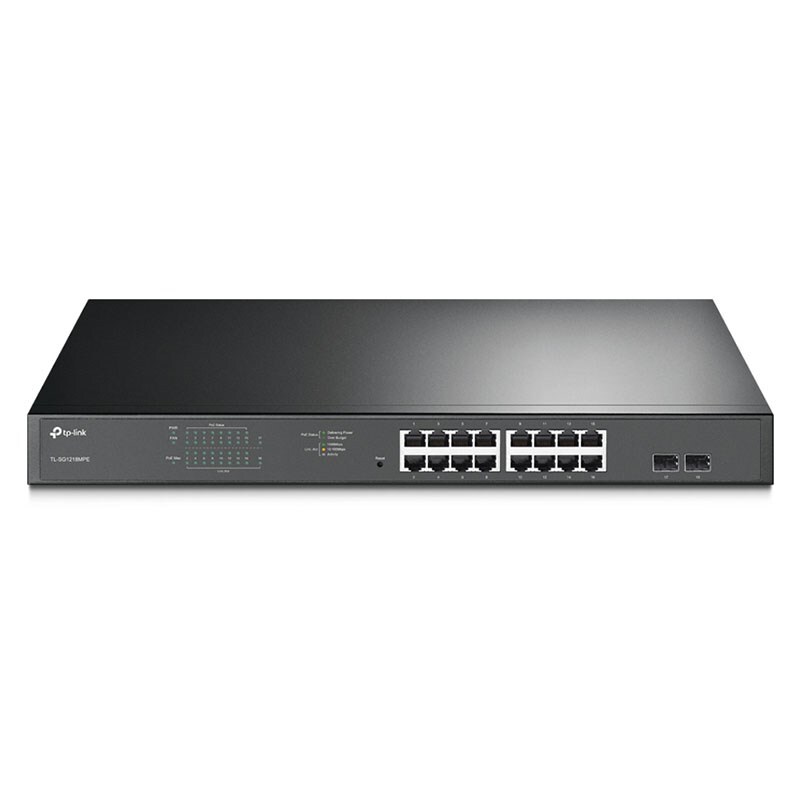

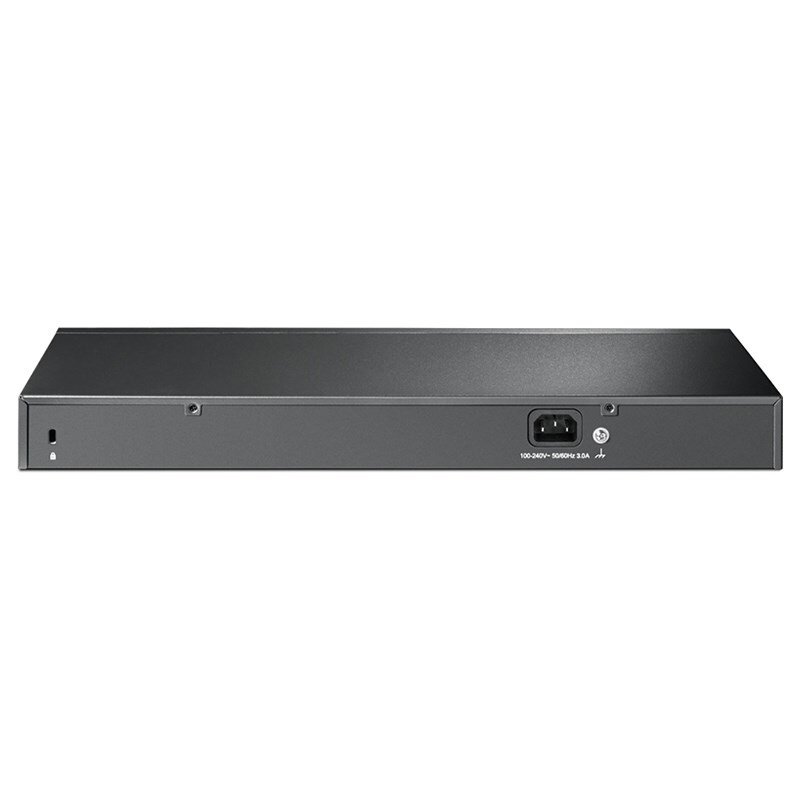

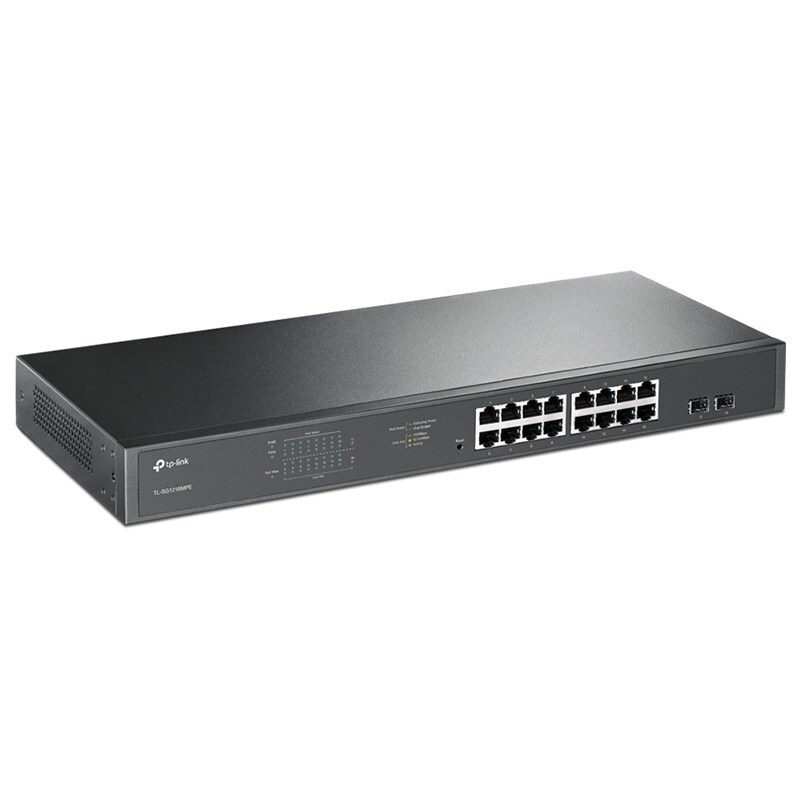

TP-Link TL-SG1218MPE JetStream 16-Port Gigabit Easy Smart PoE/PoE+ Switch - Interface: 16x PoE+ 10/100/1000Mbps RJ45 Ports & 2x Fiber Ports - PSU: 100-240V AC, 50/60 Hz - Rack Mountable - PoE Power Up to 192W - Port Priority - QoS - 5 Years Limited Warranty
(TL-SG1218MPE)
| HARDWARE FEATURES |
| Standards and Protocols |
IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x
IEEE 802.3af, IEEE 802.3at, IEEE 802.1q, IEEE 802.1p |
| Interface |
16 10/100/1000 Mbps RJ45 Ports
(Auto Negotiation/Auto MDI/MDIX)
2 Gigabit SFP Ports |
| Network Media |
10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m)
100BASE-TX: UTP category 5, 5e cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m)
1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m)
1000BASE-X MMF, SMF |
| Fan Quantity |
2 Fans |
| Physical Security Lock |
Yes |
| Power Supply |
100-240V AC, 50/60 Hz |
| PoE+ Ports(RJ45) |
Standard: 802.3at/802.3af compliant
PoE+ Ports: 16 Ports
Power Supply: 192W |
| Dimensions ( W x D x H ) |
17.3 × 7.1 × 1.7 in. (440 × 180 × 44 mm) |
| Mounting |
Rack Mountable |
| Max Power Consumption |
18.73 W (220/50Hz. no PD connected)
217.22 W (220/50Hz. with 192W PD connected) |
| Max Heat Dissipation |
63.89 BTU/h (no PD connected)
741.15 BTU/h (with 192W PD connected) |
| PERFORMANCE |
| Switching Capacity |
36 Gbps |
| Packet Forwarding Rate |
23.8 Mbps |
| MAC Address Table |
8K |
| Packet Buffer Memory |
4.1 Mbit |
| Jumbo Frame |
9 KB |
| SOFTWARE FEATURES |
| Quality of Service |
Support Port-based 802.1p/DSCP priority
Support 4 priority queues
Rate Limit
Storm Control |
| L2 Features |
IGMP Snooping V1/V2/V3
Static Link Aggregation
Port Mirroring
Cable Diagnostics
Loop Prevention |
| VLAN |
Support up to 32 VLANs simultaneously (out of 4K VLAN IDs)
MTU/Port/Tag VLAN |
| Management |
Web-based GUI
Easy Smart Configuration Utility |
| Transmission Method |
Store-And-Forward |
| OTHERS |
| Certification |
CE, FCC, RoHS |
| Package Contents |
TL-SG1218MPE
Power Cord
Installation Guide
Resource CD
Rackmount Kit
Rubber Feet |
| Environment |
Operating Temperature: 0°C~50°C (32°F~122°F)
Storage Temperature: -40°C~70°C (-40°F~158°F)
Operating Humidity: 10% ~ 90% non-condensing
Storage Humidity: 5%~90% non-condensing |
| SKU |
TL-SG1218MPE |
| Barcode # |
6935364086923 |
| Brand |
TP-LINK |
| Shipping Weight |
2.9000kg |
| Shipping Width |
0.530m |
| Shipping Height |
0.080m |
| Shipping Length |
0.250m |
| Shipping Cubic |
0.010560000m3 |
Manufacturer Warranty: 5 Year Manufacturer Warranty
