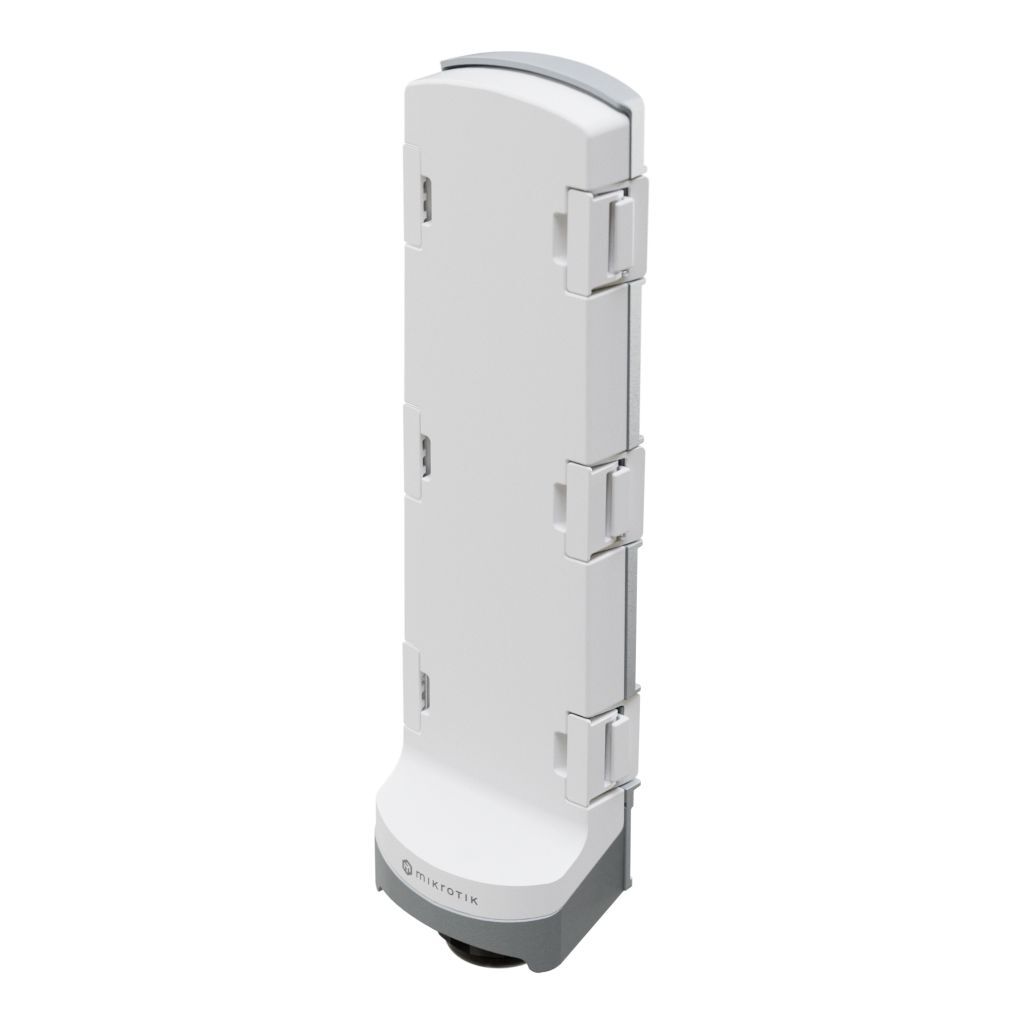

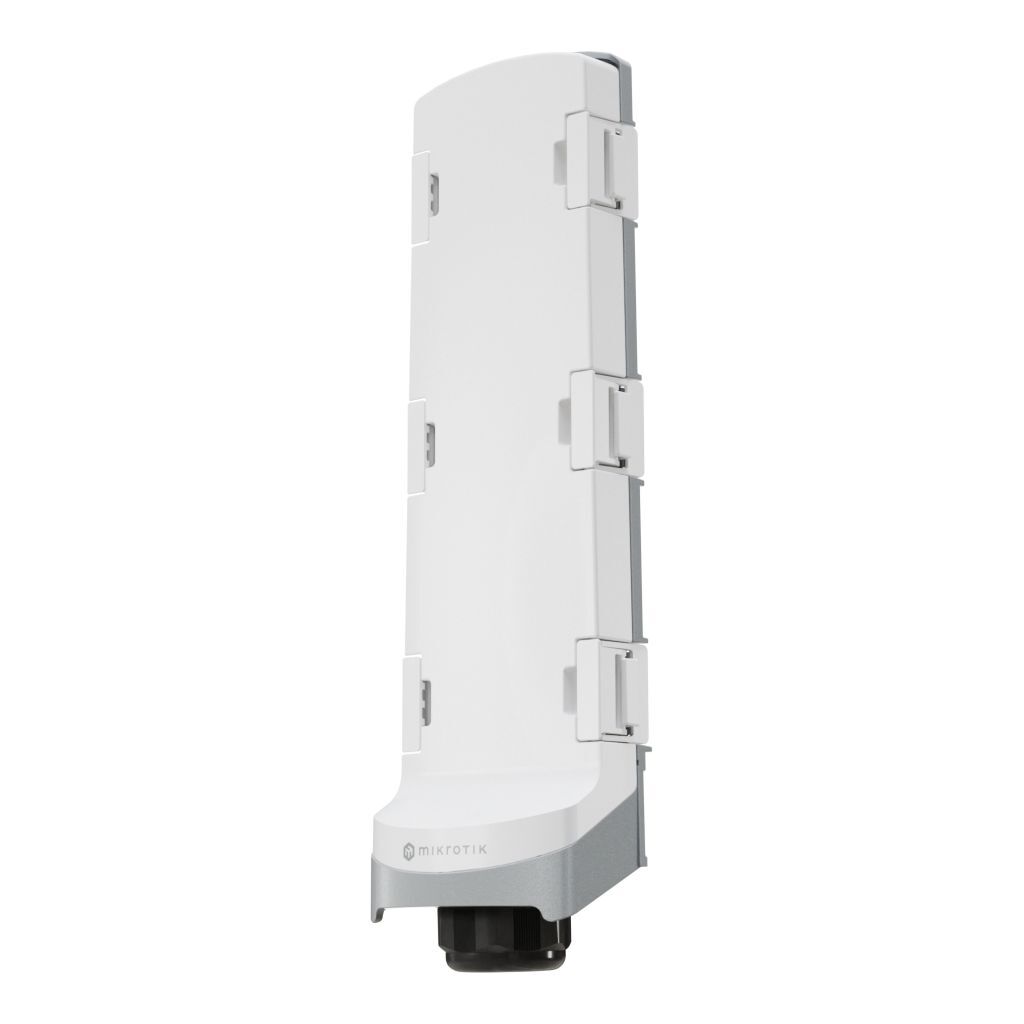

GPERx6

Cut the cable clutter – extend power and fiber together, anywhere – with a single hybrid cable. At the far end, the GPERx6 splits it all neatly: SFP+ for further long-distance uplinks, PoE-out for powering other switches or access points, and DC outputs for IoT gear or specialized devices.

GPERx6

Key Features

3x 10G SFP+
3x Gigabit Ethernet
Heavy-duty IP66 enclosure
Flexible powering
A dedicated 10G switch chip

The outdoors can be brutal: blistering heat, freezing cold, wind, rain. The elements attack your gear. The wiring is a nightmare. The GPERx6 solves both problems – a rugged, outdoor-ready switch that cuts cable clutter and keeps deployments simple

But the real advantage is how it allows you to manage power and data over long distances (1-2 km) even in the trickiest scenarios!


Product feature Product feature

Features

Ethernet with PoE
3x Gigabit Ethernet ports with PoE-in (#1) and PoE-out (#2 & #3)
SFP+
3× 10G SFP+ cages for long-distance fiber
DC output
3 DC outputs for devices that don’t use PoE, for example, IoT setups
IP66

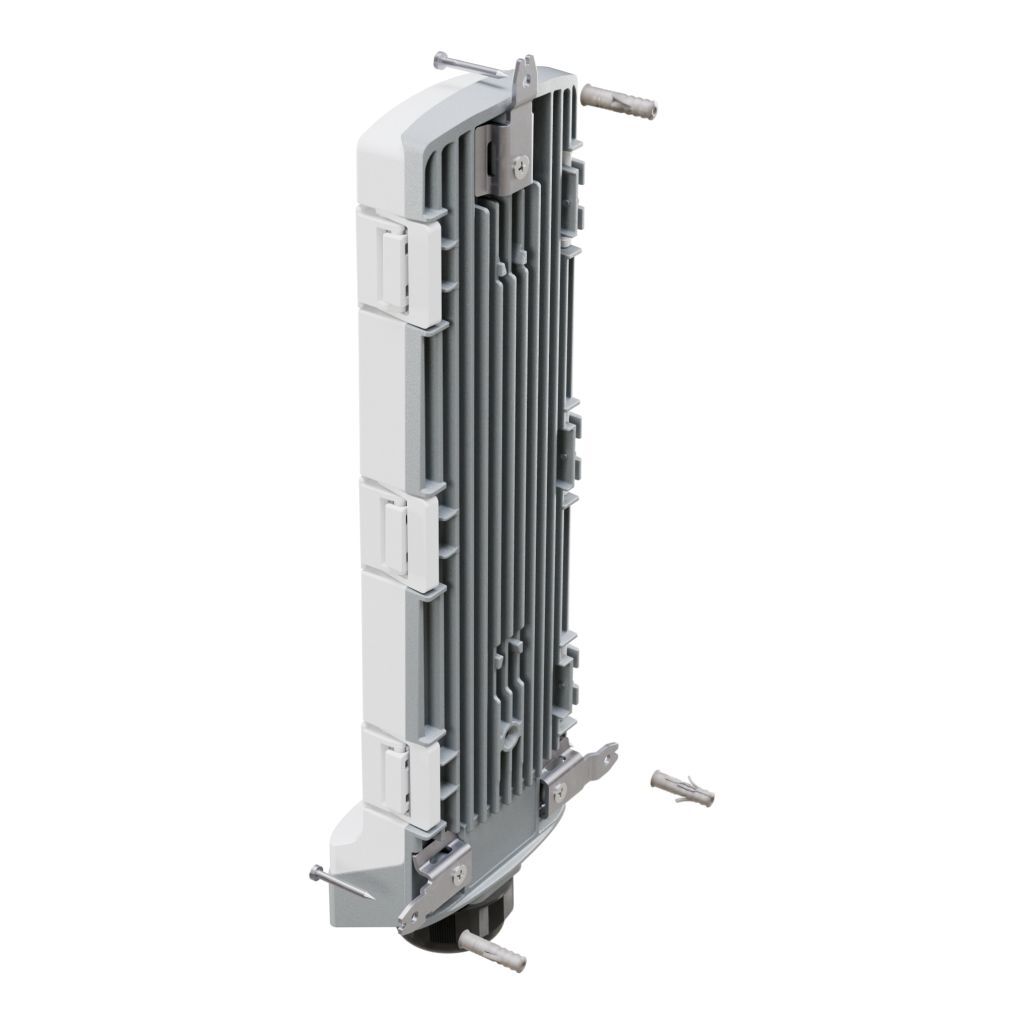

Heavy-duty IP66 enclosure with handy mounting hardware
Dedicated Chip
A dedicated 10G switch chip (tested in ISP favorites like the netPower Lite 7R)

Product Video


Included Parts

K-93
K-93
Hose clamp 2
Hose clamp 2

Note

The device has an operating system preinstalled and licensed. No separate purchase is necessary and the product is ready to use. The device includes free software updates for the life of the product or a minimum of 5 years starting from date of purchase.

(GPERx6)

Technical Specifications

Specifications
Product code
CSS606-1G-2Gi-3S+OUT
Switch chip model
88E6193X
Operating System
SwOS
MTBF
Approximately 200'000 hours at 25C
Tested ambient temperature
-40°C to 70°C
Powering
Number of DC inputs
2 (DC jack, PoE-IN)
DC jack input Voltage
12-57 V
Max power consumption
160 W
Max power consumption without attachments
6 W
PoE in
802.3 bt
Cooling type
Passive
PoE in input Voltage
42-57 V
PoE-out
PoE-out ports
Ether2-Ether3
PoE out
Passive PoE up to 57V
Low voltage PoE-Out current limit
1.2 A
High voltage PoE-Out current limit
0.625 A
Max total out (A)
2.4 A
Total output power
150
Ethernet
10/100/1000 Ethernet ports
3
Number of 1G Ethernet ports with Reverse PoE (PoE-in)
1
Number of 1G Ethernet ports with PoE-out
2
Fiber
SFP+ ports
3
Other
CPU temperature monitor
Yes
Certification & Approvals
Certification
CE, EAC, ROHS
IP
66

Documents & Resources

SKU GPERx6
Brand MIKROTIK
Shipping Weight 1.0000kg

Manufacturer Warranty
