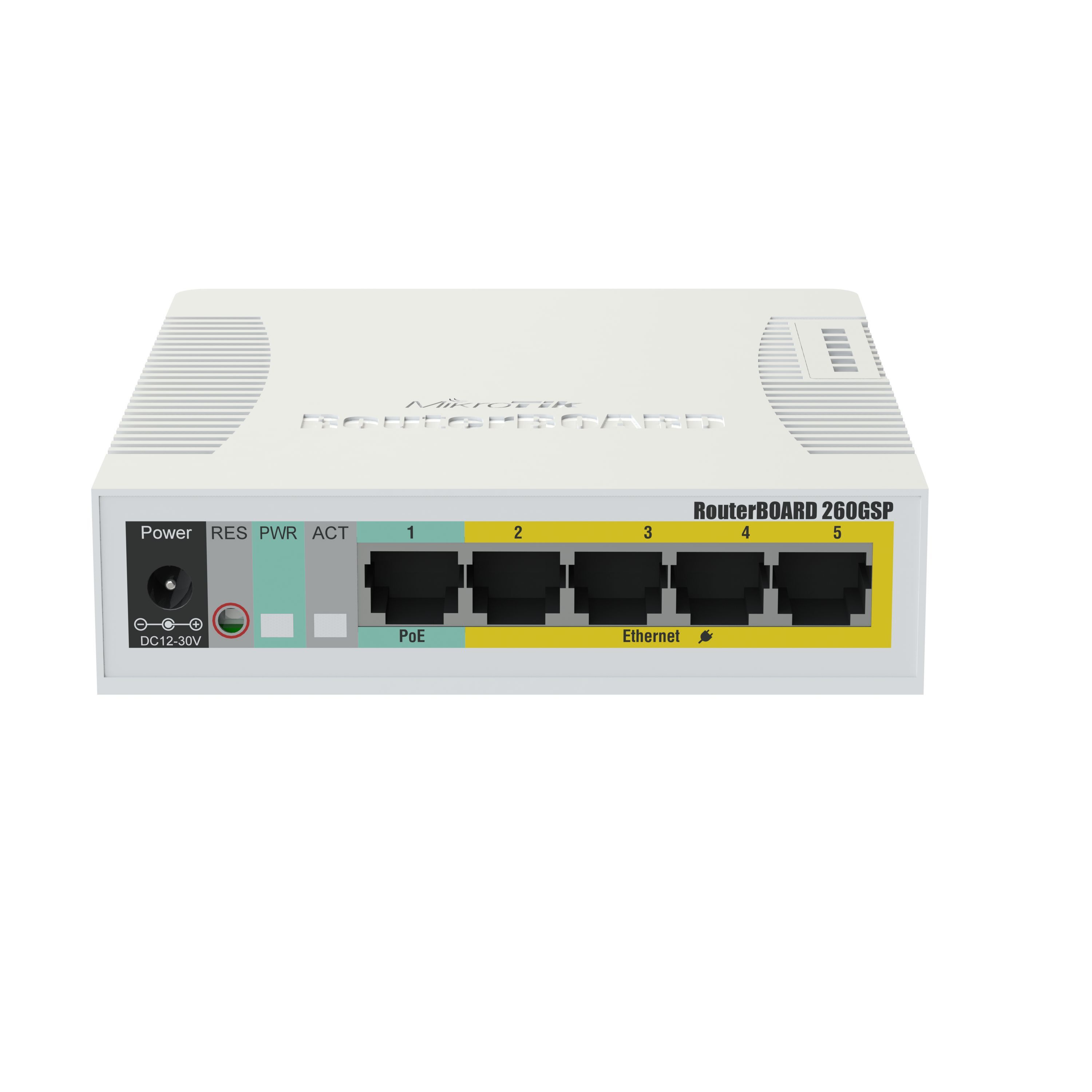

RB260GSP5x Gigabit PoE out Ethernet Smart Switch, SFP cage, plastic case, SwOS

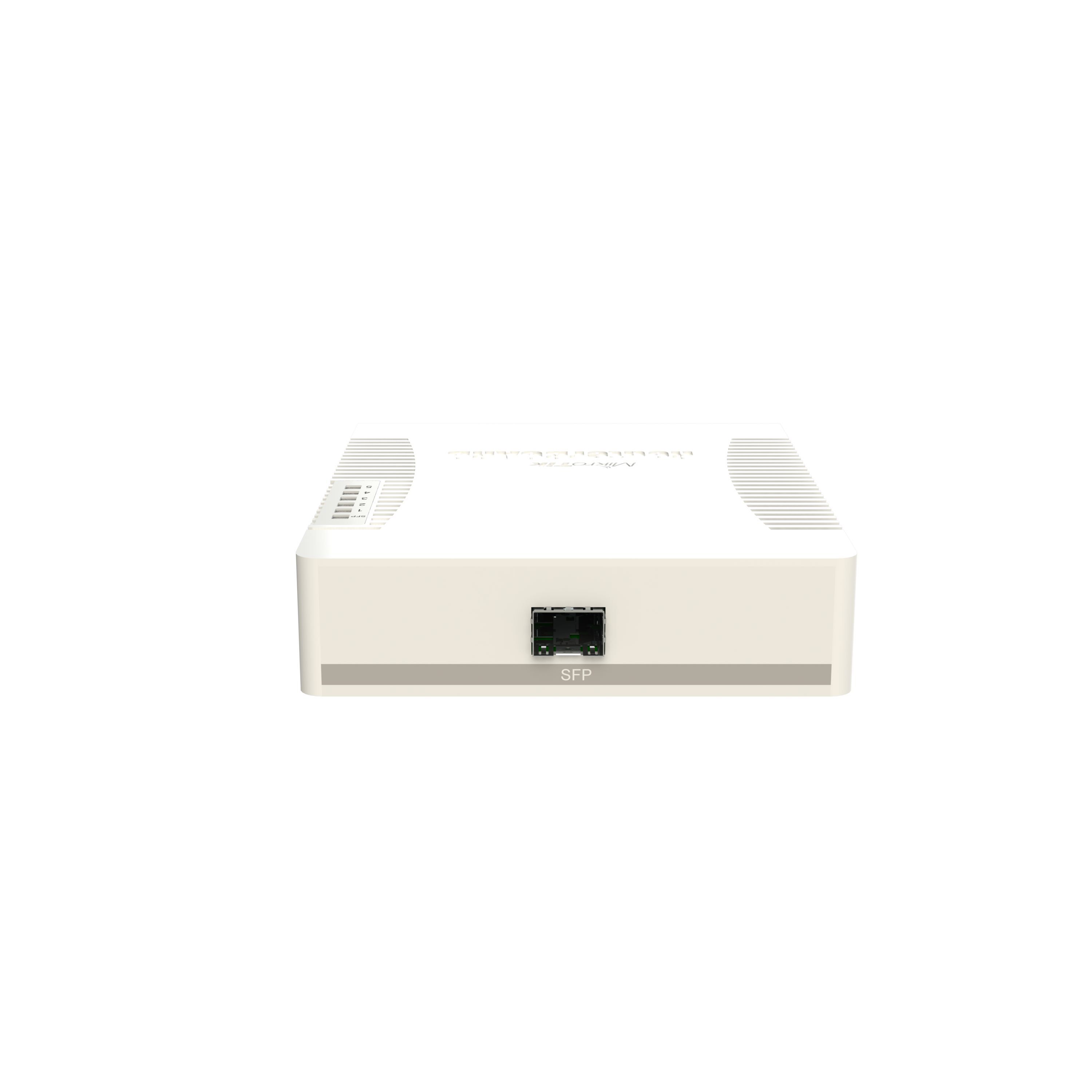

The RB260GSP is a small SOHO switch, which features power output on it’s ethernet ports. Ports 2-5 can power other PoE capable devices with the same voltage as applied to the unit (passive PoE over datalines only). The RB260GSP has five Gigabit Ethernet ports and one SFP cage, switching is done by an Atheros Switch Chip. The device is running an operating system designed specifically for MikroTik Switch products - SwOS.

(CSS106-1G-4P-1S)

Details
Product code	CSS106-1G-4P-1S
Switch chip model	QCA8337
Dimensions	113x139x28mm
Operating System	MikroTik SwOS
Storage size	128 KB
Storage type	FLASH
MTBF	Approximately 100'000 hours at 25C
Tested ambient temperature	-20°C to 70°C

Powering

Details
Number of DC inputs	2 (DC jack, PoE-IN)
DC jack input Voltage	11-30 V
Max power consumption	53 W
Max power consumption without attachments	5 W
Cooling type	Passive
PoE in	Passive PoE
PoE in input Voltage	11-30 V

PoE-out

Details
PoE-out ports	Ether2-Ether5
PoE out	Passive PoE
Max out per port output (input 18-30 V)	1 A
Max total out (A)	2 A

Ethernet

Details
10/100/1000 Ethernet ports	5

Fiber

Details
SFP DDMI	Yes
SFP ports	1

Other

Details
PCB temperature monitor	Yes
Voltage Monitor	Yes

Certification & Approvals

Details
Certification	CE, EAC, ROHS
IP	IP20

SKU	CSS106-1G-4P-1S
Barcode #	4752224002297
Brand	MIKROTIK
Shipping Weight	0.9000kg

Manufacturer Warranty
