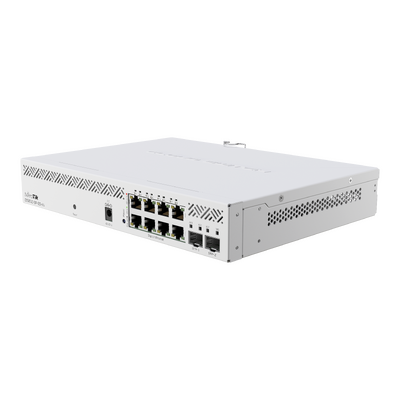

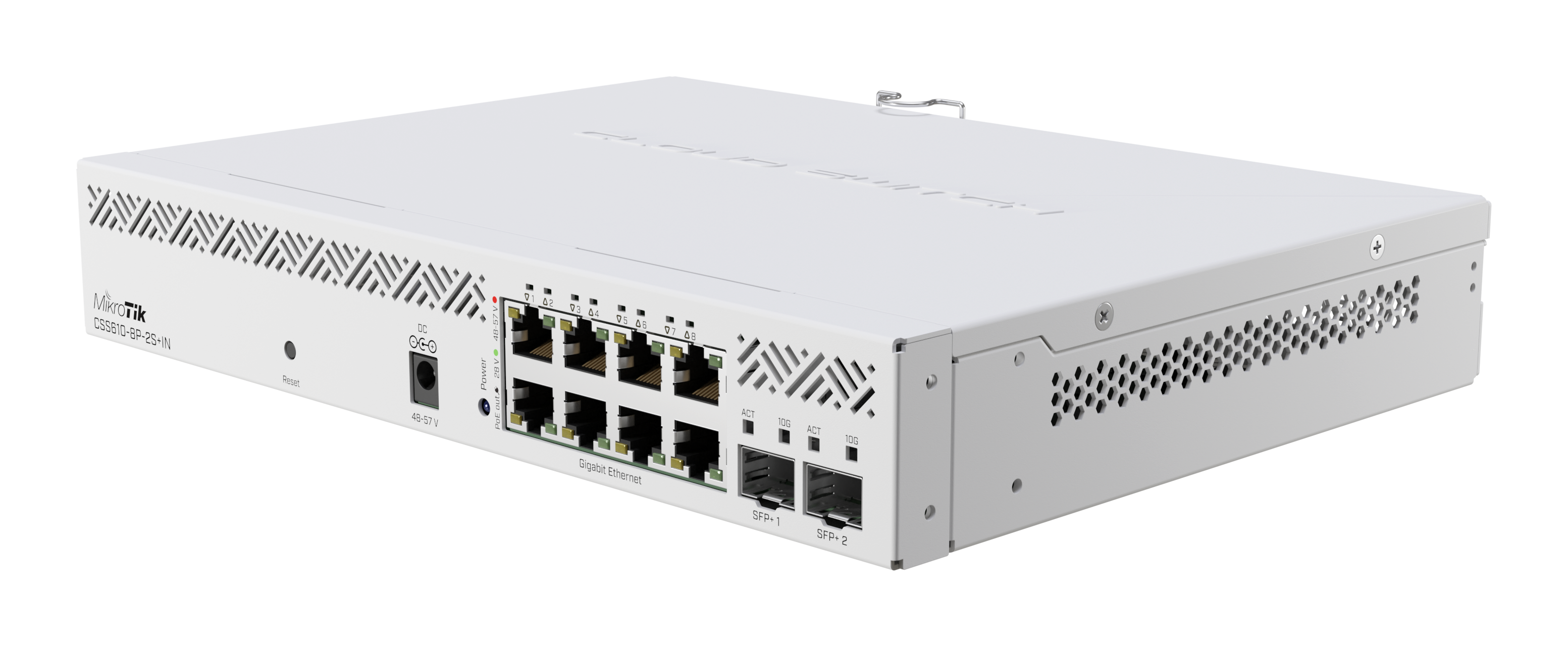

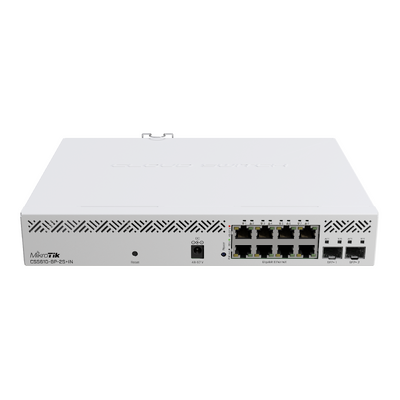

MikroTik CSS610-8P-2S+IN PoE Cloud Smart Switch

A compact and affordable PoE powerhouse with eight Gigabit PoE-out Ethernet ports, two 10 Gigabit SFP+ ports, a 140 W total PoE-out budget and lightweight SwOS management.

8× Gigabit PoE-Out Ethernet Ports

2× 10 Gigabit SFP+ Ports

56 Gbps Switching Capacity

140 W Total PoE-Out Power

Product Overview

A Well-Rounded PoE Switch for Diverse Networks

CSS610-8P-2S+IN is one of the most well-rounded switches on the market. It is a perfect fit for diverse setups ranging from home networks and small offices to hotels, call centers, conference halls and other multi-device environments.

Its combination of compact size, managed switching features, Gigabit PoE-out ports and 10 Gigabit SFP+ connectivity offers strong scalability potential.

Key Features

PoE-Out, 10 Gigabit Connectivity and SwOS Management

Designed for straightforward installation and flexible network administration.

Eight Gigabit PoE-Out Ports

Eight Gigabit Ethernet ports support 802.3af/at and passive PoE-out for connecting and powering compatible network devices.

Two 10 Gigabit SFP+ Ports

Two SFP+ ports provide 10 Gigabit fiber connectivity for high-speed uplinks, server connections or ISP connectivity.

140 W PoE-Out Budget

A total output power of 140 W supports demanding deployments with compatible IP phones, network cameras and wireless access points.

Easy Browser-Based Configuration

The lightweight SwOS operating system enables switch configuration through a web browser for convenient setup and administration.

Managed Switching Controls

Manage port-to-port forwarding, broadcast storm control, MAC filters, VLANs, traffic mirroring and bandwidth limitations.

Advanced Header Controls

SwOS also allows adjustment of selected MAC and IP header fields as part of its managed switch functionality.

Product Video

MikroTik CSS610-8P-2S+IN Product News

Watch the MikroTik product video for an overview of the CSS610-8P-2S+IN PoE Cloud Smart Switch.

Product Details

CSS610-8P-2S+IN Overview and Applications

View the supplied MikroTik product overview, port details and example multi-device deployment.

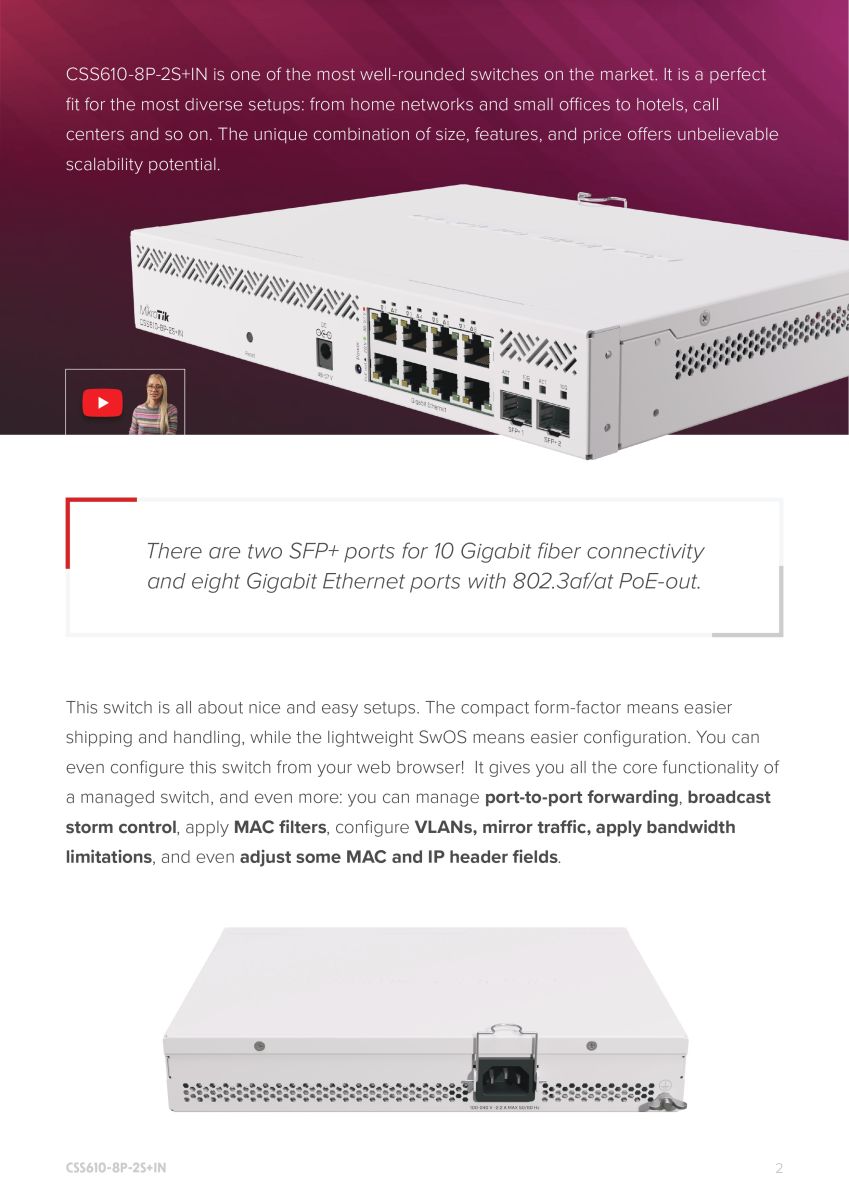

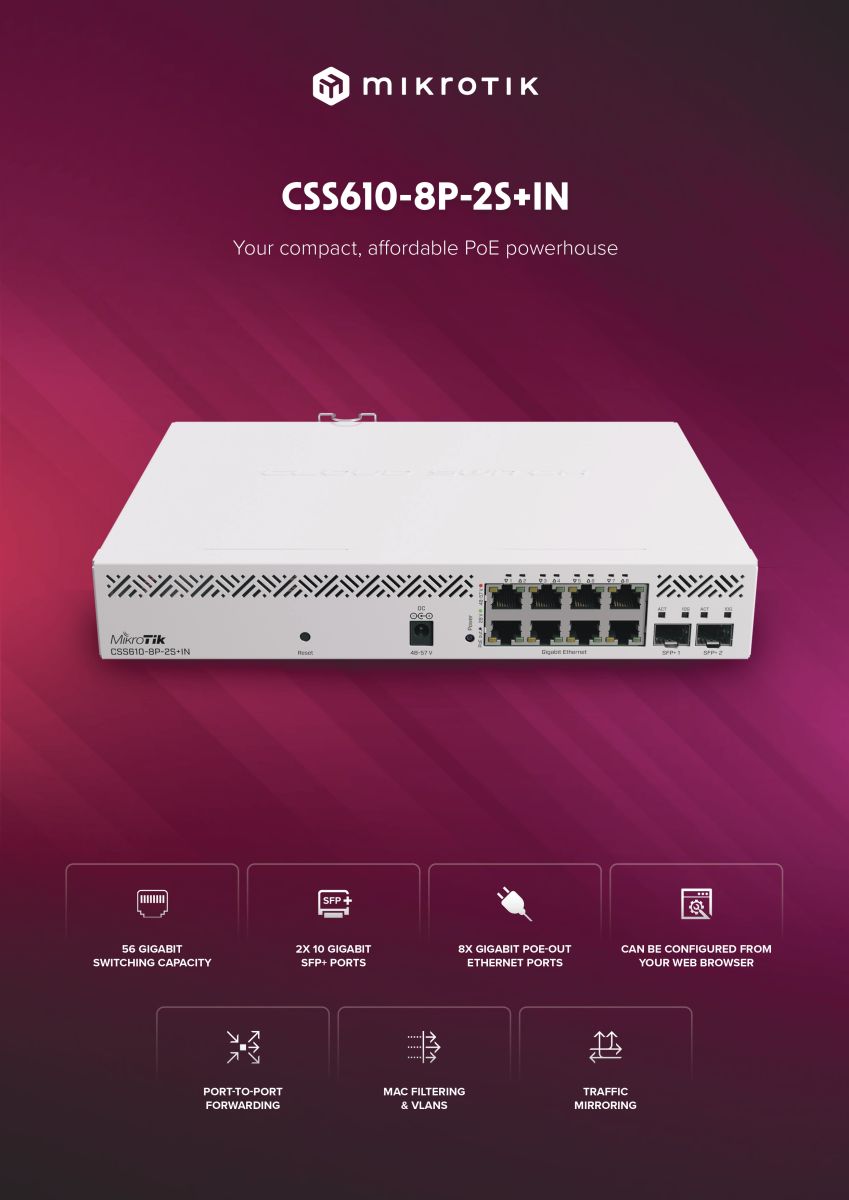

MikroTik CSS610-8P-2S+IN PoE switch overview

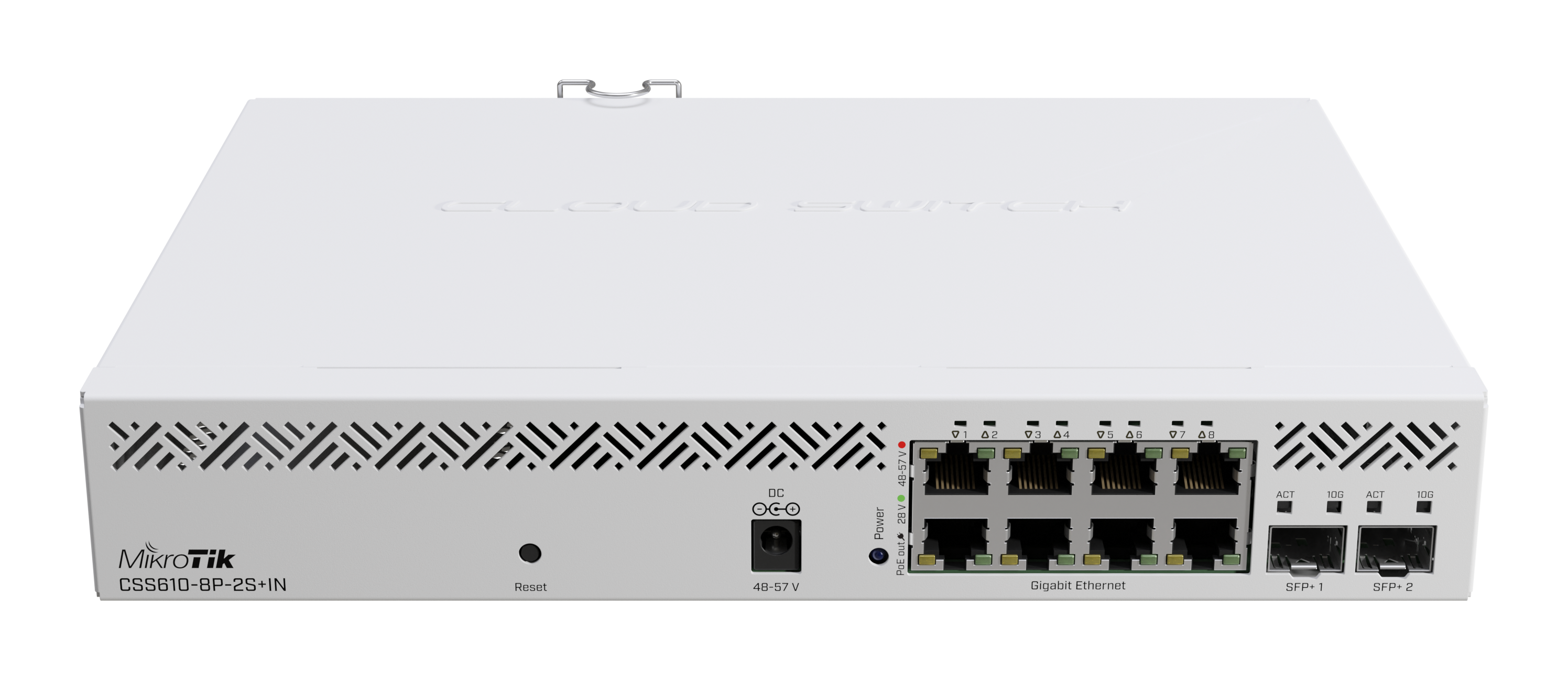

MikroTik CSS610-8P-2S+IN ports and SwOS features

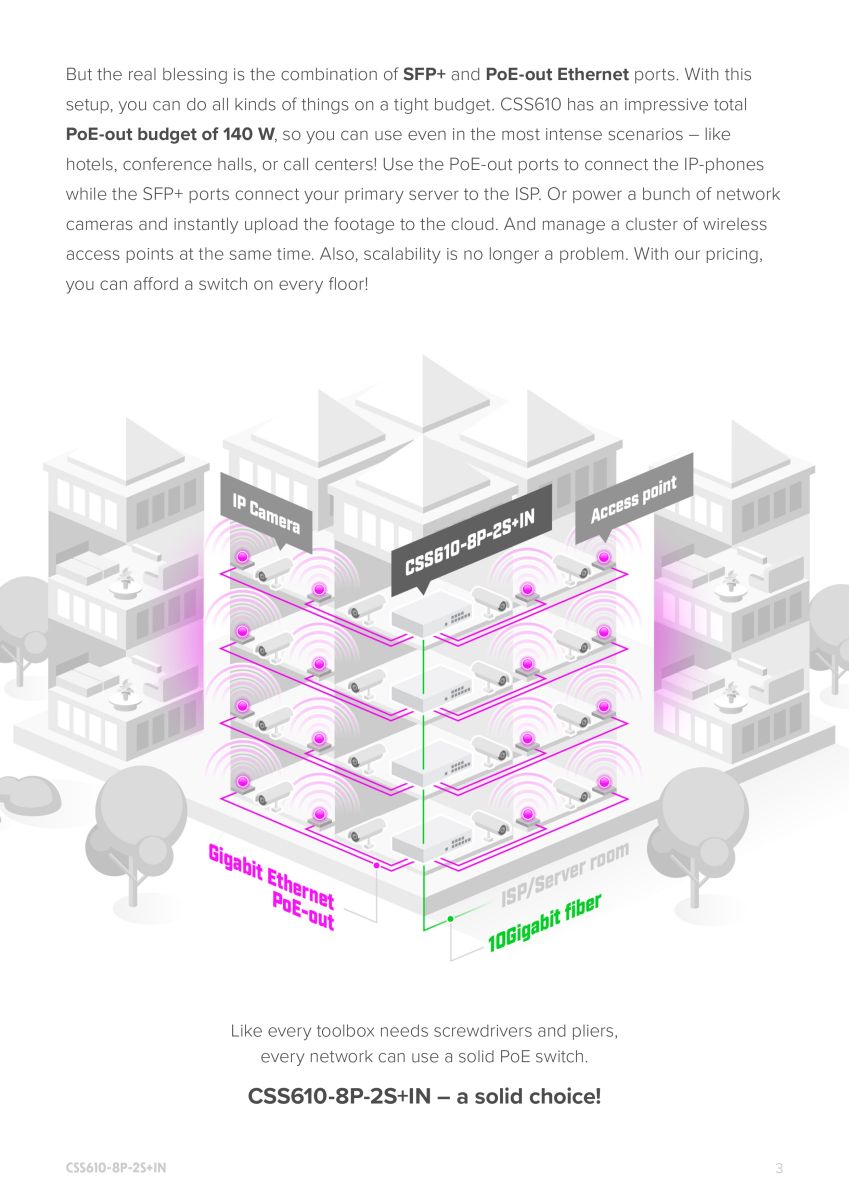

MikroTik CSS610-8P-2S+IN PoE network example

Network Applications

Designed for Scalable PoE Network Deployments

The combination of PoE-out Ethernet and SFP+ connectivity supports a range of practical network configurations.

IP Phone Systems

Connect compatible IP phones through the Gigabit Ethernet PoE-out ports.

Network Cameras

Power compatible network cameras while using the SFP+ ports for high-speed network connectivity.

Wireless Access Points

Connect and power a cluster of compatible wireless access points from one central switch.

Hotels and Conference Halls

The 140 W total PoE-out budget supports demanding multi-device network environments.

Home and Small Office Networks

Combine Gigabit PoE-out connectivity and 10 Gigabit uplinks in a compact form factor.

Multi-Floor Deployments

The compact design and scalable connectivity can support installing switches across multiple floors or areas.

Technical Specifications

MikroTik CSS610-8P-2S+IN Specifications

Ethernet, SFP+, PoE, power, physical and environmental specifications.

Category	Specification
Product Details
Product Code	CSS610-8P-2S+IN
Operating System	SwOS
Switch Chip Model	88E6193X
Switching Capacity	56 Gigabit
Network Interfaces
Number of 1G Ethernet Ports	8
Number of 10G SFP+ Ports	2
SFP+ Connectivity	10 Gigabit fiber connectivity
PoE Output
PoE-Out	802.3af/at and Passive PoE
PoE Controller	Smart PoE Controller
PoE-Out Ports	Ether1-Ether8
Maximum Output Per Port, Input Below 30 V	1000 mA
Maximum Output Per Port, Input Above 30 V	625 mA
Total Output Power	140 W
Powering
Number of DC Inputs	1
DC Jack Input Voltage	48-57 V
Number of AC Inputs	1
AC Input Range	100-240 V
Nominal Voltage	54 V
Nominal Current	2.8 A
Maximum Power Consumption Without Attachments	12 W
Maximum Power Consumption	162 W
Physical and Environmental
Dimensions	272 x 216 x 50 mm
Operating Temperature	-40°C to +70°C
Included Parts
Fastening Set	Rack ears
Included Power Accessory	Power cord
SwOS Management Features
Configuration Method	Web browser
Port-to-Port Forwarding	Supported
Broadcast Storm Control	Supported
MAC Filtering	Supported
VLAN Configuration	Supported
Traffic Mirroring	Supported
Bandwidth Limitations	Supported
Header Adjustment	Selected MAC and IP header fields can be adjusted.

CSS610-8P-2S+IN — A Solid Choice

Like every toolbox needs screwdrivers and pliers, every network can use a solid PoE switch. The CSS610-8P-2S+IN combines Gigabit PoE-out, 10 Gigabit SFP+ connectivity, a 140 W total output budget and browser-based SwOS management in a compact design.

Frequently Asked Questions

MikroTik CSS610-8P-2S+IN FAQs

Answers to common questions about its Ethernet ports, SFP+ connections, PoE output, power and SwOS management.

How many Ethernet ports does the CSS610-8P-2S+IN have?

It has eight 1 Gigabit Ethernet ports. Ether1 through Ether8 provide PoE-out.

How many 10 Gigabit SFP+ ports are included?

The switch includes two SFP+ ports for 10 Gigabit fiber connectivity.

What is the switching capacity?

The supplied specification lists a switching capacity of 56 Gigabit.

What is the total PoE-out budget?

The CSS610-8P-2S+IN provides total PoE output power of 140 W.

Which PoE standards does the switch support?

The supplied specifications list 802.3af/at and Passive PoE-out.

What is the maximum PoE output per port?

The listed maximum output per port is 1000 mA when input is below 30 V and 625 mA when input is above 30 V.

How is the CSS610-8P-2S+IN configured?

It runs SwOS and can be configured through a web browser.

Does the switch support VLANs and traffic mirroring?

Yes. The supplied feature list includes VLAN configuration, traffic mirroring, MAC filtering, port-to-port forwarding and broadcast storm control.

What is the maximum power consumption?

Maximum power consumption is listed as 162 W. Maximum power consumption without attachments is 12 W.

What is the operating temperature range?

The supported operating temperature range is -40°C to +70°C.

Are rack ears included?

Yes. The included fastening set is listed as rack ears, and a power cord is also included.

What types of devices can be connected to the PoE ports?

The supplied product information gives compatible IP phones, network cameras and wireless access points as example PoE devices.

(CSS610-8P-2S-IN)

Specifications

Details
Product code	CSS610-8P-2S+IN
Switch chip model	88E6193X
Dimensions	272x208x44mm
Operating System	SwitchOS Lite
Storage size	64 KB
Storage type	FLASH
MTBF	Approximately 200'000 hours at 25C
Tested ambient temperature	-40°C to 70°C

Powering

Details
Number of AC inputs	1
AC input range	100-240
Number of DC inputs	1 (DC jack)
DC jack input Voltage	48-57 V
Max power consumption	162 W
Max power consumption without attachments	12 W
Cooling type	Passive

PoE-out

Details
PoE-out ports	Ether1-Ether8
PoE out	802.3af/at
Max out per port output (input 18-30 V)	1000 mA
Max out per port output (input 30-57 V)	625 mA
Total output power	140
