Name: MikroTik CRS318-16P-2S+OUT netPower 16P 16 Gigabit PoE ports 2 SFP+ IP55
Brand: MIKROTIK
SKU: CRS318-16P-2SPLUSOUT
Price: 444 AUD
Availability: InStock

An outdoor 18 port switch with 16 Gigabit PoE-out ports and 2 SFP+. Power all your access points anywhere.Powering a bunch of access points or IP cameras and a few uplinks on a tower has never been easier. netPower 16P has 16 Gigabit Ethernet ports with PoE-out and two SFP+ ports for 10G fiber uplinks.Its sturdy and compact outdoornenclosure allows the switch to be mounted in all kinds of environments – from damp attics and shafts to towers, masts and poles with hose clamps.netPower 16P has a non-blocking throughput of 36 Gbps, switching capacity of 72 Gbps and forwarding rate of 53.6 Mpps. Product Features:• CPU Temperature Monitor: Yes• Number of 1G Ethernet ports: 16• Number of 10G SFP+ ports: 2

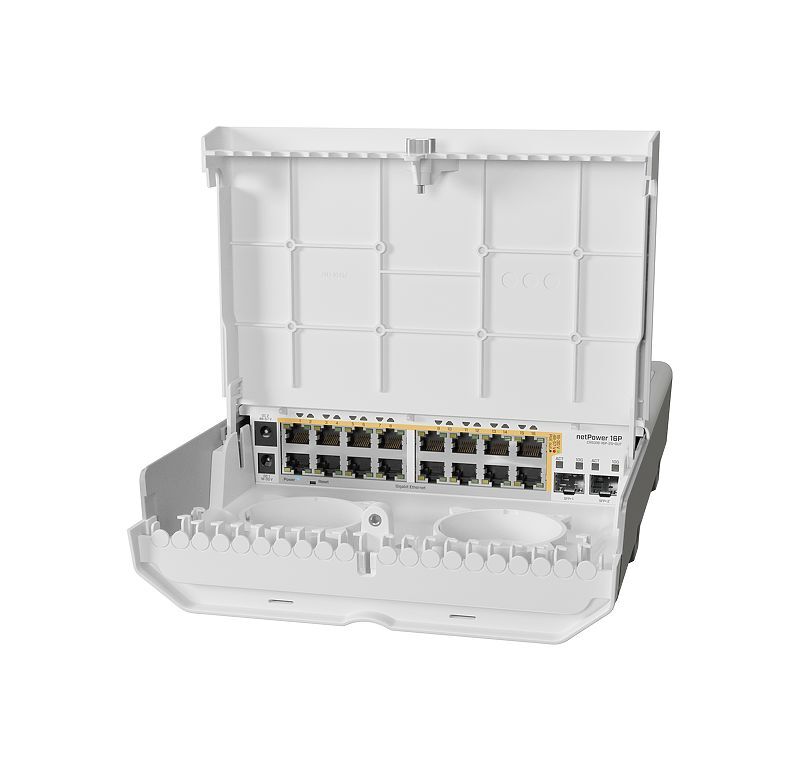

Powering a bunch of access points or IP cameras and a few uplinks on a tower has never been easier. netPower 16P has 16 Gigabit Ethernet ports with PoE-out and two SFP+ ports for 10G fiber uplinks.

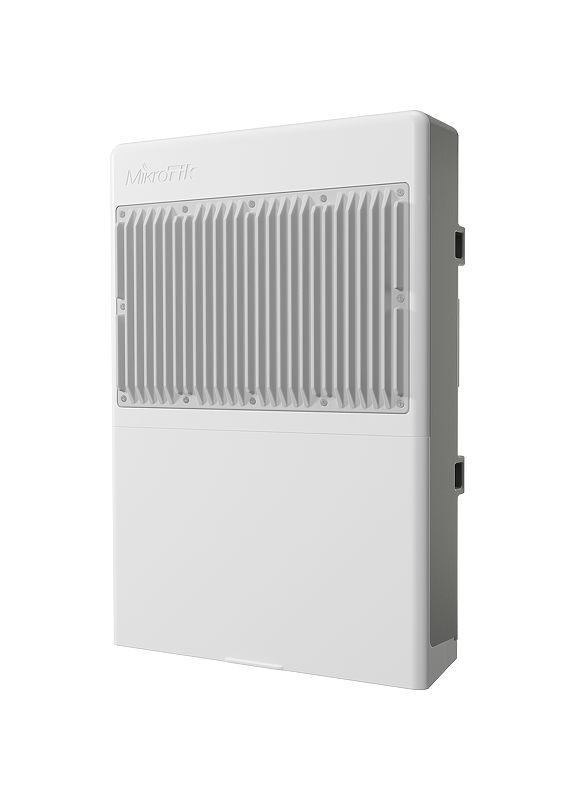

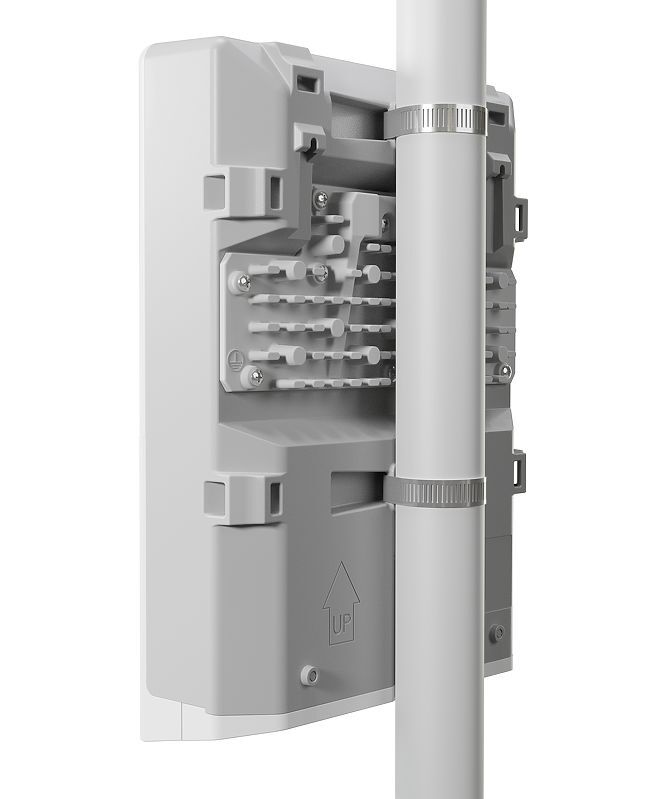

Its sturdy and compact outdoor enclosure allows the switch to be mounted in all kinds of environments – from damp attics and shafts to towers, masts and poles with hose clamps.

netPower 16P has a non-blocking throughput of 36 Gbps, switching capacity of 72 Gbps and forwarding rate of 53.6 Mpps.

Device itself does not have an onboard voltage converter. You need 24V PSU to have 24V PoE out and/or 48V PSU to have 48V PoE out (IEEE 802.3 at/af).

Product code	CRS318-16P-2S+OUT
Architecture	ARM 32bit
CPU	98DX226S
CPU core count	1
CPU nominal frequency	800 MHz
Switch chip model	98DX226S
Dimensions	303 x 212 x 78 mm
RouterOS license	5
Operating System	RouterOS / SwitchOS
Size of RAM	256 MB
Storage size	16 MB
Storage type	FLASH
MTBF	Approximately 200'000 hours at 25C
Tested ambient temperature	-40°C to 70°C

Powering

Details
Number of DC inputs	2 (DC jack)
DC jack input Voltage	18-30 V / 48-57 V
Max power consumption	316 W
Max power consumption without attachments	16 W
Cooling type	Passive

PoE-out

Details
PoE-out ports	Ether1-Ether16
PoE out	802.3af/at
Max out per port output (input 18-30 V)	1.1 A
Max out per port output (input 30-57 V)	0.6 A
Max total out (A)	2.8A (18V-30V) & 1.4A (48V-57V) x2 A

Ethernet

Details
10/100/1000 Ethernet ports	16
Number of 1G Ethernet ports with PoE-out	16

Fiber

Details
SFP+ ports	2

Other

Details
CPU temperature monitor	Yes
Voltage Monitor	Yes

Certification & Approvals

Details
Certification	CE, EAC, ROHS
IP	IP54

* Power supply is NOT included with the product. You are welcome to use your preferred power option, like battery pack etc. Compatible also with MikroTik power supplies 24HPOW, 48POW and 48V2A96W

Product Specifications:• CPU: 98DX226S, 800 MHz• Size of RAM: 256 MB• Storage: 16 MB flash• Switch chip model: 98DX226S• Operating System: RouterOS (Licence level 5) / SwOS (dual boot)• Operating temperature: -40°C to +70°C Power:• PoE-out: Passive PoE with auto sensing, 802.3af/at• PoE-out ports: Ether1 - Ether16• Max PoE-out on low (< 30 V) voltage: 5.6 A (2.8 A per 8port group) ( max 1.1 A per port)• Max PoE-out on high (> 30 V) voltage: 2.8 A (1,4 A per 8port group) ( max 0.6 A per port)• Number of DC jacks: 2• Supported input voltage: 18 - 57V• Max power consumption: 316 W• Max power consumption without attachments: 16 W Product Includes:(1) NetPower 16P(3) Hose Clamps(1) K-66 Fastening Set(2) DC to Terminal block adapters

(CRS318-16P-2SPLUSOUT)
