8-Port 10/100Mbps Desktop Switch with 4-Port PoE TL-SF1008P With four PoE ports, transfers data and power on one single cable Working with IEEE 802.3af compliant PDs, expands home and office network Requires no configuration and installation

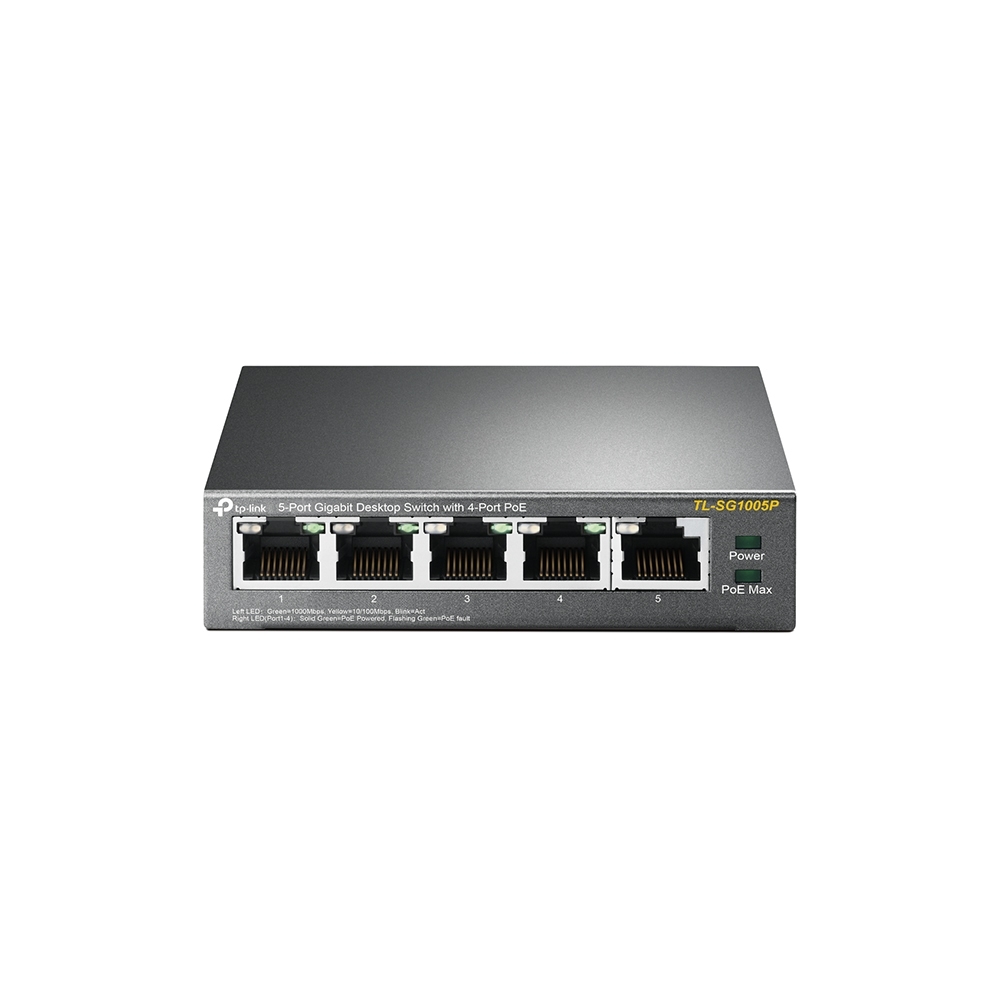

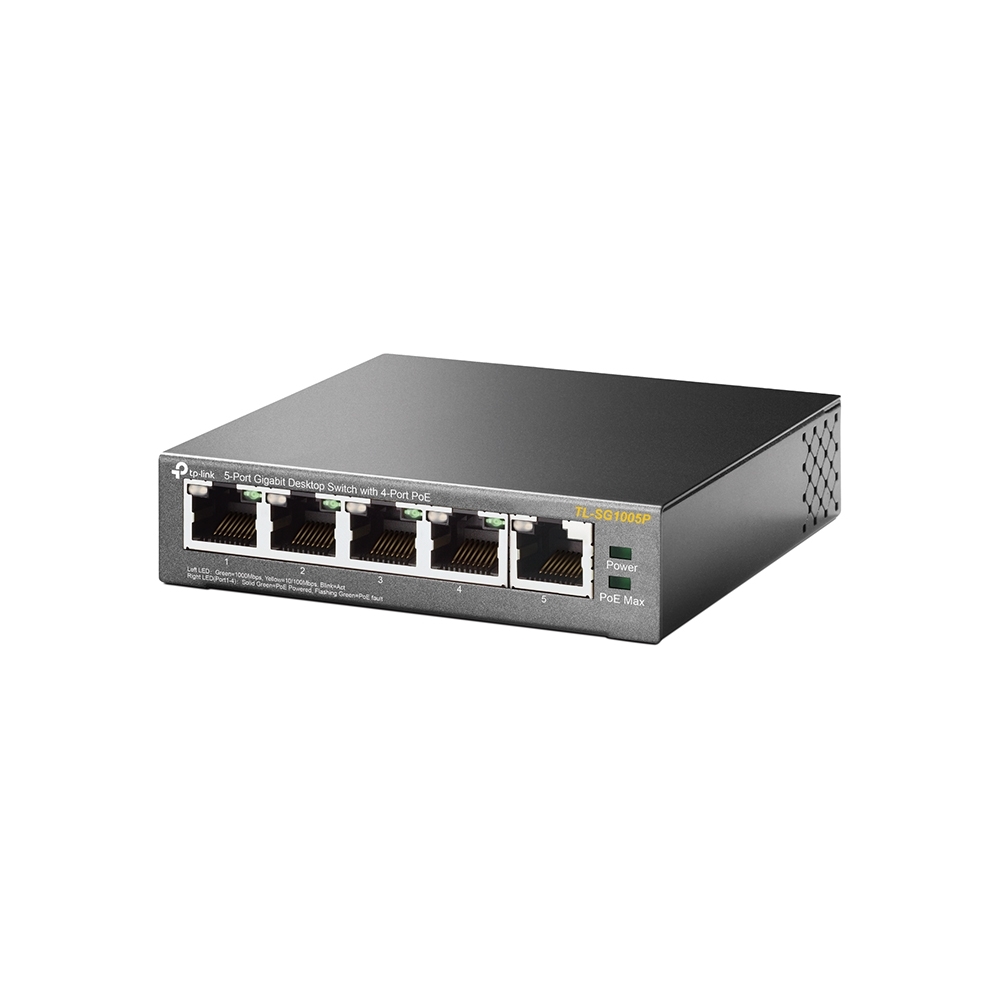

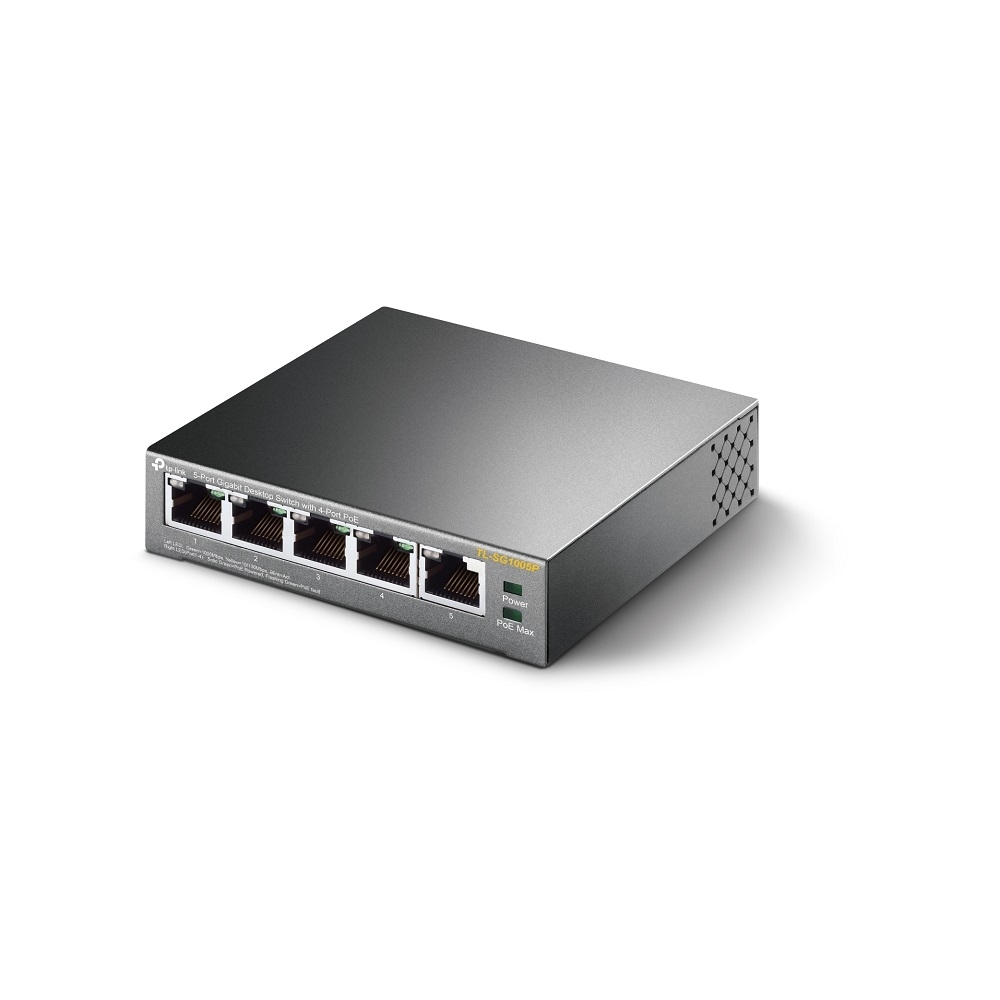

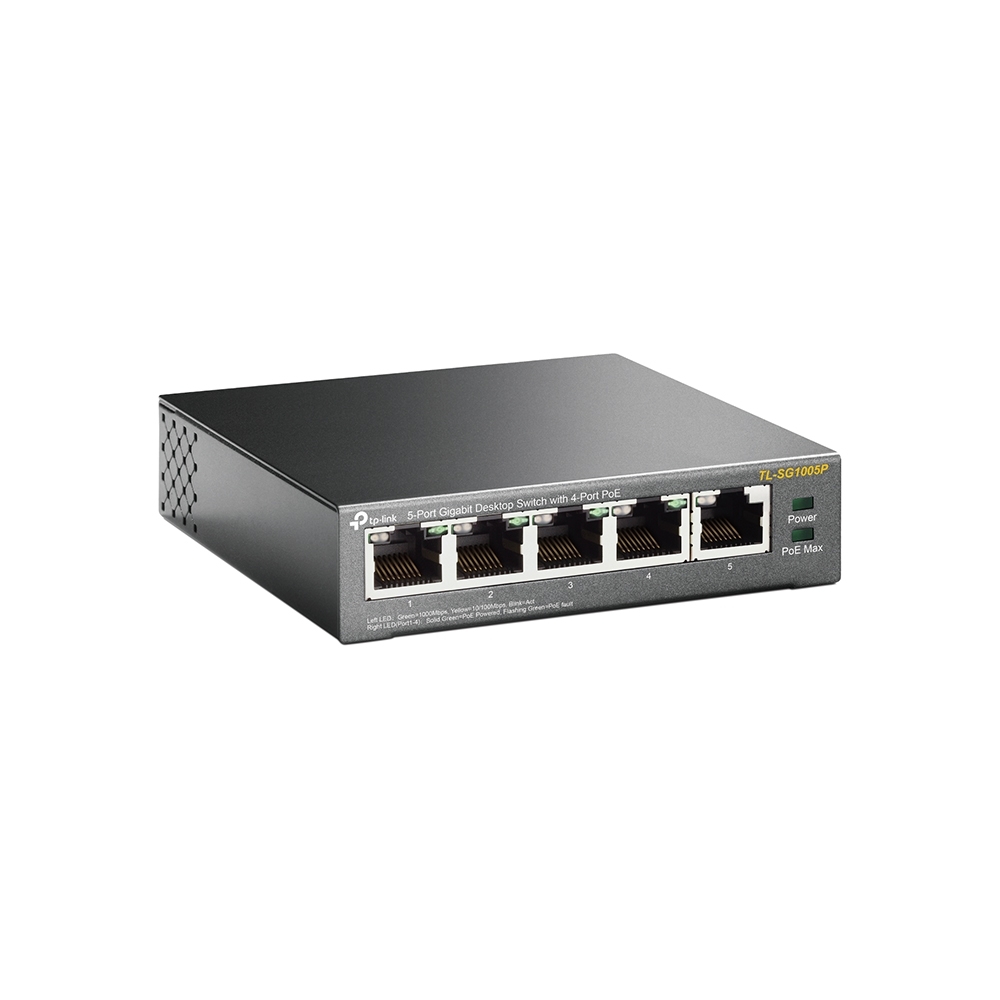

(TL-SG1005P)

HARDWARE FEATURES
Interface 5 10/100/1000Mbps RJ45 Ports
AUTO Negotiation/AUTO MDI/MDIX
Network Media 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m)
100BASE-TX: UTP category 5, 5e cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m)
1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m)
Fan Quantity Fanless
Power Consumption 63.31W (max. with 56w PoE device connected)
4.26W (max. no PoE device connected)
External Power Supply External Power Adapter(Output: 48VDC / 1.25A)
PoE Ports (RJ45) Standard: 802.3 af compliant
PoE Ports: Port1- Port4
Power Supply: 56W
Backbound Bandwidth 10Gbps
Mac Address Table 2K
Dimensions ( W x D x H ) 3.9 x 3.9 x 1.0 in. (99.8 x 98 x 25 mm)
SOFTWARE FEATURES
Advanced Features Compatible With IEEE 802.3af Compliant PDs
Priority Function
Mac Address Auto-Learning And Auto-Aging
EEE802.3x Flow Control
802.1p/DSCP QoS
IGMP Snooping
Transfer Method Store-And-Forward
OTHERS
Certification FCC, CE, RoHS
Package Contents TL-SG1005P, Power Adapter, Installation Guide
Consumption 4.26 watts (max. no PD connected)
63.31 watts (max. with 56w PD connected)
Environment Operating Temperature: 0℃~40℃ (32℉~104℉)
Storage Temperature: -40℃~70℃ (-40℉~158℉)
Operating Humidity: 10%~90%RH non-condensing
Storage Humidity: 5%~90%RH non-condensing
SKU TL-SG1005P
Barcode # 6935364083212
Brand TP-Link
Shipping Weight 1.0000kg
