View PDF BrochureTenda TEG1109P-8-102W 9-Port Gigabit Unmanaged Ethernet Switch with 8-Port PoE
Model # TEG1109P-8-102W
-
SKU: TEG1109P-8-102W
- Pick Up Available
- Australian Warranty
- Checkout Securely

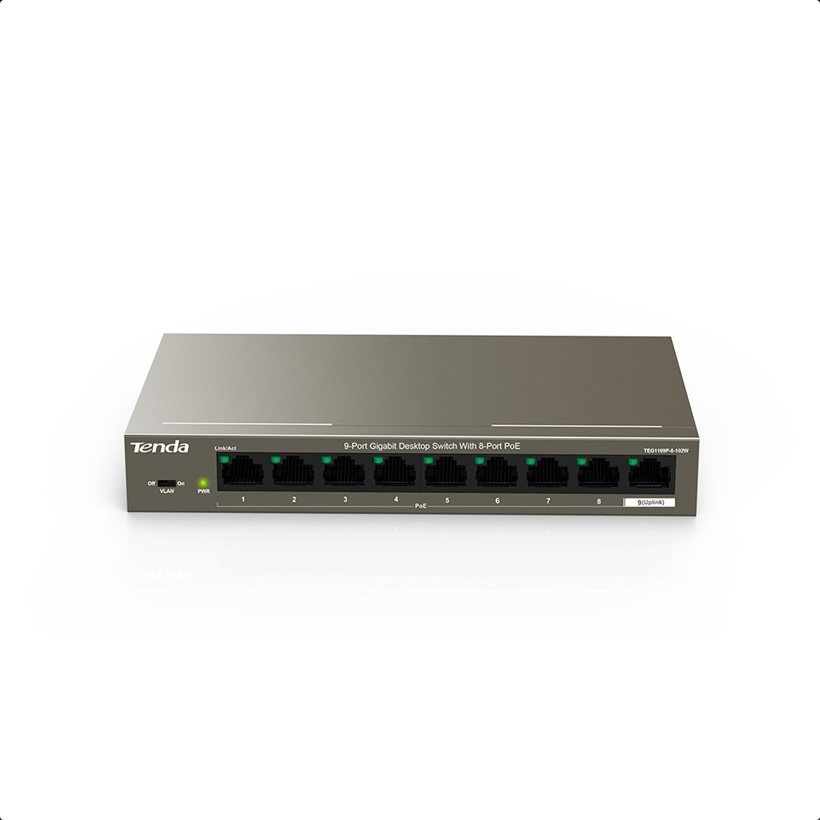

TEG1109P-8-102W / Switch / 9-Port Gigabit Desktop Switch with 8-Port PoE
TEG1109P-8-102W is the gigabit unmanaged lightning protection switch which is Tenda specifically developed for requirement of building Gigabit WLAN and HD camera monitor network.With high-performance access, 9-10/100/1000M Base-T Ethernet RJ45 ports; 6KV lightning-proof for all port; every single port support MDI/MDIX and wired speed; PoE ports supports IEEE802.3at/af standard while detecting and recognizing the IEEE802.3at/af standard power device automatically. Through conventional Cat 5e twisted-pair cable, power can be transmitted along with data for AP, IP Camera and IP Phone. With PoE dynamic power, easierconfigure, flexible extend network without being limited by the power line layout, plug and play, helping SMB,hotel, shopping mall,school to build high-security and reliability network of wireless cover and HD monitor.
(TEG1109P-8-102W)
Standard&Protocol
IEEE 802.3、 IEEE 802.3u、IEEE 802.3ab、IEEE 802.3x、IEEE 802.3af、IEEE 802.3at
MTBF
≥50,000 hours(about 5 years)
Indicator
Link/Act, Power
exchange capacity
18 Gbps
Packet Forwarding Rate
13.39Mpps
Fixed Port
8 10/100/1000Mbps RJ45 Ports(Data/PoE)
1 10/100/1000Mbps RJ45 Ports(Data)
(Auto Negotiation/Auto MDI/MDIX)
1 10/100/1000Mbps RJ45 Ports(Data)
(Auto Negotiation/Auto MDI/MDIX)
Capacity
Wire-speed forwarding:Support
Forwarding mode:Store-forward and cut-through
Mac Address Table:16K
Forwarding mode:Store-forward and cut-through
Mac Address Table:16K
PoE Supply
Port 1 to Port 8 support standard IEEE802.3at/af power( maximum power for each port is 30W)， PoE power type is end-span(12+, 36- line pair)
Dimension
177.5mm*104mm*26mm(W × D × H)
Input Voltage
AC：100－240V～ 50/60Hz
DC：51V /2.0A （Power Adapter Output ）
DC：51V /2.0A （Power Adapter Output ）
Power Consumption
in full configuration：<102W
PoE Power Supply ：<92W
PoE Power Supply ：<92W
Environment
Operating Temperature: 0℃~40℃ (32℉~104℉)
Storage Temperature: -40℃~70℃ (-40℉~158℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
Storage Temperature: -40℃~70℃ (-40℉~158℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
Certification
FCC、CE、ROHS、CCC
| SKU | TEG1109P-8-102W |
| Barcode # | 6932849431506 |
| Brand | TENDA |
| Shipping Weight | 4.0000kg |
