View PDF BrochureFour PoE ports
Connects and powers compatible access points, IP cameras and IP phones.
D-Link DES-F1006P-E 6-Port 10/10 Switch with 4 PoE Ports/2 Uplink Ports
Model # DES-F1006P-E
-
SKU: DES-F1006P-E
- Pick Up Available
- Australian Warranty
- Checkout Securely
D-Link product

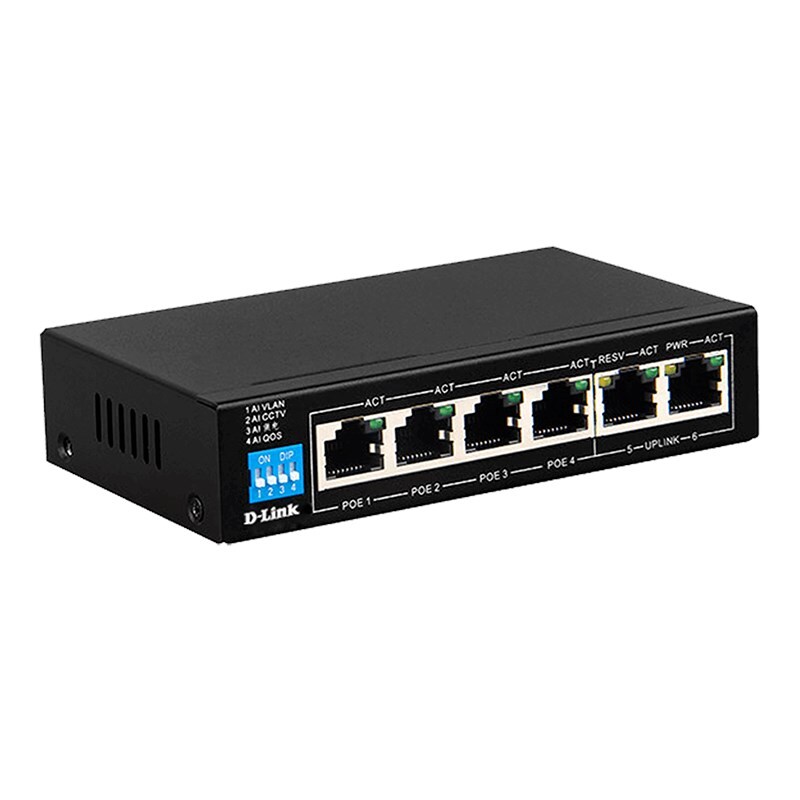

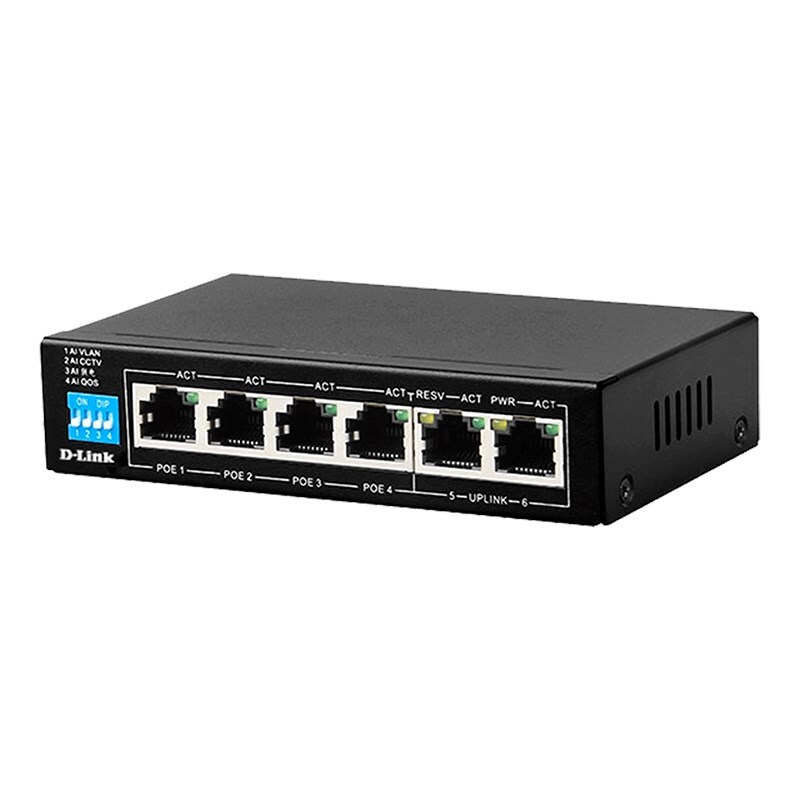

D-Link DES-F1006P-E 6-Port Unmanaged PoE Switch
A compact unmanaged Layer 2 switch with four 10/100 PoE RJ45 ports, two uplink RJ45 ports, a 60W PoE budget, up to 250m connectivity and 6kV surge protection.
Up to 250m connectivity
Supports the stated extended reach using compatible Cat5e or Cat6 copper cabling.
6kV surge protection
Helps the switch withstand the supplied power-fluctuation and lightning-strike scenarios.
Compact PoE networking
The DES-F1006P-E combines four powered ports and two uplinks in a desktop form factor.
Unmanaged operation
No web-based interface, cloud management or licence is required in the supplied specifications.
Passive cooling
The listed fanless cooling design supports quiet placement in home or small-business environments.
Layer 2 deployment
A 1.2Gbps switching capacity and 60W PoE budget support the stated 10/100 network design.
Buy with confidence from DeviceDeal
DeviceDeal is an authorised D-Link reseller. This product is supplied with the stated three-year D-Link limited manufacturer warranty.
Frequently asked questions
How many total RJ45 ports are provided?
The switch provides six RJ45 ports.
How many ports supply PoE?
Four PoE RJ45 ports are listed.
How many uplink ports are included?
Two RJ45 uplink ports are provided.
What port speed is supported?
The Ethernet ports operate at 10/100Mbps.
What is the PoE budget?
The stated PoE budget is 60W.
What extended distance is stated?
Connectivity up to 250m is listed.
Which cable categories are mentioned?
Cat5e and Cat6 copper cable are listed.
What surge protection is provided?
The switch includes stated 6kV surge protection.
Is the switch managed?
No. It is an unmanaged Layer 2 switch.
What warranty is supplied?
A three-year limited D-Link manufacturer warranty is stated.
(DES-F1006P-E)
D-Link DES-F1006P-E 6-Port Unmanaged PoE Switch features
PoE device support
Supplies network connectivity and power to compatible powered devices.
Long-range option
Extends the stated connection distance for surveillance deployments.
Surge-resistant design
Includes 6kV protection for the supplied electrical-event scenarios.
Simple unmanaged setup
Operates without a web interface, cloud management or licence.
Confirm the per-device PoE requirement, total 60W budget, cable quality and required connection distance before deployment.
D-Link DES-F1006P-E 6-Port Unmanaged PoE Switch specifications
Product details
| Model | DES-F1006P-E |
|---|---|
| Product type | Unmanaged Layer 2 PoE switch |
| Total RJ45 ports | 6 |
| PoE RJ45 ports | 4 |
| Uplink RJ45 ports | 2 |
| Port speed | 10/100Mbps |
| PoE budget | 60W |
| Extended connectivity | Up to 250m |
| Cable support | Cat5e / Cat6 copper |
| Surge protection | 6kV |
| Switching capacity | 1.2Gbps |
| Management | Unmanaged |
| OSI capability | Layer 2 |
| Cooling | Passive |
| Form factor | Desktop |
| Rack mountable | No |
| Operating temperature | 0°C to 40°C |
| Dimensions | 125 x 75 x 27mm |
| Licence required | No |
Warranty
| Coverage | 3-year limited warranty |
|---|
| SKU | DES-F1006P-E |
| Barcode # | 790069270130 |
| Brand | D-LINK |
| Shipping Weight | 0.6500kg |
| Shipping Width | 0.210m |
| Shipping Height | 0.230m |
| Shipping Length | 0.060m |
| Shipping Cubic | 0.002237000m3 |
