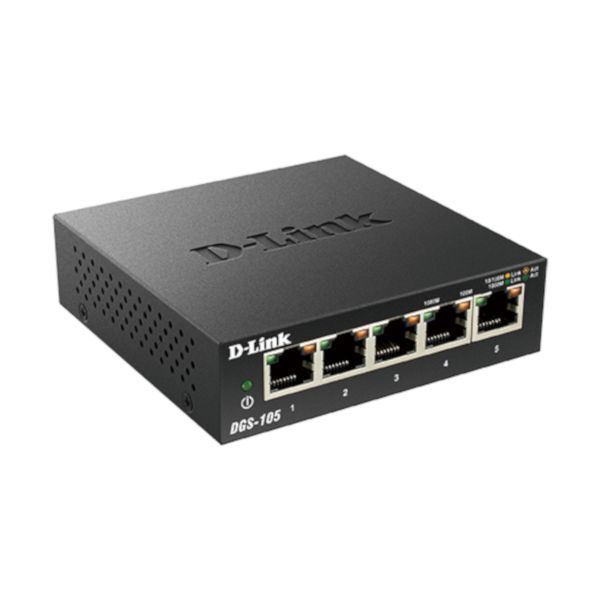

D-Link 5-Port Gigabit Unmanaged Desktop Switch with 5 RJ45 Ports

DGS-105

Network - Switches

Features

The DGS-105/108 5/8-Port Gigabit Unmanaged Desktop Switch are ideally suited for Small Office Home Office (SOHO), Small Medium Business (SMB), and Small Medium Enterprise (SME) environments. With a durable design, silent operation, and plug-and-play functionality, the DGS-105/108 switches can be easily set up and be placed in almost any location where network connectivity is required. Support for IEEE 802.3az Energy-Efficient Ethernet (EEE), 802.1p Quality of Service (QoS), and Gigabit Ethernet connection speeds provide advanced features in a compact package.

RJ-45 Ports: 5
RJ-45 Speeds: 10/100/1000
Combo Ports (RJ-45 + SFP): 5 RJ45 Ports
SFP (Small Form-Factor Pluggable) Ports : 0
SFP Speeds: 0
PoE++ (60w) or higher available?: No
Number of PoE Ports: 0
Extended PoE?: No
Capacity in Millions of Packets per Second (mpps): 14,880 pps per port
Switching Capacity in Gigabits per Second (Gbps): 0
Web-based GUI: No
Redundant Power Supply: No
19" Rack Mountable: Desktop
DIN-Rail Mountable: No
Stacking Capacity (Physical): No
Stacking Capacity (Virtual): No
IPv4 Routing: No
IPv6 Routing: No
DHCP (Dynamic Host Configuration Protocol) Server Screening: No
Ruggedized: No
Operating Temperature: 0 to 40 C
Unit dimensions: 90.9 x 85 x 22.4 mm
Warranty Licence: 3 Years

Technical Details

Model	DGS-105
Main Port Type	Ethernet
Port Count	5
SFP Ports	0
Port Speed	10/100/1000
Managed	Unmanaged
PoE	No
PoE Budget	0
OSI Layer Capability	Layer 2
Form Factor	Desktop
Standard Warranty	3 Years
Stackable	No
Cooling	Passive
Redundant Power Supply	No
Cloud Managed	No
Licence required	No
Warranty	3 Years

Resources

High resolution Image

Links and Download

Product Link Product Data Sheet Installation Guide

(DGS-105)

Technical Details

Model	DGS-105
Main Port Type	Ethernet
Port Count	5
SFP Ports	0
Port Speed	10/100/1000
Managed	Unmanaged
PoE	No
PoE Budget	0
OSI Layer Capability	Layer 2
Form Factor	Desktop
Standard Warranty	3 Years
Stackable	No
Cooling	Passive
Redundant Power Supply	No
Cloud Managed	No
Licence required	No
Warranty	3 Years

SKU	DGS-105
Barcode #	790069370656
Brand	D-LINK
Shipping Weight	0.5000kg
Shipping Width	0.100m
Shipping Height	0.120m
Shipping Length	0.090m
Shipping Cubic	0.000960000m3
