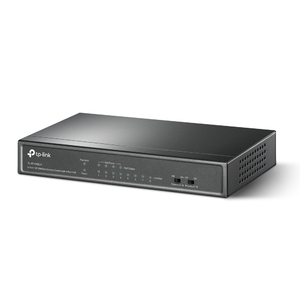

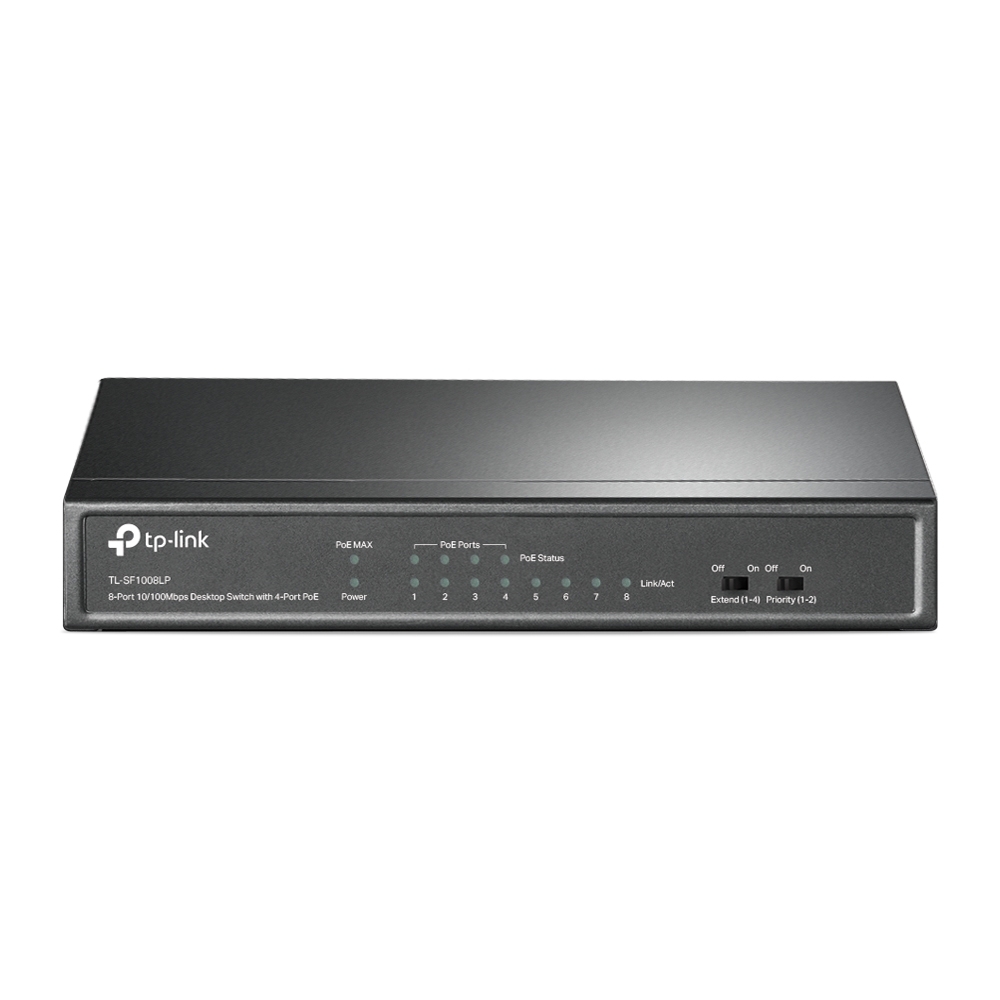

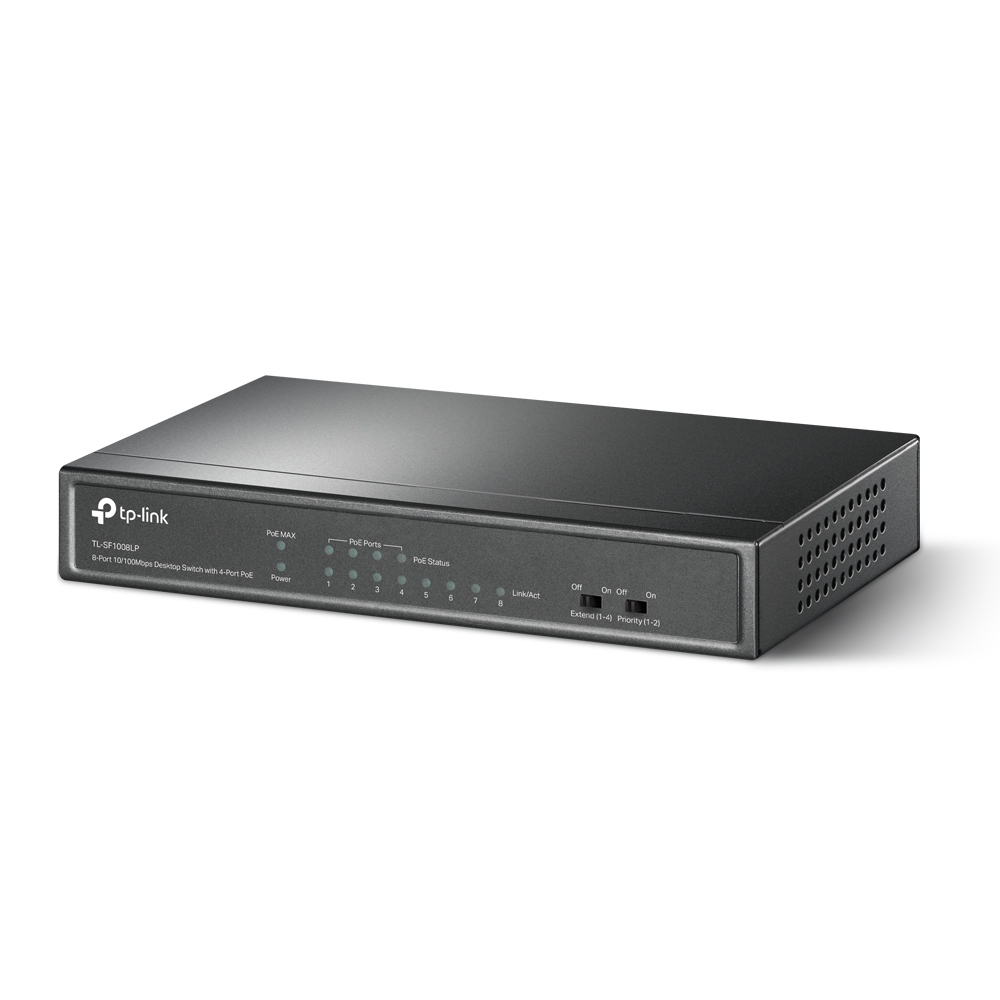

TP-Link TL-SF1008LP 8-Port 10/100Mbps Desktop Switch with 4-Port PoE
(TL-SF1008LP)
| HARDWARE FEATURES |
| Interface |
• 8× 10/100 Mbps RJ45 Ports (Ports 1–4 support 802.3af PoE)
• AUTO Negotiation
• AUTO MDI/MDIX |
| Network Media |
• 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
• EIA/TIA-568 100Ω STP (maximum 100m)
• 100BASE-TX: UTP category 5, 5e cable (maximum 100m)
• EIA/TIA-568 100Ω STP (maximum 100m) |
| Fan Quantity |
Fanless |
| Physical Security Lock |
Yes |
| External Power Supply |
External Power Adapter (Output: 53.5 V DC / 0.81 A) |
| Packet Forwarding Rate |
1.1904 Mpps |

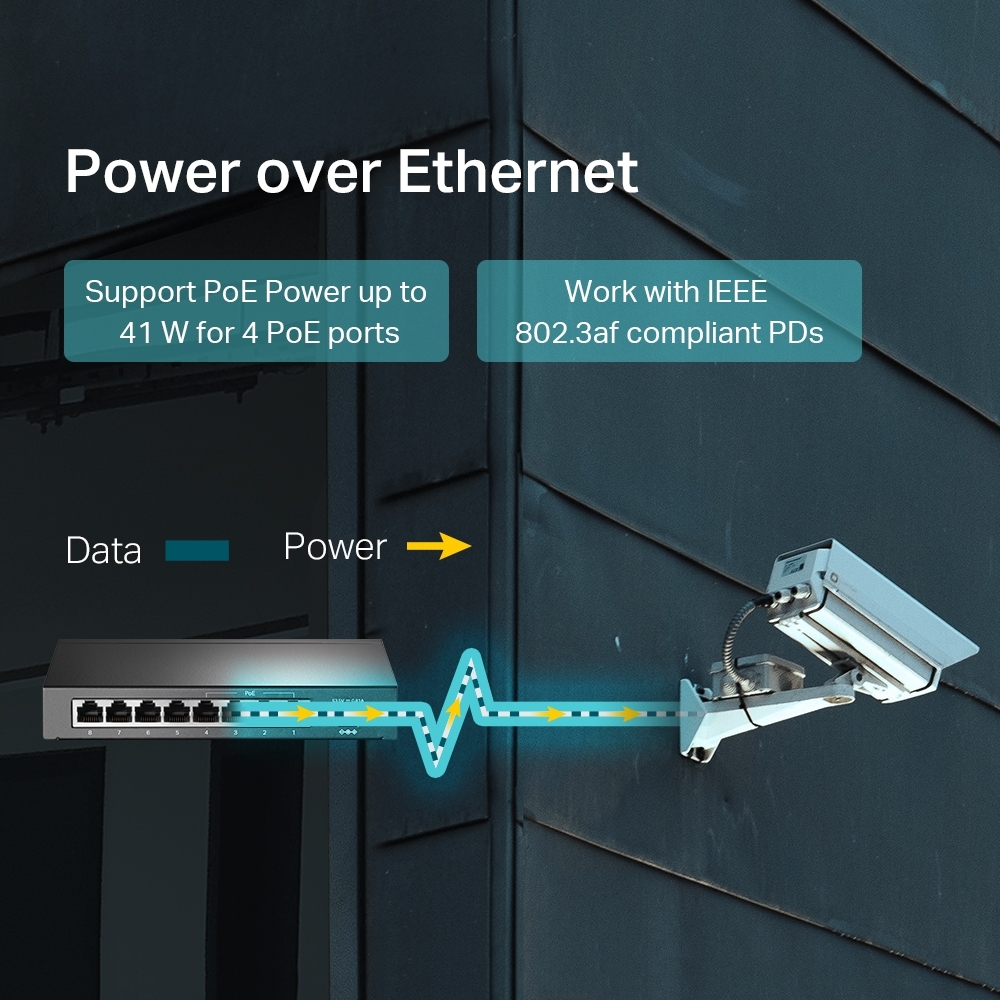

| PoE Ports (RJ45) |
• Standard: 802.3 af compliant
• PoE Ports: Ports 1–4
• Power Supply: 41 W |
| Backbound Bandwidth |
1.6 Gbps |
| Mac Address Table |
2K |
| Jumbo Frame |
2 KB |
| Switching Capacity |
1.6 Gbps |
| Dimensions ( W x D x H ) |
6.7 × 3.9 × 1.1 in (171 × 98 × 27 mm) |
| Max Power Consumption |
• 2.2 W (220 V/ 50 Hz. no PD connected)
• 47.1 W (220 V/ 50 Hz. with 41 W PD connected) |
| Max Heat Dissipation |
• 7.5 BTU/h(no PD connected)
• 160.61 BTU/h(with 41 W PD connected) |
| SOFTWARE FEATURES |
| Transmission Method |
Store-And-Forward |
| Advanced Functions |
• Compatible With IEEE 802.3af Compliant PDs
• Extend Mode Button (Ports 1–4)
• Priority Mode Button (Ports 1–2)
• Mac Address Auto-Learning and Auto-Aging
• IEEE802.3x Flow Control for Full-Duplex Mode and Backpressure for Half-Duplex Mode |
| OTHERS |
| Certification |
FCC, CE, RoHS |
| Package Contents |
• TL-SF1008LP
• Power Adapter
• Installation Guide |
| Environment |
• Operating Temperature: 0–40 ℃ (32–104 ℉)
• Storage Temperature: -40–70 ℃ (-40–158 ℉)
• Operating Humidity: 10–90% RH non-condensing
• Storage Humidity: 5–90% RH non-condensing |
| SKU |
TL-SF1008LP |
| Barcode # |
6935364052768 |
| Brand |
TP-LINK |
| Shipping Weight |
0.9000kg |
| Shipping Width |
0.230m |
| Shipping Height |
0.070m |
| Shipping Length |
0.280m |
Manufacturer Warranty: 5 Year Manufacturer Warranty
