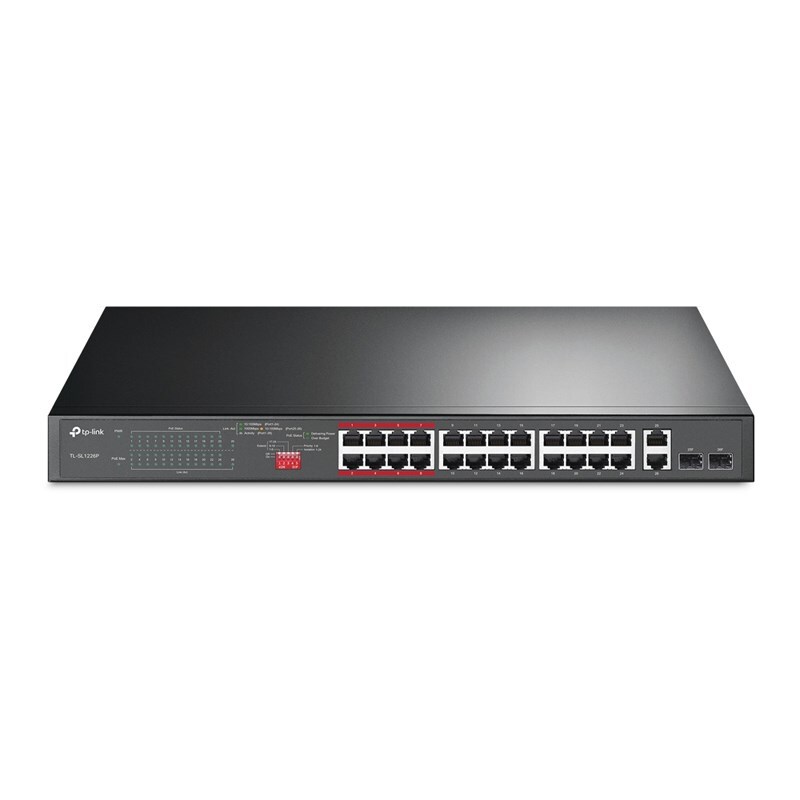

TP-Link TL-SL1226P 24-Port 10/100Mbps + 2-Port Gigabit Unmanaged PoE+ Switch - Interface: 24x PoE+ 10/100 Mbps RJ45 Ports, 2x 10/100/1000 Mbps RJ45 Ports, 2x Combo Gigabit SFP Slots - Fan Quantity: 2 Fans - Physical Security Lock - Power Supply: 100-240 VAC, 50/60 Hz - Backup Bandwidth: 8.8 Gbps - PoE Power Budget: 250 W - TL-SL1226P - 5 Years Limited Warranty TL-SL1226P 24-Port 10/100Mbps + 2-Port Gigabit Unmanaged PoE+ Switch • 24× PoE+ 10/100 Mbps RJ45 ports, 2× Gigabit RJ45 ports, and 2× combo Gigabit SFP slots • High PoE power budget with up to 30 W for each PoE port and 250 W for all PoE ports* • Up to 250 m data and power PoE transmission range under Extend Mode**, ideal for surveillance system • Priority Mode ensures high priority of ports 1–8 to guarantees the quality of sensitive applications like video monitor • Isolation Mode allows one-click client traffic separation for higher security and performance • Plug and play, with no configuration and installation needed HARDWARE FEATURES Interface 24× PoE+ 10/100 Mbps RJ45 Ports 2× 10/100/1000 Mbps RJ45 Ports 2× Combo Gigabit SFP Slots Network Media 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) 100BASE-TX: UTP category 5, 5e cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) 1000BASE-X MMF, SMF Fan Quantity 2 Fans Physical Security Lock Yes Power Supply 100-240 VAC, 50/60 Hz Backup Bandwidth 8.8 Gbps PoE+ Ports(RJ45) Standard: 802.3at/802.3af compliant PoE Ports: Port 1 – Port 24 PoE Power Budget: 250 W Mac Address Table 8 K Dimensions ( W x D x H ) 17.3 × 7.1 × 1.7 in (440 × 180 × 44 mm) Max Power Consumption 18.32 W (220/50 Hz. no PD connected) 294 W (220/50 Hz. with 250 W PD connected) Max Heat Dissipation 62.47 BTU/h (no PD connected) 1002.54 BTU/h (with 250 W PD connected) SOFTWARE FEATURES Advanced Features Compatible With IEEE 802.3at/af Compliant PDs Extend Mode (Up to 250m PoE power supply and data transmission) Priority Mode Isolation Mode PD Detection Intelligent Power Supply Mac Address Auto-Learning and Auto-Aging IEEE802.3x Flow Control
