Instant Connectivity with Reliable Performance

The NETGEAR® Gigabit Unmanaged Switch series helps businesses cost effectively expand their network to Gigabit speeds and higher port counts.

The GS105v5, GS108v4, and GS116v2 Gigabit Ethernet switches come with 5, 8, and 16 Gigabit copper ports in a desktop metal case and are wall-mountable

These switches are energy efficient, built to last, and rigorously tested to provide the reliability businesses need. 802.1p traffic prioritization and jumbo frame support allow for seamless integration with more sophisticated networks.

Highlights

Plug and Play

• The standards-based Gigabit switches sense and adjust for network speed and cabling type automatically. Easily integrate into your existing Ethernet network - no matter if it is running at 10/100Mbps or Gigabit speed
• Simple set up with no software or confi guration needed
• Front panel LEDs keep you informed of power status, link speed and link activities

Traffic Prioritization

• Prioritize mission-critical applications such as voice and video Support IEEE 802.1 p and DSCP-based QoS for delivering data based on priority and type

High Quality and Reliable Performance

• Superior network performance at non-blocking rate delivers true Gigabit speed with no compromise
• Durable metal case and long product life (shown by MTBF numbers)

Energy Efficient

• GS105v5, GS108v4, and GS116v2 support the latest Energy Efficient Ethernet (IEEE 802.3az) standard, which reduces energy consumption when there is light traffic on an active port or when there is no link or no activity detected. It can further save energy when a short cable (less than 100m) is used. savings in operation.
• Silent, fanless design for energy efficiency and noise-sensitive environments

Supports all Types of Networks

• Each port delivers up to 2000Mbps of network speed (full duplex)
• Supports jumbo frames up to 9K packets size on GS105v5 and GS116v2, up to 9,270 bytes on GS108v4
• Honors TOS/802.1p prioritization

Limited Lifetime* Warranty

• Industry’s leading limited lifetime* warranty, not only on hardware but also includes lifetime online support as well as next-business day (NBD) replacement support, providing customers peaceof-mind using NETGEAR switches in their network.

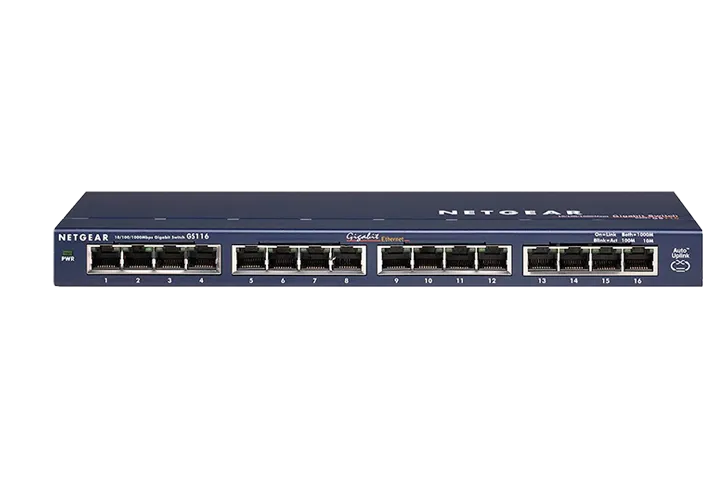

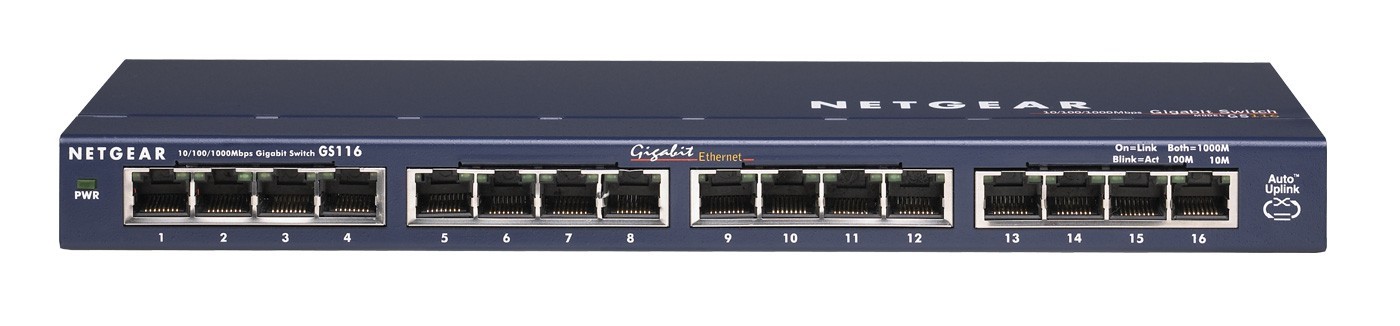

GS116 Features

Extended Features

• Choice of Fast Ethernet and Gigabit Ethernet connectivity
• Energy-efficient technology for power savings
• Auto-MDI/MDIX eliminates the need for crossover cables
• Non-blocking switching architecture for maximum throughput at wire speed
• Auto-negotiation for automatic connection at the highest common speed between switch and an end device
• Desktop or rackmountable
