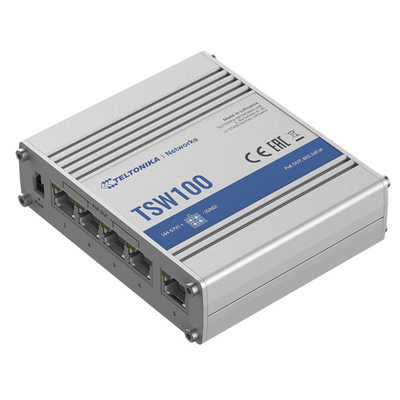

Teltonika Industrial POE+ Ethernet Switch, 4 x PoE+ ports, Power Up to 120W, 5 x Gigabit Ethernet with speeds up to 1000 Mbps, PSU included
Model # TSW100000020
-
SKU: TSW100000020
Teltonika Industrial POE+ Ethernet Switch, 4 x PoE+ ports, Power Up to 120W, 5 x Gigabit Ethernet with speeds up to 1000 Mbps, PSU included is discontinued.
The below option is the replacement/alternative model:
$75.00
$110.00
$56.00
$66.00

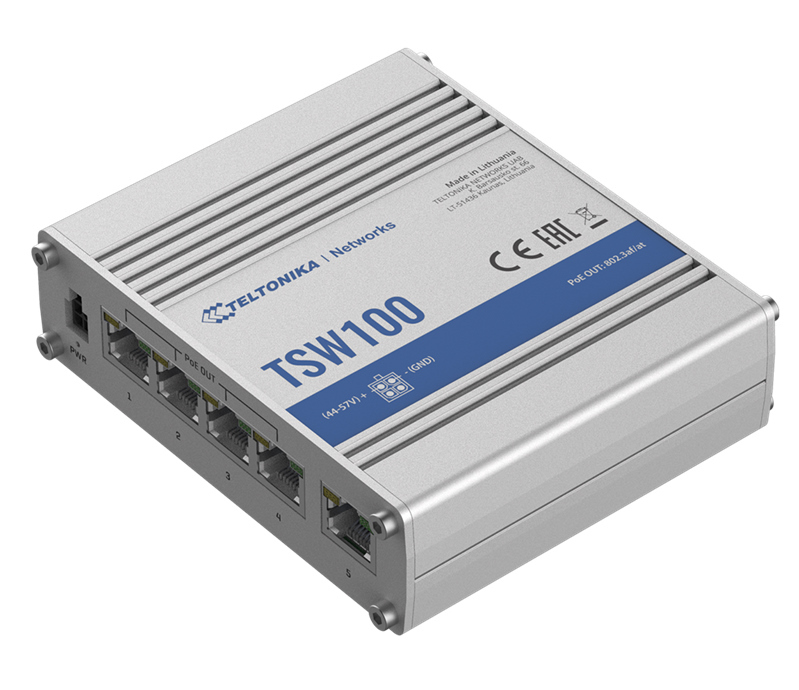

TSW100
INDUSTRIAL POE+ ETHERNET SWITCH
TSW100 is an unmanaged Gigabit Ethernet switch supporting Power-over-Ethernet. Classified as power source equipment (PSE), it centralizes the power supply, providing up to 30 watts per port and reducing installation effort. Five Gigabit Ethernet ports provide an economical high-bandwidth solution for a secure industrial Ethernet network.
|
POE+
4 x PoE+ ports with 802.3af and 802.3at support
|
POWER BUDGET
Total power budget at PSE up to 120 W
|
ETHERNET
5 x Gigabit Ethernet with speeds up to 1000 Mbps
|
MOUNTING
DIN rail and surface mounting options
|
For More Case Studies Click Here ...
(TSW100000020)
| Category | Feature | Description |
|---|---|---|
| Ethernet | ETH | 5 x ETH ports, 10/100/1000 Mbps, supports auto MDI/MDIX crossover |
| IEEE 802.3 series standards | 802.3i, 802.3u, 802.3ab, 802.3x, 802.3az | |
| INDUSTRIAL PROTOCOLS | Profinet | Profinet Class A conformance (available with optional order code) |
| POE OUT | PoE ports | Port 1-4 |
| PoE standards | 802.3af and 802.3at Alternative A (Order code:TSW100 *1****)802.3af and 802.3at Alternative B (Order code:TSW100 *0****) | |
| PoE Max Power per Port (at PSE) | 30 W | |
| PoE Power Budget (at PSE) | 120 W | |
| Performance Specifications | Bandwidth (Non-blocking) | 10 Gbps |
| Packer buffer | 128 KB | |
| MAC address table size | 2K entries | |
| Jumbo frame support | 9216 bytes | |
| Power | Connector | 4-pin industrial DC power socket |
| Input voltage range | 7 – 57 VDC | |
| PoE-Out input voltage range | 44 – 57 VDC | |
| Power consumption | Idle: 2 W / Max (no PoE): 9 W / PoE Max: 129 W | |
| Physical Interfaces | Ethernet | 5 x RJ45 ports, 10/100/1000 Mbps |
| Status LEDs | 1 x Power LED, 10 x ETH status LEDs | |
| Power | 1 x 4-pin power connector | |
| Other | 1 x Grounding screw | |
| Physical Specification | Casing material | Full aluminum housing |
| Dimensions (W x H x D) | 115 x 32.2 x 101.2 mm | |
| Weight | 350 g | |
| Mounting options | DIN rail, wall mount, flat surface (all require additional kit) | |
| Operating Environment | Operating temperature | -40 °C to 75 °C |
| Operating humidity | 5% to 95% non-condensing | |
| Ingress Protection Rating | IP30 | |
| Regulatory & Type Approvals | Regulatory | CE, UKCA, EAC, UCRF, CITC, ANRT, FCC, IC, NOM, Anatel, CB, E-mark |
| EMC Emissions & Immunity | Standards | EN 55032:2015EN 55035:2017EN 301 489-1 V2.2.3 |
| ESD | EN 61000-4-2:2009 | |
| Radiated Immunity | EN IEC 61000-4-3:2006 + A1:2008 + A2:2010 | |
| EFT | EN 61000-4-4:2012 | |
| Surge Immunity (AC Mains Power Port) | EN 61000-4-5:2014 | |
| CS | EN 61000-4-6:2014 | |
| DIP | EN 61000-4-11:2004 | |
| Safety | Standards | IEC 62368-1:2018EN IEC 62368-1:2020+A11:2020 |
| SKU | TSW100000020 |
| Barcode # | 4779027312828 |
| Brand | TELTONIKA |
| Shipping Weight | 2.6400kg |
Manufacturer Warranty: 2 Years Manufacturer Warranty
