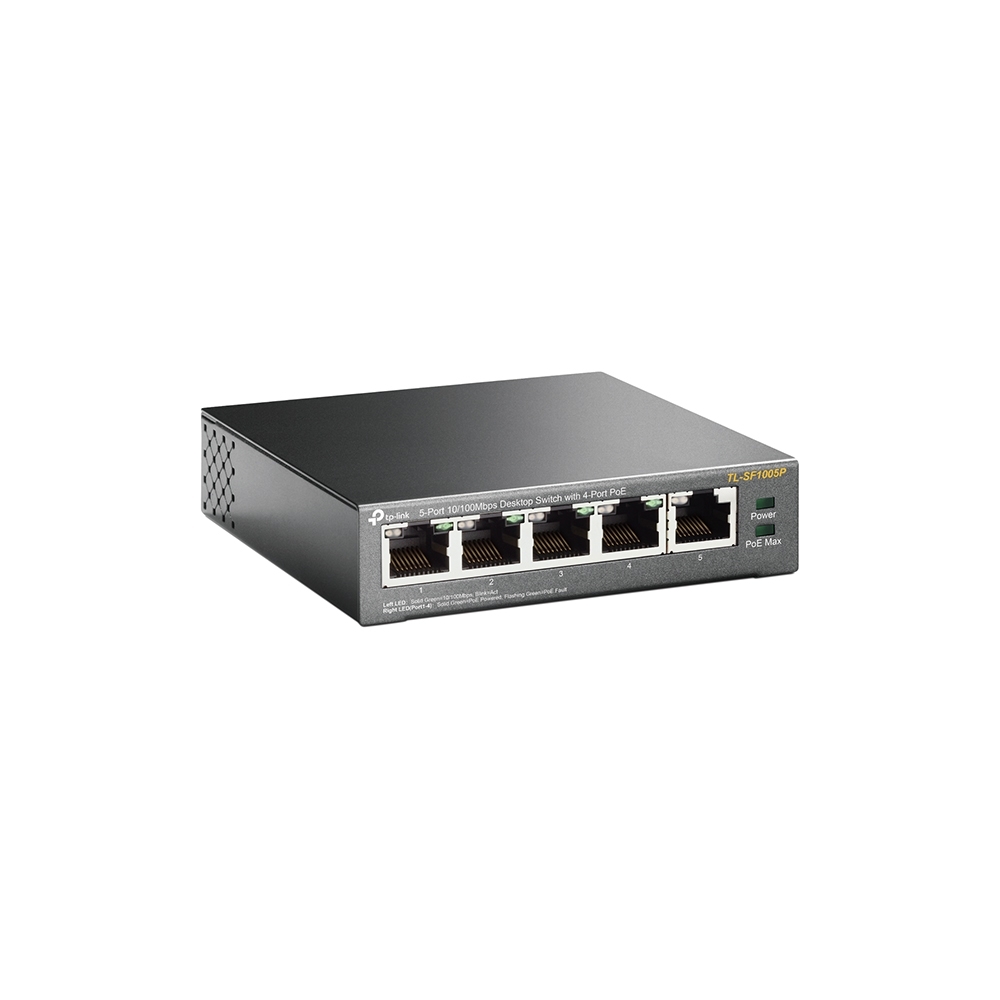

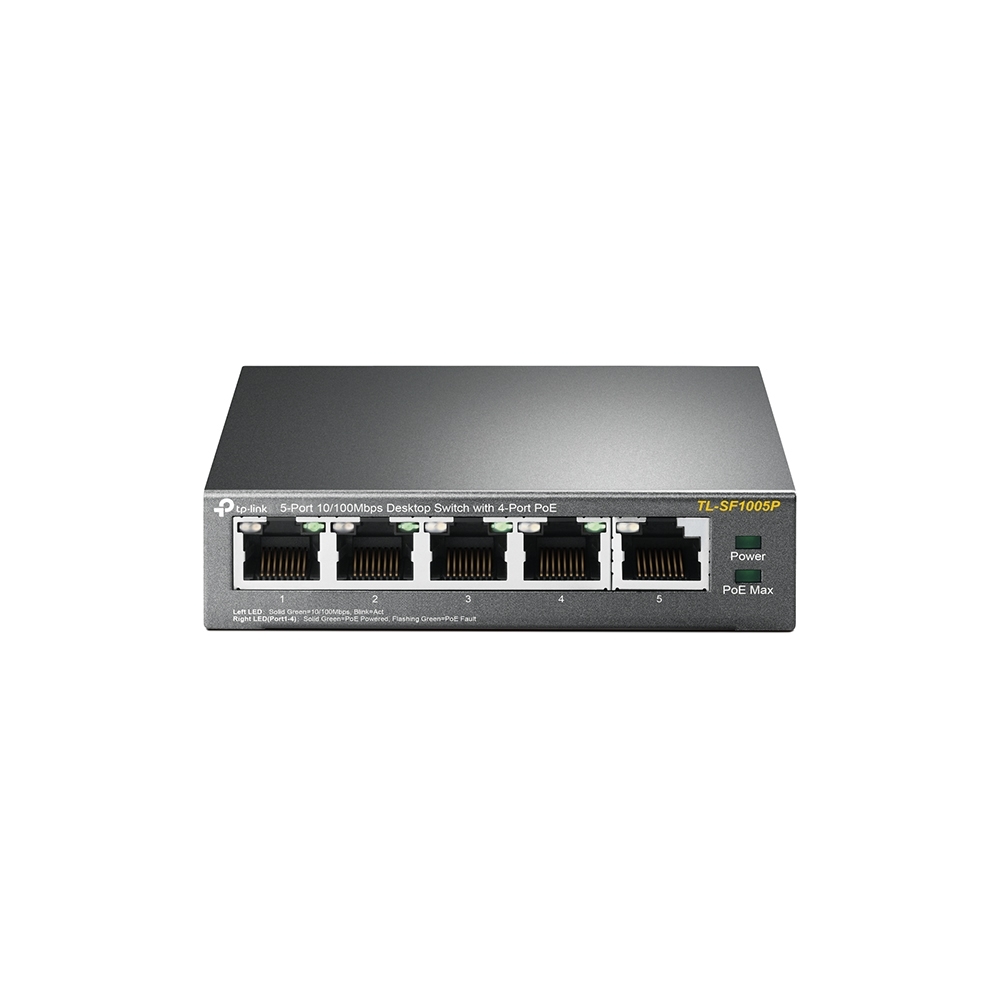

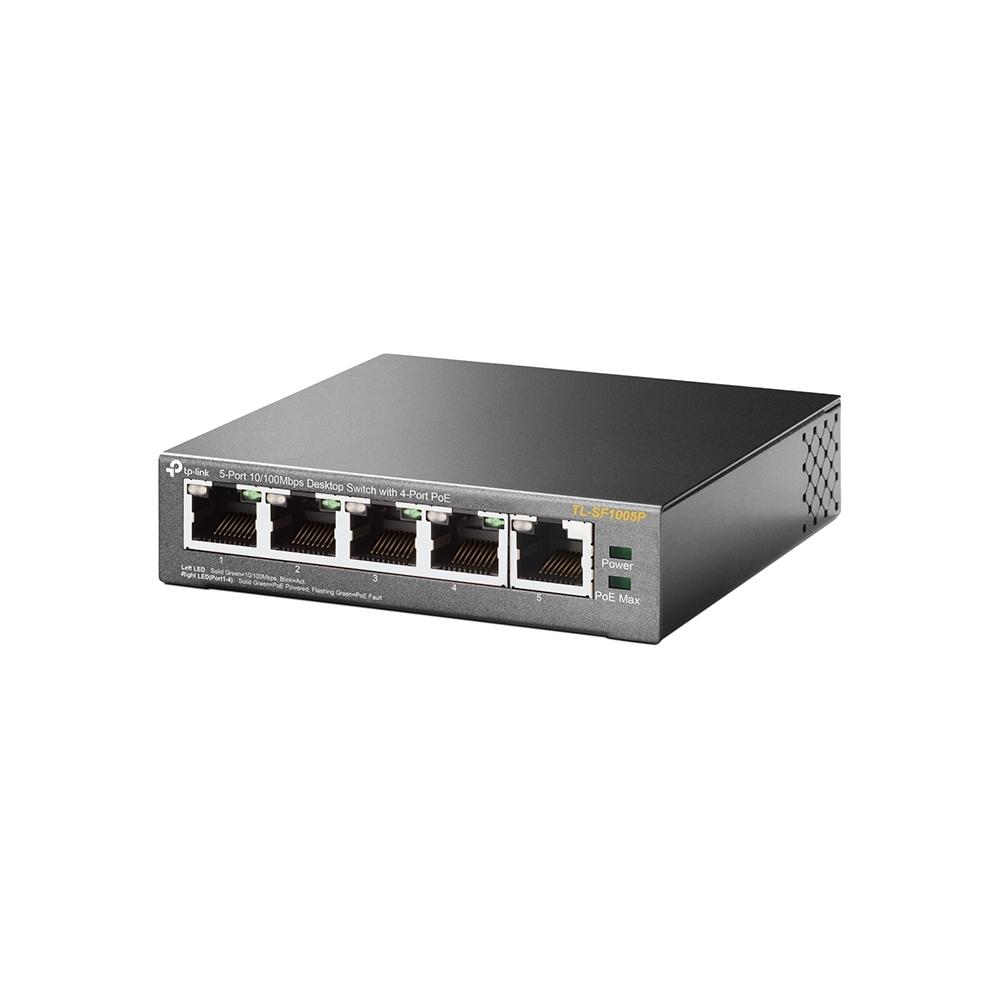

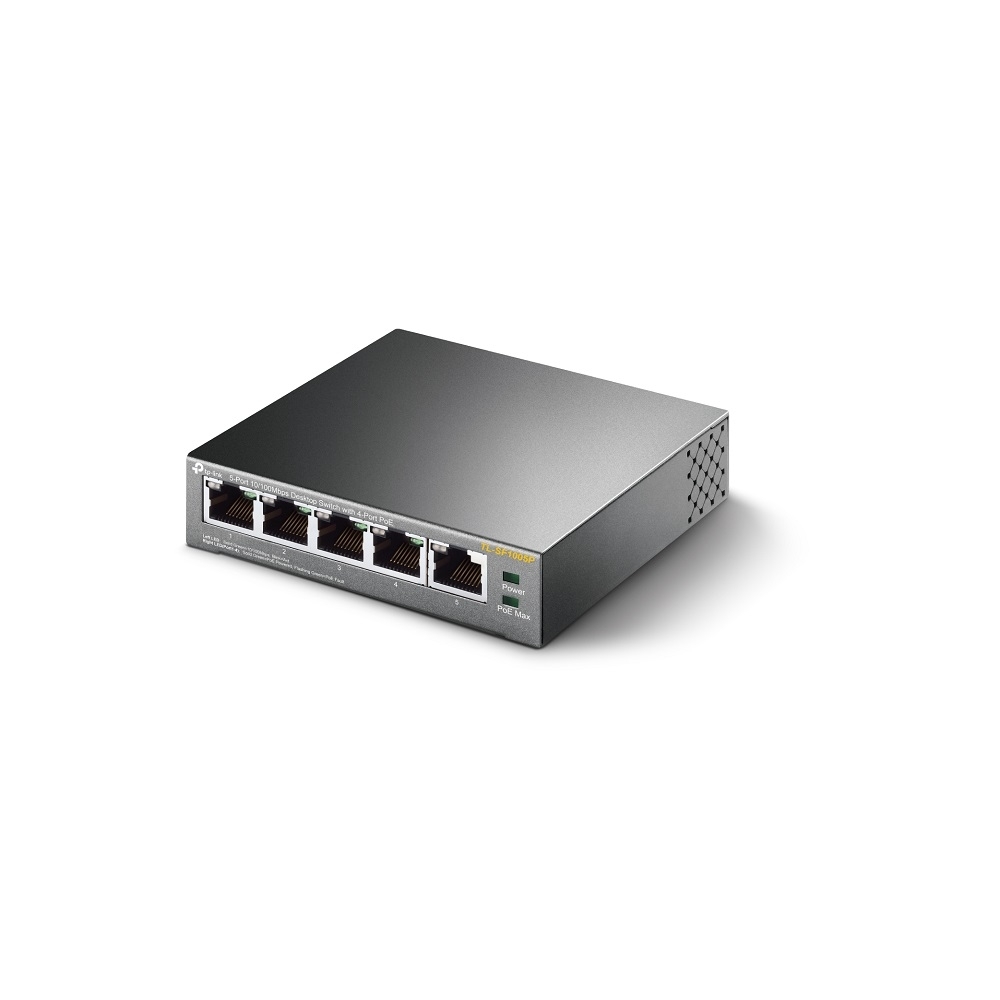

5-Port 10/100Mbps Desktop Switch with 4-Port PoE TL-SF1005P 5 10/100Mbps RJ45 ports With four PoE ports, transfers data and power on one single cable Working with IEEE 802.3af compliant PDs, expands home and office network Supports PoE Power up to 15.4W for each PoE port Supports PoE Power up to 58W for all PoE ports Requires no configuration and installation

(TL-SF1005P)

HARDWARE FEATURES
Interface 5 10/100Mbps RJ45 Ports
AUTO Negotiation/AUTO MDI/MDIX
Network Media 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m)
100BASE-TX: UTP category 5, 5e cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m)
Fan Quantity Fanless
External Power Supply External Power Adapter(Output: 48VDC / 1.25A)
PoE Ports (RJ45) Standard: 802.3 af compliant
PoE Ports: Port1- Port4
Power Supply: 58W
Mac Address Table 2K
Switching Capacity 1Gbps
Dimensions ( W x D x H ) 3.9 x 3.9 x 1.0 in. (99.8 x 98 x 25 mm)
Transmission Distance Store-And-Forward
Max Power Consumption 63.51W (max. with 58w PD connected)
1.70W (max. no PD connected)
SOFTWARE FEATURES
Transmission Method Store-And-Forward
Advanced Functions Compatible With IEEE 802.3af Compliant PDs
Priority Function
Mac Address Auto-Learning And Auto-Aging
IEEE802.3x Flow Control For Full-Duplex Mode And Backpressure For Half-Duplex Mode
OTHERS
Certification FCC, CE, RoHS
Package Contents TL-SF1005P, Power Adapter, User Guide
Consumption 1.70 watts (max. no PD connected)
63.51 watts (max. with 58w PD connected)
Environment Operating Temperature: 0℃~40℃ (32℉~104℉)
Storage Temperature: -40℃~70℃ (-40℉~158℉)
Operating Humidity: 10%~90%RH non-condensing
Storage Humidity: 5%~90%RH non-condensing
SKU TL-SF1005P
Barcode # 6935364083199
Brand TP-Link
Shipping Weight 1.0000kg
