Eight 2.5GbE ports
Connects up to eight compatible RJ45 network devices.
QNAP QSW-1108-8T 8 port 2.5Gbps unmanage switch
Model # QSW-1108-8T
-
SKU: QSW-1108-8T
$211.00
Stock Availability
🟢Live
In Stock · 10+ available
Available for pickup in Vermont, VIC
You Might Want To Add
- Pick Up Available
- Australian Warranty
- Checkout Securely
QNAP 8-port unmanaged 2.5GbE switch

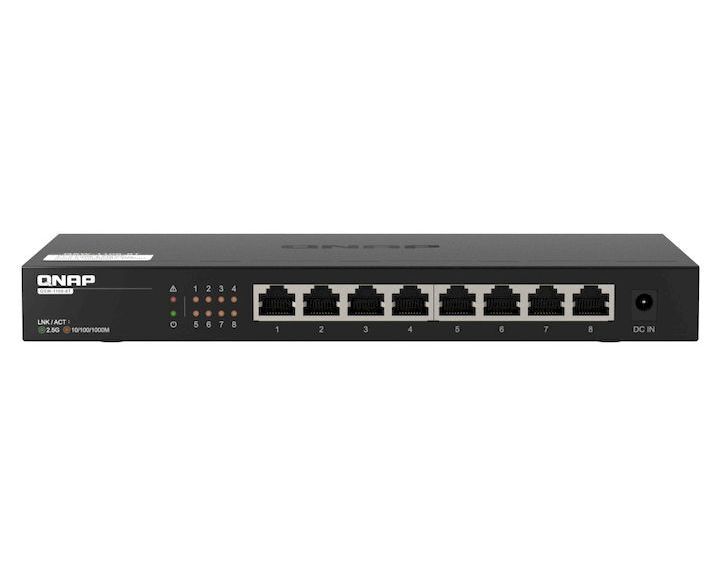

QNAP QSW-1108-8T 8-Port 2.5GbE Unmanaged Desktop Switch
An eight-port plug-and-play 2.5GbE switch with automatic speed negotiation, loop detection, 12K jumbo frames and near-silent fanless operation.
Network ports8 × 2.5GbE RJ45
Port speeds2.5G / 1G / 100M
Switching capacity40Gbps
CoolingFanless
Build a plug-and-play 2.5GbE network
The QSW-1108-8T uses eight multi-speed RJ45 ports and requires no complex switch configuration. The supplied description states that existing Cat 5e cabling can be used for 2.5GbE connections.
Network stability and quiet operation
- Automatic negotiation selects 2.5G, 1G or 100M for each connected device.
- Network loop detection can lock looped ports so normal operation can resume.
- 40Gbps switching capacity and 20Gbps total non-blocking throughput are specified.
- 12K jumbo frames and a 16K MAC address table are listed.
- The fanless ventilated design supports near-silent operation.
Cabling and negotiated speed
The source states that existing Cat 5e cabling can be used for 2.5GbE. Actual negotiated speed depends on the connected devices and cabling.
Frequently asked questions
Answers below are based only on the supplied product information for QSW-1108-8T.
Is the QSW-1108-8T managed?
No. It is an unmanaged plug-and-play switch.
How many 2.5GbE ports does it provide?
It provides eight 2.5GbE RJ45 ports.
Which speeds can each port negotiate?
Each port supports 2.5G, 1G and 100M connections.
Can existing Cat 5e cabling be used?
Yes. The supplied product information states that 2.5GbE connections can use existing Cat 5e cabling.
What happens if the switch detects a network loop?
The source states that the switch can lock the affected ports so the network can quickly resume normal operation.
What warranty applies to the QSW-1108-8T?
The supplied specifications state a 2-year QNAP manufacturer warranty.
(QSW-1108-8T)
Features and highlights
QNAP QSW-1108-8T 8-Port 2.5GbE Unmanaged Desktop Switch
40Gbps switching capacity
Provides 20Gbps total non-blocking throughput.
Loop detection
Detects network loops and blocks affected ports.
Fanless operation
Uses ventilated passive cooling for near-silent use.
Key details to check before purchase
- Port speeds: 2.5G / 1G / 100M
- Jumbo frames: 12K
- MAC address table: 16K
- Power: 12V/1.5A adapter, maximum 18W
QNAP QSW-1108-8T 8-Port 2.5GbE Unmanaged Desktop Switch specifications
Technical information below is organised from the supplied product data.
| Specification | Details |
|---|---|
| Product Details | |
| Brand | QNAP |
| SKU | QSW-1108-8T |
| Product Type | 8-port unmanaged 2.5GbE desktop switch |
| Management Type | Unmanaged |
| Form Factor | Desktop |
| Number of Ports | 8 |
| Network Interfaces and Performance | |
| 2.5GbE RJ45 Ports | 8 |
| Supported Port Speeds | 2.5G / 1G / 100M |
| MAC Address Table | 16K |
| Total Non-Blocking Throughput | 20Gbps |
| Switching Capacity | 40Gbps |
| Jumbo Frames | 12K |
| Loop Detection and Blocking | Supported |
| Energy Efficient Ethernet | IEEE 802.3az listed in the supplied specifications |
| Supported Standards | |
| Ethernet Standards | IEEE 802.3 Ethernet IEEE 802.3u 100BASE-T IEEE 802.3ab 1000BASE-T IEEE 802.3bz 2.5GBASE-T IEEE 802.3x Full-Duplex Flow Control |
| Power and Cooling | |
| Power Supply | Adapter |
| Input Power Type | DC |
| Input Voltage Range | 12V/1.5A |
| Maximum Power Consumption | 18W |
| Fanless | Yes |
| Physical and Environmental | |
| LED Indicators | Per port: Speed, link and activity Loop LED: Loop Per system: Power and status |
| Dimensions (H × W × D) | 27 × 240 × 105mm |
| Net Weight | 0.639kg |
| Gross Weight | 0.99kg |
| Operating Temperature | 0°C to 40°C (32°F to 104°F) |
| Relative Humidity | 590%, non-condensing |
| Compliance and Warranty | |
| Certifications | FCC, CE, BSMI, VCCI, LVD, CCC, KCC and UKCA |
| Electromagnetic Compliance | Class B |
| Warranty | 2 years |
The source wording IEEE 802.3az complaint was treated as a presentation typo and rendered as IEEE 802.3az Energy Efficient Ethernet without changing the intended technical meaning.
| SKU | QSW-1108-8T |
| Model # | QSW-1108-8T |
| Barcode # | 4713213519851 |
| Brand | QNAP |
| Shipping Weight | 1.0000kg |
| Shipping Width | 0.250m |
| Shipping Height | 0.110m |
| Shipping Length | 0.030m |
QNAP2-year
QNAP manufacturer warranty
The QNAP QSW-1108-8T is supplied with a 2-year QNAP manufacturer warranty.
Warranty coverage, eligibility and claim assessment are subject to QNAP terms. Please retain your DeviceDeal tax invoice as proof of purchase.
