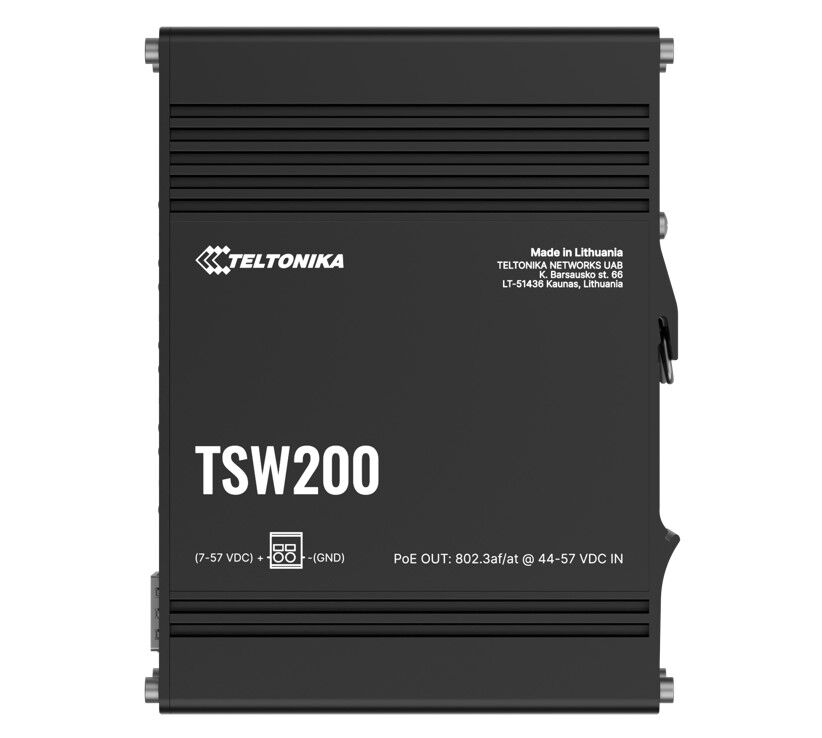

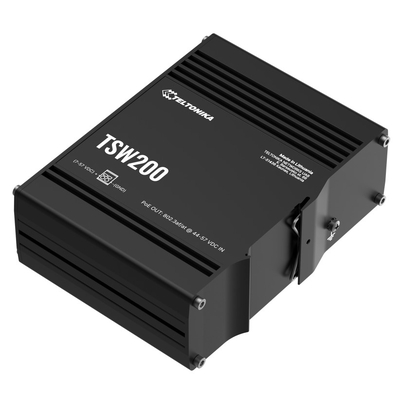

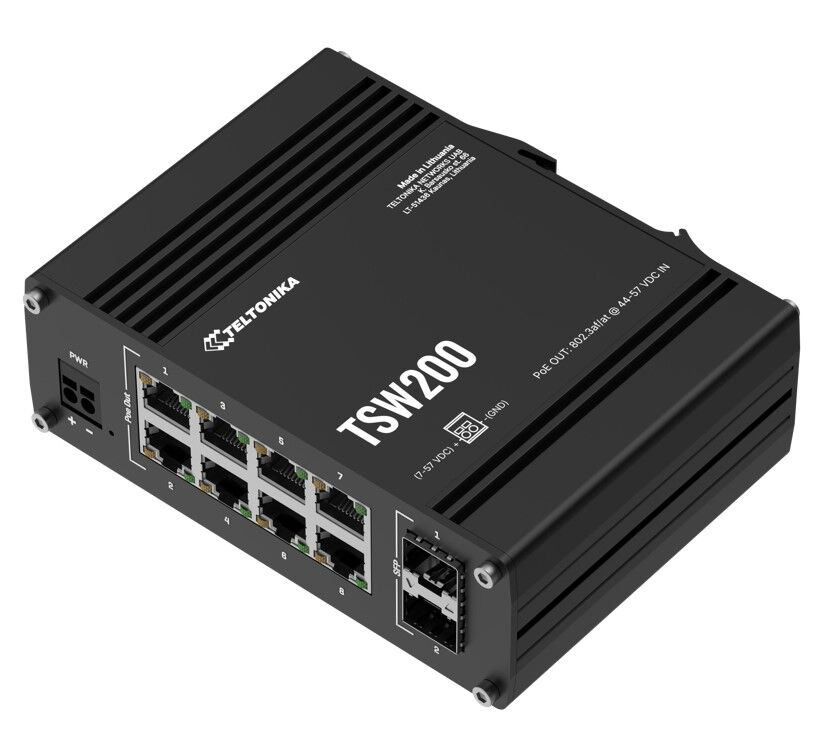

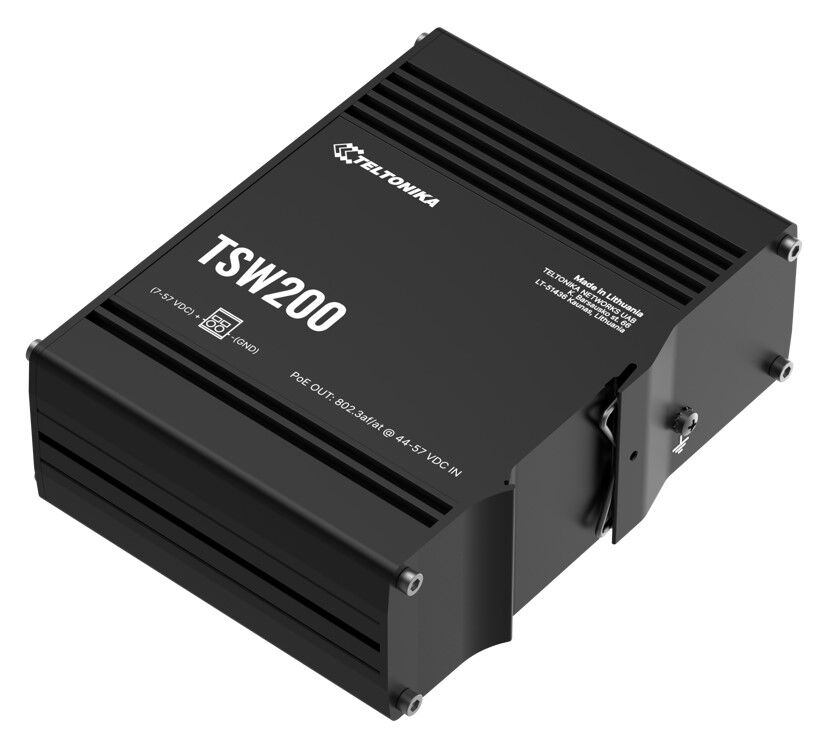

Teltonika TSW200 Industrial PoE+ Ethernet Switch, 2x SFP Ports, 8x PoE+ Ports with speeds up to 1000 Mbps, Power Up to 240 W, PSU excluded
Model # TSW200000050/TSW2000000B0
-
SKU: TSW200
- Pick Up Available
- Australian Warranty
- Checkout Securely
TSW200
INDUSTRIAL POE+ ETHERNET SWITCH
TSW200 is an industrial Ethernet switch with 2 SFP ports for long-range Fiber-optic communication and 8 Gigabit Ethernet ports that support IEEE802.af and IEE802.3at Power-over-Ethernet standards. Classified as power source equipment (PSE), it enables the centralization of the power supply, providing up to 30 watts per port and reducing the effort to install power.
|
SFP
2 x SFP ports for long-range Fiber-optic communication
|
PoE+
8 x PoE+ ports with 802.af, 802.3at standard support
|
POWER BUDGET
Total power budget at PSE up to 240 W
|
ETHERNET
8 x Gigabit Ethernet with speeds up to 1000 Mbps
|
For More Case Studies Click Here ...
(TSW200)
| Category | Feature | Description |
|---|---|---|
| Ethernet | ETH | 8 x ETH ports, 10/100/1000 Mbps, supports auto MDI/MDIX crossover |
| Fibre | 2 x SFP ports | |
| IEEE 802.3 series standards | 802.3i, 802.3u, 802.3ab, 802.3x, 802.3az | |
| INDUSTRIAL PROTOCOLS | Profinet | Profinet Class A conformance (available with optional order code) |
| POE OUT | PoE ports | Port 1 - 8 |
| PoE standards | 802.3af and 802.3at Alternative A (From batch 42)802.3af and 802.3at Alternative B (From batch 1-41) | |
| PoE Max Power per Port (at PSE) | 30 W | |
| Total PoE Power Budget (at PSE) | 240 W | |
| Performance Specifications | Bandwidth (Non-blocking) | 20 Gbps |
| Packer buffer | 128 KB | |
| MAC address table size | 2K entries | |
| Jumbo frame support | 9216 bytes | |
| Power | Connector | 2-pin industrial DC power socket |
| Input voltage range | 7 – 57 VDC | |
| PoE-Out input voltage range | 44 – 57 VDC | |
| Power consumption | Idle: 1.81 W / Max: 5.5 W / PoE Max: 245.5 W | |

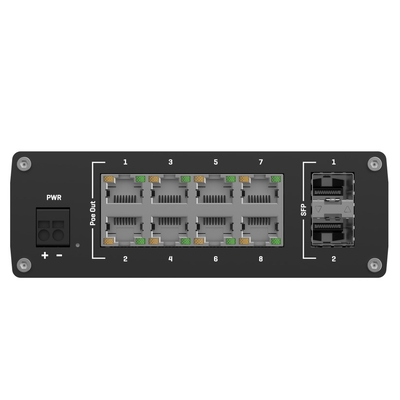

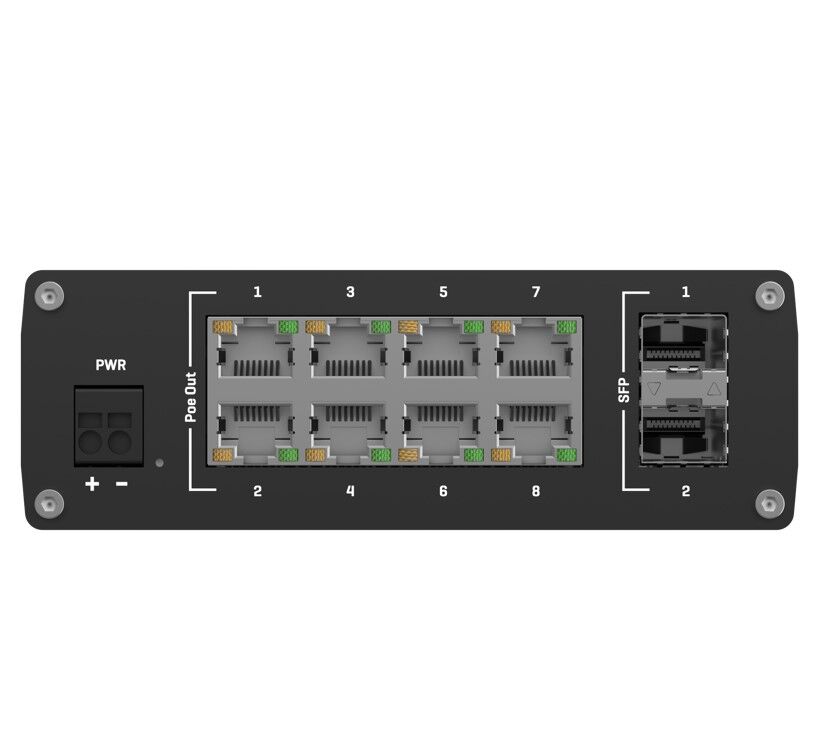

| Physical Interfaces | Ethernet | 8 x RJ45 ports, 10/100/1000 Mbps |
| Fibre | 2 x SFP ports | |
| Status LEDs | 1 x Power LED, 16 x ETH status LEDs 2 x SFP status LEDs | |
| Power | 1 x 2-pin industrial DC power socket | |
| Other | 1 x Grounding screw | |
| Physical Specification | Casing material | Full aluminum housing |
| Dimensions (W x H x D) | 132 x 44.2 x 95.1 mm | |
| Weight | 517 g | |
| Mounting options | Integrated DIN rail bracket; wall mount and flat surface (additional kit needed) | |
| Operating Environment | Operating temperature | -40 °C to 75 °C |
| Operating humidity | 5% to 95% non-condensing | |
| Ingress Protection Rating | IP30 | |
| Regulatory & Type Approvals | Regulatory | CE, UKCA, CITC, ANRT, FCC, IC, CB |
| EMC Emissions & Immunity | Standards | EN 55032:2015 + A1:2020EN 55035:2017 + A11:2020EN IEC 61000-3-2:2019 + A1:2021EN 61000-3-3:2013 + A1:2019 |
| ESD | EN 61000-4-2:2009 | |
| Radiated Immunity | EN IEC 61000-4-3:2020 | |
| EFT | EN 61000-4-4:2012 | |
| Surge Immunity (AC Mains Power Port) | EN 61000-4-5:2014 + A1:2017 | |
| CS | EN 61000-4-6:2014 | |
| DIP | EN IEC 61000-4-11:2020 | |
| Safety | Standards | IEC 62368-1:2018EN IEC 62368-1:2020+A11:2020 |
| SKU | TSW200 |
| Barcode # | 4779051843671 |
| Brand | TELTONIKA |
| Shipping Weight | 0.6000kg |
