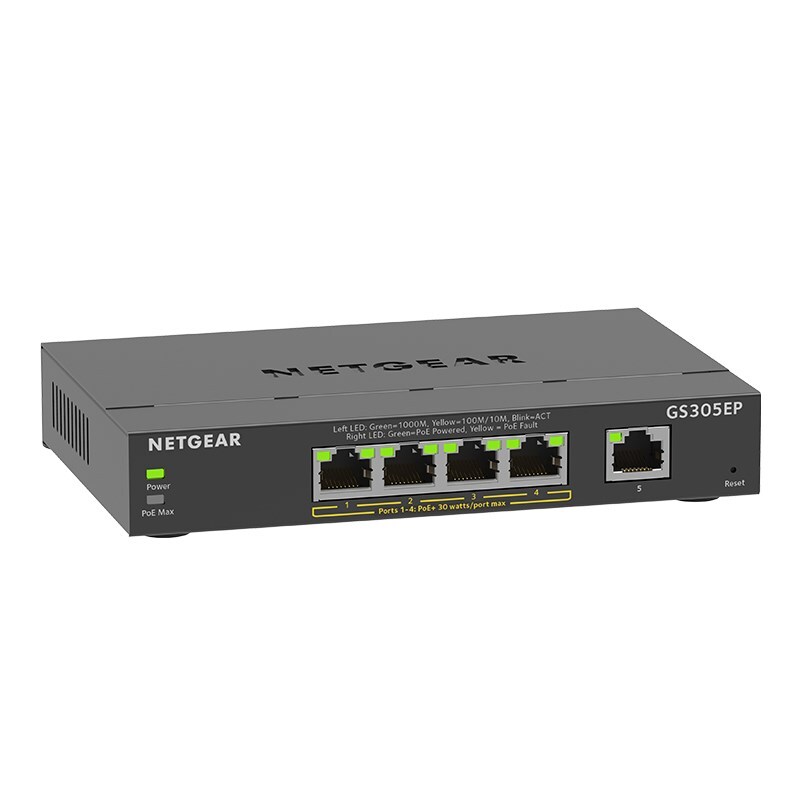

NETGEAR GS305EP-100AUS
NETGEAR (GS305EP) 5-PORT WEB MANAGED SWITCH, GbE POE+(4) 63W, DESK/WALL

Name: Netgear GS305EP 5-Port Gigabit Ethernet PoE+ Plus Switch
Brand: NETGEAR
SKU: GS305EP-100AUS
Price: 128 AUD
Availability: InStock

Speed : Gigabit

Total PoE+ Ports : 4

Total PoE+ Budget : 63W

Bandwidth : 10Gbps

Overview:

Control and Configure Beyond Plug-and-Play

NETGEAR Plus Switches with PoE meets business networks growing need by providing fundamental network features such as simplified VLANs, QoS set-up and IGMP Snooping that will help optimize the performance of business networks. Plus Switches are the perfect upgrade from the plugand-play unmanaged switch, delivering essential networking features at a very affordable price. These models support Power-Over-Ethernet (PoE) and can power devices such as VOIP phones, surveillance IP cameras, wireless access points and many other applications. These new PoE+ Gigabit Ethernet Plus switches models include uninterruptable PoE to help optimize the performance and troubleshooting of business networks. The new and improved business-friendly GUI allows easy management and simple configuration. With the growing deployment of applications and an all-inone solution, providing management and power to these applications would be ideal.

Highlights

Enable network configuration and management at the price point of unmanaged switches
Simple, yet useful network set-up on top of plug-and-play connectivity
Business-friendly and easy-to-use web browser-based management GUI
VLAN support for traffic segmentation
Quality of Service (QoS) for traffic prioritization
Auto “denial-of-service” (DoS) prevention
Troubleshoot connection issues via cable test
Loop prevention1, loop detection2, and broadcast storm controls
Rate limiting for better bandwidth allocation
Port mirroring for network monitoring
Jumbo frame support
Advanced features such as per port PoE controls
Uninterrupted PoE keeps PoE power on even when the switch is updating firmware or performing software reboot.
802.3at standard offering 30W/port
Fanless and versatile mounting option (desktop and wall-mountable)

Features:

MANAGEMENT FEATURES

EASY MANAGEMENT

Plug-and-play Plus switch fundamental network management features. No need for an IT expert or a complicated user manual, just configure your network with the user-friendly NETGEAR Web GUI

CONSUMER AND BUSINESS-FRIENDLY GUI

Easily manage and configure advanced features for your network simply through a responsive consumer and business-friendly web and mobile GUI

VLANS

Port-based and 802.1Q-based network separation into smaller groups for more secure and efficient use of network resources

COMPREHENSIVE QOS

Advanced controls for optimized network performance and better delivery of mission-critical traffic such as voice and video

MULTI-LANGUAGE SUPPORT

Context in 3 different languages (English, German, and Japanese)

POWER OVER ETHERNET FEATURES

PoE+ SUPPORT

4 ports PoE+ for a total of 63W of power enabling powering of all types of PoE devices with a single wire deployment of power and network connectivity to PoE+ devices such as wireless AP, IP cameras, VoIP phones, access-controlled security door locks or any other IoT PoE-powered devices

ADVANCED PoE CONTROLS

Power management of the PoE connected devices by enabling and disabling PoE power per port, PoE prioritization, PoE power limit per port and more. Simplifies management of PoE powered devices

UNINTERRUPTED PoE

Keep PoE power on even when the switch is updating firmware or performing a software reboot

PERFORMANCE FEATURES

5 GIGABIT PORTS

Gigabit connection delivers up to 1000 Mbps of dedicated, non-blocking bandwidth per port

FANLESS & VERSITILE MOUNTING

Completely silent operation within a desktop small form factor, and also wall-mountable

NON-BLOCKING SWITCHING

10Gbps (10/100/1000 Mbps) line rate fabric for great connectivity to your devices without congestion

COST-EFFECTIVE

Businesses do not necessarily have budget or advanced network training to deal with complex managed switches, the GS305EP offers affordable management features for a small additional cost above an Unmanaged switch

(GS305EP-100AUS)

Specifications:

NETGEAR GS305EP-100AUS Specifications
Physical Specification	Dimensions (WxDxH) @mm : 158 x 101 x 27 mm (6.2 x 4.0 x 1.1 in) Weight (kg) : 0.39 kg (0.86 lb)
Technical Specification	Speed : Gigabit Total PoE+ Ports : 4 Total PoE+ Budget : 63W Uninterrupted PoE : Yes Bandwidth : 10Gbps Max Mac Entries : 4K Buffer Size : 192KB Energy Efficient Ethernet (IEEE 802.3az) : Yes Priority Queuing : WRR Jumbo Frame Support : 9,216 bytes
