The DGS-1210 Series is the latest generation of D-Link Web Smart Switches featuring D-Link Green 3.0 technology. The series complies with the IEEE 802.3az Energy Efficient Ethernet standard. Support for IPv6 management and configurations ensure your network remains protected after the upgrade from IPv4 to IPv6*. By offering multiple management options, the DGS-1210 series allows quick deployment, infrastructure expansion, and seamless function upgrades. Targeting small and medium-sized businesses, the DGS-1210 Web Smart Switches provide functionality, security, and manageability for a fraction of the standard cost of ownership.

Energy Saving
DGS-1210 switches are capable of conserving power without sacrificing operational performance or functionality by using D-Link Green 3.0 technology. Using the Energy Efficient Ethernet standard, the network will automatically decrease the power usage when traffic is low with no setup required. For environments not fully supporting the standard, DGS-1210 switches offer advanced power-saving settings including port shutoff and standby, LED shutoff, and system hibernation based on custom time profiles. The time profiles can also be applied to the PoE switch so that unnecessary power consumption can be saved during off hours. The DGS-1210 Series switches can also detect the length of connected cables to automatically reduce power usage on shorter cable connections.

Easy Management
The D-Link Web Smart Switch series is designed for easy management. All configurations can be made through a Web interface regardless of the host PC’s operating system. In the first installation, the SmartConsole Utility will automatically discover all D-Link Smart switches in the network, allowing administrators to assign IP addresses and the subnet mask quickly. It also allows simultaneous firmware upgrades to multiple switches, saving a great deal of time. Important management commands, such as download firmware or configuration file, offer a sophisticated method of batch operations for multiple switches.

Auto Surveillance VLAN and Voice VLAN
The D-Link Web Smart series automates the process of setting up IP surveillance and VoIP devices on a network. Auto Surveillance VLAN consolidates data and surveillance video transmission through the network, sparing businesses the expense of maintaining dedicated facilities. ASV also protects the quality of real-time video by grouping IP surveillance devices on a single high priority VLAN. This ensures that surveillance video streams will not be affected when ordinary data traffic are at their highest levels. Similarly, the Auto Voice VLAN guarantees clear quality and efficient transmission for all voice communication.

Extensive Layer 2 Features
Equipped with a complete line-up of L2 features, these switches include IGMP Snooping, Port Mirroring, Spanning Tree, and Link Aggregation Control Protocol (LACP). The IEEE 802.3x Flow Control function allows servers to directly connect to the switch for fast, reliable data transfer. At 2000 Mbps Full Duplex, the Gigabit ports provide high-speed data pipes to servers with minimum data transfer loss. Network maintenance features include Loopback Detection and Cable Diagnostics. Loopback Detection is used to detect loops created by a specific port and automatically shut down the affected port. The Cable Diagnostic feature designed primarily for administrators and customer service representatives, can rapidly discover the type of error and determine the cable quality.

Secure your Network
D-Link’s innovative Safeguard Engine protects the switches against traffic flooding caused by virus attacks. The switches also support 802.1X port-based authentication, allowing the network clients to be authenticated through external RADIUS servers. In addition, the Access Control List (ACL) feature enhances network security and protects the network by screening traffic from illegal MAC or IP addresses. ARP Spoofing Prevention prevents malicious intruders from sending massive fake ARP messages through a manipulated source. This protects important data from being stolen by Man-in-the-Middle attacks, and prevents wasting CPU cycles on these packets. For added security, the DHCP Server Screening feature blocks rogue DHCP server packets from user ports to prevent unauthorized IP assignment.

(DGS-1210-28)

Miscellaneous
Certifications & Standards
    • IEEE 802.3
    • IEEE 802.3u
    • IEEE 802.3ab
    • IEEE 802.3az
    • IEEE 802.3at
    • IEEE 802.3x
    • IEEE 802.3z
    • IEEE 802.1w
    • IEEE 802.1D
    • IEEE 802.3ad
    • IEEE 802.1p
    • FCC class A
    • CE Class A
    • VCCI Class A
    • IC Class A
    • cUL
    • LVD
    • CE
Network & Communication
Layer Supported2
Management & Protocols
Management
    • Web-Based Management
    • Command Line Interface
    • SNMP
    • RMON
    • Syslog
    • Telnet
    • VLAN
    • QoS
    • MIB
ManageableYes
I/O Expansions
Expansion Slot TypeSFP
Number of Total Expansion Slots4
Number of SFP Slots4
Memory
Flash Memory16 MB
Standard Memory128 MB
Memory TechnologyDDR2 SDRAM
Physical Characteristics
Form FactorRack-mountable
Desktop
Compatible Rack Unit1U
Interfaces/Ports
Token Ring PortNo
LRE PortNo
Number of Network (RJ-45) Ports24
ModularNo
BypassNo
Total Number of Network Ports24
Port/Expansion Slot Details24 x Gigabit Ethernet Network
4 x Gigabit Ethernet Expansion Slot
Media & Performance
Network Technology1000Base-X
10/100/1000Base-T
Ethernet TechnologyGigabit Ethernet
Media Type SupportedOptical Fiber
Twisted Pair
Power Description
Input Voltage220 V AC
110 V AC
Power SourcePower Supply
PoE (RJ-45) PortNo
Redundant Power Supply SupportedNo
General Information
Product TypeEthernet Switch
Manufacturer Part NumberDGS-1210-28
Manufacturer Website Addresshttp://www.dlink.com.au
ManufacturerD-Link Systems, Inc
Product ModelDGS-1210-28
Product NameWebSmart DGS-1210-28 Ethernet Switch
Product LineWebSmart
Product SeriesDGS-1210
Brand NameD-Link
SKU DGS-1210-28
Barcode # 790069373008
Brand D-LINK
Shipping Weight 3.0000kg
Shipping Width 0.070m
Shipping Height 0.490m
Shipping Length 0.250m
Shipping Cubic 0.008645000m3

Manufacturer Warranty
12 Months Limited Warranty
Manufacturer Contact Info
1300 766 868

Be The First To Review This Product!

Help other Device Deal users shop smarter by writing reviews for products you have purchased.

Write a product review

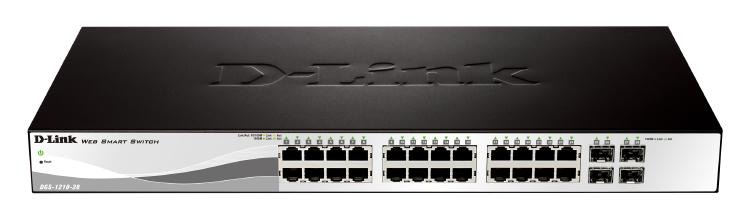

D-LINK DGS-1210-28 Gigabit WebSmart Switch

28 Ports WebSmart Switch with 24 UTP and 4 SFP Ports
