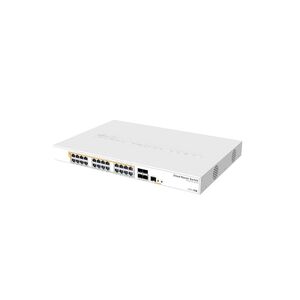

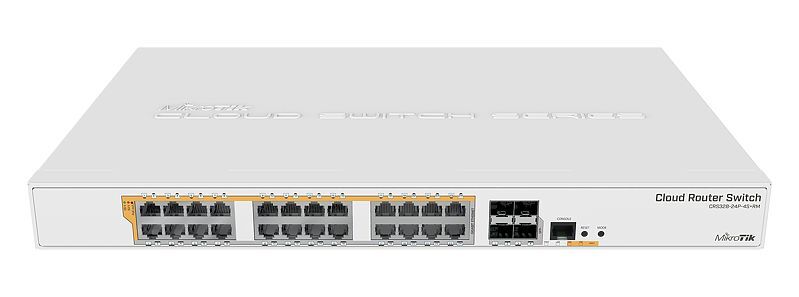

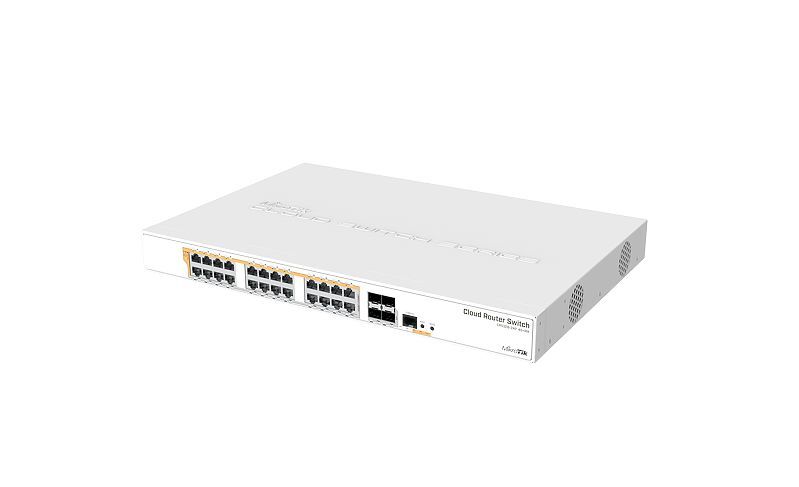

MikroTik CRS328-24P-4S+RM 500W 24 PoE+ Gigabit Ethernet 4 SFP+ ports Rack Mount CRS328-24P-4S+RM is a 28 independent port switch, it has 24 Gigabit Ethernet ports, which offer different power output options: Passive PoE, low voltage PoE, 802.3af/at (Type 1 “PoE” / Type 2 “PoE+”) with auto-sensing. PoE-Out is passed over mode B pins (4,5+)(7,8-). The four SFP+ ports provide up to 10 Gbps connectivity options via either optical fibre or Ethernet modules (not included).CRS328-24P-4S+RM comes in a 1U rackmount case with 100-240 V AC 500 W power supply built-in. The device consumes up to 44 W leaving guaranteed 450 W (3x150 W per every 8 Ethernet ports) to power your PoE devices. Each port can provide up to 30 W of power with any power output option you choose.The device has a “Dual boot” feature that allows you to choose between two operating systems - RouterOS or SwOS. If you prefer to have a simplified operating system with only switch specific features, use SwOS. If you would like the ability to use routing and other Layer 3 features in your CRS, use RouterOS. You can select the desired operating system from RouterOS, from SwOS or from the RouterBOOT loader settings. All the feature set comes with disruptive price, providing best price/performance on the market.

Switching features:

• Non-blocking Layer 2 switching capacity • 16K host table • IEEE 802.1Q VLAN • Supports up to 4K simultaneous VLANs • Port isolation • Port security • Broadcast storm control • Port mirroring of ingress/egress traffic • STP / RSTP / MSTP • Access Control List • MikroTik neighbor discovery • SNMP • 10218-byte jumbo frames support • IGMP snooping • IEEE 802.3ad and static link aggregation

Quick specifications:

24 Gigabit Ethernet ports • 4 SFP+ ports • RJ45 serial console port • Non-Blocking throughput: 64 Gbps • Switching capacity: 128 Gbps • Forwarding rate: 95.2 Mpps • Maximum power consumption: 44 W (without PoE devices connected) • Supports PoE+ IEEE 802.3at/af and 26 V Passive PoE) • Temperature based fan control • 1U rackmount • Selectable power output per port (26 / 53 V)

CRS328-24P-4S+RM is a 28 independent port switch, it has 24 Gigabit Ethernet ports, which offer different power output options: Passive PoE, low voltage PoE, 802.3af/at (Type 1 “PoE” / Type 2 “PoE+”) with auto-sensing. PoE-Out is passed over mode B pins (4,5+)(7,8-). The four SFP+ ports provide up to 10 Gbps connectivity options via either optical fiber or Ethernet modules (not included).

CRS328-24P-4S+RM comes in a 1U rackmount case with 100-240 V AC 500 W power supply built-in. The device consumes up to 44 W leaving guaranteed 450 W (3x150 W per every 8 Ethernet ports) to power your PoE devices. Each port can provide up to 30 W of power with any power output option you choose.

The device has a “Dual boot” feature that allows you to choose between two operating systems - RouterOS or SwOS. If you prefer to have a simplified operating system with only switch specific features, use SwOS. If you would like the ability to use routing and other Layer 3 features in your CRS, use RouterOS. You can select the desired operating system from RouterOS, from SwOS or from the RouterBOOT loader settings. All the feature set comes with disruptive price, providing best price/performance on the market.

Specifications:DetailsProduct codeCRS328-24P-4S+RMArchitectureARM 32bitCPU98DX3236CPU core count1CPU nominal frequency800 MHzDimensions443 x 300 x 44 mmLicense level5Operating SystemRouterOS / SwitchOSSize of RAM512 MBStorage size16 MBStorage typeFLASHTested ambient temperature-20°C to 60°C Powering:DetailsNumber of AC inputs1AC input range100-240Max power consumption494 WMax power consumption without attachments44 W PoE-out:DetailsPoE-out portsEther1-Ether24PoE out802.3af/atMax out per port output (input < 30 V)1000 mAMax out per port output (input > 30 V)450 mAMax total out (A)20 A Ethernet:Details10/100/1000 Ethernet ports24 Fiber:DetailsSFP+ ports4 Peripherals:DetailsSerial portRJ45 Other:DetailsCPU temperature monitorYesPCB temperature monitorYesMode buttonYes
