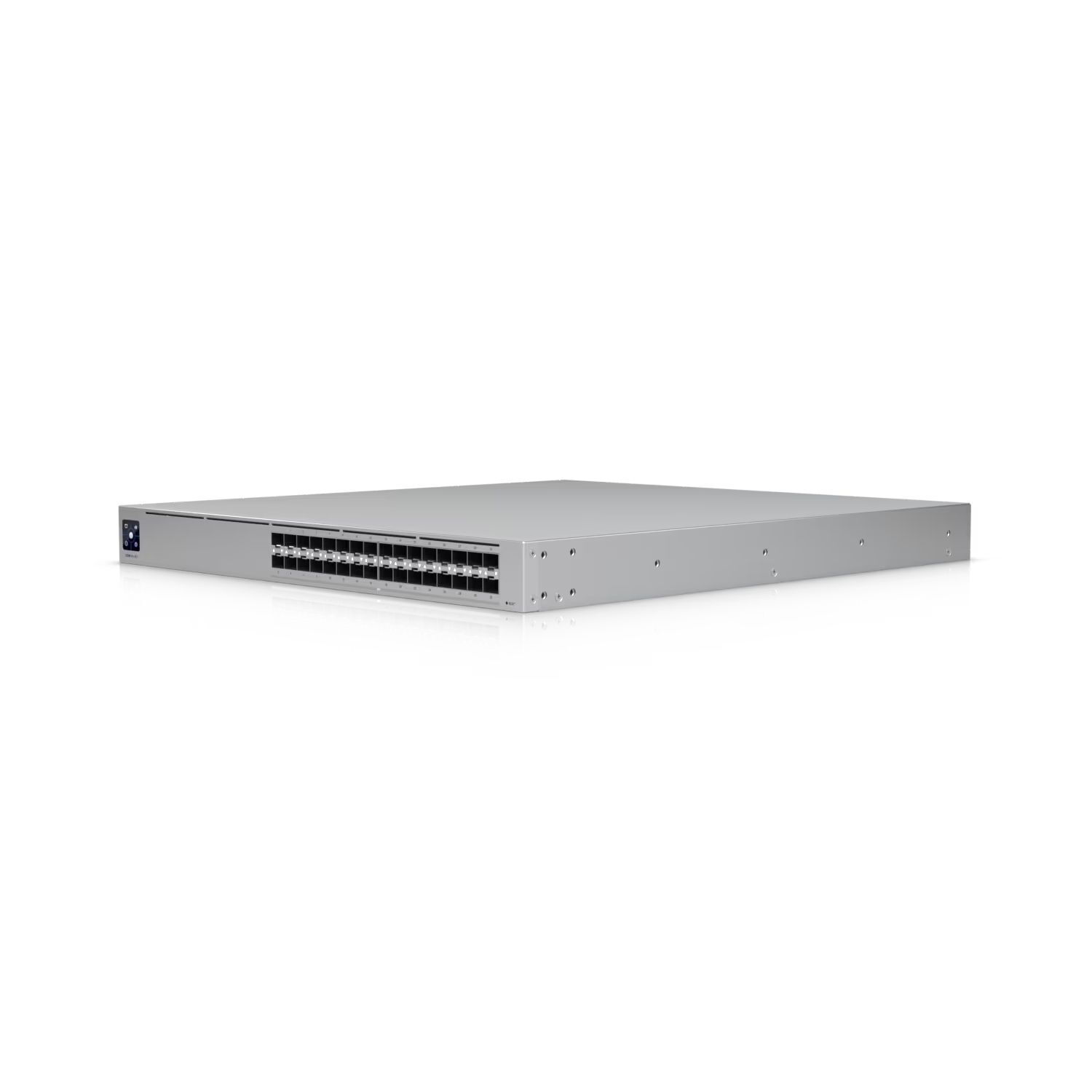

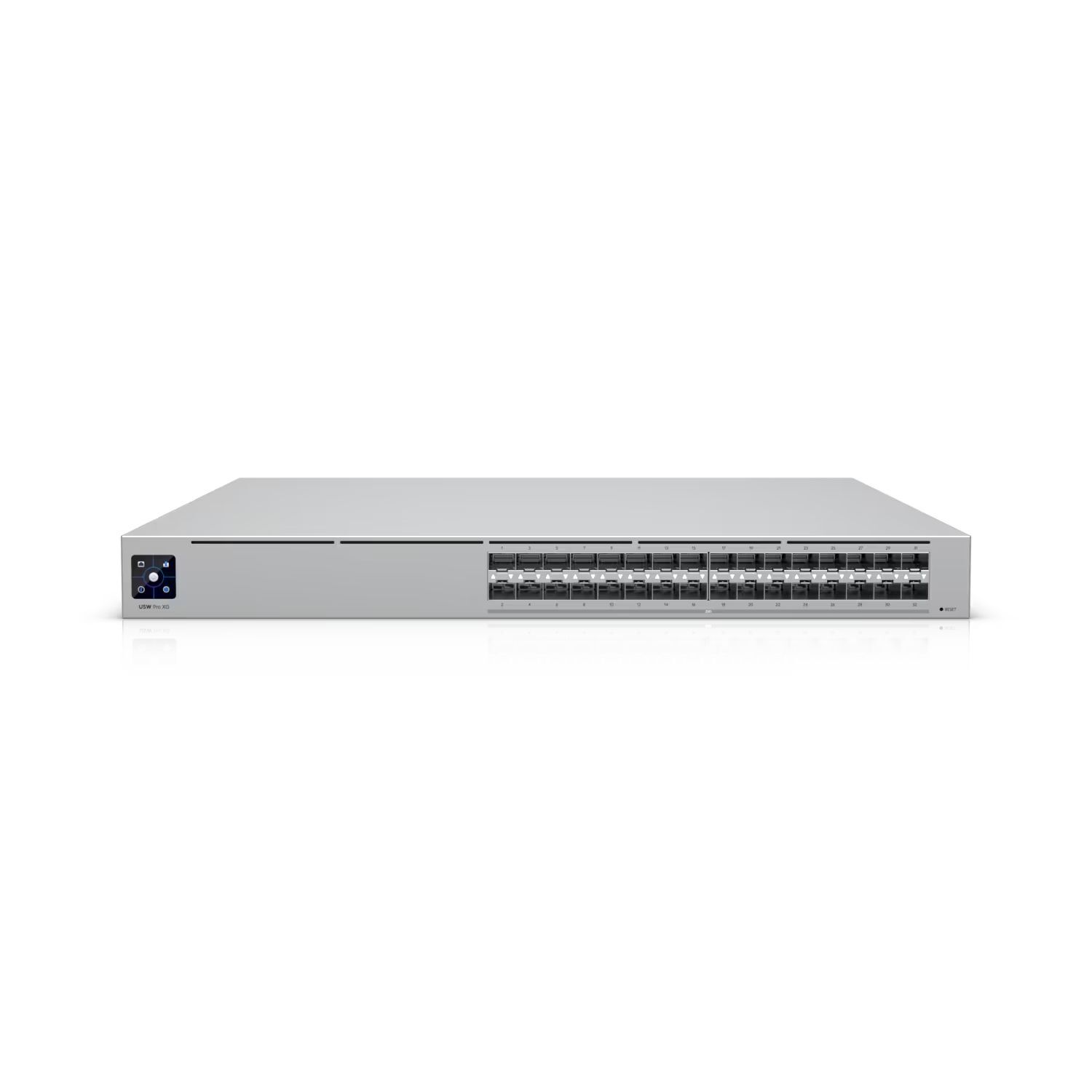

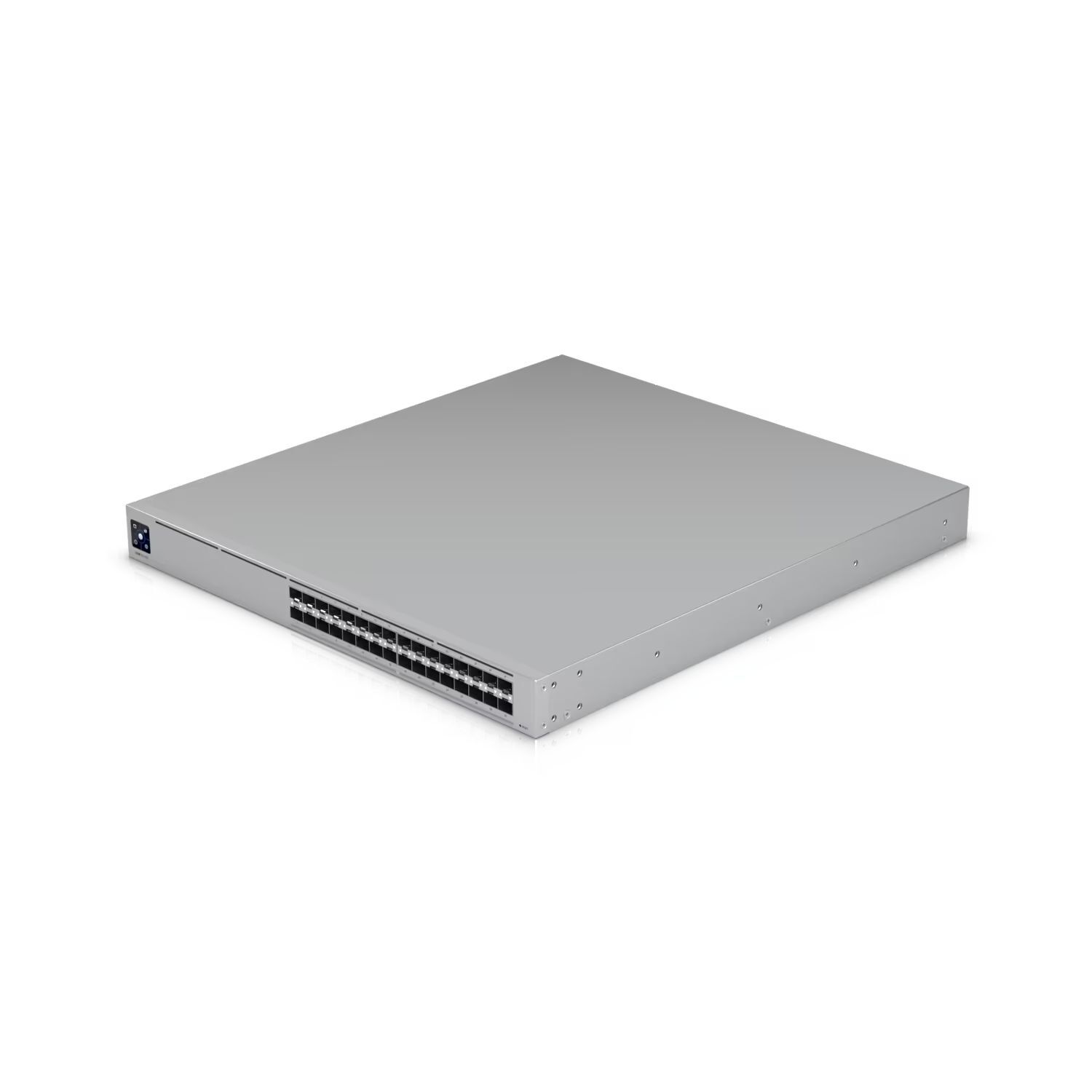

Professional-grade 32-port, Layer 3 Etherlighting™ switch for high-capacity 25G SFP28 connections.



(USW-Pro-XG-Aggregation)

General Information

Feature Description
Dimensions 442.4 x 43.7 x 480 mm (17.4 x 1.7 x 18.9")
Form Factor Rack Mount (1U)
Port Layout 25G SFP28 x 32 (25G/10G/1G)
Redundancy DC Power Backup
Etherlighting™ ✓

Performance

Feature Description
Switching Capacity 1.6 Tbps
Total Non-Blocking Throughput 800 Gbps
Forwarding Rate 1.2 Bpps
Supported VLANs 1,000
MAC Address Table Size 32,000
ARP Entries 128,000
IPv4 Routes 256,000
Packet Buffer Size 8 MB

Layer 3 Features

Feature Supported
DHCP Server (Local Networks) ✓
DHCP Relay ✓
Inter-VLAN Routing (Local Networks) ✓
Static Routing (Local Networks) ✓

Layer 2 Features

Feature Supported
LACP Port Aggregation ✓
STP & RSTP ✓
Advanced IGMP Configuration ✓
IGMP Snooping ✓
802.1X Control ✓
MAC-Based ACLs & Device Isolation ✓
DHCP Snooping & Guarding ✓
Egress Rate Limit ✓
Flow Control ✓
Storm Control ✓
Multicast & Broadcast Rate Limiting ✓
MAC Address Blocking ✓
IP-Based ACLs & Network Isolation ✓
MAC-Based Port Restriction ✓
Port Isolation ✓
Port Mirroring ✓
Jumbo Frames ✓
LLDP-MED ✓
Voice VLAN ✓
Loop Protection ✓

Hardware & Power

Feature Description
Max. Power Consumption 200W
Power Method (1) Universal input (100–240V AC, 50/60 Hz), (1) USP RPS DC
Power Input Method AC input
Power Supply AC/DC, internal, 200W
Supported Voltage Range 100–240V AC

Physical & Environmental

Feature Description
Weight 7 kg (15.4 lb)
Enclosure Material SGCC steel
Mount Material SGCC steel
Supported Rack Depth 482.6 mm (19") four-post racks, 600–1,066 mm (23.6–42")
LCM Display 1.3" touchscreen
ESD/EMP Protection Air: ±12kV, Contact: ±8kV
Ambient Operating Temperature -5 to 40°C (23 to 104°F)
Ambient Operating Humidity 10 to 90% noncondensing

Connectivity & Certifications

Feature Description
Etherlighting™ SFP28 ✓
LEDs – RPS ✓
Certifications CE, FCC, IC
NDAA Compliant ✓



SKU USW-Pro-XG-Aggregation
Barcode # 810177162926
Brand UBIQUITI
Shipping Weight 7.0000kg

Manufacturer Warranty : 1 Year Manufacturer Warranty

Be The First To Review This Product!

Help other Device Deal users shop smarter by writing reviews for products you have purchased.

Write a product review

Ubiquiti Pro XG Aggregation, Professional-grade 32-port, Layer 3 Etherlighting Switch For High-capacity 25G SFP28 Connections.

Model # USW-Pro-XG-Aggregation

  • SKU: USW-Pro-XG-Aggregation

$4,148.00
In Stock
