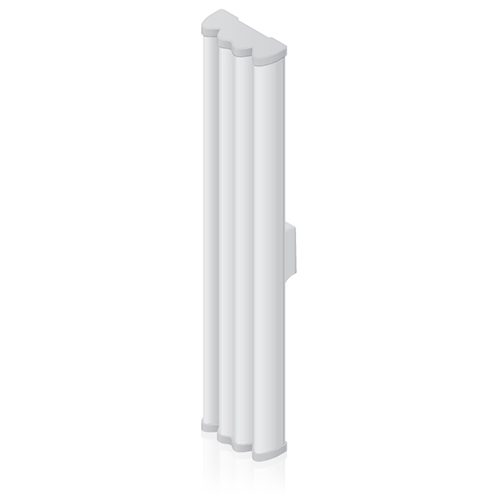

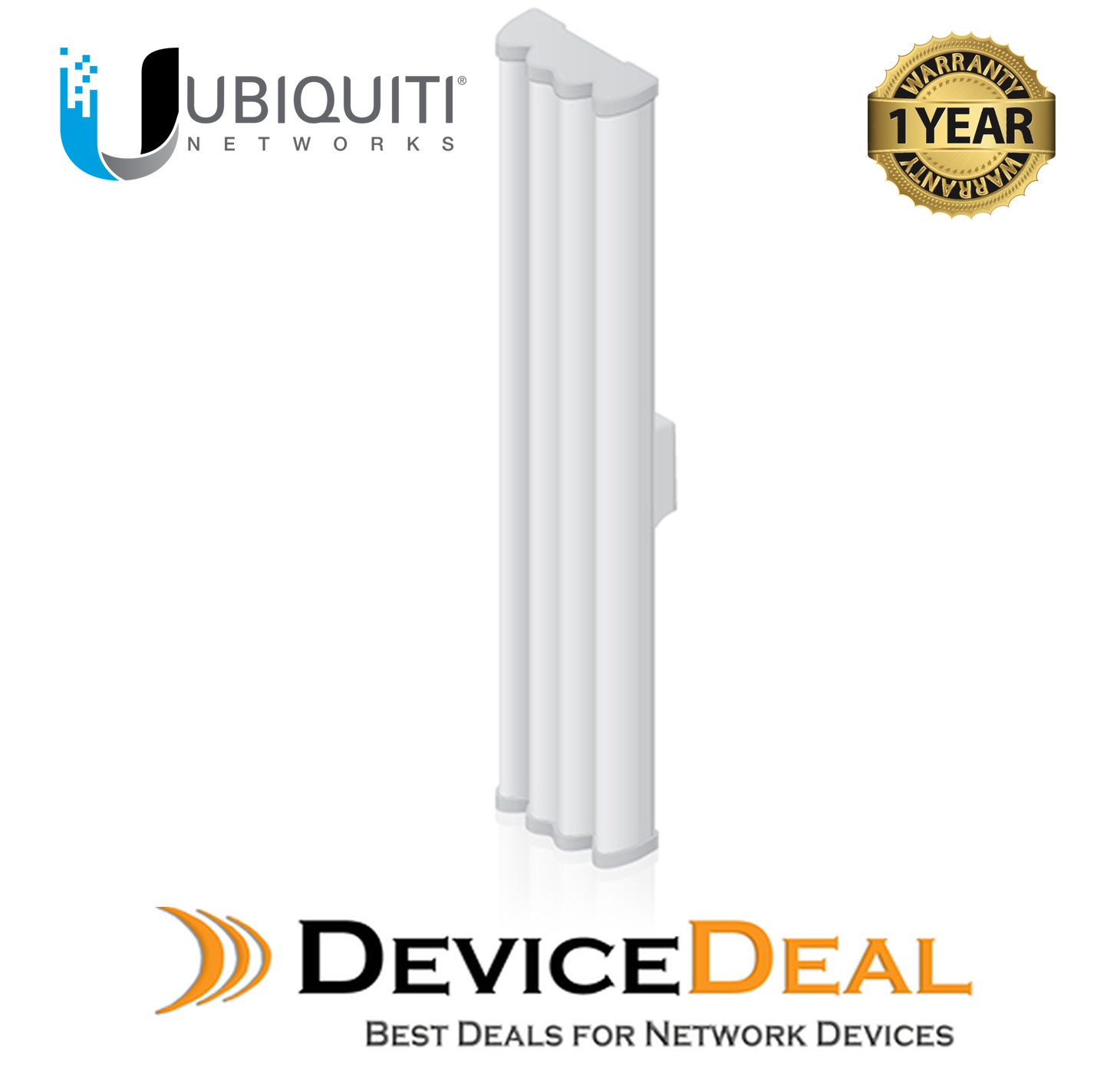

A 5 GHz airMAX 2x2 dual-polarity sector antenna with focused 90 deg coverage, 19.4-20.3 dBi gain and included mounting hardware for compatible Rocket radios.
The AM-5G20-90 provides a narrower sector pattern with high gain and dual-polarity performance for compatible point-to-multipoint networks.
90 deg sector coverage
The antenna provides a focused 90-degree sector pattern.
19.4-20.3 dBi gain
Gain ranges from 19.4 to 20.3 dBi.
5.15-5.85 GHz operation
The frequency range is 5.15 to 5.85 GHz.
Dual-linear polarisation
Dual-linear polarisation supports 2x2 operation.
28 dB cross-polarisation isolation
Minimum cross-polarisation isolation is 28 dB.
Rocket radio integration
A compatible Rocket radio bracket is included.
Universal pole mount
Pole-mount hardware is included.
Weatherproof RF jumpers
Weatherproof RF jumper cables are included.
i
Radio compatibility
This is a passive antenna. A compatible Rocket radio is required.
1 YearUbiquiti manufacturer warranty
Authorised reseller & manufacturer warranty
Purchase with confidence from DeviceDeal, an authorised Ubiquiti reseller. The Ubiquiti AM-5G20-90 is backed by a 1-year Ubiquiti manufacturer warranty, with support provided in accordance with Ubiquiti's warranty terms and conditions.
Frequently asked questions
Helpful answers for the Ubiquiti AM-5G20-90.
What is the Ubiquiti AM-5G20-90?
It is a high-gain 5 GHz airMAX 2x2 sector antenna for compatible point-to-multipoint deployments.
What coverage angle does it provide?
The sector coverage is 90 degrees.
What gain is?
Gain ranges from 19.4 to 20.3 dBi.
Which frequency range is supported?
It operates from 5.15 to 5.85 GHz.
Is mounting hardware included?
Yes. A universal pole mount, Rocket radio bracket and weatherproof RF jumper cables are included.
Is a radio included?
This is a passive antenna; a compatible Rocket radio is required.
What warranty does the Ubiquiti AM-5G20-90 include?
The Ubiquiti AM-5G20-90 is backed by a 1 Year Ubiquiti manufacturer warranty. DeviceDeal is an authorised Ubiquiti reseller.
(AM-5G20-90)
Features and highlights
A 5 GHz airMAX 2x2 dual-polarity sector antenna with focused 90 deg coverage, 19.4-20.3 dBi gain and included mounting hardware for compatible Rocket radios.
✓
90 deg sector coverage
The antenna provides a focused 90-degree sector pattern.
✓
19.4-20.3 dBi gain
Gain ranges from 19.4 to 20.3 dBi.
✓
5.15-5.85 GHz operation
The frequency range is 5.15 to 5.85 GHz.
✓
Dual-linear polarisation
Dual-linear polarisation supports 2x2 operation.
✓
28 dB cross-polarisation isolation
Minimum cross-polarisation isolation is 28 dB.
✓
Rocket radio integration
A compatible Rocket radio bracket is included.
✓
Universal pole mount
Pole-mount hardware is included.
✓
Weatherproof RF jumpers
Weatherproof RF jumper cables are included.
Key product facts
90 deg : Sector coverage
20.3 dBi: Maximum gain
28 dB: Minimum cross-pol
5.9 kg: Product weight
Radio compatibility: This is a passive antenna. A compatible Rocket radio is required.
Technical specifications
Product specifications for Ubiquiti model AM-5G20-90.
Product details
Brand
Ubiquiti
Model / SKU
AM-5G20-90
Product type
5 GHz 2x2 sector antenna
Network topology
Point-to-multipoint
RF performance
Frequency range
5.15-5.85 GHz
Gain
19.4-20.3 dBi
Sector coverage
90 deg
Polarisation
Dual-linear
Minimum cross-polarisation isolation
28 dB
Physical
Dimensions
700 x 135 x 70 mm
Product weight
5.9 kg
Included mounting
Pole mount
Universal pole mount
Radio bracket
Rocket radio bracket
RF cables
Weatherproof RF jumper cables
Warranty
Manufacturer warranty
1 year Ubiquiti manufacturer warranty
Authorised reseller
DeviceDeal
SKU
AM-5G20-90
Barcode #
810354020926
Brand
Ubiquiti
Shipping Weight
4.2500kg
Shipping Width
0.195m
Shipping Height
0.157m
Shipping Length
0.896m
Shipping Cubic
0.027431000m3
