Teltonika PR1KC647 5G MuMiMo (4x4) Low Profile Mobile Antenna
Model # PR1KC647
-
SKU: PR1KC647
- Pick Up Available
- Australian Warranty
- Checkout Securely
Teltonika 5G MuMiMo (4x4) Low Profile Mobile Antenna
Key Features
-
Suitable for 4G & 5G Networks
-
4x4 MuMiMo
-
Low profile 57mm height
-
IP67 Rated
-
M27 stud offers ease of installation in the field
Usage
-

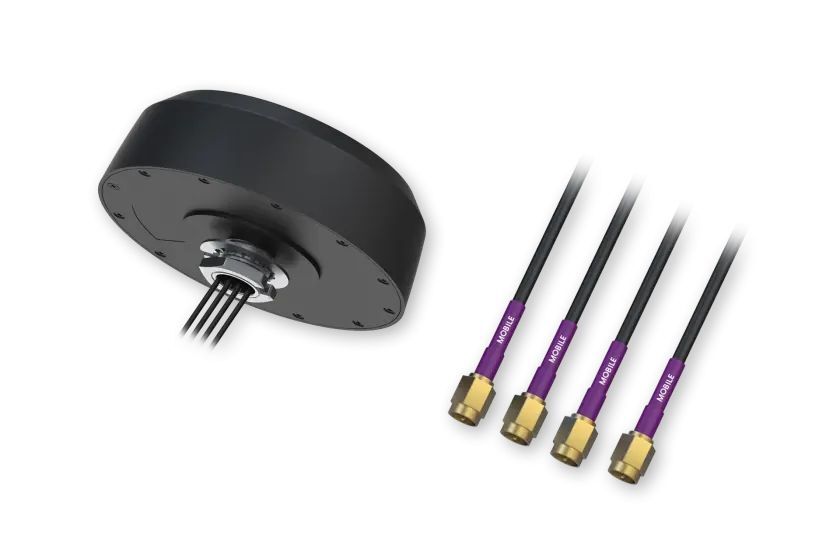

The PR1KC647 incorporates 4 antennas in a single, ruggedised low profile housing.
-
With a MuMiMo 4x4 5G/4G/3G antenna covering all cellular bands which provides increase data speed.
-
The main applications are for industrial vehicles, M2M and other IoT using a range of radio technologies.
-
For industries such as commercial vehicle telematics, remote monitoring, smart meter systems and construction equipment, the PR1KC647 provides a robust, antenna that is durable
(PR1KC647)
| Network Compatibility |
|
|
|---|---|---|
| Telstra 4GX (700MHz) |
 |
|
| Optus 4G+ (700MHz) |
|
4dBi |
| Telstra Next-G™ (850MHz) |
|
4dBi |
| Vodafone 4G+ (850MHz) |
|
4dBi |
| Optus Regional 3G (900MHz) |
|
4dBi |
| Vodafone Regional 3G (900MHz) |
|
4dBi |
| Telstra/Optus/Vodafone 4G (1800MHz) |
|
4dBi |
| All carriers - Urban/Metro 3G/4G (2100MHz) |
|
4dBi |
| 802.11 b/g/n WiFi (2400MHz) |
|
4dBi |
| Telstra Metro 4GX (2600MHz) |
|
4dBi |
| Metro 4GX (2600MHz) | |
4dBi |
| 5G N78 (3500/3600MHz) | |
4dBi |
Electrical Specifications
-
Cellular Frequency Range: 600-1400MHz /1400-6000MHz
-
Input Impedance: 50Ω
-
Power Rating: 10W
-
Cellular VSWR: <3:4
-
Polarisation: Vertical
-
Radiation: Omnidirectional
Mechanical/Environmental Specifications
-

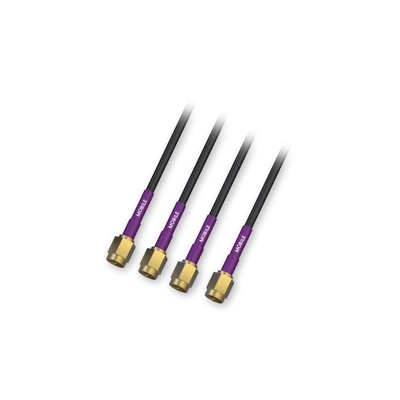

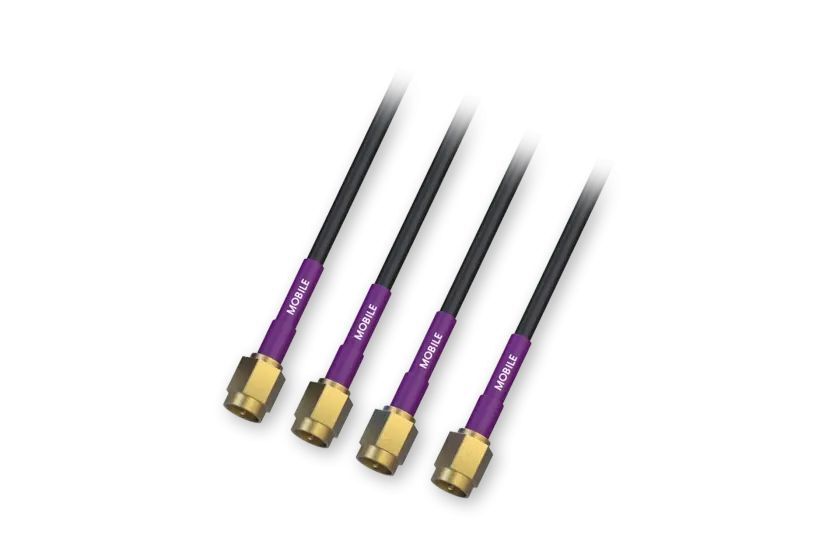

Cellular Cable: 3m ALS302
-
Connector: SMA Male
-
Operating Tempreature: -40°C to +85°C
-
Weight: 701g
-
Dimensions: 167ø x 157 mm
-
Mounting: Panel Mount - Hole ø28 mm, panel thickness MAX 21mm
| SKU | PR1KC647 |
| Brand | Teltonika |
| Shipping Weight | 0.5000kg |
